Product Overview

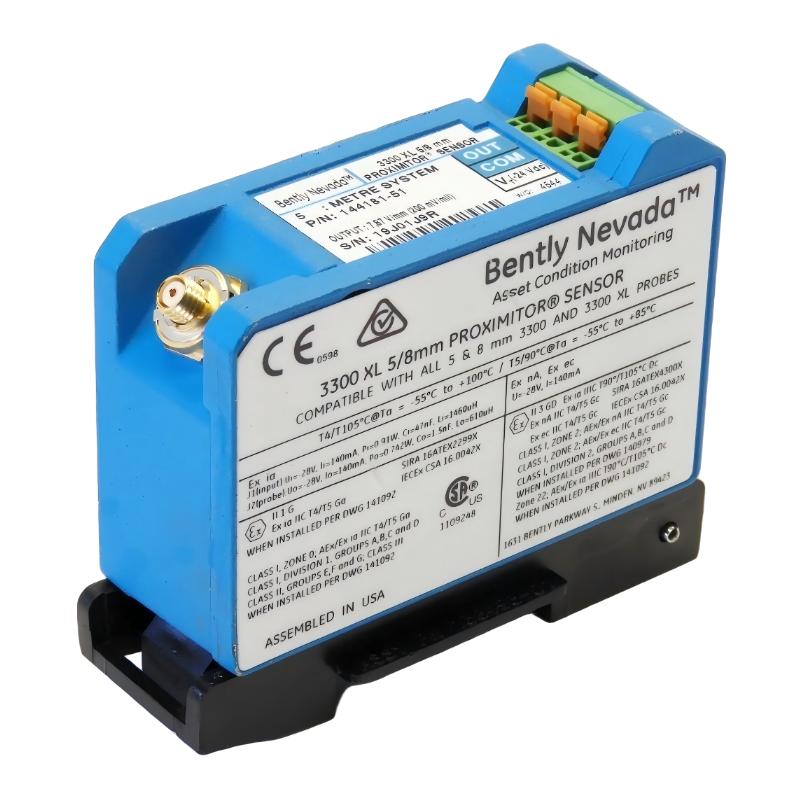

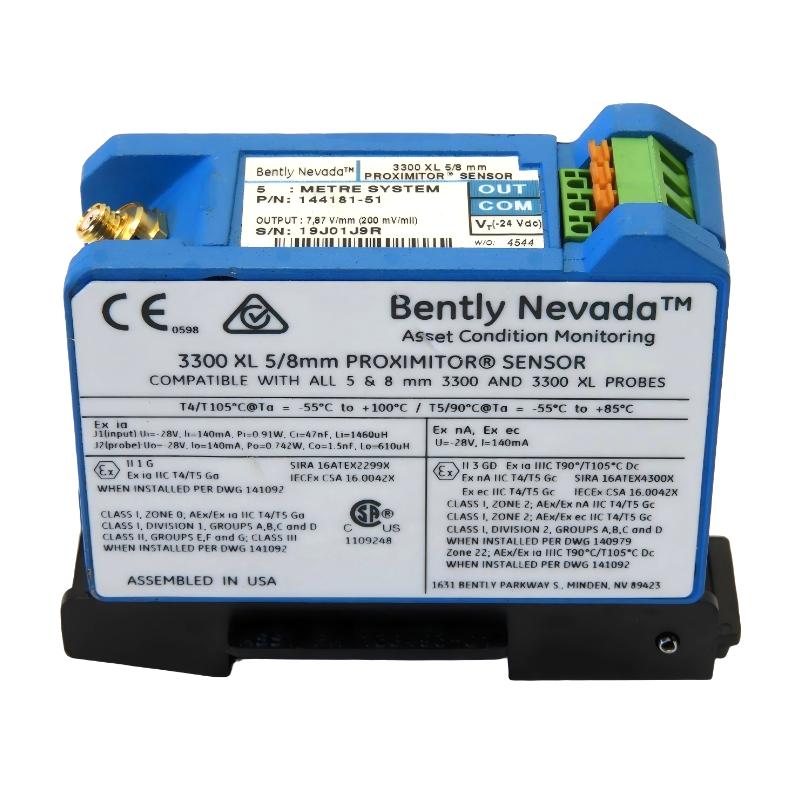

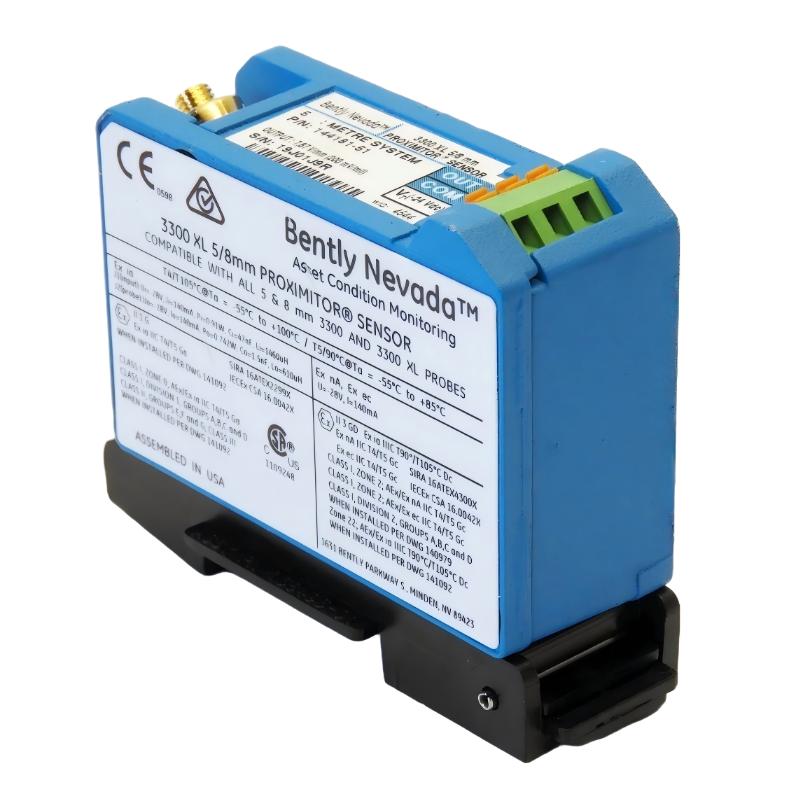

The Bently Nevada 144181-51 3300 XL 5/8mm Proximity Sensor is a high-performance eddy current sensor designed for non-contact measurement of shaft vibration and position. Its flexible compatibility with both 5 mm and 8 mm probes makes it suitable for a wide range of industrial applications.
As part of the 3300 XL series, it delivers reliable and stable signal output, supporting accurate condition monitoring and early fault detection. Its compact and robust design ensures dependable performance even in harsh industrial environments.
This sensor plays a critical role in predictive maintenance strategies, helping industries reduce downtime and extend equipment life.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 144181-51 |
| Product Series | 3300 XL |
| Module Type | Proximity Sensor |
| Probe Compatibility | 5 mm / 8 mm |
| Measurement Type | Eddy Current (Non-contact) |
| Output Signal | Analog |
| Target Material | Conductive Metals |
| System Compatibility | 3300 XL Monitoring Systems |
| Operating Temperature | 0°C to 100°C (typical) |

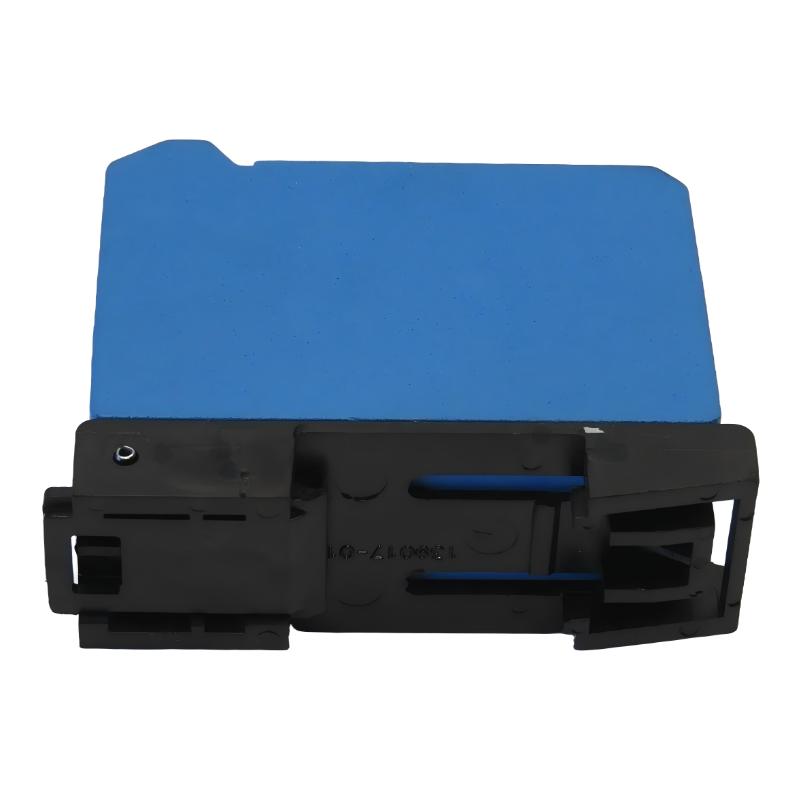

| Mounting | Panel / System Integration |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg (0.54 lb) |
Application Insights Across Rotating Machinery
The 3300 XL 5/8mm Proximity Sensor is specifically developed for high-precision shaft vibration and position monitoring in industrial rotating equipment. Its dual compatibility with 5 mm and 8 mm probe systems makes it a versatile solution for various machinery configurations.
It is commonly applied in:
-
Steam and gas turbines requiring continuous vibration analysis
-
Compressors in oil & gas facilities for shaft displacement monitoring
-
Electric motors in power generation and heavy industries
-
Pumps and fans where alignment and stability are critical
-
Gear-driven systems requiring precise shaft position feedback
-
Industrial plants implementing predictive maintenance programs
By delivering consistent and accurate measurements, it enhances machinery protection and operational reliability.
Performance Characteristics & Benefits
Dual Probe Compatibility
Supports both 5 mm and 8 mm probe configurations, increasing system flexibility.
High Measurement Accuracy
Ensures precise detection of shaft vibration and position changes.
Stable Signal Transmission
Maintains consistent output even in dynamic operating conditions.
Strong Environmental Adaptability
Designed to function reliably under vibration, temperature changes, and electrical noise.
Seamless Integration
Fully compatible with Bently Nevada 3300 XL monitoring systems.
Technical FAQs
-
What is the main function of this proximity sensor?
It measures shaft vibration and displacement in rotating machinery.
-
What does 5/8 mm refer to?
It indicates compatibility with both 5 mm and 8 mm probe systems.
-
Is it suitable for continuous monitoring?
Yes, it is designed for real-time condition monitoring applications.
-
What type of output signal is provided?
It generates an analog signal proportional to displacement.
-
Can it be used in high-speed machinery?
Yes, it is ideal for high-speed rotating equipment.
-
How does it perform in noisy environments?
It includes shielding for reliable operation in EMI-heavy conditions.
-
Does it require calibration?
Yes, calibration ensures accurate measurement and system performance.
-
What materials can it measure?
It is optimized for conductive metals such as steel shafts.
-
Is it compatible with existing 3300 XL systems?
Yes, it integrates seamlessly with 3300 XL monitoring infrastructure.
-
Can it be used in safety-critical applications?
Yes, it is widely used in machinery protection systems.
