Introduction

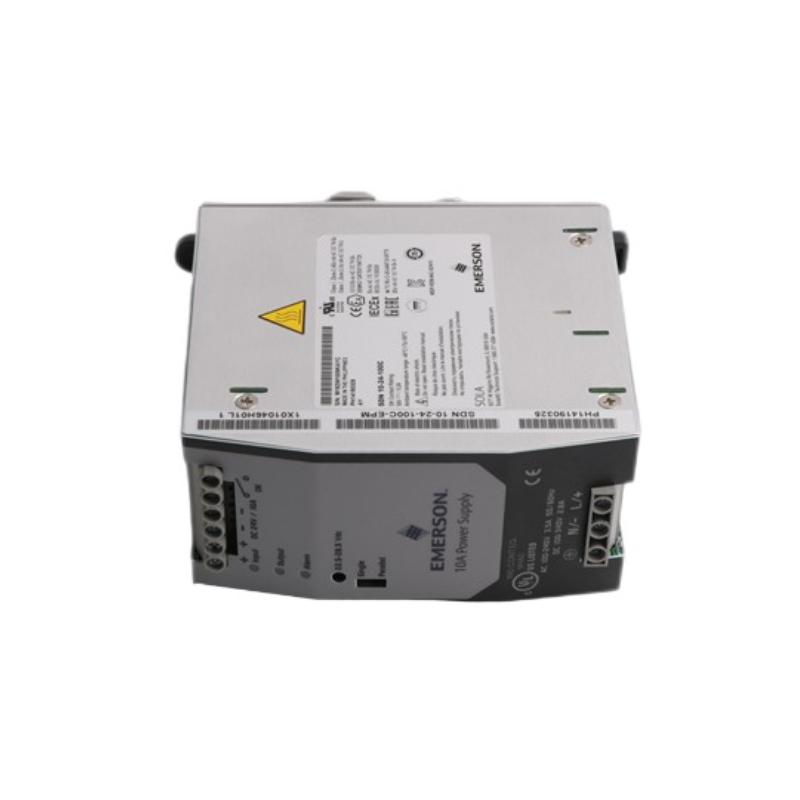

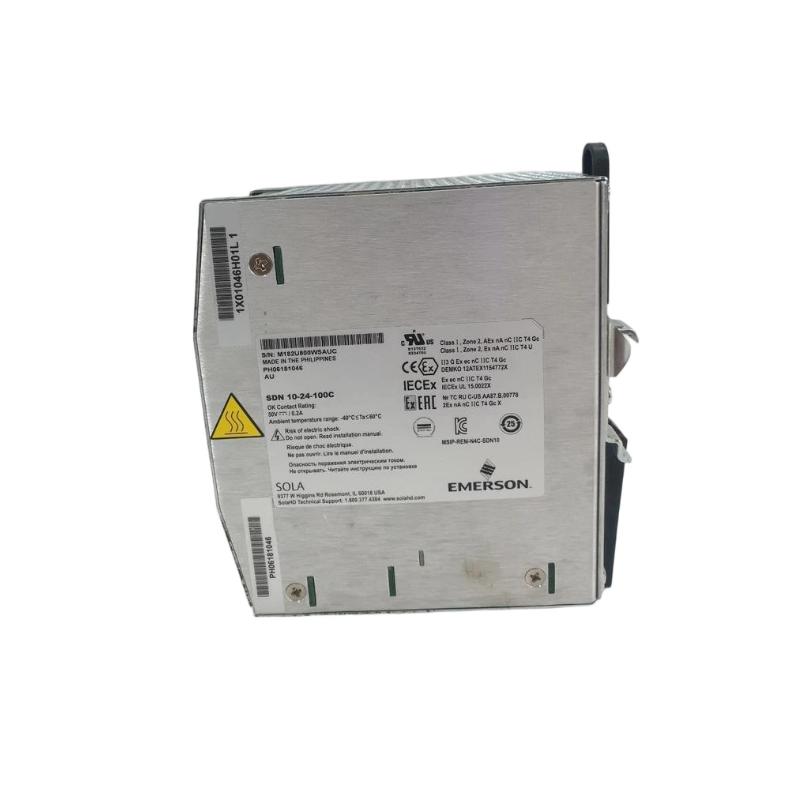

The Ovation 1X01046H01L Power Module is a critical electrical supply component within the Emerson Ovation Distributed Control System (DCS). Designed to deliver clean, stable DC power to Ovation I/O racks and controller chassis, this power module ensures consistent system operation and supports reliable performance across distributed automation networks.
Built for industrial control environments, the 1X01046H01L Power Module offers robust electrical protection, efficient power conversion, and long‑term durability. Its compact form factor and standardized mounting make it a dependable choice for power distribution in control rooms, substations, and process facilities where uptime and precision are paramount.
Technical Specifications
| Specification | Details |
|---|
| Model | 1X01046H01L |
| Manufacturer | Emerson Ovation |
| Product Type | Power Module |
| System Platform | Ovation Distributed Control System |
| Output Voltage | 24 V DC (nominal rack power) |
| Output Current | System dependent (rated per rack configuration) |
| Input Voltage | Typically 120–240 VAC or as specified by chassis |
| Input Frequency | 50/60 Hz |
| Power Conversion | AC to regulated DC |
| Efficiency | High efficiency conversion for stable supply |
| Protection Features | Overload, short‑circuit, and thermal protection |
| Mounting | Integrated chassis or rack‑mounted installation |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | ‑40 °C to +85 °C |
| Relative Humidity | 5–95 % non‑condensing |
| Enclosure Rating | Industrial grade |
| Dimensions | Standard Ovation power module form factor |
| Weight | Approx. 1.2–3.0 kg (configuration dependent) |
Applications
DCS Rack Power Supply
Serves as the primary DC power source for Ovation controller racks and I/O cabinets in industrial automation systems.
Power Generation Facilities
Used in thermal, hydro, and combined cycle power plants to support critical control system electronics.
Process Industry Automation
Supplies reliable power to distributed I/O modules and controllers in chemical, petrochemical, and refining applications.
Water & Wastewater Treatment Systems
Delivers dependable DC power to Ovation instrumentation and control equipment for treatment plant processes.
Infrastructure and Utility Control
Supports automation systems in large utility installations, ensuring consistent power for process monitoring and safety logic.
Advantages
Consistent Power Delivery
Provides regulated 24 V DC output for stable system operation, minimizing transient disturbances and supporting real‑time control loops.
Robust Protection Features
Integrated protection against overload, thermal stress, and short circuits enhances system reliability and safety.
Industrial‑Grade Performance
Engineered to withstand demanding control room environments, including wide temperature and humidity ranges.
Seamless System Integration
Designed to fit into standard Ovation racks and chassis, simplifying installation and maintenance.
High Conversion Efficiency
Efficient power conversion helps reduce heat buildup and improves overall system energy performance.
Technical FAQs
1. What does the 1X01046H01L Power Module do?
It provides regulated DC power to Ovation Distributed Control System racks and modules.
2. What is the nominal output voltage?
The module typically delivers 24 V DC for rack power distribution.
3. What input power does it accept?
It accepts standard AC input voltages (e.g., 120–240 VAC at 50/60 Hz) as dictated by system chassis design.
4. How is the module mounted?
It is installed within the Ovation rack or control chassis as part of the power distribution system.
5. What protection features are included?
It incorporates overload, short‑circuit, and thermal protection to safeguard the power supply and connected modules.
6. What environments can it operate in?
Designed for industrial control room conditions between 0 °C and 60 °C.
7. Does it support multiple modules?
Yes — it can supply power to multiple Ovation I/O and controller modules within a rack.
8. Why is regulated DC important?
Regulated DC ensures stable and predictable voltage for sensitive control electronics.
9. What industries commonly use this module?
Power generation, process automation, water treatment, and utility control systems.
10. Can the power module be replaced online?
Replacement procedures depend on the rack design; consult system documentation for hot‑swap capabilities.
