Introduction — High-Integrity Digital Output for Safety-Critical Control

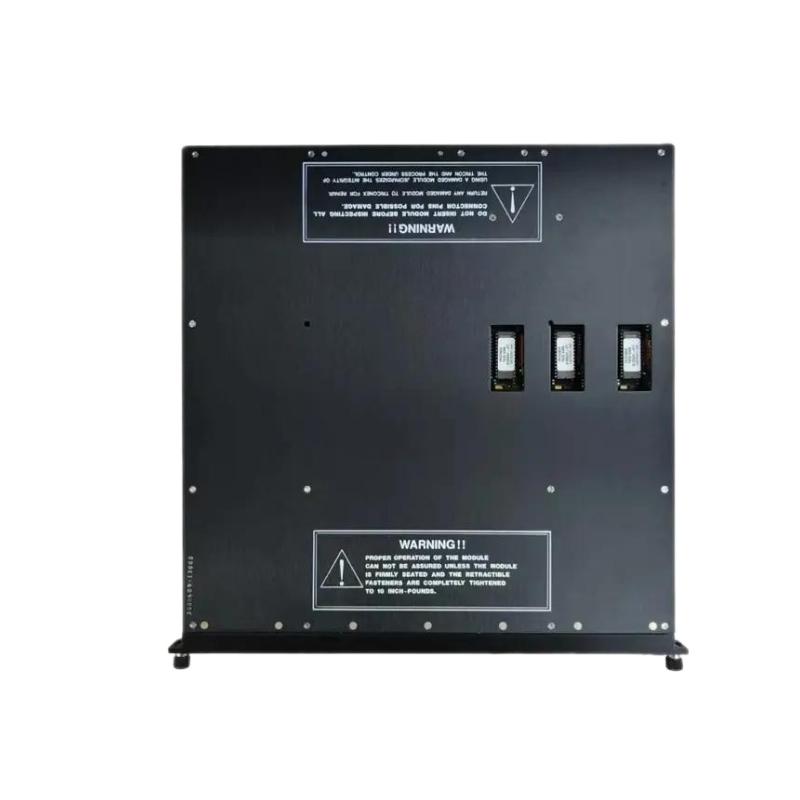

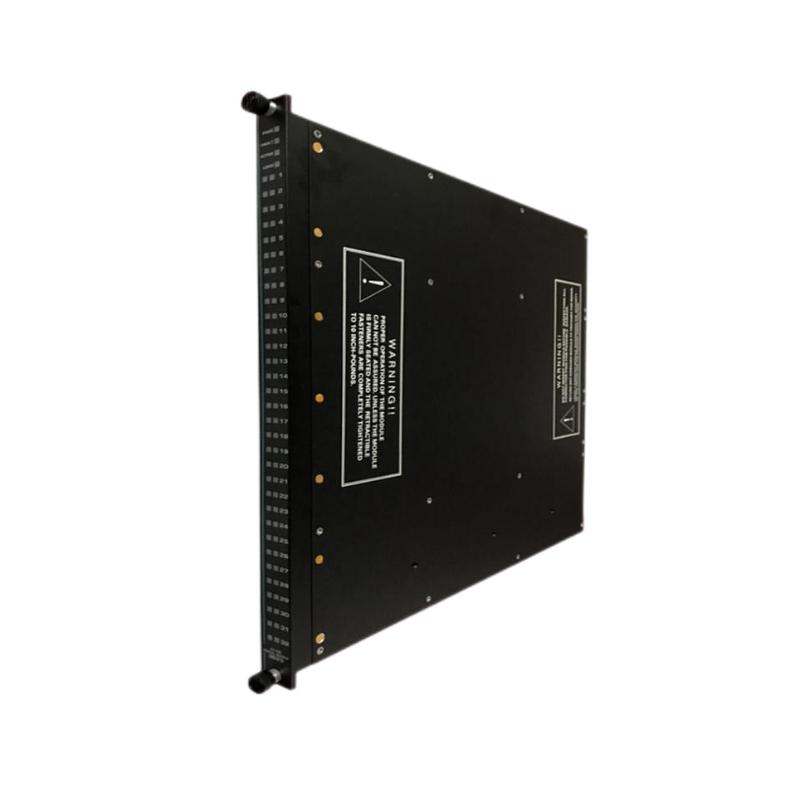

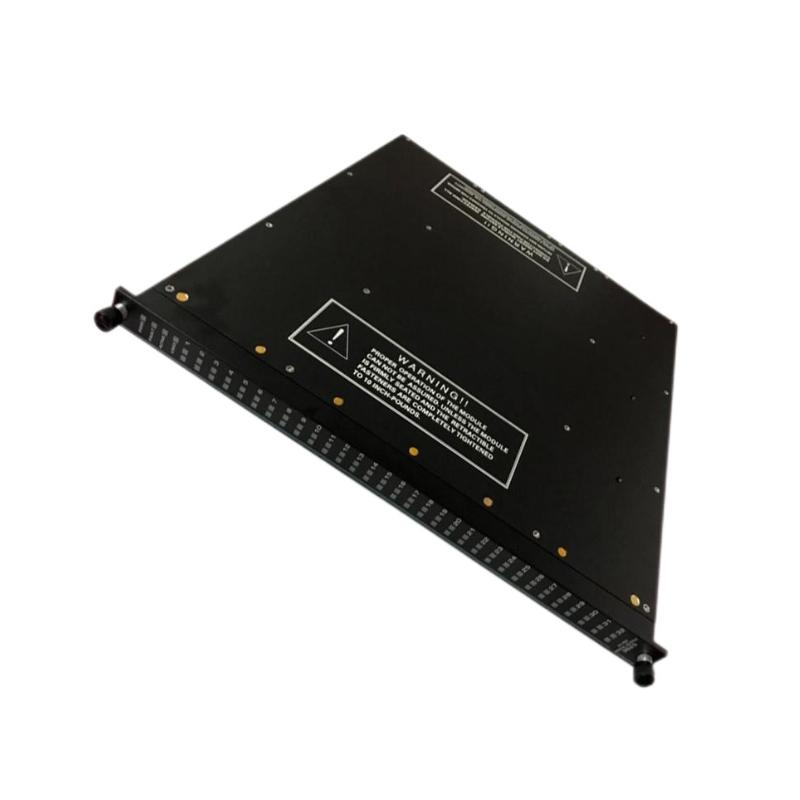

The Triconex 3624 Digital Output Module is engineered for environments where absolute reliability is non-negotiable. Purpose-built for the Tricon safety instrumented system (SIS), this module delivers rock-solid digital output performance for shutdown valves, relays, interlocks, and logic-driven safety actions.
Its architecture supports fault-tolerant operation, ensuring safe and deterministic output behavior even under extreme plant conditions. For facilities demanding continuous protection—such as oil & gas, chemicals, refining, or power generation—the 3624 brings unwavering confidence to every safety command.
Technical Specifications — Performance, Build & Physical Profile
| Specification | Description |
|---|---|
| Module Type | Digital Output Module |
| Model / Part Number | Triconex 3624 |
| Output Type | Discrete digital outputs |
| Number of Output Channels | 32 channels (redundant architecture support) |
| Output Voltage | Typically 24 VDC depending on system configuration |
| Output Drive Capability | Suitable for driving solenoids, relays, lamps, and interlock devices |
| Isolation | Channel-to-channel and channel-to-bus isolation |
| Self-Diagnostics | Continuous automatic fault detection & status reporting |
| Operating Temperature | –20 °C to +70 °C |
| Module Dimensions | Approx. 350 mm × 40 mm × 180 mm |
| Approximate Weight | ~0.85 kg |
| System Compatibility | Tricon v10 series and compatible racks |
| Installation Method | Hot-swappable, plug-in module |
