Introduction

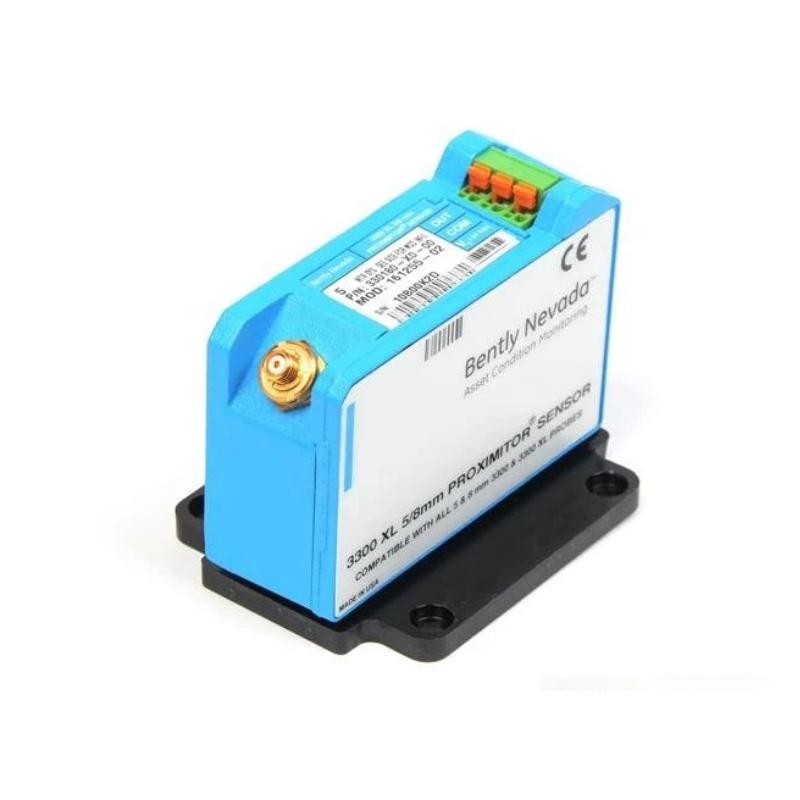

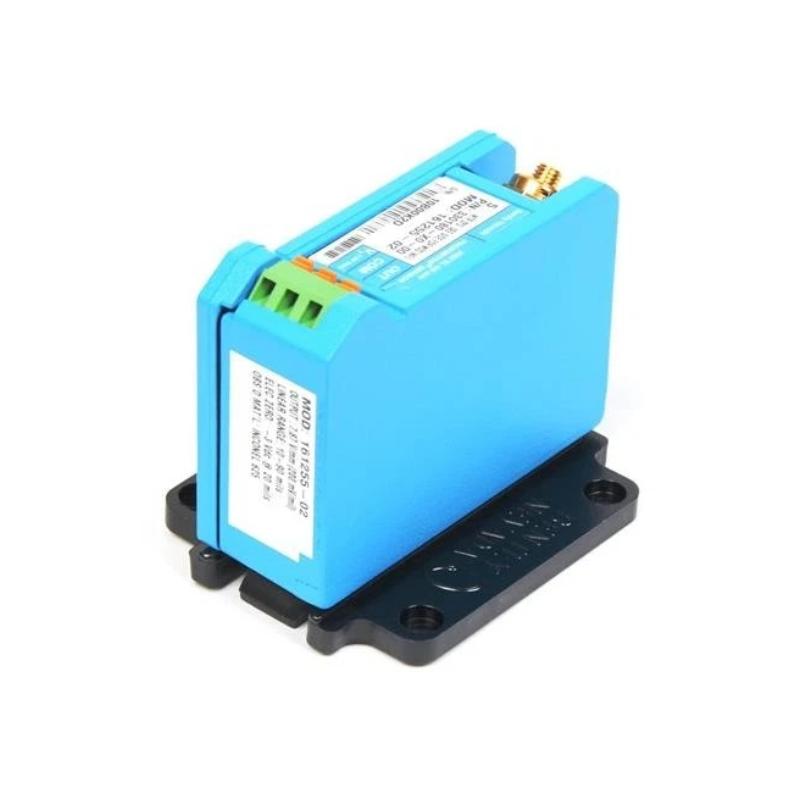

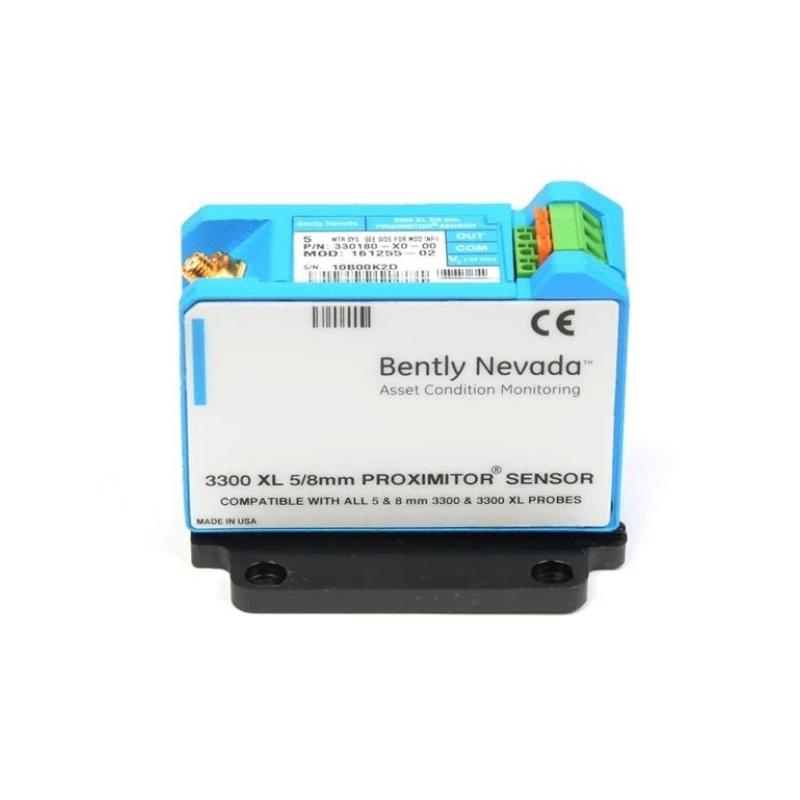

The Bently Nevada 330180-X0-00 285446 is a 3300 XL Proximitor Sensor designed for use with compatible 5 mm and 8 mm proximity probes. As the signal-conditioning component of an eddy-current proximity transducer system, it works with the probe and extension cable to convert changes in shaft-to-probe distance into a usable electrical output for machinery monitoring.
The 330180-X0-00 configuration is associated with a 5 m system length and panel-mount installation, making it particularly practical for conventional machinery-monitoring cabinets. Product descriptions identify this model as a 3300 XL Proximitor compatible with 5 mm and 8 mm probes and using a panel-mount configuration.
The additional identification 285446 is included as part of the product designation for this particular unit. When replacing an installed sensor, matching the complete identification is recommended rather than selecting a replacement solely by the base model number.
With its direct, non-contact sensing architecture, the 3300 XL system is well suited to monitoring shaft vibration, radial position, axial position, and rotational reference signals on critical rotating equipment. It offers a practical solution for turbines, compressors, pumps, motors, generators, and other machinery where reliable shaft-motion information is essential.
Technical Specifications
The 330180-X0-00 is the Proximitor Sensor, not the physical 8 mm probe. A complete proximity transducer system consists of the Proximitor Sensor, compatible probe, and extension cable.
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-X0-00 |
| Additional Identification | 285446 |
| Product Family | 3300 XL 5/8 mm Proximity Transducer System |
| Product Type | Proximitor Sensor |
| Mounting Configuration | Panel Mount |
| System Length | 5 m (16.4 ft) |
| Probe Compatibility | Compatible 3300 / 3300 XL 5 mm and 8 mm probes |
| Measurement Principle | Eddy-current, non-contact |
| Primary Measurements | Shaft vibration and shaft position |
| Typical Output Scale | 7.87 V/mm (200 mV/mil) |
| Linear Range | Approximately 0.2–1.5 mm (8–60 mils) |
| Nominal Test Gap | 1.27 mm (50 mils) |
| Supply Requirement | Approximately -17.5 to -26 Vdc without barriers |
| Maximum Current Consumption | Approximately 12 mA |
| Output Resistance | 50 Ω nominal |
| Housing Material | A308 aluminum |
| Approximate Sensor Weight | 246 g (8.67 oz) |
| Typical Complete System Weight | Approximately 0.7 kg (1.5 lb) |
| Approximate Mounting Dimension | 83.8 mm (3.30 in) |
| Installation | Industrial instrumentation panel |
Applications
Steam and Gas Turbines
The 330180-X0-00 can be integrated into turbine monitoring systems for continuous observation of shaft vibration and position. Direct rotor measurements are especially useful during startup, shutdown, load changes, and normal operating conditions.
Centrifugal Compressors
Compressor rotor dynamics can change as a result of imbalance, misalignment, bearing conditions, or operating changes. Proximity measurement provides direct shaft-motion information that can strengthen a machinery-monitoring strategy.
Pumps and Motors
Industrial pumps and motors can use shaft proximity measurements alongside casing vibration measurements. The additional information can help maintenance teams identify developing mechanical problems and track machine behavior over time.
Generators
Large generators and rotating electrical machines can benefit from direct shaft vibration and position measurement as part of a comprehensive machinery-protection system.
Fluid-Film Bearing Machinery
The 3300 XL 8 mm proximity system is particularly valuable on fluid-film-bearing machines because the sensor measures the shaft directly rather than relying only on casing movement.
Speed and Keyphasor Applications
When the appropriate probe and monitoring equipment are used, the proximity system can provide a rotational reference or speed-related signal for machinery analysis.
Advantages
Purpose-Built 5-Meter Configuration
The 330180-X0-00 provides a 5 m system arrangement, making it a practical choice where the Proximitor Sensor can be installed relatively close to the machine-side sensing point.
Panel-Mount Convenience
The panel-mount format integrates naturally into conventional instrumentation cabinets. For replacement projects, retaining the existing mounting style can reduce unnecessary cabinet modifications and simplify maintenance work.
Non-Contact Measurement
The associated eddy-current probe measures shaft movement without physical contact with the rotating surface. This makes the system suitable for high-speed machinery and continuous-duty applications.
Flexible Probe Compatibility
The 330180-X0-00 is designed for use with compatible 3300 and 3300 XL 5 mm and 8 mm probes, giving maintenance teams useful flexibility when servicing existing proximity channels.
Direct Shaft Information
The proximity system provides direct shaft-motion data rather than measuring only casing vibration. This can make it particularly useful for machines where rotor position and shaft dynamics are important operating indicators.
Established 3300 XL Architecture
The modular probe, extension-cable, and Proximitor Sensor arrangement makes the system practical to maintain. Individual components can be evaluated or replaced while preserving the existing monitoring concept when compatibility is confirmed.
Compact Industrial Construction
The aluminum Proximitor housing provides a compact format suitable for industrial instrumentation panels, while the relatively low sensor weight helps simplify cabinet installation.
Strong Retrofit Potential
For facilities already using compatible 3300-series proximity monitoring equipment, the 330180-X0-00 can be an attractive replacement option when the existing system length, probe, cable, mounting arrangement, and electrical requirements correspond.
Technical FAQs
1. What is the Bently Nevada 330180-X0-00 285446?
It is a 3300 XL Proximitor Sensor used with compatible 5 mm or 8 mm proximity probes and extension cables for non-contact shaft vibration and position measurement.
2. What does 285446 refer to?
285446 is the additional identification supplied with this particular product designation. For replacement work, it is advisable to compare the complete marking on the existing unit with the replacement specification.
3. Is the 330180-X0-00 itself an 8 mm probe?
No. The 330180-X0-00 is the Proximitor Sensor. The actual 8 mm proximity probe is a separate field-mounted component positioned near the rotating shaft.
4. What does the X0 configuration indicate?
The X0 configuration is associated with a 5 m system length and panel-mount installation within the 3300 XL Proximitor Sensor family.
5. What is the typical output scale?
The 3300 XL 5/8 mm proximity system uses a nominal incremental scale factor of approximately 7.87 V/mm (200 mV/mil) under the applicable system configuration.
6. What is the linear measurement range?
The typical 3300 XL 8 mm system provides a linear range of approximately 0.2 to 1.5 mm (8 to 60 mils) under specified test conditions.
7. How much does the Proximitor Sensor weigh?
The sensor itself weighs approximately 246 g (8.67 oz). The complete transducer system weighs approximately 0.7 kg (1.5 lb) depending on the probe and extension cable.
8. What are the dimensions of the sensor?
The relevant mounting dimension is approximately 83.8 mm (3.30 in). Actual cabinet space requirements should be larger to accommodate wiring, connectors, cable routing, and maintenance access.
9. Can it be used with an existing 8 mm probe?
Yes. The 330180-X0-00 is identified as compatible with appropriate 3300 and 3300 XL 5 mm and 8 mm probes. The complete probe, extension cable, and Proximitor configuration should nevertheless be verified before installation.
10. What should be checked before ordering a replacement?
Confirm the 330180-X0-00 model, 285446 identification, 5 m system length, panel-mount arrangement, probe model, extension cable, power requirements, monitoring-system interface, target material, and any required approvals. Matching the entire transducer chain is especially important for machinery-protection applications.
