Introduction

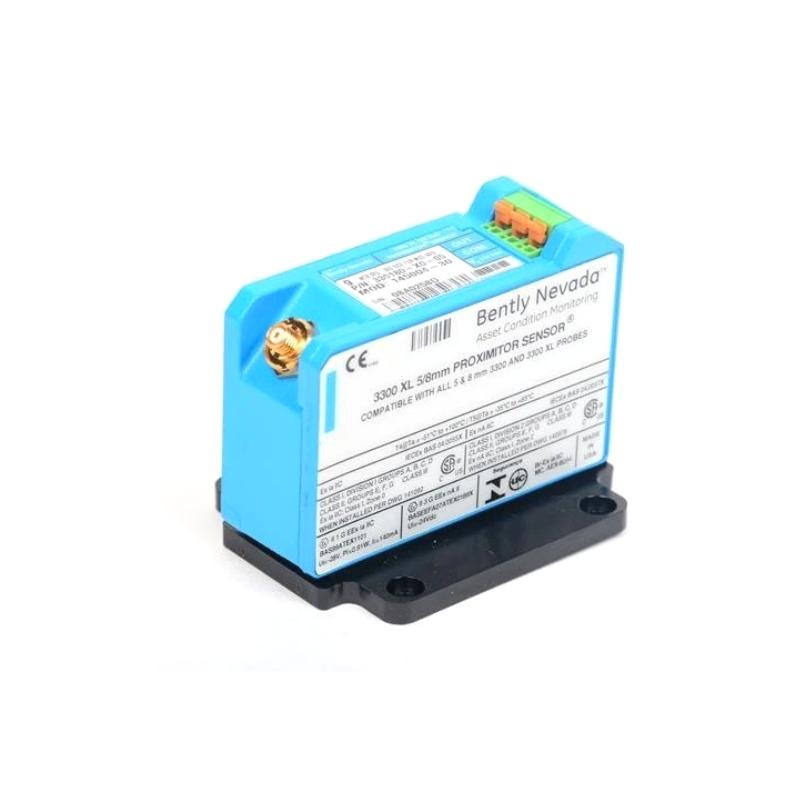

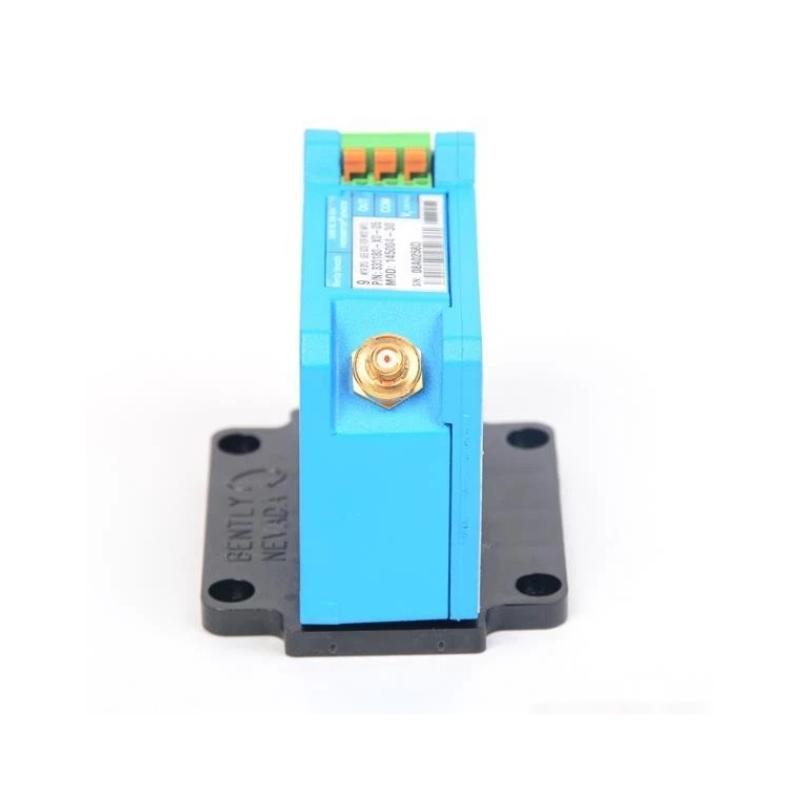

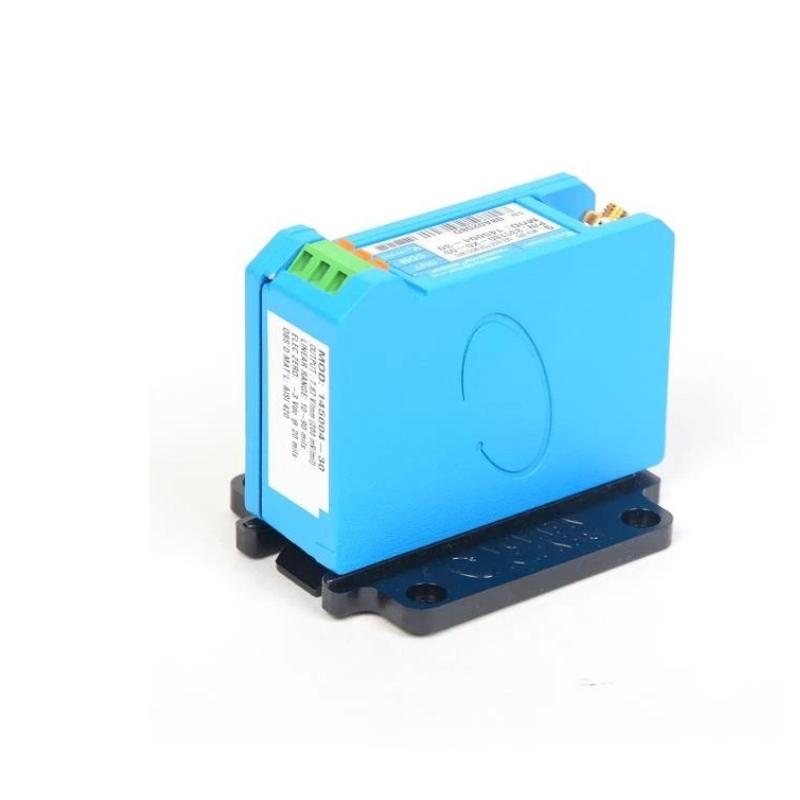

The Bently Nevada 330180-X0-05 149032-01 is a 3300 XL Proximitor Sensor designed for reliable non-contact measurement of shaft position and vibration. As the signal-conditioning component of the 3300 XL proximity transducer system, it works with a compatible proximity probe and extension cable to convert changes in the distance between the probe tip and a conductive shaft surface into a proportional electrical output.
The 3300 XL 8 mm platform is widely suited to rotating machinery where direct rotor measurements are important, including turbines, compressors, pumps, motors, generators, and fluid-film bearing machines. The system can also support Keyphasor reference and speed measurement applications.
The 330180-X0-05 uses a panel-mount configuration and the -05 approval option associated with CSA, ATEX, and IECEx approvals. The additional identification 149032-01 should be retained when specifying this particular unit, especially for replacement projects where configuration and calibration details need to match the installed system.
Technical Specifications
The Proximitor Sensor is not the physical 8 mm probe. It is the electronic component that works with the probe and extension cable to form the complete proximity transducer system. Compatible inputs include 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm proximity probes and extension cables.
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-X0-05 |
| Additional Identification | 149032-01 |
| Product Type | 3300 XL Proximitor Sensor |
| Product Family | 3300 XL 5/8 mm Proximity Transducer System |
| Mounting Configuration | Panel Mount |
| System Configuration | X0 |
| System Length | 1.0 m configuration |
| Measurement Principle | Eddy-current, non-contact |
| Compatible Probe | 3300 5 mm, 3300 8 mm, or 3300 XL 8 mm |
| Primary Measurements | Shaft vibration and shaft position |
| Additional Functions | Keyphasor reference and speed measurement |
| Linear Range | 0.2–1.5 mm (8–60 mils) |
| Nominal Probe Gap | 1.27 mm (50 mils) |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) |
| Power Requirement | -17.5 to -26 Vdc |
| Maximum Current Consumption | 12 mA |
| Supply With Barriers | -23 to -26 Vdc |
| Output Resistance | 50 Ω |
| Housing Material | A308 aluminum |
| Approx. Dimensions | 81.3 × 50 × 63.5 mm |
| Sensor Weight | 0.246 kg (0.54 lb) |
| Approval Option | CSA, ATEX, IECEx |
| Installation | Industrial machinery-monitoring cabinet |
Applications
Turbine Rotor Monitoring
The 330180-X0-05 can be integrated into turbine monitoring channels where direct shaft vibration and position measurements are required. Its proximity-based architecture is well suited to continuous rotor monitoring.
Compressor Monitoring
For centrifugal and process compressors, direct shaft measurements can provide useful information about rotor dynamics, bearing behavior, imbalance, and other mechanical changes.
Pump and Motor Applications
The Proximitor can be paired with compatible 8 mm probes on industrial pumps and motors, complementing conventional casing-vibration instrumentation with direct shaft information.
Generator Monitoring
Large generators and rotating electrical equipment can use proximity measurements as part of a broader machinery-protection and condition-monitoring system.
Fluid-Film Bearing Machines
The 3300 XL 8 mm system is particularly appropriate for fluid-film bearing machinery because the associated probe directly observes shaft movement rather than relying solely on casing vibration.
Keyphasor and Speed Measurement
When configured with the appropriate probe and monitoring hardware, the system can provide a rotational reference or speed-related signal. Keyphasor and speed measurement are established applications for the 3300 XL proximity platform.
Advantages
Compact Panel-Mount Installation
The X0 configuration provides a panel-mount arrangement suitable for conventional machinery-monitoring cabinets. Its compact housing helps simplify cabinet layout while leaving room for associated wiring and instrumentation.
Multiple-Agency Approval
The -05 option is associated with CSA, ATEX, and IECEx approvals, making this configuration useful where the applicable machinery-monitoring installation requires recognized hazardous-area certifications.
Direct Non-Contact Measurement
Eddy-current technology allows the associated probe to measure shaft movement without physical contact with the rotating surface. This is an important advantage for continuous monitoring of high-speed machinery.
Direct Rotor Information
The proximity system measures shaft displacement directly, providing both static position and dynamic vibration information. This can make the measurement particularly valuable for critical rotating equipment.
Broad Probe Compatibility
The Proximitor accepts compatible 3300-series 5 mm, 3300 8 mm, and 3300 XL 8 mm probe and extension-cable combinations, providing flexibility for established 3300-series installations.
Stable Electrical Performance
The published specification gives an output resistance of 50 Ω and supply sensitivity of less than 2 mV output change per volt of input change, supporting stable signal-conditioning performance within the specified operating conditions.
Modular System Design
The complete 3300 XL transducer system uses separate probe, extension cable, and Proximitor components. This modular approach is convenient for maintenance, replacement, and system configuration.
Retrofit-Friendly Platform
3300 XL components are designed for interchangeability with applicable 3300-series components. This can be advantageous when maintaining established machinery-monitoring systems, although the complete installed configuration should always be checked before substitution.
Proven Industrial Solution
For plants operating turbines, compressors, pumps, motors, and other rotating machinery, the 3300 XL architecture offers a mature and practical approach to direct shaft monitoring.
Technical FAQs
1. What is the Bently Nevada 330180-X0-05 149032-01?
It is a 3300 XL Proximitor Sensor used with a compatible proximity probe and extension cable for non-contact shaft vibration and position measurement.
2. Is 149032-01 the model number?
No. 330180-X0-05 is the primary Proximitor Sensor part number, while 149032-01 is the additional identification associated with the requested unit.
3. Is the 330180-X0-05 itself an 8 mm probe?
No. The Proximitor Sensor is the electronic signal-conditioning component. The actual 8 mm proximity probe is a separate part installed near the rotating shaft.
4. What does the X0 configuration indicate?
Within the 3300 XL ordering structure, X0 corresponds to the 1.0 m system-length, panel-mount configuration. Other configurations are available for longer system lengths and different mounting arrangements.
5. What does the -05 suffix mean?
The -05 option identifies the multiple-approval configuration, associated with CSA, ATEX, and IECEx approvals.
6. What power supply does the sensor require?
The Proximitor requires approximately -17.5 to -26 Vdc without barriers, with maximum current consumption of approximately 12 mA. With barriers, the specified range is approximately -23 to -26 Vdc.
7. What is the linear measurement range?
The published 3300 XL 8 mm specification gives a linear range of approximately 0.2–1.5 mm (8–60 mils) under the specified system conditions.
8. What is the nominal sensitivity?
The nominal scale factor is approximately 7.87 V/mm, equivalent to 200 mV/mil.
9. How much does the 330180-X0-05 weigh?
The Proximitor Sensor weighs approximately 0.246 kg (246 g / 0.54 lb).
10. What should be verified before ordering a replacement?
Check the complete 330180-X0-05 149032-01 identification, system length, panel-mount arrangement, probe type, extension cable, target material, power requirements, monitoring-system interface, and required approvals. For critical machinery, matching the complete transducer configuration is preferable to selecting a replacement based only on the base model number.
