Introduction

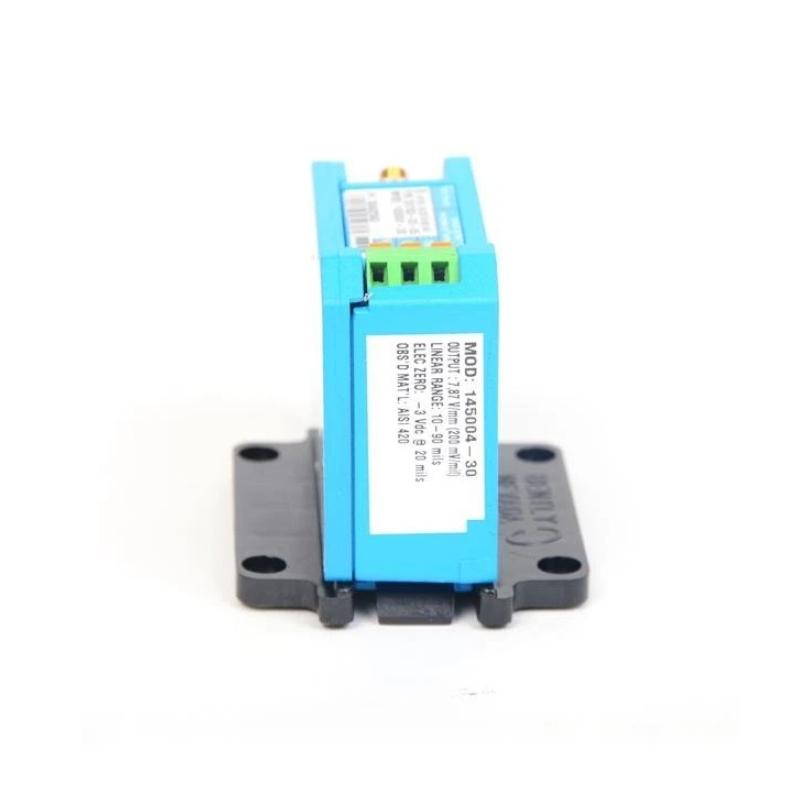

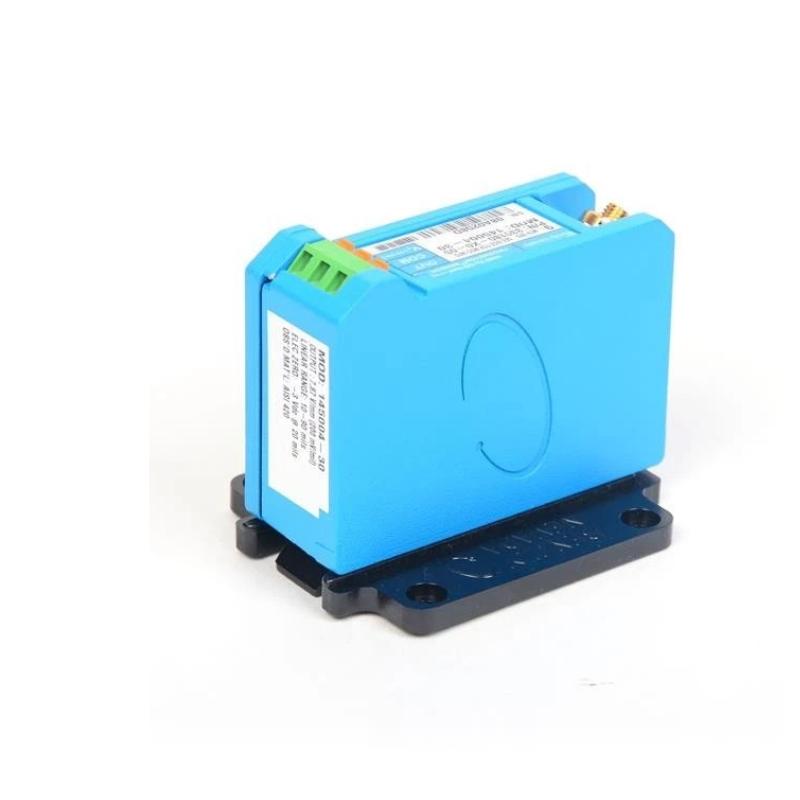

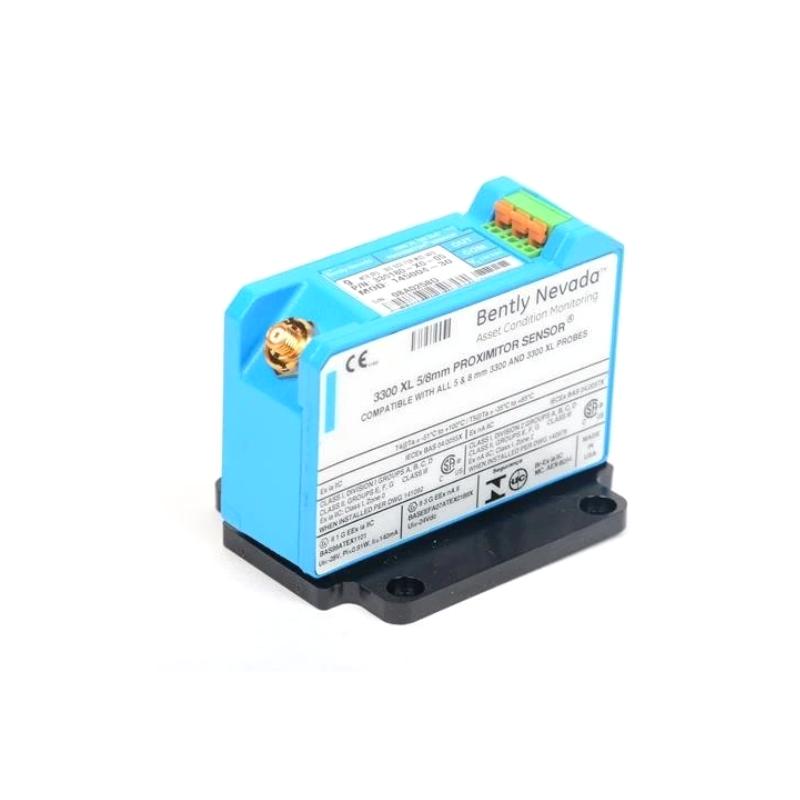

The Bently Nevada 330180-X0-05 145004-04 is a 3300 XL Proximitor Sensor used as the electronic conditioning element of an eddy-current proximity measurement system. When paired with a compatible 3300 or 3300 XL proximity probe and extension cable, it produces an output proportional to the distance between the probe tip and the conductive shaft surface.
The 3300 XL proximity system is designed for non-contact shaft vibration and position measurement, making it a proven solution for critical rotating machinery such as turbines, compressors, pumps, motors, generators, and fluid-film-bearing machines. It can also be incorporated into Keyphasor and speed-measurement applications.
The 330180-X0-05 configuration combines a 5-meter system length, panel-mount arrangement, and multiple-agency approval option. The -05 suffix identifies the multiple-approval configuration, including CSA, ATEX, and IECEx.
The additional identification 145004-04 should be retained when identifying this particular unit. For replacement projects, it is important to match the complete transducer configuration rather than selecting a Proximitor solely because the base model appears similar.
Technical Specifications

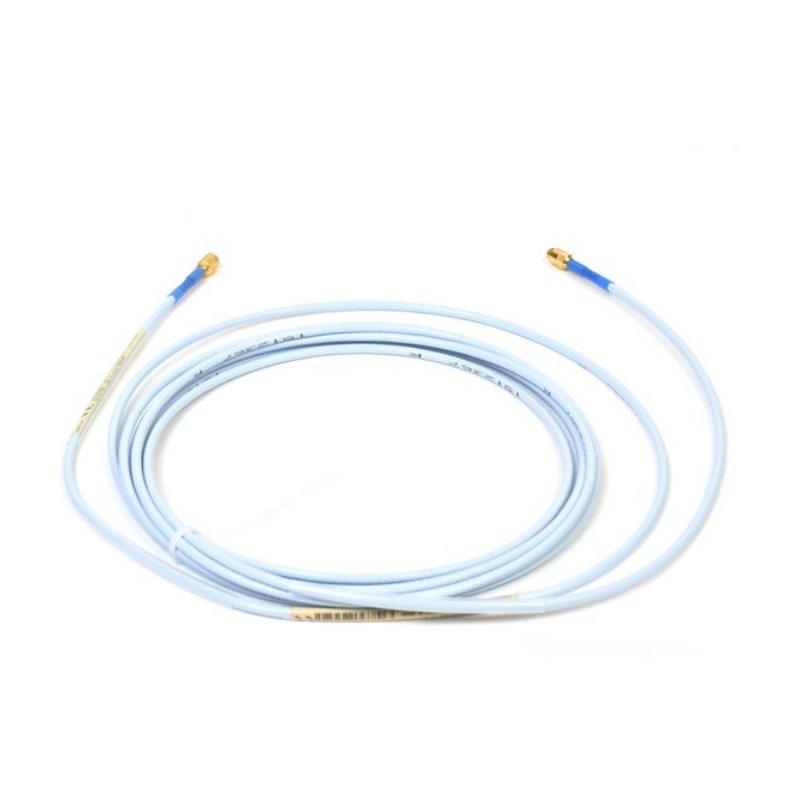

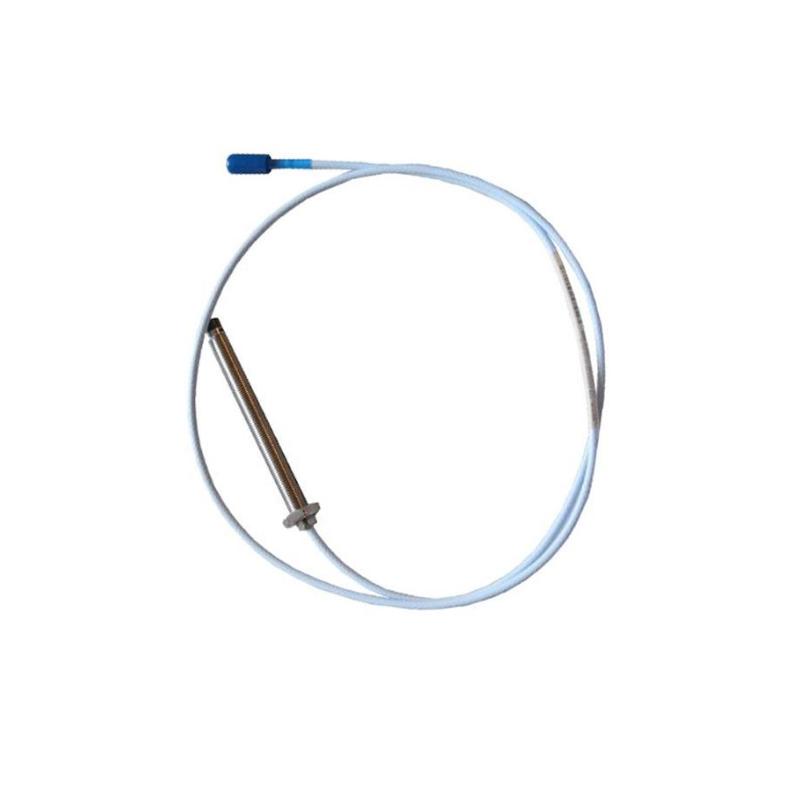

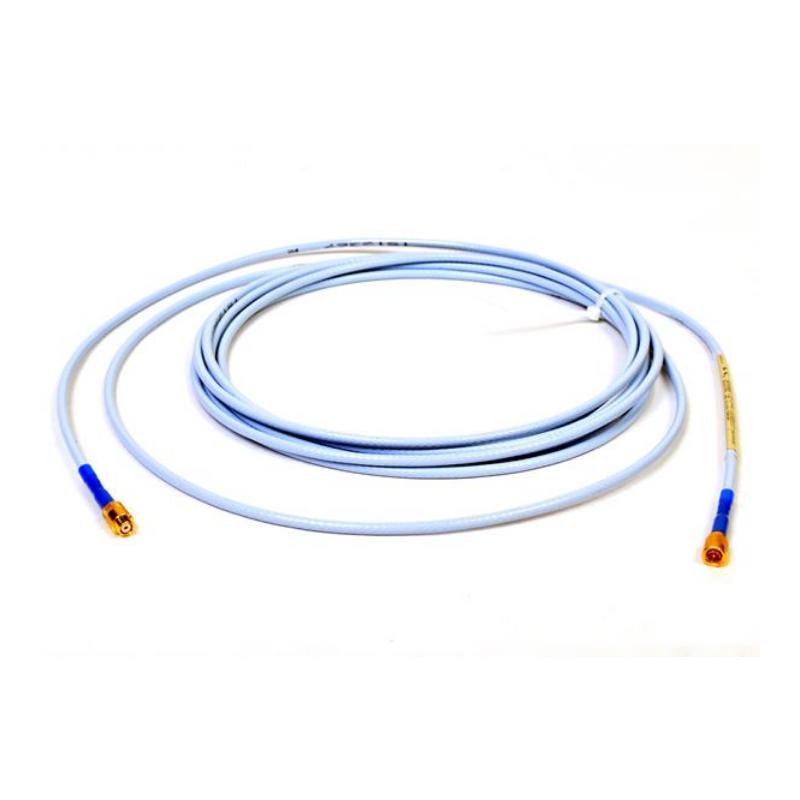

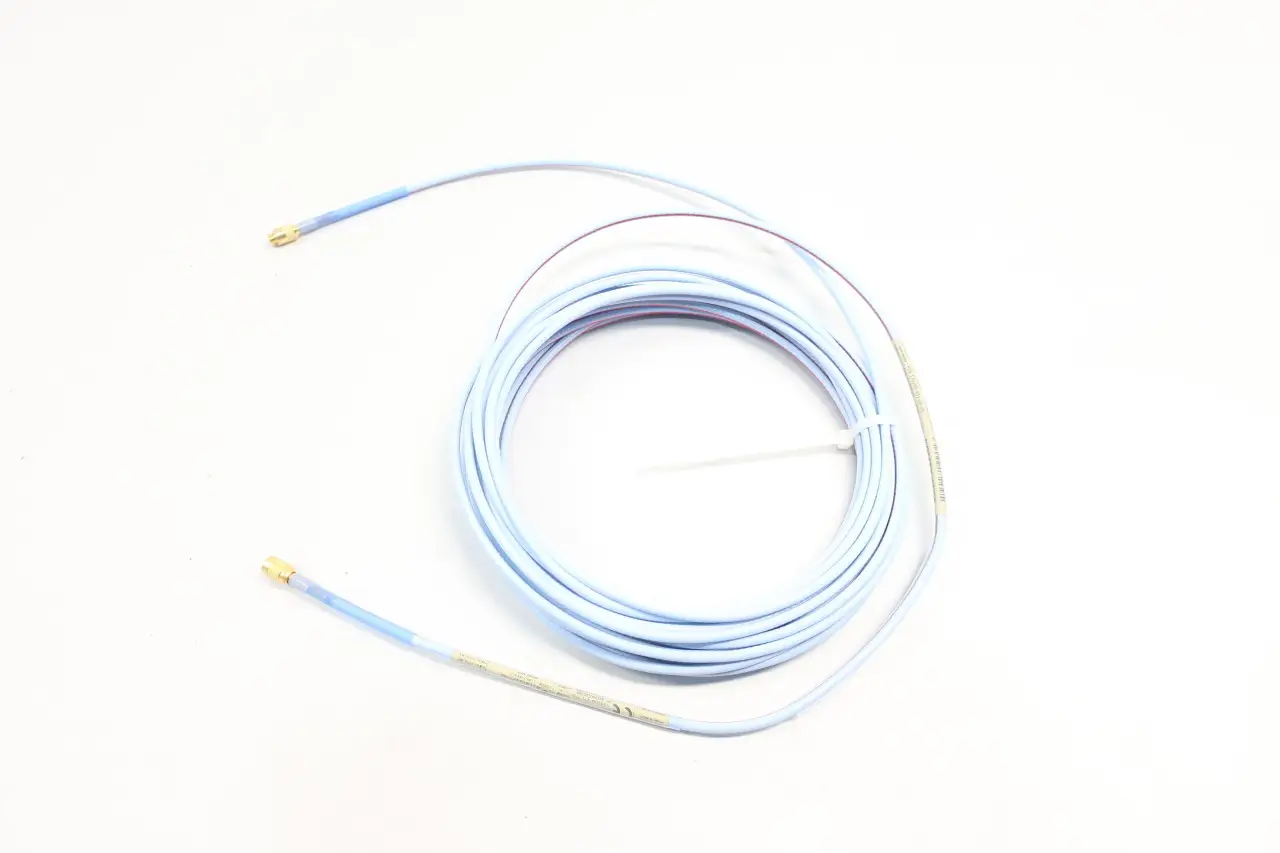

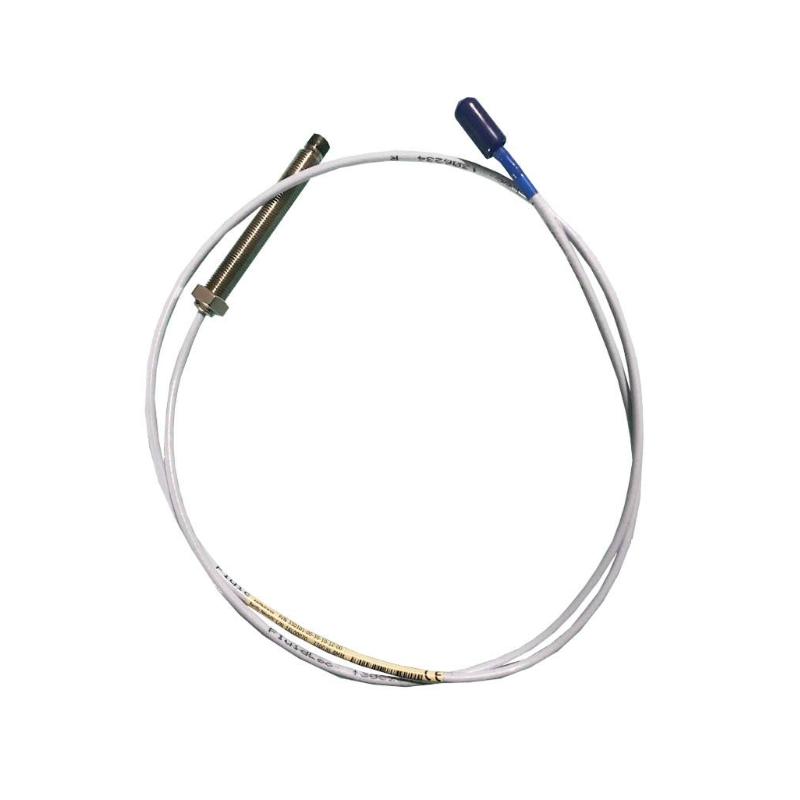

The 330180-X0-05 is the Proximitor Sensor/Module, while the actual 8 mm proximity probe and extension cable are separate parts of the complete transducer system. The system converts changes in probe-to-shaft distance into a proportional electrical signal for monitoring equipment.
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model | 330180-X0-05 |
| Additional Identification | 145004-04 |
| Product Type | 3300 XL Proximitor Sensor / Proximitor Module |
| Product Family | 3300 XL 5/8 mm Proximity Transducer System |
| Configuration | X0 |
| System Length | 5.0 m (16.4 ft) |
| Mounting | Panel Mount |
| Measurement Principle | Eddy-current, non-contact |
| Compatible Probe System | Compatible 3300 / 3300 XL 5 mm and 8 mm probes |
| Primary Measurements | Shaft vibration and shaft position |
| Additional Applications | Keyphasor reference and speed measurement |
| Linear Range | Approximately 0.2–1.5 mm (8–60 mils) |
| Nominal Test Gap | 1.27 mm (50 mils) |
| Standard Supply | -17.5 to -26 Vdc |
| Supply With Barriers | -23 to -26 Vdc |
| Maximum Current Consumption | 12 mA |
| Output Resistance | 50 Ω |
| Supply Sensitivity | Less than 2 mV output change per volt input change |
| Housing Material | A308 aluminum |
| Sensor Weight | Approximately 246 g (8.67 oz) |
| Typical Complete System Weight | Approximately 0.7 kg (1.5 lb) |
| Approximate Mounting Dimension | 83.8 mm (3.30 in) |
| Approval Configuration | Multiple approvals: CSA, ATEX, IECEx |
| Installation | Industrial instrumentation panel |
Applications
Turbine Shaft Monitoring
The 330180-X0-05 can be integrated into turbine monitoring systems for direct measurement of shaft vibration and position. This makes it useful during startup, shutdown, load transitions, and continuous operation.
Compressor Condition Monitoring
For centrifugal and process compressors, direct shaft measurements can provide valuable information about rotor behavior. Changes in shaft movement can support investigation of imbalance, misalignment, bearing conditions, and other mechanical issues.
Pump and Motor Monitoring
Industrial pumps and motors can use proximity measurements alongside conventional vibration instrumentation. Direct shaft information gives maintenance teams another useful measurement channel for evaluating rotor behavior.
Generator Applications
Large generators and rotating electrical machines can use the 3300 XL proximity system as part of a broader machinery-protection and condition-monitoring strategy.
Fluid-Film Bearing Machinery
The non-contact measurement principle is particularly useful for fluid-film-bearing machines, where shaft displacement and dynamic rotor movement are important indicators of machine condition.
Keyphasor and Speed Measurement
With the correct probe arrangement and monitoring hardware, the system can provide a rotational reference or speed-related signal for rotating machinery.
Advantages
5-Meter Panel-Mount Configuration
The 330180-X0-05 provides a 5-meter system configuration with panel mounting, making it a practical option for machinery-monitoring cabinets where the Proximitor can be installed within the required distance of the probe.
Multiple-Approval Configuration
The -05 version provides the multiple-approval configuration associated with CSA, ATEX, and IECEx, making it an attractive choice for appropriately engineered hazardous-area applications.
Non-Contact Shaft Measurement
The eddy-current principle allows the associated probe to measure shaft movement without contacting the rotating surface. This makes the system suitable for high-speed machinery and continuous monitoring.
Flexible Probe Compatibility
The 3300 XL Proximitor architecture supports compatible 3300 and 3300 XL probe configurations, including 5 mm and 8 mm systems. This can be particularly useful when maintaining established machinery-monitoring installations.
Direct Rotor Information
Because the associated probe observes shaft movement directly, the system can provide useful information about rotor position and dynamic shaft vibration rather than relying solely on casing movement.
Compact Industrial Housing
The Proximitor uses an aluminum housing and has a relatively low unit weight, making it convenient for industrial instrumentation cabinets.
Established 3300 XL Platform
The modular probe, extension cable, and Proximitor arrangement simplifies system-level maintenance. When the complete configuration is correctly matched, individual components can be serviced without changing the overall measurement concept.
Retrofit-Friendly Architecture
The 3300 XL family was designed with interchangeability in mind, including compatibility with applicable earlier 3300-series components. This can provide useful flexibility when modernizing or maintaining established machinery-monitoring systems.
Technical FAQs
1. What is the Bently Nevada 330180-X0-05 145004-04?
It is a 3300 XL Proximitor Sensor/Module used with a compatible proximity probe and extension cable to provide non-contact shaft vibration and position measurements.
2. Is the 330180-X0-05 the actual 8 mm proximity probe?
No. The 330180-X0-05 is the Proximitor Sensor. The physical 8 mm proximity probe is a separate component installed near the monitored shaft. The complete system consists of the probe, extension cable, and Proximitor Sensor.
3. What does 145004-04 identify?
145004-04 is the additional identification associated with this particular unit designation. When replacing an installed device, the complete marking should be compared with the replacement part to avoid configuration mismatches.
4. What does the X0 configuration represent?
The X0 configuration represents the panel-mount arrangement within the 3300 XL ordering structure, while the 5 m system-length designation corresponds to the 50 configuration. The product identification should therefore be checked carefully when interpreting individual part-number segments.
5. What does the -05 suffix mean?
The -05 suffix identifies the multiple-approval configuration, associated with CSA, ATEX, and IECEx approvals.
6. What power supply does this Proximitor require?
The standard configuration requires approximately -17.5 to -26 Vdc, with maximum current consumption of approximately 12 mA. With barriers, the specified operating range is approximately -23 to -26 Vdc.
7. What is the measurement range?
The 3300 XL 8 mm proximity system provides a linear range of approximately 0.2–1.5 mm (8–60 mils) under the applicable test conditions.
8. How much does the Proximitor Module weigh?
The Proximitor Sensor weighs approximately 246 g (8.67 oz). The complete probe, extension cable, and Proximitor system is typically around 0.7 kg (1.5 lb).
9. What are the approximate dimensions?
The relevant Proximitor mounting dimension is approximately 83.8 mm (3.30 in). Actual cabinet space requirements should be greater to provide sufficient room for wiring, connectors, cable routing, and servicing.
10. What should be checked before ordering a replacement?
Verify the 330180-X0-05 model, 145004-04 identification, system length, panel-mount configuration, compatible 8 mm probe, extension cable, supply voltage, hazardous-area approvals, and monitoring-system interface. For critical machinery, matching the complete transducer system is the preferred approach.
