Precision Eddy-Current Probe for Rotating Machinery Monitoring

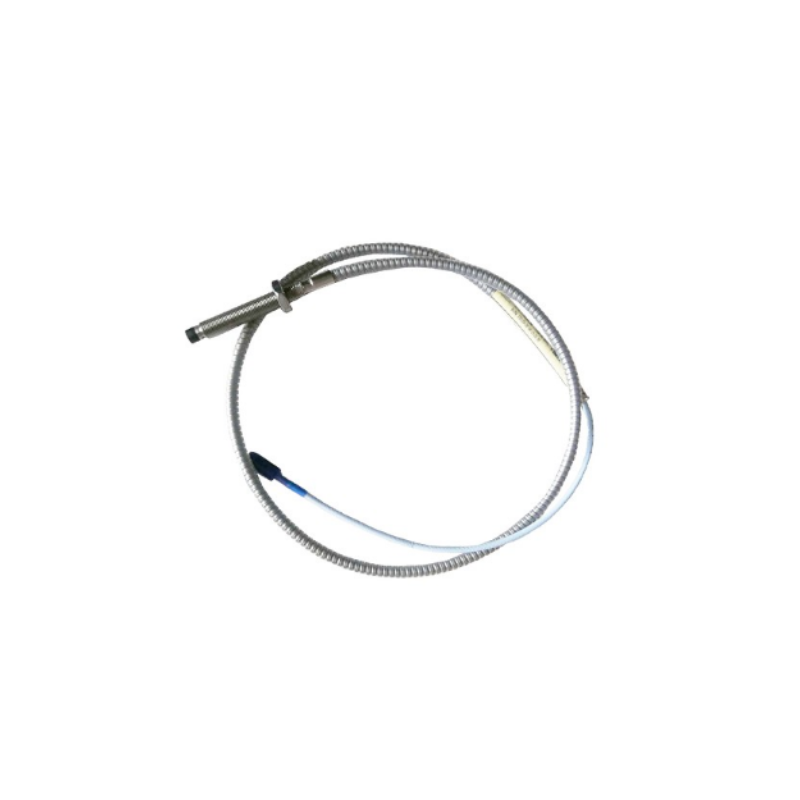

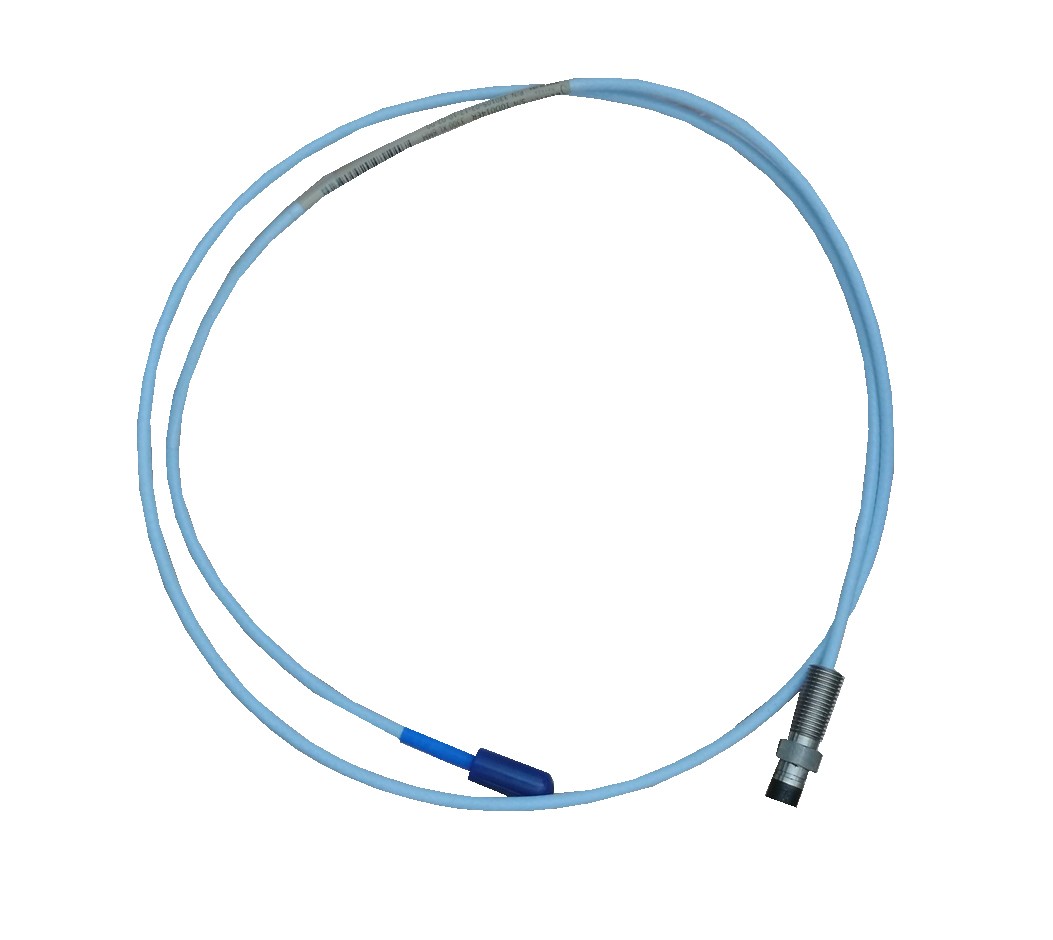

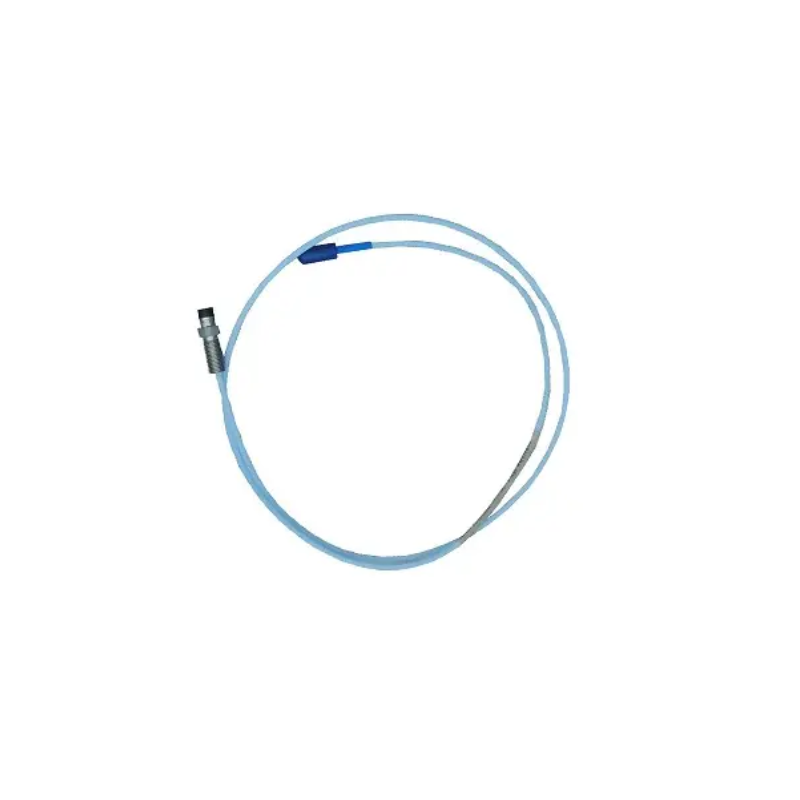

The Bently Nevada 330171-10-38-10-02-00 is a 3300 Series 5 mm Proximity Probe designed for non-contact measurement of shaft vibration, axial position, Keyphasor® reference, and speed on rotating machinery with fluid-film bearings. When used with a compatible 3300 XL Proximitor® Sensor and 3300 XL extension cable, it forms a complete proximity transducer system that provides a stable voltage output proportional to the distance between the probe tip and the target.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330171-10-38-10-02-00 |
| Product Type | 3300 5 mm Proximity Probe |
| Probe Diameter | 5 mm |
| Measurement Technology | Eddy-current, non-contact |
| Thread Type | 1/4-28 UNF |
| Unthreaded Length | 1.0 in (Option 10) |
| Overall Case Length | 3.8 in (Option 38) |
| Total System Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector, standard cable (Option 02) |
| Agency Approval | 00 – No approvals required |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
