Introduction

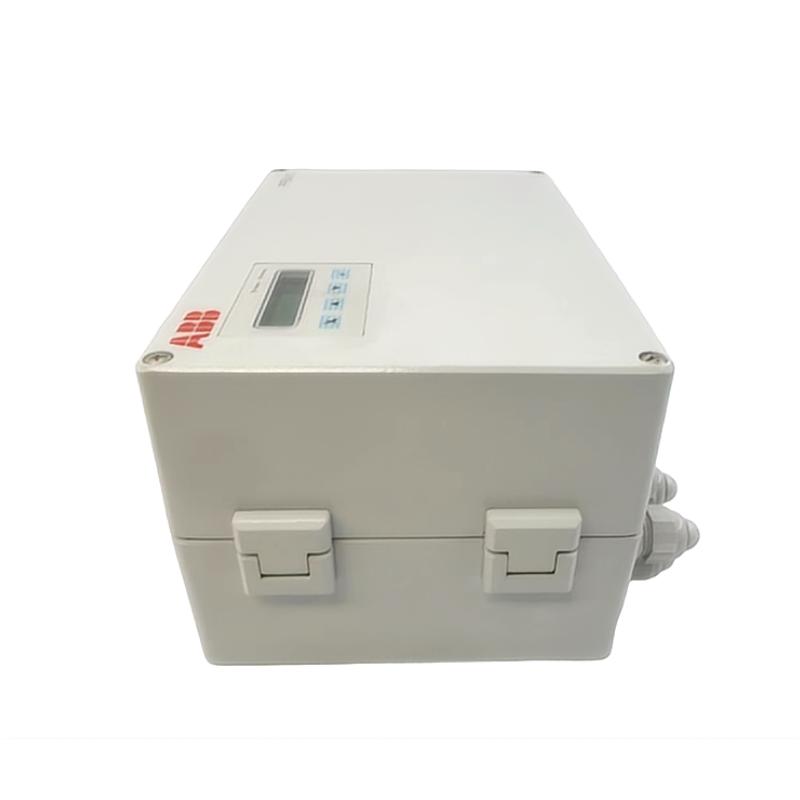

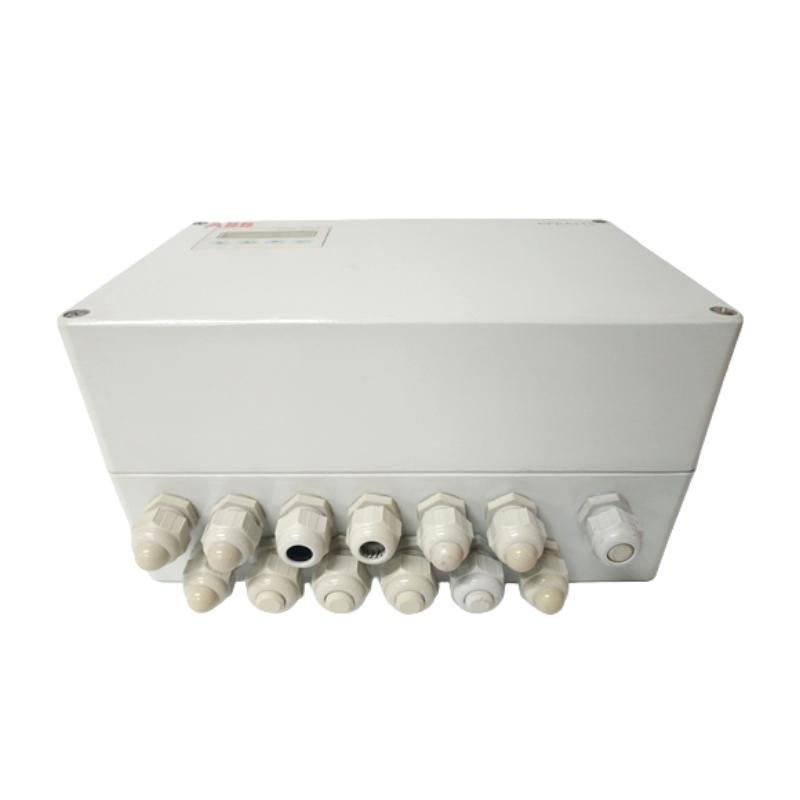

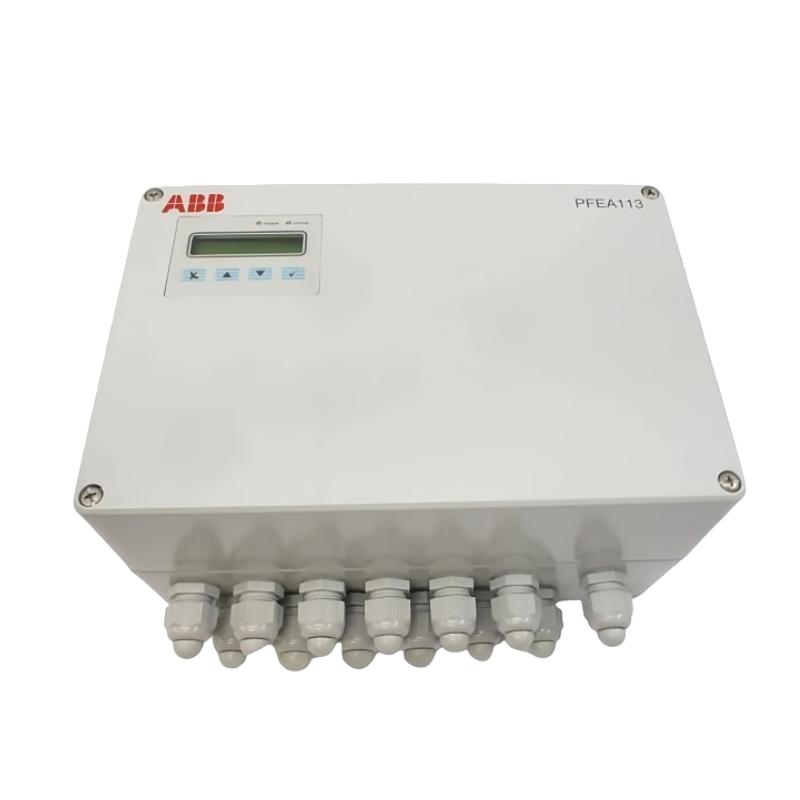

The ABB PFEA113-65 (3BSE028144R65) Tension Electronics Module is a high-end industrial tension control unit designed for precision measurement and closed-loop control of web and strip materials. It belongs to ABB’s advanced PFEA113 series, widely used in demanding production environments where stable tension regulation directly impacts product quality and line efficiency.
This module combines high-speed signal processing, multi-channel load cell integration, and advanced control algorithms into a single robust platform. It is commonly deployed in steel, paper, plastics, and converting industries where continuous material processing requires extremely accurate tension control.
Technical Specifications
| Parameter | Details |
|---|
| Model | PFEA113-65 |
| Part Number | 3BSE028144R65 |
| Manufacturer | ABB |
| Product Type | Tension Electronics / Tension Control Module |
| Load Cell Inputs | Up to 4 channels |
| Measurement Modes | A, B, A+B, A−B |
| Output Signals | Analog + digital configurable outputs |
| Communication | PROFIBUS-DP |
| Control Functions | PID closed-loop tension control |
| Accuracy | Up to ±0.1% full scale |
| Response Time | < 10 ms |
| Operating Voltage | 24 V DC (18–36 V range) |
| Optional Power Input | 100–240 V AC (variant dependent) |
| Protection Rating | IP65 (sealed version) |
| Operating Temperature | +5°C to +55°C |
| Weight | ~1 kg (up to ~6 kg system variant) |
| Mounting | DIN rail / cabinet or sealed enclosure |
Applications
The PFEA113-65 is widely used in industrial tension control systems where precision and repeatability are critical:
-
Steel strip rolling and finishing lines
-
Paper machine web tension control systems
-
Plastic film and foil extrusion lines
-
Textile production and coating processes
-
Printing and laminating machinery
-
Coil winding and slitting systems
It ensures consistent tension throughout the production process, reducing material waste and improving final product quality.
Advantages
The ABB PFEA113-65 is designed for high-performance closed-loop tension control, offering significantly improved precision compared to standard tension electronics. Its ability to process up to four load cell inputs enables advanced multi-point measurement strategies, including summed and differential tension analysis.
One of its strongest advantages is ultra-fast response performance (<10 ms), allowing the system to react instantly to tension fluctuations during high-speed production. Combined with high-accuracy signal processing (up to ±0.1%), it ensures extremely stable control even in dynamic environments.
The module also integrates PROFIBUS-DP communication, enabling seamless integration with PLC and DCS platforms for centralized monitoring and diagnostics. This improves system visibility and simplifies industrial automation architecture.
In addition, its IP65-rated enclosure option provides strong resistance against dust and moisture, making it suitable for harsher industrial environments without compromising reliability.
Technical FAQs
1. What is the main function of the PFEA113-65 module?
It performs high-precision tension measurement and closed-loop control in industrial processes.
2. How many load cells can it support?
It can support up to four load cell inputs.
3. What calculations does it perform?
It processes A, B, A+B, and A−B tension values for advanced control.
4. What communication protocol is used?
It supports PROFIBUS-DP for industrial network integration.
5. What is the response time?
It achieves a response time of less than 10 milliseconds.
6. What industries commonly use this module?
Steel, paper, plastics, printing, and textile manufacturing industries.
7. Does it support both analog and digital outputs?
Yes, it provides configurable analog and digital output channels.
8. Is it suitable for harsh environments?
Yes, IP65 versions are designed for dust and moisture resistance.
9. What type of control algorithm does it use?
It uses PID-based closed-loop tension control.
10. Can it operate in continuous production lines?
Yes, it is specifically designed for continuous web processing systems.
