Premium Extension Cable for Reliable 3300 XL Machinery Protection Systems

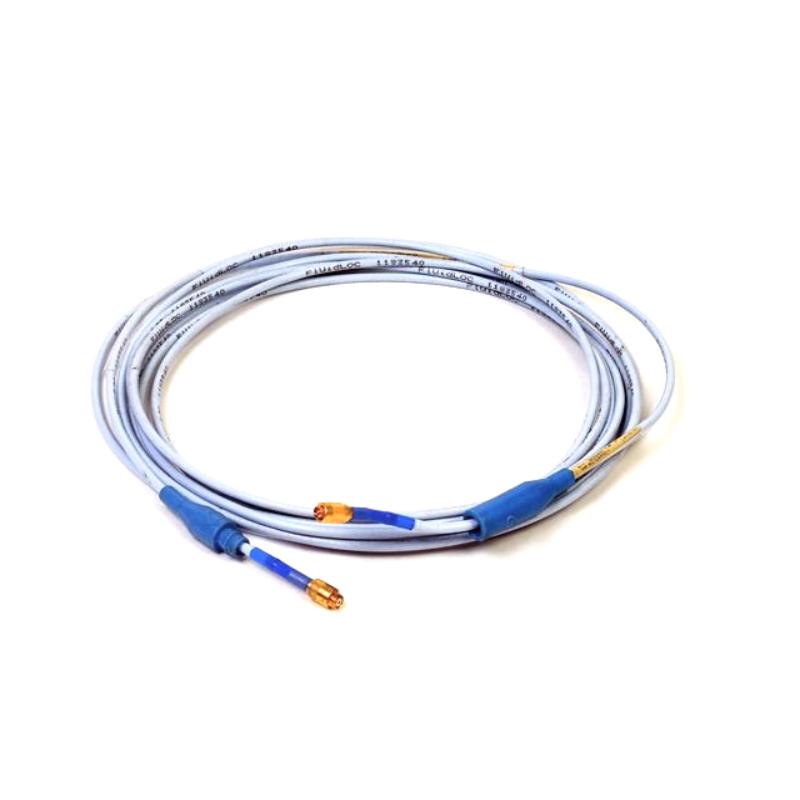

The Bently Nevada 330130-080-00-R0 3300 XL Standard Extension Cord is a precision-engineered extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. It provides a stable electrical connection between the 3300 XL Proximity Probe and the Proximitor® Sensor, ensuring accurate transmission of vibration and position signals for continuous machinery condition monitoring. Engineered to preserve system calibration and signal integrity, this extension cord is widely used in critical rotating equipment across power generation, oil and gas, petrochemical, and manufacturing industries.
The 330130-080-00-R0 configuration features an 8.0-meter standard FEP-insulated triaxial cable, factory-installed precision connectors, and the R0 regional approval option. Its rugged construction and excellent electrical characteristics make it suitable for long-term operation in demanding industrial environments while maintaining compatibility with the complete 3300 XL 8 mm monitoring system.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330130-080-00-R0 |
| Product Type | 3300 XL Standard Extension Cord |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 8.0 m (26.2 ft) |
| Cable Type | Standard 75 Ω FEP-insulated triaxial cable |
| Cable Option | 00 – Standard cable |
| Regional Approval | R0 Regional Configuration |
| Compatible Probe | 3300 XL 8 mm Proximity Probe |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Typical Capacitance | 69.9 pF/m (21.3 pF/ft) |
| DC Resistance (Center Conductor) | Approx. 0.220 Ω/m |
| Operating Temperature | -52°C to +177°C |
| Primary Function | Probe-to-Proximitor® signal transmission |
| Approximate Cable Weight | 0.27 kg |
| Shipping Weight | Approx. 2.0 kg |
Typical Applications
| Industry | Typical Equipment |
|---|
| Oil & Gas | Gas turbines, centrifugal compressors |
| Power Generation | Steam turbines, generators |
| Petrochemical | High-speed pumps and compressors |
| Mining | Heavy rotating machinery |
| Pulp & Paper | Paper machine rolls and motors |
| OEM Equipment | Turbine and compressor packages |
Typical applications include:
-
Shaft vibration monitoring
-
Axial position measurement
-
Differential expansion monitoring
-
Rotor displacement measurement
-
Keyphasor® reference systems
-
Continuous machinery protection
Performance Advantages
Stable Signal Transmission
Designed specifically for the 3300 XL platform, the extension cable preserves the calibrated electrical characteristics of the complete transducer system, ensuring reliable monitoring accuracy.
Flexible 8-Meter Installation
The 080 configuration provides an 8.0-meter cable, allowing convenient installation where extended routing distances are required without compromising system performance.
Industrial-Grade FEP Insulation
The standard FEP insulation offers excellent resistance to heat, oil, moisture, and many industrial chemicals, supporting dependable long-term operation in harsh environments.
Optimized for 3300 XL Systems
The cable is engineered for seamless compatibility with 3300 XL 8 mm Proximity Probes and 3300 XL Proximitor® Sensors, helping maintain factory-calibrated measurement accuracy.
Rugged Construction
Precision triaxial cable construction minimizes electrical interference while maintaining excellent signal integrity in high-vibration industrial installations.
Convenient Factory Assembly
Factory-installed connectors simplify installation, reduce wiring time, and help ensure secure electrical connections during maintenance and replacement procedures.
Technical FAQs
1. What is the 330130-080-00-R0 used for?
It connects a 3300 XL proximity probe to a compatible Proximitor® Sensor, providing reliable signal transmission for vibration and shaft position monitoring.
2. What does the "080" option indicate?
It specifies an 8.0-meter (26.2-foot) extension cable.
3. What does the "00" cable option mean?
It identifies the standard FEP-insulated triaxial cable configuration.
4. What does the "R0" suffix represent?
The R0 suffix identifies a regional approval/configuration code used for specific market requirements. Exact certification requirements should be confirmed with the applicable product documentation.
5. Which probes are compatible with this cable?
It is designed for use with Bently Nevada 3300 XL 8 mm Proximity Probes as part of a complete matched transducer system.
6. Why is the correct extension cable length important?
The probe cable and extension cable must be matched to the specified Proximitor® system length to maintain factory calibration and measurement accuracy.
7. What insulation material is used?
The standard version uses 75 Ω FEP-insulated triaxial cable for excellent electrical performance and environmental resistance.
8. Is the cable suitable for harsh industrial environments?
Yes. Its durable construction and wide operating temperature range make it suitable for demanding industrial applications.
9. Can it be used with older 3300 Series systems?
Many 3300 XL components maintain compatibility with earlier systems, but system compatibility should always be verified before installation.
10. What equipment commonly uses this extension cable?
It is commonly installed on turbines, compressors, pumps, generators, motors, and other critical rotating machinery equipped with 3300 XL monitoring systems.
