Engineered for Exceptional Machinery Protection

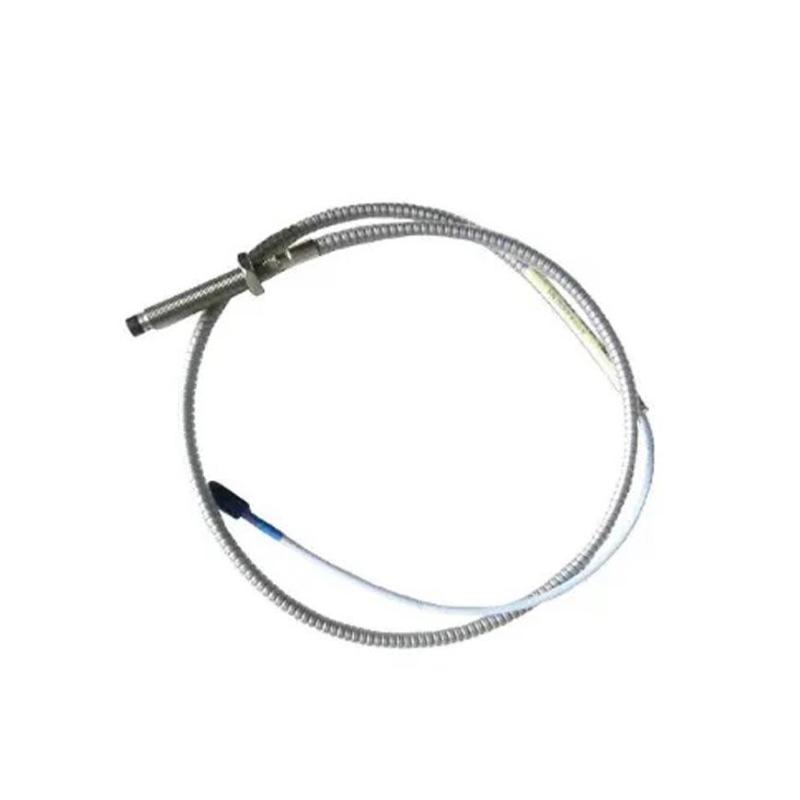

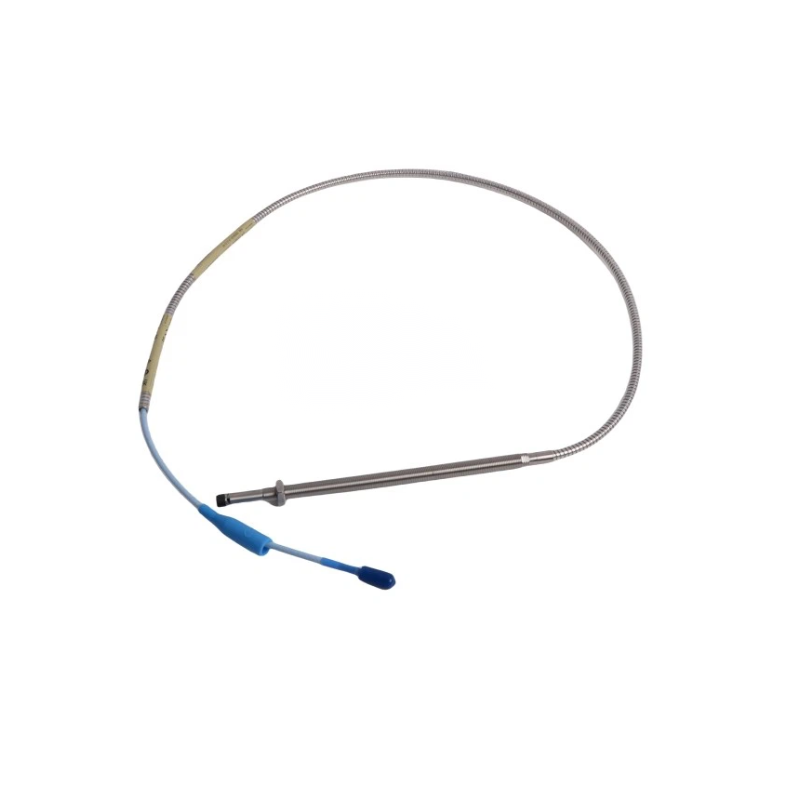

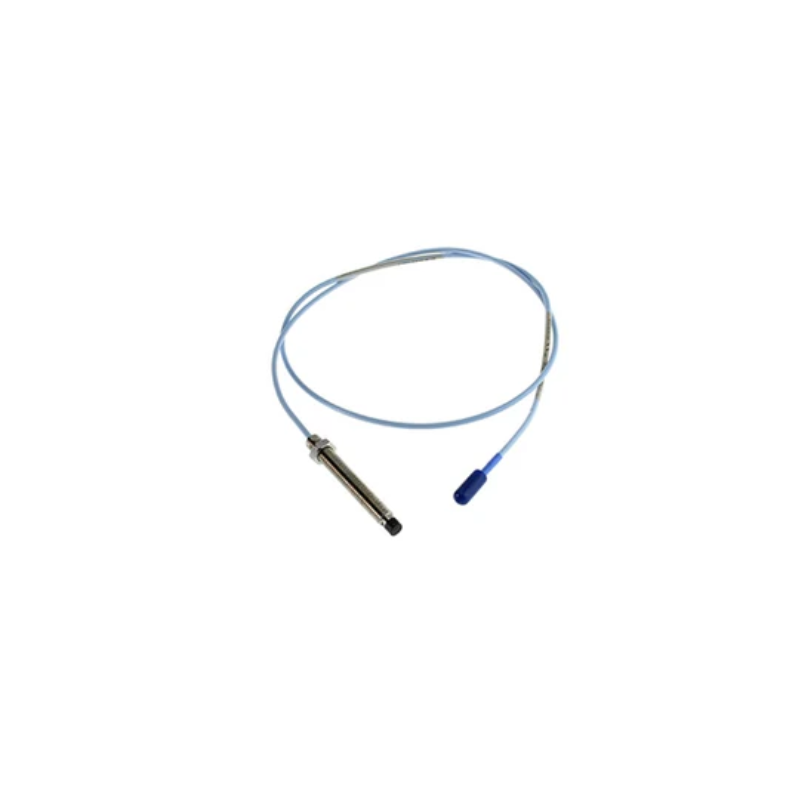

The Bently Nevada 330104-02-24-10-01-00 3300 XL 8 mm Proximity Probe is a premium non-contact eddy current sensor developed for accurate monitoring of shaft vibration, axial position, and displacement in critical rotating equipment. As part of the proven 3300 XL 8 mm Transducer System, this probe combines precision measurement technology with rugged industrial construction to deliver reliable performance in continuous machine condition monitoring applications.
Designed with an M10 × 1 metric threaded armored probe, a corrosion-resistant stainless steel housing, and a miniature ClickLoc connector with connector protector, this model is built to perform in demanding industrial environments. Its durable design helps improve equipment reliability, reduce maintenance costs, and support predictive maintenance strategies across a wide range of industries.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330104-02-24-10-01-00 |
| Series | 3300 XL 8 mm |
| Probe Thread | M10 × 1 Metric |
| Probe Construction | Armored Probe |
| Unthreaded Length | 20 mm |
| Overall Case Length | 240 mm |
| Total Cable Length | 1.0 m |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Cable Type | Standard Armored Cable |
| Measurement Technology | Non-contact Eddy Current |
| Probe Housing Material | Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Operating Temperature | -52°C to +177°C |
| Dimensions | Approx. 240 mm probe body with 1.0 m integral cable |
| Weight | Approx. 0.36 kg (probe); typical complete transducer system approximately 0.70 kg |
Typical Applications
Designed for continuous operation in mission-critical environments, this proximity probe is widely used to monitor the condition of high-value rotating assets.
Typical applications include:
-
Steam turbine monitoring
-
Gas turbine control systems
-
Centrifugal compressors
-
Industrial pumps
-
High-speed electric motors
-
Gearboxes and transmission systems
-
Power generation plants
-
Oil and gas production facilities
-
Petrochemical processing equipment
-
Mining and mineral processing machinery
-
Steel manufacturing production lines
-
Continuous machinery protection systems
Performance Advantages
The 330104-02-24-10-01-00 delivers dependable measurement performance while helping maintenance teams improve operational efficiency and extend equipment service life.
Key advantages include:
-
High-precision non-contact vibration and displacement measurement
-
Excellent linearity and signal stability
-
Rugged armored cable for superior mechanical protection
-
Stainless steel housing for enhanced corrosion resistance
-
Reliable operation in harsh industrial environments
-
Secure ClickLoc connector for fast and dependable installation
-
Fully compatible with the complete 3300 XL transducer platform
-
Supports predictive and condition-based maintenance programs
-
Helps reduce unexpected equipment downtime
-
Trusted worldwide for critical machinery monitoring applications
Technical FAQs
1. What is the primary function of this proximity probe?
It continuously measures shaft vibration, displacement, and axial position without contacting the rotating shaft, providing reliable condition monitoring for critical machinery.
2. What thread specification does this model feature?
The probe uses an M10 × 1 metric threaded housing with an armored construction for enhanced durability.
3. What are the dimensions of this configuration?
This model includes a 20 mm unthreaded length, a 240 mm overall case length, and a 1.0-meter integral cable.
4. Which sensing technology does it use?
It utilizes advanced eddy current technology to provide highly accurate, non-contact measurements of conductive shaft surfaces.
5. Is this probe suitable for continuous industrial operation?
Yes. It is engineered for 24/7 online machinery protection and condition monitoring applications.
6. Which systems is it compatible with?
It is fully compatible with Bently Nevada 3300 XL Proximitor® sensors, matching extension cables, and complete 3300 XL transducer systems.
7. Does the probe include mechanical protection for the cable?
Yes. The armored cable construction provides excellent resistance to abrasion, vibration, and mechanical damage, making it suitable for harsh industrial environments.
8. Which industries commonly install this model?
It is widely used in power generation, oil and gas, petrochemical, mining, marine, pulp and paper, and heavy manufacturing industries.
9. How does this probe support predictive maintenance?
Continuous monitoring allows maintenance teams to detect abnormal shaft movement and vibration early, helping prevent costly failures and improve equipment availability.
10. Why is the 3300 XL 8 mm Series a preferred choice?
The 3300 XL Series is trusted for its outstanding measurement accuracy, robust construction, excellent interchangeability, and long-term reliability in machinery protection systems.
