Intelligent Thrust Monitoring for Critical Rotating Machinery Applications

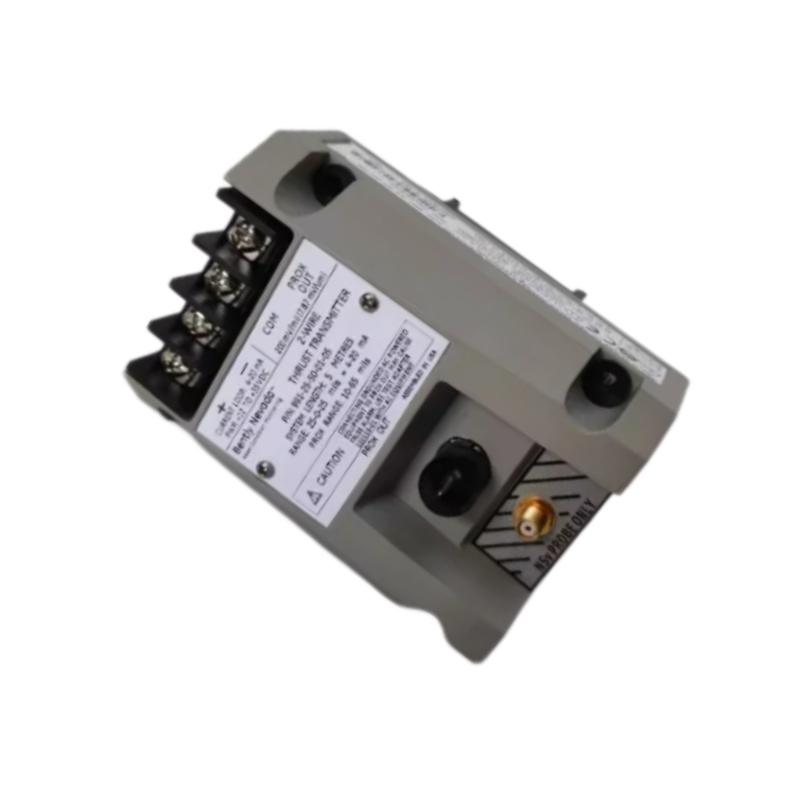

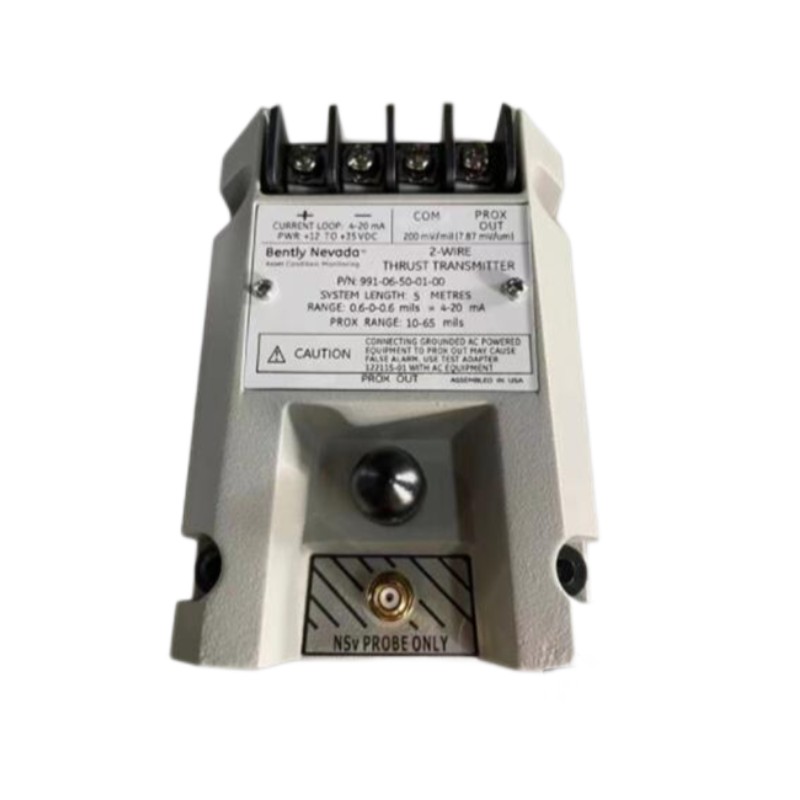

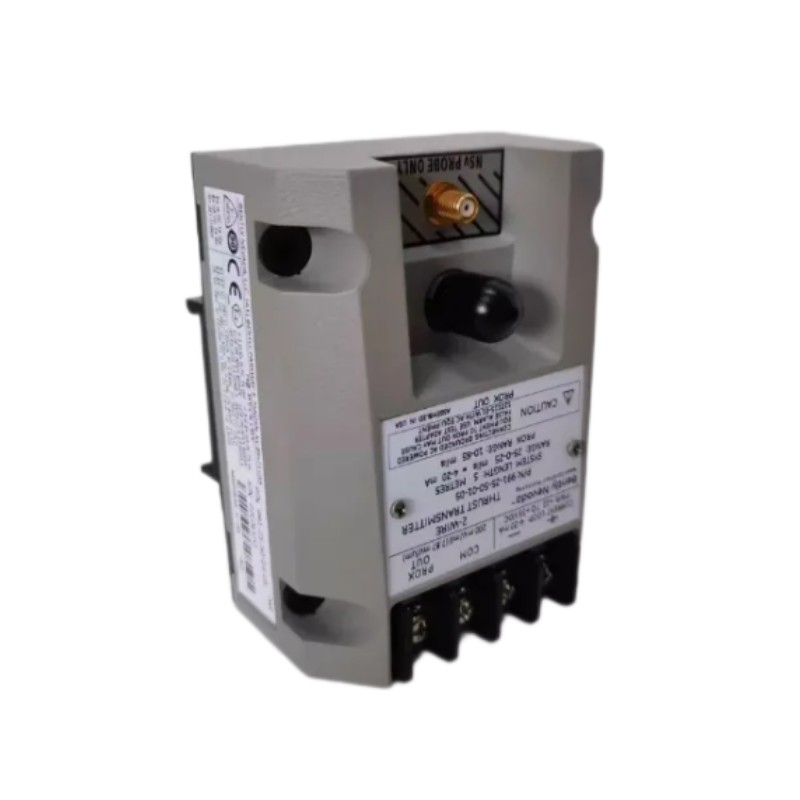

The Bently Nevada 991-06-50-01-CN 991 Thrust Sensor is a high-performance axial displacement monitoring transmitter designed to provide continuous thrust position measurement for industrial rotating equipment. As part of the trusted 991 Series, this device converts signals from a compatible Bently Nevada 3300 NSv proximity probe into a proportional 4–20 mA output, allowing direct connection with PLC, DCS, SCADA, and machinery protection systems.
Designed for applications where accurate shaft position feedback is essential, the 991-06-50-01-CN provides a 0.6-0-0.6 mm full-scale measurement range, 5.0 meter system length, 35 mm DIN-rail mounting, and CN China-specific hazardous-area approval configuration. The integrated Proximitor® electronics simplify installation by combining sensing and signal conditioning functions into one compact transmitter package.
The transmitter is commonly installed on centrifugal compressors, pumps, motors, fans, and other rotating machinery where early detection of thrust movement helps prevent bearing damage, unexpected downtime, and costly equipment failures.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 991-06-50-01-CN |
| Product Type | 991 Thrust Sensor / Thrust Transmitter |
| Measurement Function | Shaft axial displacement (thrust position) |
| Full Scale Range | 0.6-0-0.6 mm (25-0-25 mils) |
| System Length | 5.0 m (16.4 ft) |
| Compatible Probe | Bently Nevada 3300 NSv Proximity Probe |
| Output Signal | 4–20 mA proportional current loop |
| Power Supply | +12 to +35 VDC |
| Circuit Configuration | Two-wire loop powered |
| Mounting Type | 35 mm DIN-rail clips |
| Signal Conditioning | Integrated Proximitor® Sensor |
| Diagnostic Output | PROX OUT and COM |
| Approval Option | CN (China-specific approval configuration) |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +177°C |
| Maximum Loop Resistance | 1,000 Ω at 35 VDC |
| Transmitter Dimensions | Approx. 73 × 50 × 100 mm |
| Transmitter Weight | Approx. 0.43 kg |
| Shipping Weight | Approx. 2 kg |
Application Areas
The 991-06-50-01-CN Thrust Sensor is engineered for continuous monitoring of axial shaft movement in machinery where thrust position directly affects operational safety.
| Industry | Equipment Applications |
|---|
| Oil & Gas | Centrifugal compressors, gas compressors, pumps |
| Petrochemical | Process rotating equipment |
| Power Generation | Turbines and auxiliary machinery |
| Manufacturing | Motors, blowers, industrial fans |
| Water & Utilities | Large pumping systems |
| OEM Machinery | Compressor and pump packages |
Typical monitoring applications include:
-
Thrust bearing protection
-
Axial shaft position measurement
-
Machinery condition monitoring
-
Predictive maintenance programs
-
Alarm and shutdown protection
-
Continuous machine health analysis
Key Advantages
Integrated Proximitor® Technology
The built-in Proximitor® sensor electronics eliminate the requirement for an external signal conditioner. This compact architecture reduces wiring requirements, saves cabinet space, and simplifies installation for OEM and retrofit projects.
Precise 0.6 mm Measurement Capability
The 06 measurement option provides a precise 0.6-0-0.6 mm thrust measurement range, making it suitable for applications requiring accurate monitoring of small axial shaft movements.
Flexible 5 Meter System Length
The 50 configuration provides a 5.0 meter probe and extension cable system length, offering installation flexibility for machinery where the transmitter must be located away from the measurement point.
CN Hazardous Area Configuration
The CN suffix identifies the China-specific approval configuration, supporting installations requiring regional compliance for industrial environments.
Standard 4–20 mA Industrial Output
The transmitter provides a universal current-loop output compatible with modern automation platforms, allowing easy integration with existing machinery monitoring systems.
Compact DIN-Rail Mounting
The 01 mounting option uses standard 35 mm DIN-rail clips, allowing quick installation inside control cabinets and machinery monitoring panels.
Reliable Machinery Protection Design
Features such as diagnostic outputs, signal monitoring functions, and integrated protection circuits help improve commissioning efficiency and reduce false alarms during operation.
Technical FAQs
1. What is the Bently Nevada 991-06-50-01-CN used for?
It is used for measuring shaft axial displacement and monitoring thrust position in rotating machinery such as compressors, pumps, and motors.
2. What measurement range does this model provide?
The transmitter provides a 0.6-0-0.6 mm full-scale thrust measurement range.
3. Which probe is compatible with this transmitter?
The unit is designed for use with the Bently Nevada 3300 NSv proximity probe system.
4. What does the “50” in the model number mean?
The 50 option indicates a 5.0 meter (16.4 ft) system length configuration.
5. What does the “01” mounting option represent?
The 01 option specifies installation using 35 mm DIN-rail mounting clips.
6. What does the “CN” suffix indicate?
The CN suffix represents a China-specific approval configuration for regional installation requirements.
7. Does the transmitter require an external Proximitor module?
No. The Proximitor® sensor electronics are integrated inside the transmitter assembly.
8. What output signal does the device provide?
It provides a proportional 4–20 mA current loop output representing shaft axial position.
9. What power supply is required?
The transmitter requires a 12–35 VDC supply at the transmitter terminals.
10. What diagnostic features are available?
The transmitter provides PROX OUT and COM terminals for diagnostic monitoring, including access to dynamic and gap voltage information.
