ABB DSQC643 3HAC024488-001 Controller Panel

Brand:ABB PLC
Item No.:DSQC643 3HAC024488-001
Product Origin:Sweden
Product Dimensions:280 mm × 200 mm × 40 mm
Product Weight:1.2kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0
Points

Send Inquiry
  • Product Details
  • Product Applications
  • Product Advantages
  • Technical FAQs
  • Contact

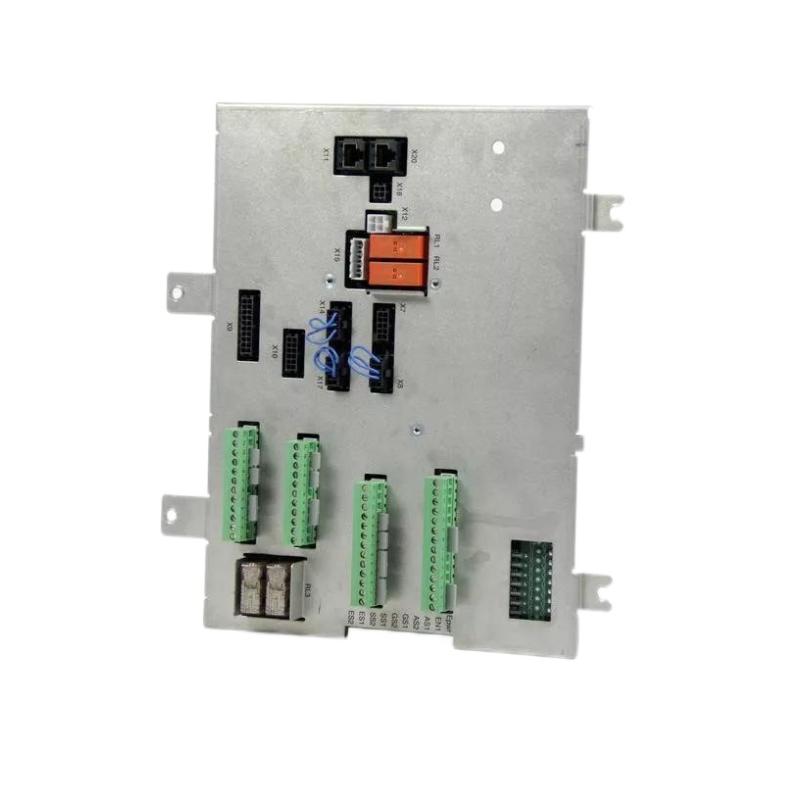

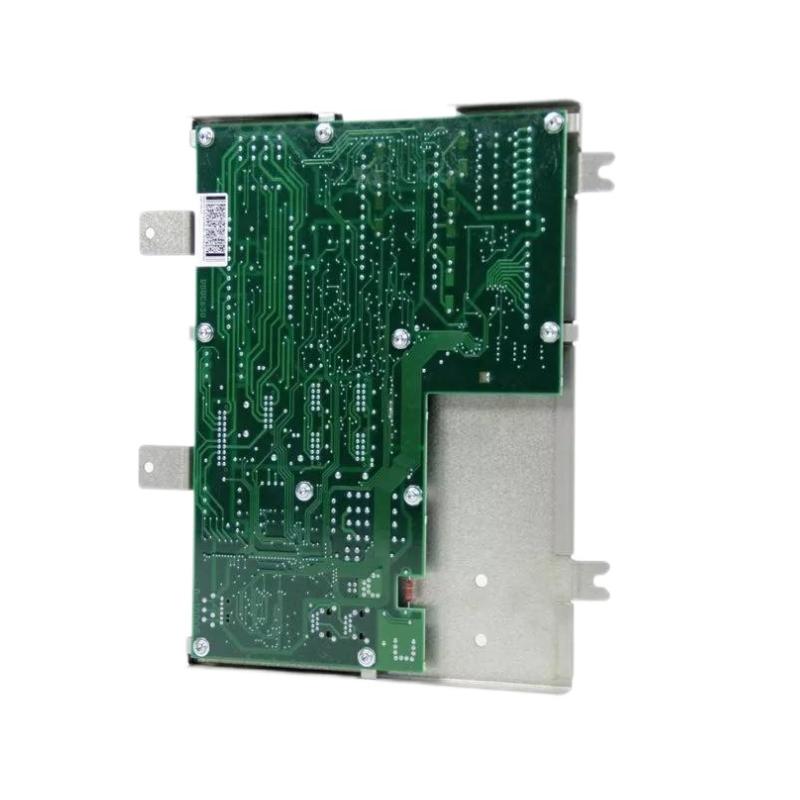

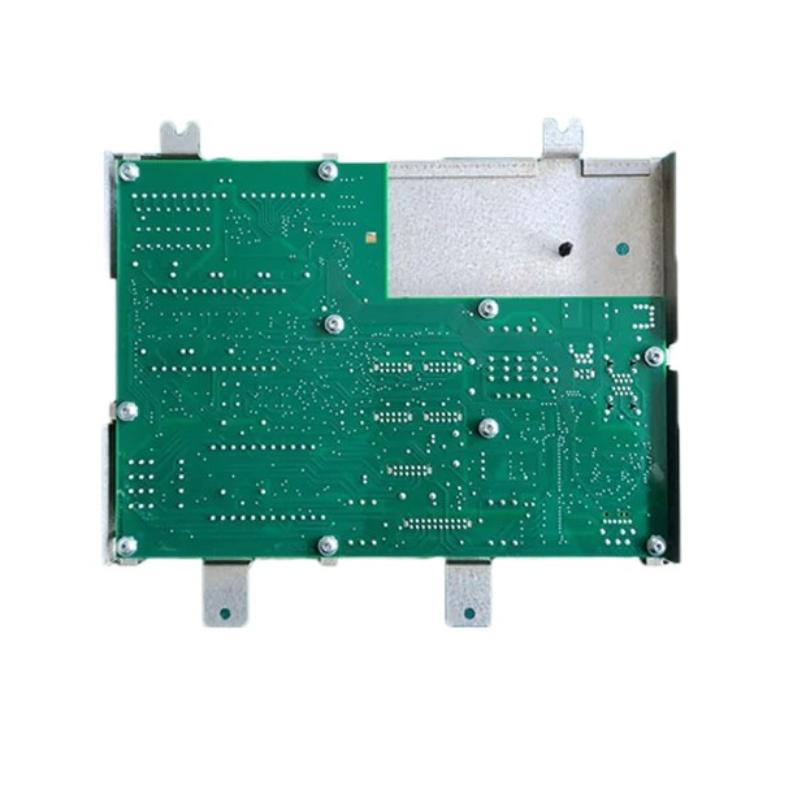

DSQC643 3HAC024488-001 (1)DSQC643 3HAC024488-001 (4)DSQC643 3HAC024488-001 (3)DSQC643 3HAC024488-001 (2)

Introduction

The ABB DSQC643 3HAC024488-001 Controller Panel is a high-quality human-machine interface designed to provide intuitive control and seamless interaction with ABB robotic systems. Engineered for industrial automation environments, this panel combines ergonomic design with robust build quality to offer operators clear visualization, efficient system navigation, and dependable performance under continuous use. Ideal for production floors and control rooms alike, the DSQC643 enhances operator efficiency and contributes to safer, more effective machine operation.

Technical Specifications

SpecificationDetails
ModelDSQC643 3HAC024488-001
Module TypeController Panel / HMI Interface
Display TypeIndustrial-grade interface (LCD or touch options)
User InterfaceButtons, soft keys, status indicators
Communication InterfacesController bus, serial/fieldbus support (system specific)
Power Supply24 V DC (provided by controller or auxiliary supply)
Environmental RatingIP20 (internal enclosure)
Operating Temperature0 °C to +50 °C
Storage Temperature–20 °C to +70 °C
Humidity Tolerance10 %–90 % non-condensing
Mounting StylePanel mount or rack interface depending on system design
Dimensions (HxWxD)Approx. 280 mm × 200 mm × 40 mm
WeightApprox. 1.2 kg (2.65 lb)


Applications

The DSQC643 Controller Panel is tailored for environments where clear operator interaction and dependable system feedback are required:

  • Central control and monitoring in ABB robot workcells

  • Production line start/stop and mode selection operations

  • Real-time visualization of system status and fault conditions

  • Operator interface in assembly, welding, material handling, and packaging cells

  • OEM automation systems requiring operator-panel integration

Its responsive interface and clear feedback design make it a natural choice for managing complex automated systems.


Advantages

  • Operator-Friendly Design: Intuitive layout enhances usability for technicians and operators alike.

  • Robust Industrial Construction: Built to withstand typical factory temperatures and humidity without performance loss.

  • Real-Time Feedback: Displays system status, alerts, and diagnostics clearly for rapid decision-making.

  • Flexible Integration: Compatible with a range of ABB controllers and communication buses.

  • Compact and Efficient: Space-efficient form factor simplifies mounting in control panels and consoles.

  • Maintenance-Ready: Modular design supports easy servicing and replacement.

Together, these strengths help minimize errors, improve uptime, and support streamlined human-machine interaction in demanding automation settings.


Technical FAQs (Frequently Asked Questions)

  1. What is the primary purpose of the DSQC643 Controller Panel?
    It serves as the operator interface for monitoring and controlling ABB robotic systems.

  2. Does the panel provide real-time system feedback?
    Yes — it delivers status indicators, alerts, and operational data in a clear and responsive format.

  3. What power supply does the panel require?
    It operates on 24 V DC, typically provided through the controller or auxiliary supply.

  4. Is the panel suitable for industrial environments?
    Yes — it’s designed for typical industrial temperatures and humidity conditions.

  5. How is the panel mounted?
    It supports panel or rack mounting depending on system design requirements.

  6. Can it interface with multiple controller types?
    Yes — it integrates with supported ABB robot controllers and compatible communication buses.

  7. Is the display user-friendly?
    Yes — the interface layout is optimized for operator clarity and ease of use.

  8. Does it support diagnostics?
    The panel displays system status and fault information to aid troubleshooting.

  9. What kind of input methods does the panel use?
    It may include pushbuttons, soft keys, or touch controls depending on configuration.

  10. Is it easy to replace during maintenance?
    Yes — modular design allows technicians to replace it with standard procedures.
