High-Reliability Axial Position Monitoring for Critical Rotating Machinery

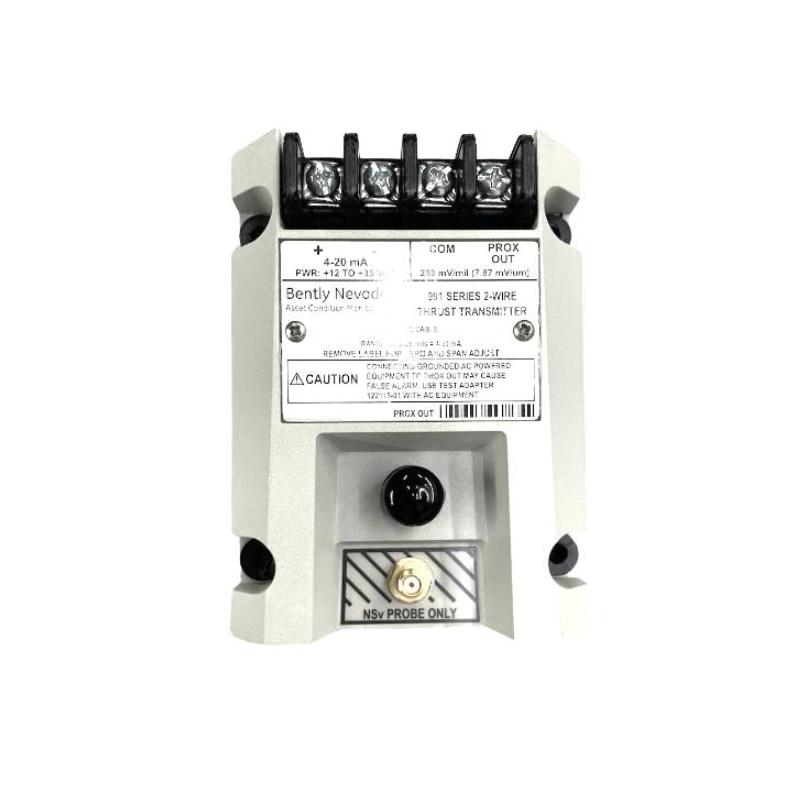

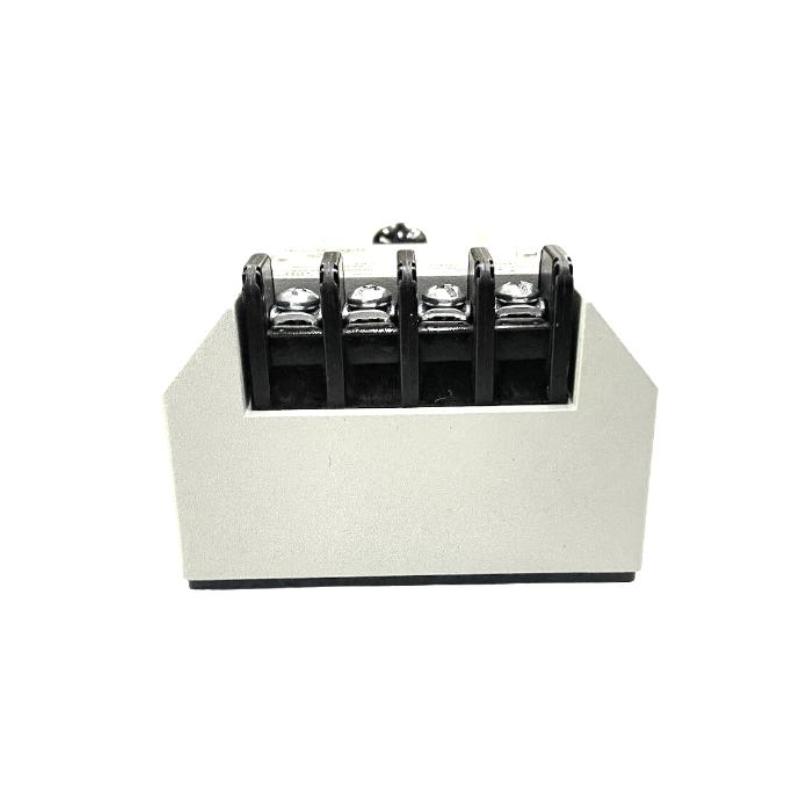

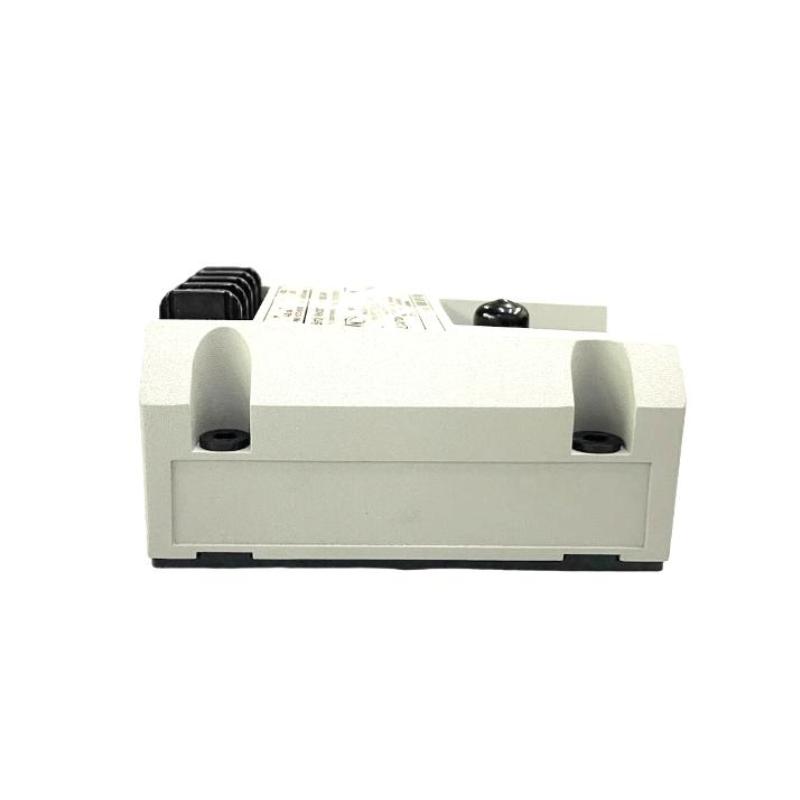

The Bently Nevada 991-01-XX-01-05 991 Thrust Sensor is a rugged, loop-powered thrust transmitter designed to continuously monitor shaft axial displacement in industrial rotating equipment. Built for OEM machinery and plant-wide condition monitoring systems, it converts signals from a compatible 3300 NSv proximity probe system into a precise 4–20 mA analog output, allowing seamless integration with PLC, DCS, SCADA, and machinery protection platforms. The 991 Series is widely trusted for protecting compressors, pumps, motors, blowers, and other critical assets where accurate thrust position measurement helps prevent unexpected failures and costly downtime.
The 991-01-XX-01-05 configuration combines a factory-configurable measurement range (XX) with 35 mm DIN-rail mounting and the 05 hazardous-area approval option. Its integrated Proximitor® electronics eliminate the need for an external signal conditioner, simplifying installation while maintaining long-term measurement stability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 991-01-XX-01-05 |
| Product Type | 991 Thrust Sensor / Thrust Transmitter |
| Measurement Function | Shaft axial displacement (thrust position) |
| Measurement Range | Factory configurable (XX option) |
| Compatible Probe | Bently Nevada 3300 NSv Proximity Probe |
| Output Signal | 4–20 mA proportional analog output |
| Power Supply | 12–35 VDC |
| Wiring | Two-wire loop powered |
| Mounting Method | 35 mm DIN-rail |
| Signal Conditioning | Integrated Proximitor® electronics |
| Diagnostic Connections | PROX OUT and COM |
| Approval Option | 05 (hazardous-area certified configuration, depending on ordered version) |
| Operating Temperature | -35°C to +85°C |
| Storage Temperature | -52°C to +177°C |
| Humidity | Up to 100% condensing (non-submerged) |
| Dimensions | Approx. 82 × 35 × 75 mm |
| Weight | Approx. 0.43 kg |
Typical Applications
The 991-01-XX-01-05 is engineered to deliver dependable thrust monitoring across numerous industrial applications.
| Industry | Typical Equipment |
|---|
| Oil & Gas | Centrifugal compressors, pipeline pumps |
| Petrochemical | Process compressors and rotating equipment |
| Power Generation | Steam turbine auxiliary machinery |
| Manufacturing | Industrial motors, fans, blowers |
| Water & Wastewater | High-capacity pumping systems |
| OEM Machinery | Compressor and pump packages |
Common applications include:
-
Continuous shaft axial displacement monitoring
-
Thrust bearing protection
-
Machine condition monitoring
-
Predictive maintenance programs
-
PLC/DCS process integration
-
Alarm and machinery shutdown systems
Product Advantages
Integrated Proximitor® Electronics
Built-in Proximitor® circuitry removes the need for an external signal conditioner, reducing installation time, wiring complexity, and control cabinet space requirements.
Configurable Measurement Capability
The configurable XX range allows the transmitter to be matched to various machine thrust monitoring requirements, making it suitable for both OEM installations and retrofit projects.
Hazardous-Area Ready
The 05 option is intended for configurations requiring hazardous-location approvals, making the transmitter suitable for installations in demanding industrial environments where certified equipment is required. Actual certifications depend on the complete ordered configuration.
Standard 4–20 mA Output
A stable 4–20 mA analog output provides reliable communication with modern control systems, ensuring accurate machinery monitoring and protection.
Compact DIN-Rail Installation
The DIN-rail mounting design enables fast installation in industrial control cabinets while minimizing occupied panel space and simplifying maintenance.
Designed for Continuous Operation
Its fully potted industrial construction provides excellent resistance to vibration, humidity, and harsh operating conditions, supporting dependable long-term performance.
Technical FAQs
1. What is the 991-01-XX-01-05 used for?
It continuously measures shaft axial displacement and outputs a proportional 4–20 mA signal for machinery monitoring and protection.
2. What does the "XX" designation mean?
It indicates a factory-configured measurement range, selected to match the specific machinery application.
3. What does the "01" mounting option indicate?
The 01 code specifies 35 mm DIN-rail mounting for easy installation in industrial control panels.
4. What does the "05" option represent?
It denotes a hazardous-area approval configuration. The exact certifications depend on the complete ordering code and applicable regional requirements.
5. Which proximity probe is compatible?
The transmitter is designed for use with the Bently Nevada 3300 NSv proximity probe and its matching extension cable.
6. Does it require an external Proximitor module?
No. The Proximitor® electronics are integrated into the transmitter housing.
7. What power supply does the transmitter require?
It operates from a 12–35 VDC loop-powered supply.
8. Are diagnostic outputs available?
Yes. PROX OUT and COM terminals provide access to dynamic vibration and gap voltage signals for diagnostics and commissioning.
9. Which industries commonly use this transmitter?
It is widely used in oil & gas, petrochemical, power generation, manufacturing, water treatment, and OEM rotating equipment.
10. What are the primary advantages of the 991 Series?
Key benefits include integrated signal conditioning, configurable measurement ranges, compact installation, reliable 4–20 mA output, and long-term machinery protection.
