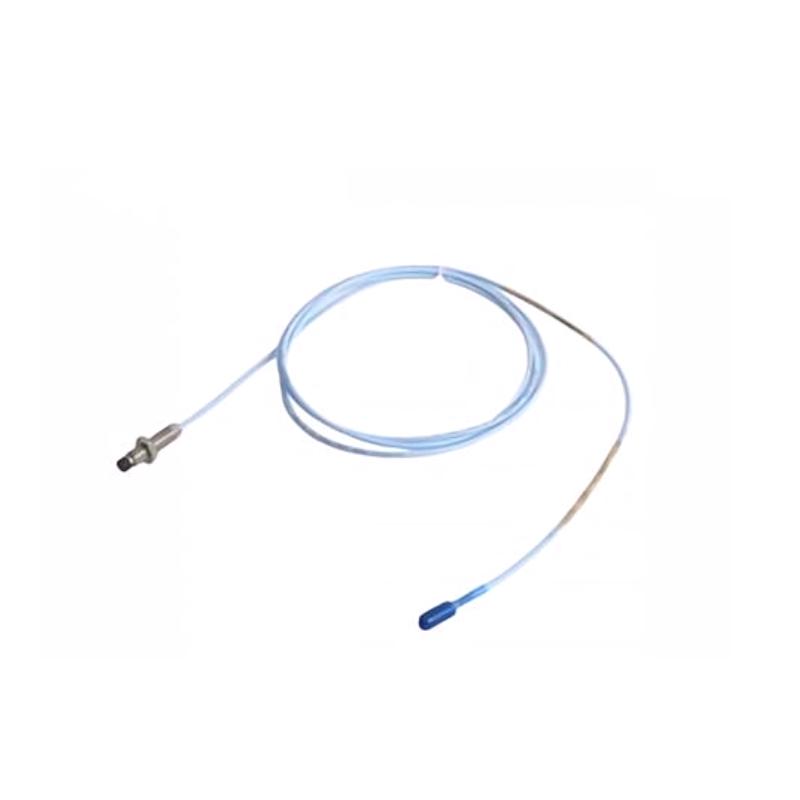

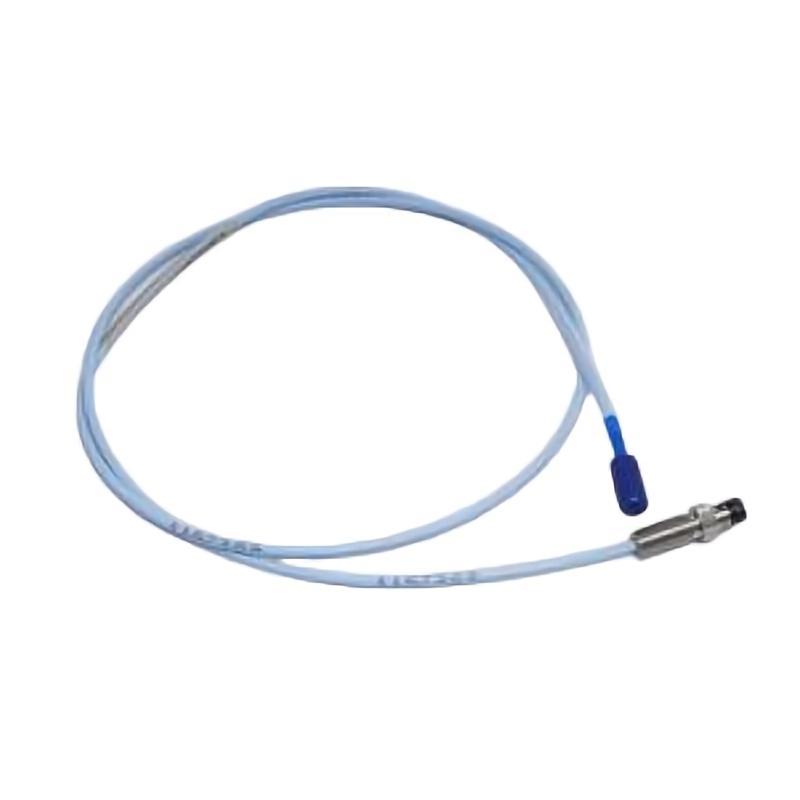

Product Features
Engineered for Accurate Machinery Diagnostics
Using advanced eddy current technology, the 330103-00-06-10-02-CN continuously measures the distance between the probe tip and a conductive shaft surface, producing a precise voltage signal proportional to shaft movement. When used together with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it forms a complete transducer system capable of monitoring vibration, shaft position, eccentricity, and other critical machine parameters.
Typical monitored equipment includes:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Electric motors
-
Pumps
-
Generators
-
Industrial gearboxes
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-06-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Mounting Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | CN (Country-Specific Approval / NEPSI, ATEX & IECEx configuration) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Operating Temperature | Approx. -51°C to +177°C |
| Approximate Dimensions | Ø8 mm × 60 mm |
| Approximate Weight | 0.323 kg |
Industrial Applications
The 330103-00-06-10-02-CN is designed for reliable condition monitoring across a wide range of industrial sectors.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | Process compressors and rotating equipment |
| Manufacturing | Motors, gearboxes, production machinery |
| Marine | Propulsion systems and auxiliary equipment |
Typical monitoring functions include:
-
Shaft vibration measurement
-
Radial displacement monitoring
-
Axial position measurement
-
Rotor eccentricity analysis
-
Machine protection systems
-
Predictive maintenance programs
Key Advantages
Country-Specific Hazardous Area Certification
The CN approval option supports installations requiring Chinese NEPSI certification together with applicable ATEX and IECEx approval configurations, making the probe suitable for hazardous industrial environments.
Reliable Non-Contact Measurement
Advanced eddy current sensing technology provides accurate, repeatable measurements without physical contact, minimizing mechanical wear while ensuring long-term measurement stability.
Durable Industrial Construction
Manufactured with a stainless-steel housing, PPS sensing tip, and Viton® O-ring seal, the probe offers excellent resistance to corrosion, vibration, moisture, and elevated operating temperatures.
Flexible Metric Installation
The M10 × 1 threaded body enables convenient installation on metric machinery commonly found in international industrial facilities.
Seamless 3300 XL Integration
Fully compatible with 3300 XL Extension Cables and 3300 XL Proximitor® Sensors, this probe simplifies maintenance while maintaining consistent monitoring performance across existing systems.
Technical FAQs
1. What is the 330103-00-06-10-02-CN used for?
It measures shaft vibration, radial displacement, and axial position in rotating machinery using non-contact eddy current technology.
2. Which transducer system is this probe part of?
It belongs to the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
3. What mounting thread does this model use?
It features an M10 × 1 metric mounting thread.
4. What does the "06" option represent?
The 06 configuration specifies a 60 mm overall probe case length.
5. What does the "10" cable option indicate?
It designates a 1.0-meter (3.3 ft) integral cable.
6. Which connector is supplied?
The probe uses a Miniature Coaxial ClickLoc™ connector with a standard cable.
7. What does the "CN" approval option mean?
The CN suffix identifies a country-specific approval configuration that includes Chinese NEPSI hazardous-area marking, with supporting documentation for applicable ATEX and IECEx approvals.
8. Which materials are used in the probe construction?
The sensing tip is manufactured from Polyphenylene Sulfide (PPS), while the housing is made from AISI 303/304 stainless steel and sealed with a Viton® O-ring.
9. Is this probe compatible with existing 3300 XL monitoring systems?
Yes. It is fully compatible with matching 3300 XL Extension Cables and 3300 XL Proximitor® Sensors.
10. Which machines commonly use this probe?
It is widely installed on turbines, compressors, generators, pumps, motors, and other critical rotating equipment requiring continuous condition monitoring.
