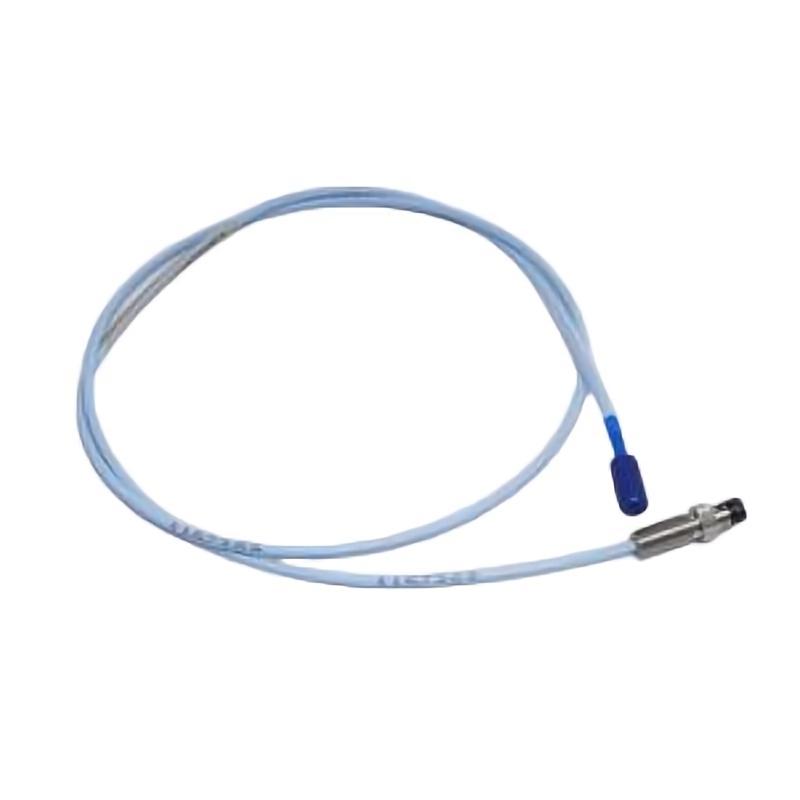

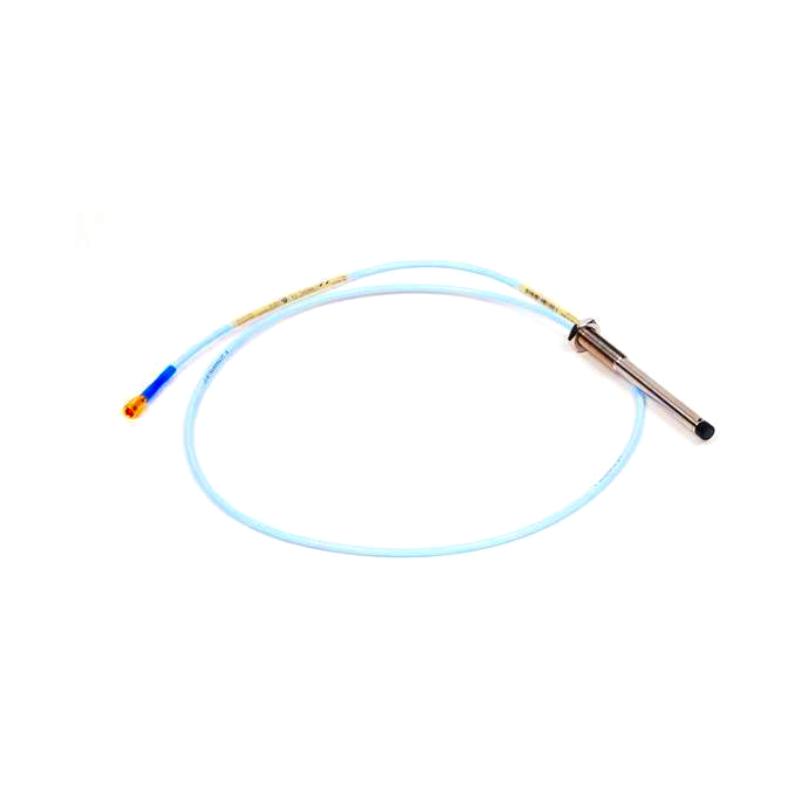

Accurate Monitoring for Critical Rotating Equipment
The 330103-00-06-05-02-IN uses advanced eddy current sensing technology to measure the gap between the probe tip and a conductive shaft surface. The generated signal is proportional to shaft movement, enabling accurate monitoring of vibration, displacement, eccentricity, and axial position. This non-contact measurement method eliminates mechanical wear while delivering highly repeatable performance throughout the service life of the probe.
Typical applications include:
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Electric motors
-
Pumps
-
Generators
-
Gearboxes
Its compact cable configuration is particularly suitable for installations where limited cable routing distance is required while maintaining the measurement performance expected from the 3300 XL platform.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-06-05-02-IN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Mounting Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | IN (India Approval Option) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Operating Temperature | Approx. -51°C to +177°C |
| Approximate Dimensions | Ø8 mm × 60 mm case length |
| Approximate Weight | 0.30 kg |
Industrial Applications
The 330103-00-06-05-02-IN is widely used for continuous machinery protection and condition monitoring in industrial facilities.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, generators, gas turbines |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | High-speed rotating process equipment |
| Manufacturing | Motors, gearboxes, production machinery |
| Mining & Metals | Heavy-duty rotating equipment |
Typical monitoring functions include:
-
Shaft vibration measurement
-
Radial displacement monitoring
-
Axial position measurement
-
Rotor eccentricity analysis
-
Machine protection systems
-
Predictive maintenance programs
Key Advantages
Compact 0.5 m Cable Configuration
The integrated 0.5-meter cable is ideal for installations where the probe is positioned close to the extension cable connection, helping simplify routing and reduce excess cable management.
High-Precision Non-Contact Sensing
Advanced eddy current technology delivers stable, repeatable measurements without physical contact, reducing wear while improving long-term measurement reliability.
Rugged Industrial Construction
Constructed with a stainless-steel housing, PPS probe tip, and Viton® sealing, the probe offers excellent resistance to vibration, corrosion, and harsh operating environments.
Metric Installation Compatibility
The M10 × 1 threaded body enables straightforward installation on metric machinery and OEM equipment commonly used in international industrial applications.
Proven 3300 XL System Integration
The probe is fully compatible with the 3300 XL 8 mm Proximity Transducer System, ensuring consistent performance with matching extension cables and Proximitor sensors.
Technical FAQs
1. What is the 330103-00-06-05-02-IN used for?
It is designed to measure shaft vibration, radial displacement, and axial position in rotating machinery using non-contact eddy current technology.
2. What mounting thread does this probe use?
It features an M10 × 1 metric mounting thread.
3. What does the "00" option indicate?
It specifies a 0 mm unthreaded length.
4. What does the "06" option represent?
It indicates a 60 mm overall probe case length.
5. What does the "05" cable option mean?
It specifies a 0.5-meter (1.6 ft) integral cable.
6. What connector is fitted to this probe?
It uses a Miniature Coaxial ClickLoc™ connector with a standard cable.
7. What does the "IN" suffix indicate?
The IN suffix identifies an India-specific approval configuration intended to meet regional certification requirements.
8. Which monitoring system is this probe compatible with?
It is designed for use with the 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor sensors.
9. What materials are used in the probe construction?
The sensing tip is manufactured from Polyphenylene Sulfide (PPS), while the housing is made from AISI 303/304 stainless steel with a Viton® O-ring seal.
10. Which machines commonly use this proximity probe?
It is widely installed on turbines, compressors, pumps, generators, motors, and other critical rotating machinery requiring continuous condition monitoring.
