Built for Accurate Rotating Equipment Diagnostics

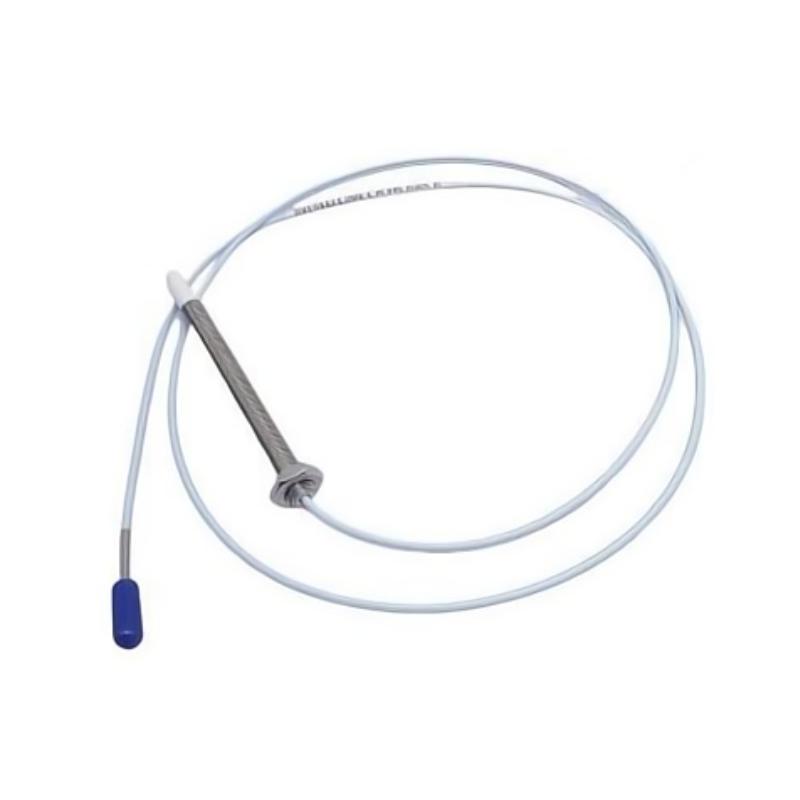

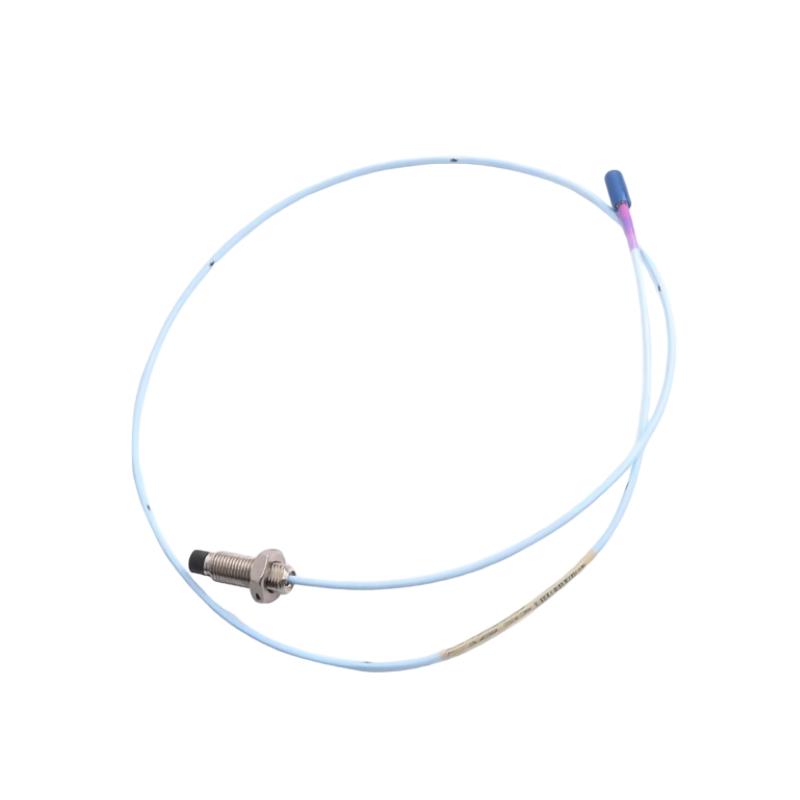

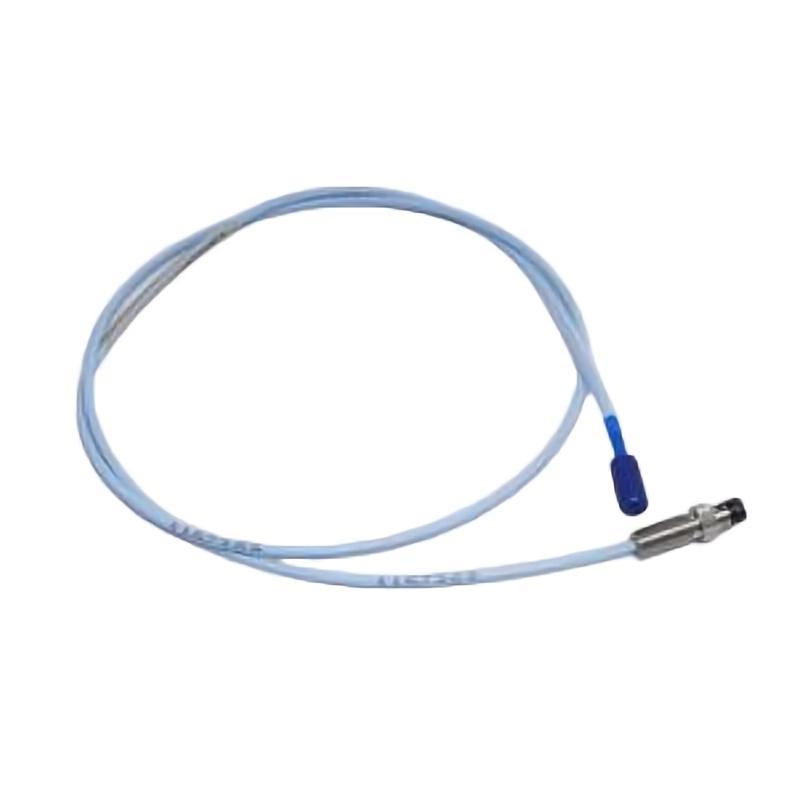

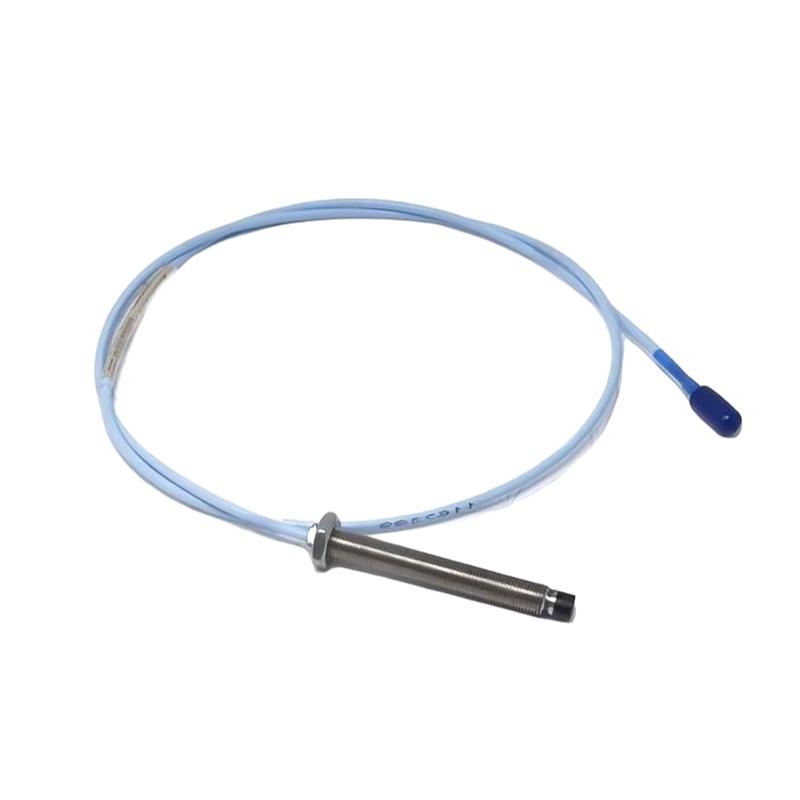

The 330103-00-05-15-02-00 converts the distance between the probe tip and a conductive shaft into a precise proportional voltage signal using advanced eddy current technology. Working together with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it enables continuous monitoring of vibration, shaft position, eccentricity, and Keyphasor® reference signals for machine protection systems.
Its rugged construction and proven sensing technology make it an excellent solution for both OEM installations and retrofit projects across a wide range of industrial applications.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-05-15-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Series | 330103 Metric Series |
| Measurement Principle | Non-contact Eddy Current |
| Mounting Thread | M10 × 1 Metric |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 50 mm |
| Total Cable Length | 1.5 m (4.9 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | 00 – Not Required |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Seal Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor® Sensor |
| Operating Temperature | Approx. -51°C to +177°C |
| Approximate Dimensions | Ø8 mm × 50 mm case length |
| Approximate Weight | 0.485 kg |
Typical Applications
The 330103-00-05-15-02-00 is engineered for continuous monitoring of critical rotating assets in industrial facilities.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, turbo expanders |
| Petrochemical | Process compressors and rotating machinery |
| Manufacturing | Electric motors, gearboxes, production equipment |
| Marine | Propulsion systems and auxiliary machinery |
Common monitoring functions include:
-
Shaft vibration measurement
-
Radial shaft displacement
-
Axial position monitoring
-
Rotor eccentricity analysis
-
Machinery protection systems
-
Predictive maintenance programs
Why Choose This Model?
Extended Cable for Flexible Installation
The integrated 1.5-meter cable simplifies installation on machinery where sensors must be mounted farther from connection points, reducing cable routing complexity.
High-Accuracy Non-Contact Measurement
The eddy current sensing technology delivers stable and repeatable measurements without physical contact, eliminating mechanical wear while supporting continuous equipment monitoring.
Rugged Industrial Construction
Manufactured with a stainless-steel housing, PPS probe tip, and Viton® sealing, the probe withstands vibration, oil exposure, and elevated operating temperatures encountered in harsh industrial environments.
Easy Integration with Existing Systems
The probe is fully compatible with the complete 3300 XL Proximity Transducer System, making replacement and system expansion straightforward while maintaining measurement consistency.
Trusted Performance for Critical Assets
Designed to meet the demanding requirements of industrial machinery protection, this probe helps improve equipment reliability, reduce maintenance costs, and support long-term operational efficiency.
Technical FAQs
1. What is the 330103-00-05-15-02-00 used for?
It is used for non-contact monitoring of shaft vibration, displacement, and rotor position in rotating machinery.
2. What thread type does this probe use?
It features an M10 × 1 metric mounting thread.
3. What does the "00" unthreaded length option indicate?
It specifies a 0 mm unthreaded length.
4. What does the "05" case length option represent?
It indicates a 50 mm overall probe case length.
5. What does the "15" option indicate?
The 15 configuration specifies a 1.5-meter (4.9 ft) total cable length.
6. What connector is supplied?
The probe uses a Miniature Coaxial ClickLoc™ connector with a standard cable.
7. What does Agency Approval Option "00" mean?
Option 00 indicates that no additional hazardous-area approval is required for this configuration.
8. Which monitoring system is this probe compatible with?
It is designed for use with the 3300 XL 8 mm Proximity Transducer System, including compatible extension cables and Proximitor Sensors.
9. What materials are used in its construction?
The probe features a PPS sensing tip, AISI 303/304 stainless-steel housing, and a Viton® O-ring for reliable sealing.
10. Which machines commonly use this probe?
It is widely installed on turbines, compressors, generators, pumps, motors, and other critical rotating equipment requiring continuous condition monitoring.
