Product Introduction
Compact Metric Design with Proven 3300 XL Monitoring Technology

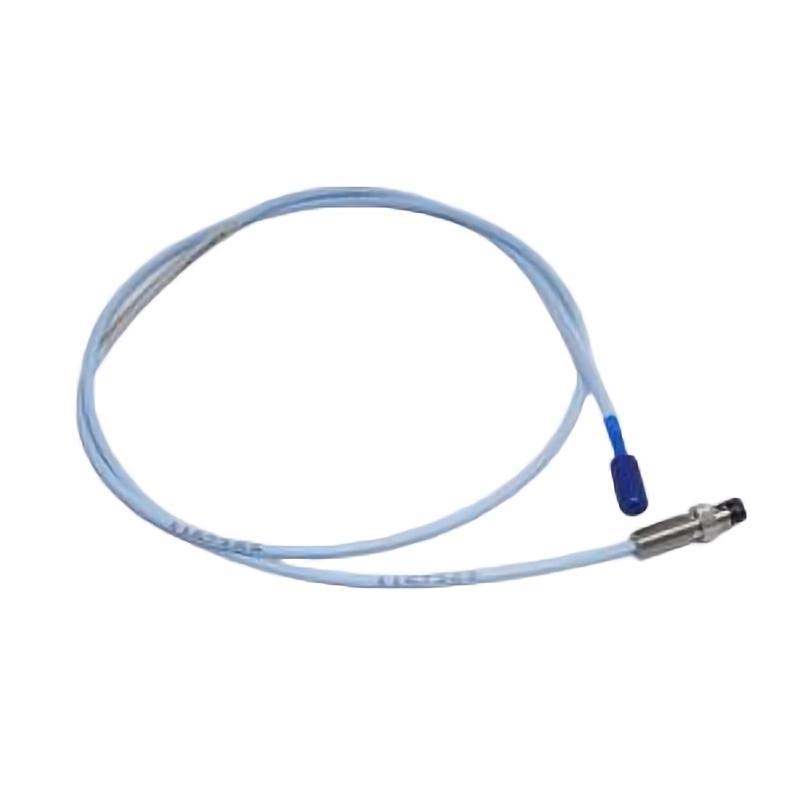

The 330103-00-03-05-02-RU converts the distance between the probe tip and the conductive shaft surface into a proportional electrical signal. This allows the connected monitoring system to detect both dynamic vibration movement and static shaft position changes, making it suitable for machinery protection and predictive maintenance applications.
The probe is normally integrated with:
-
3300 XL Extension Cable
-
3300 XL Proximitor® Sensor
-
Machinery monitoring system
Together, these components create a complete vibration and position measurement chain for rotating equipment.
Typical measurement applications include:
-
Shaft radial vibration monitoring
-
Rotor displacement measurement
-
Axial position monitoring
-
Keyphasor® reference measurement
-
Speed measurement
-
Turbine and compressor protection
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-03-05-02-RU |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Series | 330103 Metric Series |
| Mounting Thread | M10 x 1 Metric Thread |
| Probe Construction | Non-Armored Design |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Approval Option | RU Country-Specific Approval |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Sealing Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Operating Temperature | Approximately -51°C to +177°C |
| Probe Diameter | 8 mm |
| Approximate Dimensions | Ø8 mm × 30 mm case length |
| Approximate Weight | 0.323 kg |
Applications
Designed for Mission-Critical Rotating Equipment
The 330103-00-03-05-02-RU is widely applied in industries where equipment reliability and accurate condition monitoring are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Centrifugal compressors and process machinery |
| Manufacturing | Motors, gearboxes, rotating drives |
| Marine | Propulsion and auxiliary systems |
Advantages
Metric Mounting Compatibility
The M10 x 1 thread design provides direct compatibility with many international OEM machines and metric mechanical assemblies, simplifying installation and replacement procedures.
Reliable Non-Contact Measurement
The eddy current sensing principle allows accurate shaft monitoring without physical contact, reducing mechanical wear while maintaining stable measurement performance.
Compact 30 mm Case Configuration
The 30 mm overall case length provides installation flexibility in applications where mounting space is limited while maintaining the performance benefits of the 3300 XL 8 mm sensing platform.
Durable Industrial Construction
The stainless-steel housing and PPS probe tip provide strong resistance against vibration, temperature variation, and harsh industrial environments.
Flexible System Integration
The probe can be combined with compatible 3300 XL extension cables and Proximitor Sensors without individual component matching, simplifying system maintenance and spare management.
Technical FAQs
1. What is the Bently Nevada 330103-00-03-05-02-RU used for?
It is used for non-contact measurement of shaft vibration, displacement, and position on rotating machinery.
2. What does the 330103 series represent?
The 330103 series identifies the M10 x 1 metric thread version of the 3300 XL 8 mm proximity probe without armor.
3. Is this probe armored?
No. The 330103 series is the non-armored metric version of the 3300 XL 8 mm probe family.
4. What does "00" indicate in the model number?
The first option indicates a 0 mm unthreaded length configuration.
5. What does "03" represent?
It indicates a 30 mm overall case length.
6. What does "05" specify?
It indicates a 0.5-meter total probe cable length.
7. What connector is used?
The probe uses a Miniature Coaxial ClickLoc™ connector with standard cable.
8. Which sensor should be paired with this probe?
It should be paired with a compatible 3300 XL Proximitor Sensor and matching extension cable to create a complete transducer system.
9. What materials are used in the probe?
The probe tip is made from Polyphenylene Sulfide (PPS) and the case uses AISI 303/304 stainless steel.
10. What equipment commonly uses this probe?
It is commonly installed on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.
