Product Overview
Compact Metric Design with Proven 3300 XL Technology

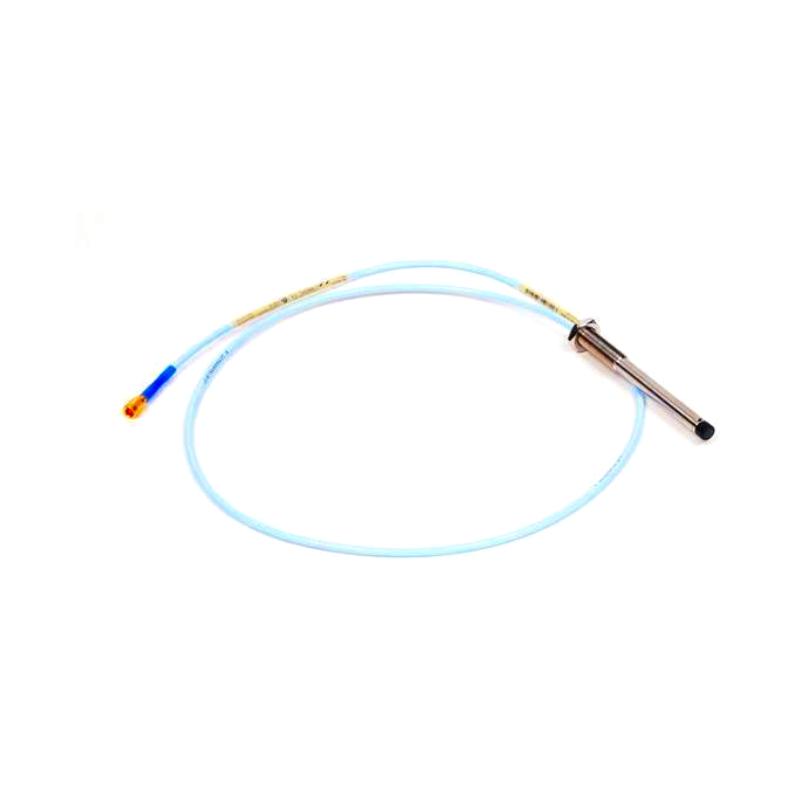

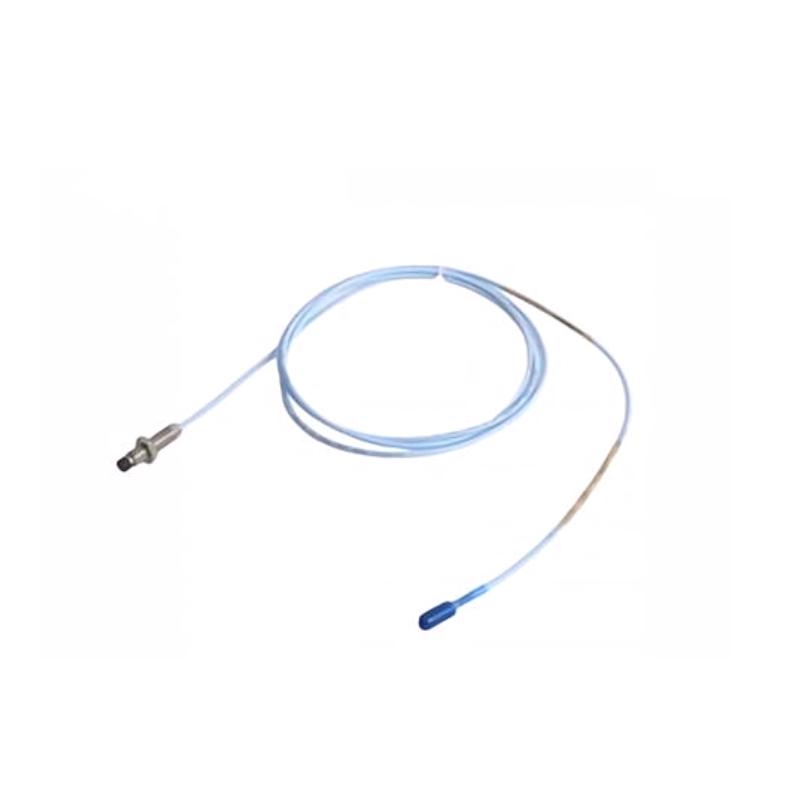

The 330103-00-03-05-02-05 converts the distance between the probe tip and the rotating shaft surface into a proportional electrical signal. This enables accurate measurement of both dynamic vibration movement and static shaft position changes, supporting advanced machinery protection and predictive maintenance programs.
The probe is typically installed as part of a complete 3300 XL 8 mm Proximity Transducer System, which includes:
-
3300 XL 8 mm Proximity Probe
-
3300 XL Extension Cable
-
3300 XL Proximitor® Sensor
This complete system provides dependable vibration and position monitoring for fluid-film bearing machines, turbines, compressors, pumps, and other rotating assets.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-03-05-02-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Series | 330103 Metric Series |
| Mounting Thread | M10 x 1 Metric Thread |
| Probe Construction | Non-Armored Standard Design |
| Measurement Technology | Non-Contact Eddy Current |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Type | Standard Cable |
| Agency Approval | CSA, ATEX, IECEx |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Operating Temperature | Approximately -51°C to +177°C |
| Probe Diameter | 8 mm |
| Approximate Dimensions | 8 mm × 30 mm case length |
| Approximate Weight | 0.323 kg |
Industrial Applications
Designed for Critical Rotating Equipment Monitoring
The 330103-00-03-05-02-05 is widely used in industries where equipment reliability, uptime, and accurate condition monitoring are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Process compressors and rotating machinery |
| Manufacturing | Motors, gearboxes, high-speed drives |
| Marine | Propulsion and auxiliary machinery |
Typical applications include:
-
Shaft radial vibration monitoring
-
Rotor displacement measurement
-
Axial position monitoring
-
Turbine supervisory instrumentation
-
Machinery protection systems
-
Predictive maintenance monitoring
Product Advantages
Metric Mounting Flexibility
The M10 x 1 metric thread allows direct installation on equipment using international mechanical standards, making the probe highly suitable for global OEM applications.
High-Accuracy Non-Contact Measurement
The eddy current sensing principle eliminates mechanical contact with the rotating shaft, reducing wear while providing continuous and repeatable measurement performance.
Compact 30 mm Probe Body
The 30 mm overall case length provides installation flexibility where mounting space is limited while maintaining the sensing performance of the 3300 XL 8 mm platform.
Industrial-Grade Construction
The stainless-steel probe housing and PPS sensing tip provide excellent resistance to temperature variation, vibration, and industrial operating conditions.
Hazardous Area Compatibility
The Option 05 approval configuration supports installations requiring CSA, ATEX, and IECEx certification for industrial hazardous locations.
Technical FAQs
1. What is the Bently Nevada 330103-00-03-05-02-05 used for?
It is used for non-contact measurement of shaft vibration, displacement, and rotor position in rotating machinery.
2. What does the 330103 series indicate?
The 330103 series identifies the metric M10 x 1 threaded version of the 3300 XL 8 mm proximity probe.
3. Is this probe armored?
No. The 330103 series uses a standard non-armored cable design.
4. What does the first "00" represent?
It indicates a 0 mm unthreaded length configuration.
5. What does the "03" option represent?
It specifies the 30 mm overall case length.
6. What does the "05" cable option mean?
It indicates a 0.5-meter total cable length.
7. What connector is used on this model?
It uses a Miniature Coaxial ClickLoc™ connector with standard cable.
8. Which sensor works with this probe?
The probe should be paired with a compatible 3300 XL Proximitor Sensor and matching extension cable to create a complete transducer system.
9. What materials are used in construction?
The probe tip uses PPS, while the case uses AISI 303/304 stainless steel for durability.
10. Where is this probe commonly installed?
It is commonly installed on turbines, compressors, generators, pumps, motors, and other critical rotating machinery.
