Precision Metric Sensing for Critical Machinery
Engineered for Continuous Condition Monitoring

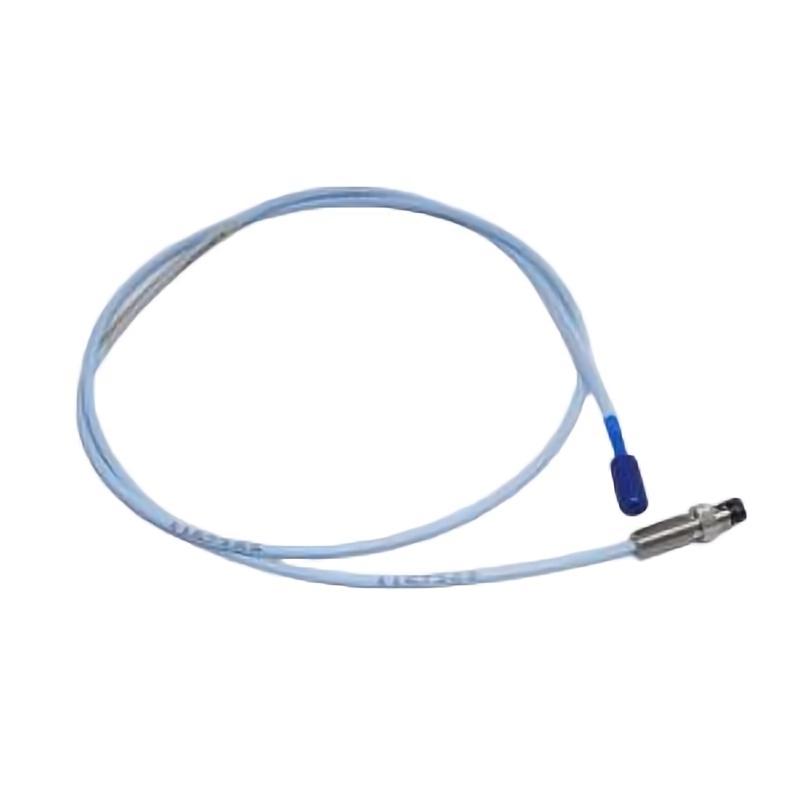

The 330103-00-03-05-01-05 converts the distance between the probe tip and the rotating shaft surface into a proportional electrical signal, enabling accurate measurement of both static shaft position and dynamic vibration movement. When combined with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor, it forms a complete machinery monitoring solution.
Typical monitoring functions include:
-
Shaft radial vibration measurement
-
Rotor displacement monitoring
-
Axial position detection
-
Bearing condition analysis
-
Turbine supervisory instrumentation
-
Keyphasor® speed and phase reference measurement
-
Online predictive maintenance monitoring
The compact metric design makes this probe suitable for OEM machinery, imported rotating equipment, and installations requiring M10 x 1 mounting compatibility.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-03-05-01-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Probe Series | 330103 Metric |
| Thread Type | M10 x 1 Metric Thread |
| Probe Construction | Standard Non-Armored Design |
| Measurement Technology | Non-Contact Eddy Current |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Protector |
| Cable Type | Standard Cable |
| Agency Approval | CSA, ATEX, IECEx Approvals |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Sealing Material | Viton® O-ring |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Operating Temperature | Approximately -51°C to +177°C |
| Approximate Dimensions | 8 mm diameter × 30 mm case length |
| Approximate Weight | 323 g/m |
Industrial Applications
Designed for High-Value Rotating Equipment
The 330103-00-03-05-01-05 provides reliable measurement performance for industries where equipment availability and protection are critical.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Centrifugal compressors and process machinery |
| Manufacturing | Motors, gearboxes, rotating drives |
| Marine | Propulsion systems and auxiliary equipment |
Common applications include:
-
Continuous vibration monitoring
-
Shaft displacement measurement
-
Machinery protection systems
-
Predictive maintenance programs
-
Rotor dynamic analysis
-
Equipment health diagnostics
Product Advantages
Metric Mounting Compatibility
The M10 x 1 metric thread provides straightforward installation on globally manufactured machinery, reducing the need for mechanical adapters and improving retrofit flexibility.
High Accuracy Eddy Current Technology
The 8 mm sensing element provides stable, repeatable measurements without physical contact with the rotating shaft, reducing wear and improving monitoring reliability.
Compact 30 mm Case Design
The 30 mm overall case length provides a practical installation option for applications where space is limited while maintaining the proven performance of the 3300 XL platform.
Certified for Industrial Environments
The Option 05 approval package provides CSA, ATEX, and IECEx certifications, supporting use in hazardous-area applications where additional safety requirements apply.
Integrated 3300 XL System Compatibility
The probe can be combined with 3300 XL extension cables and Proximitor Sensors without individual component matching, simplifying installation and maintenance.
Technical FAQs
1. What is the main purpose of the Bently Nevada 330103-00-03-05-01-05?
It is used to measure shaft vibration, displacement, and position through non-contact eddy current sensing technology.
2. What does the 330103 series represent?
The 330103 series represents the metric M10 x 1 threaded version of the 3300 XL 8 mm proximity probe.
3. Is this probe armored?
No. The 330103 series is a standard non-armored metric probe configuration.
4. What does the "00" option indicate?
It specifies a 0 mm unthreaded length configuration.
5. What does the "03" option represent?
It indicates a 30 mm overall case length.
6. What does the "05" cable length option mean?
It specifies a 0.5-meter (1.6 ft) total probe cable length.
7. What connector is installed on this model?
It uses a Miniature Coaxial ClickLoc™ connector with connector protector and standard cable.
8. Which Proximitor Sensor should be used with this probe?
It should be paired with a compatible 3300 XL Proximitor Sensor and matching extension cable to create a complete transducer system.
9. What materials are used in the probe construction?
The probe tip uses Polyphenylene Sulfide (PPS) and the housing uses AISI 303/304 stainless steel for industrial durability.
10. Where is this proximity probe commonly installed?
It is commonly installed on turbines, compressors, pumps, generators, motors, and other rotating equipment requiring continuous condition monitoring.
