Compact Metric Configuration with Proven 3300 XL Technology

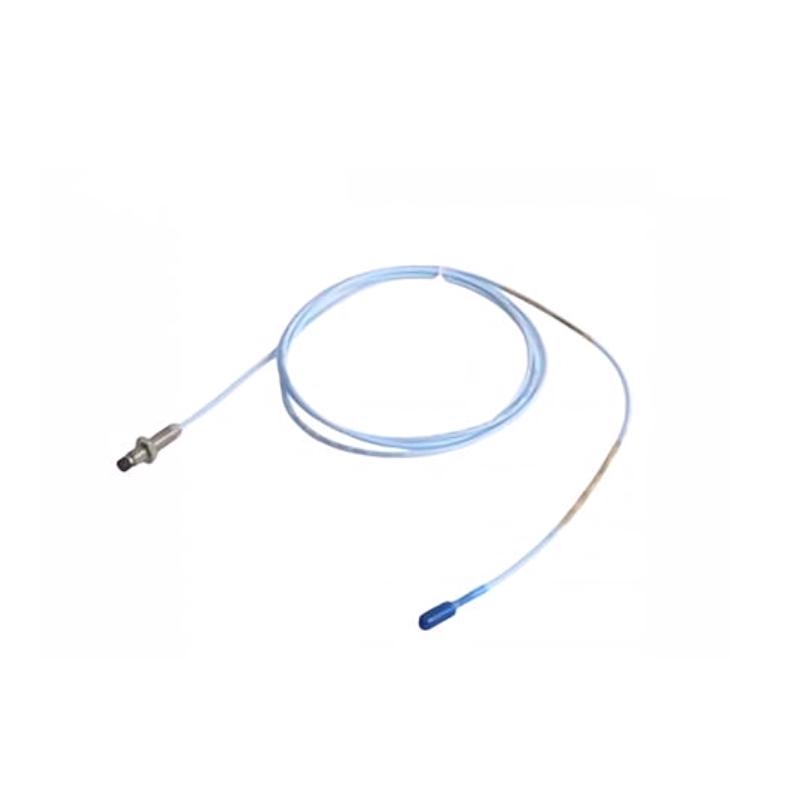

The 330103-00-02-10-02-05 uses eddy current sensing technology to provide a proportional electrical output based on the distance between the probe tip and the monitored conductive surface. This enables accurate measurement of both dynamic shaft vibration and static shaft position.
Typical monitoring applications include:
-
Shaft radial vibration monitoring
-
Rotor displacement measurement
-
Axial position monitoring
-
Bearing condition analysis
-
Machinery protection systems
-
Turbine supervisory instrumentation
-
Keyphasor® reference measurement
The probe is normally integrated with a compatible 3300 XL Extension Cable and 3300 XL Proximitor® Sensor to form a complete vibration and position monitoring system.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330103-00-02-10-02-05 |
| Product Type | 3300 XL 8mm Proximity Probe |
| Probe Series | 330103 Metric |
| Mounting Thread | M10 x 1 Metric |
| Probe Construction | Non-Armored |
| Measurement Principle | Eddy Current Non-Contact Sensing |
| Probe Tip Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Overall Case Length | 20 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector |
| Cable Configuration | Standard Cable |
| Agency Approval | CSA, ATEX, IECEx Multiple Approvals |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Operating Temperature | Approximately -52°C to +177°C |
| Approximate Dimensions | 8 mm diameter × 20 mm case length |
| Approximate Weight | 323 g/m |
Industrial Applications
Reliable Monitoring for Critical Rotating Machinery
The 330103-00-02-10-02-05 is widely used in applications where accurate shaft monitoring and dependable equipment protection are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Centrifugal compressors and process equipment |
| Manufacturing | Motors, gearboxes, rotating drives |
| Marine | Propulsion systems and auxiliary machinery |
Common applications include:
-
Online vibration monitoring
-
Rotor position measurement
-
Predictive maintenance systems
-
Rotating equipment diagnostics
-
Machine protection solutions
Product Advantages
Metric Mounting Compatibility
The M10 x 1 metric thread allows direct installation on internationally manufactured machinery without requiring thread conversion adapters, improving installation efficiency.
Stable Non-Contact Measurement
The eddy current sensing principle eliminates mechanical contact with the rotating shaft, reducing wear while providing continuous and highly repeatable measurement performance.
Compact Installation Design
With a 20 mm case length, the probe is suitable for installations where mounting space is limited but accurate vibration monitoring is still required.
Hazardous-Area Certified Performance
The Option 05 configuration provides CSA, ATEX, and IECEx approvals, supporting applications in classified industrial environments.
Complete 3300 XL System Integration
The probe works with 3300 XL extension cables and Proximitor Sensors to create a complete monitoring chain for vibration and position measurement.
Technical FAQs
1. What is the main function of the 330103-00-02-10-02-05?
It measures shaft vibration, displacement, and position using non-contact eddy current technology.
2. What does the 330103 series represent?
The 330103 series identifies the metric M10 x 1 threaded version of the 3300 XL 8 mm proximity probe without armor.
3. Is this probe armored?
No. The 330103 series uses a standard non-armored cable construction.
4. What does the "00" option indicate?
It represents a 0 mm unthreaded length configuration.
5. What does the "02" option represent?
It indicates a 20 mm overall case length.
6. What does the "10" option specify?
It specifies a 1.0-meter total probe cable length.
7. What connector does this probe use?
It uses a Miniature Coaxial ClickLoc™ connector with standard cable.
8. Which sensor should be paired with this probe?
The probe should be used with a compatible 3300 XL Proximitor Sensor and matching extension cable.
9. What materials are used in the probe construction?
The probe tip uses Polyphenylene Sulfide (PPS) and the probe case uses AISI 303/304 stainless steel.
10. Where is this model commonly installed?
It is commonly installed on turbines, compressors, pumps, generators, motors, and other rotating machinery requiring continuous condition monitoring.
