Performance Highlights
Built for Long-Term Machinery Protection

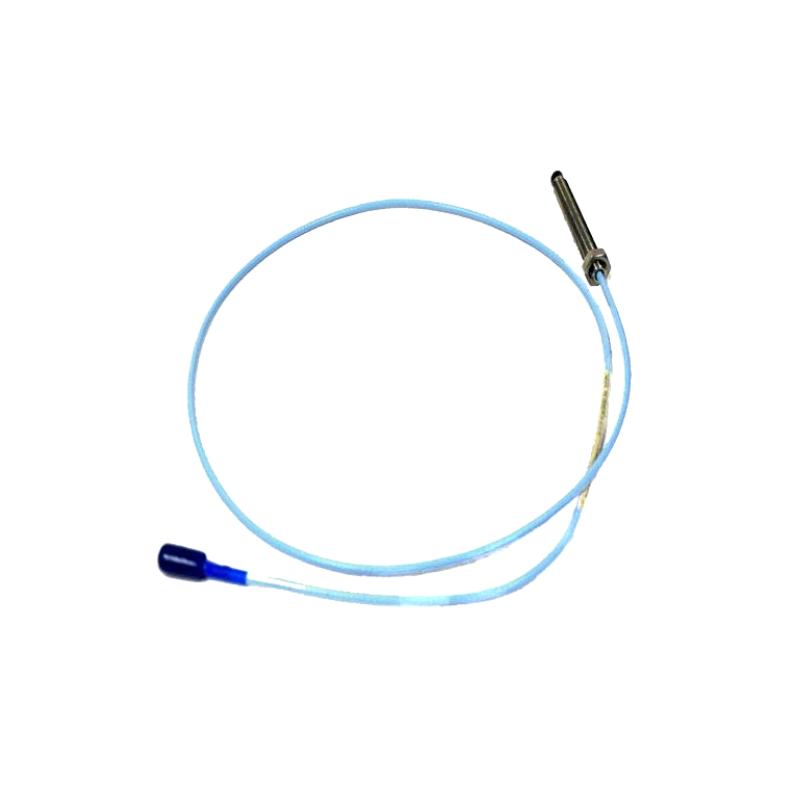

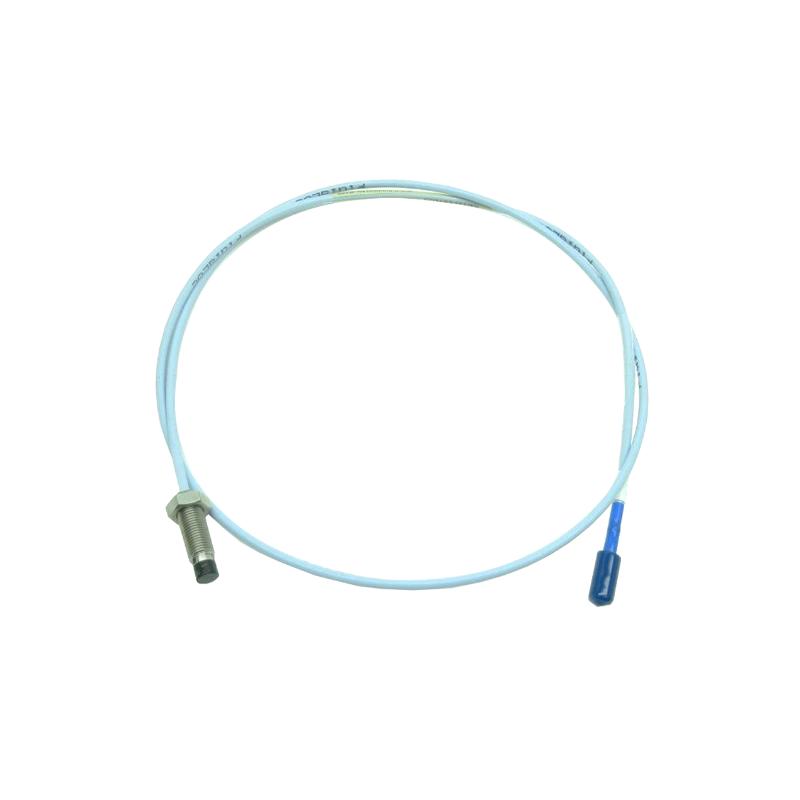

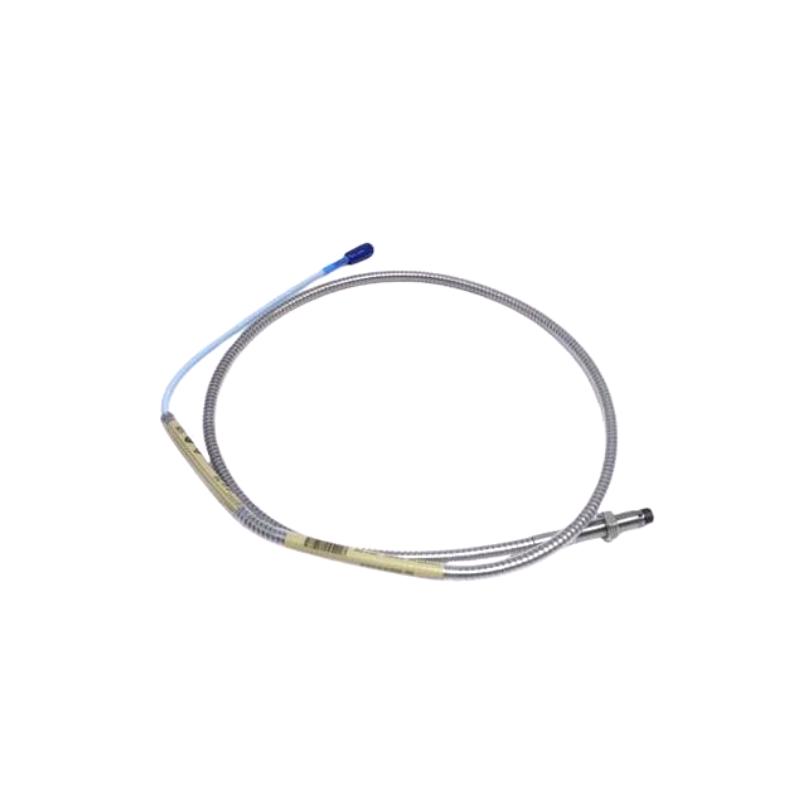

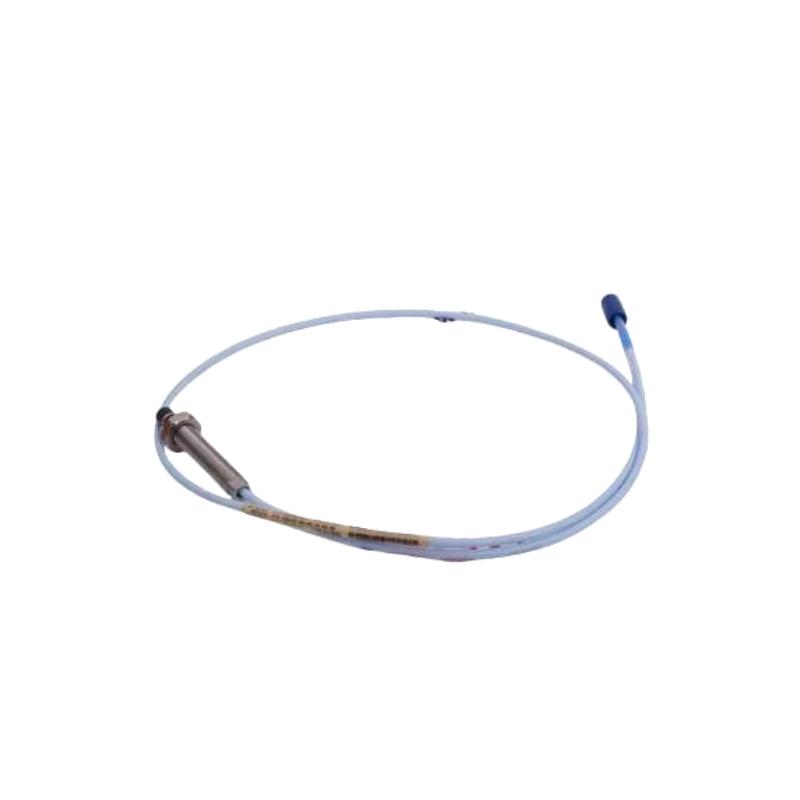

The 330102-00-60-05-01-CN combines armored construction with high-precision eddy current technology to provide dependable monitoring in demanding industrial environments.
Typical monitoring functions include:
-
Shaft radial vibration measurement
-
Rotor displacement monitoring
-
Shaft position measurement
-
Bearing condition monitoring
-
Rotor eccentricity analysis
-
Turbine Supervisory Instrumentation (TSI)
-
Continuous machine condition monitoring
Its rugged armored cable design helps extend service life where cables are exposed to mechanical stress or harsh operating conditions.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-60-05-01-CN |
| Product Type | 3300 XL 8mm Proximity Probe |
| Probe Series | 330102 (Armored) |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Diameter | 8 mm |
| Mounting Thread | 3/8-24 UNF |
| Armor Type | Stainless Steel Armored Cable |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 6.0 in |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature Coaxial ClickLoc™ Connector with Connector Protector |
| Cable Type | Standard Cable |
| Agency Approval | CN (ATEX, IECEx & China NEPSI) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 Stainless Steel |
| Compatible Extension Cable | 3300 XL Extension Cable |
| Compatible Sensor | 3300 XL Proximitor Sensor |
| Operating Temperature | Approx. -51°C to +177°C |
| Approximate Dimensions | 8 mm probe diameter × 6.0 in case length |
| Approximate Weight | 0.45 kg |
Typical Applications
Optimized for Critical Rotating Equipment
The 330102-00-60-05-01-CN is widely deployed in industries where equipment reliability and continuous condition monitoring are essential.
| Industry | Typical Equipment |
|---|
| Power Generation | Steam turbines, gas turbines, generators |
| Oil & Gas | Compressors, pumps, expanders |
| Petrochemical | Centrifugal compressors |
| Marine | Turbine propulsion systems |
| Heavy Industry | Motors, blowers, gearboxes, fans |
Typical applications include:
-
Continuous shaft vibration monitoring
-
Rotor displacement analysis
-
Axial position measurement
-
Machinery protection systems
-
Predictive maintenance programs
-
Online equipment diagnostics
Key Advantages
Rugged Armored Cable Construction
The stainless-steel armored cable provides superior protection against mechanical damage, making it ideal for demanding industrial installations.
Exceptional Measurement Accuracy
Advanced eddy current sensing technology delivers stable and repeatable measurements without physical contact, reducing wear and maintenance requirements.
Hazardous-Area Certified
The CN approval option supports installations requiring ATEX, IECEx, and China NEPSI hazardous-location certifications.
Simplified Installation
The integrated ClickLoc™ connector with connector protector ensures secure electrical connections while reducing installation time.
Full 3300 XL Compatibility
Designed to integrate seamlessly with compatible 3300 XL Extension Cables, Proximitor Sensors, and vibration monitoring systems for straightforward maintenance and upgrades.
Technical FAQs
Q1: What is the primary function of the 330102-00-60-05-01-CN?
It measures shaft vibration, displacement, and rotor position using non-contact eddy current technology.
Q2: What distinguishes the 330102 series from the 330101 series?
The 330102 series features a stainless-steel armored cable, providing additional mechanical protection for demanding installations.
Q3: What is the probe diameter?
The sensing tip diameter is 8 mm.
Q4: What does the "60" option indicate?
It specifies a 6.0-inch overall case length.
Q5: What does the "05" total length option represent?
It indicates a 0.5-meter (1.6 ft) total cable length.
Q6: What connector is used on this probe?
It is equipped with a Miniature Coaxial ClickLoc™ connector with connector protector.
Q7: What does the CN approval option include?
The CN option provides approvals for ATEX, IECEx, and China NEPSI hazardous-area applications.
Q8: Which Proximitor Sensor is compatible with this probe?
It should be paired with a compatible 3300 XL Proximitor Sensor configured for the appropriate system length.
Q9: Is the probe suitable for harsh industrial environments?
Yes. Its armored cable and stainless-steel housing make it ideal for applications involving vibration, oil exposure, and mechanical stress.
Q10: Which industries commonly use this probe?
It is widely used in power generation, oil and gas, petrochemical processing, marine systems, and heavy industrial manufacturing for continuous machinery protection.
