High-Accuracy Proximity Measurement Probe for Critical Machinery Monitoring

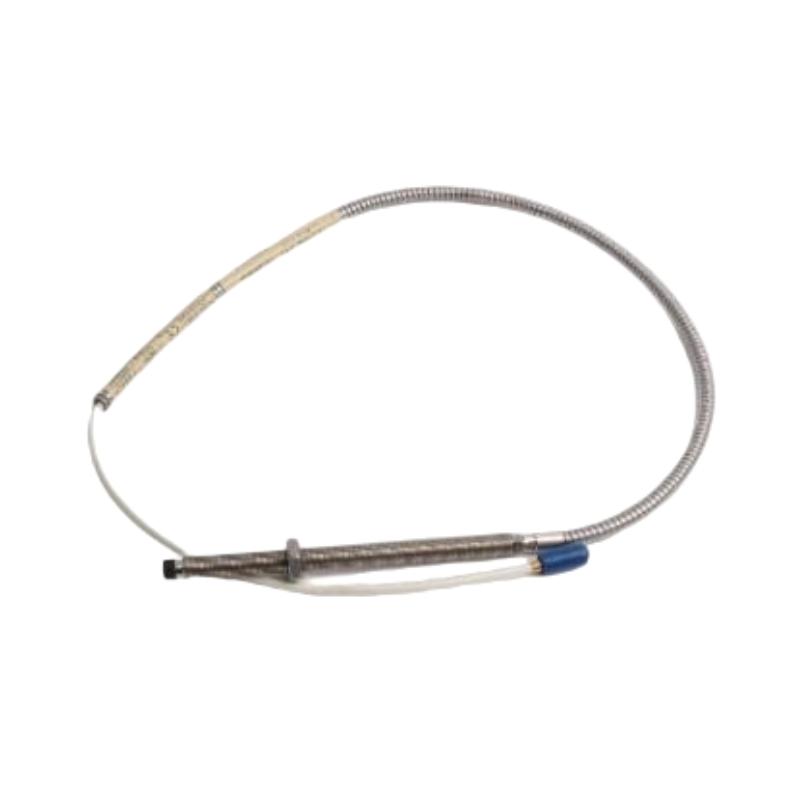

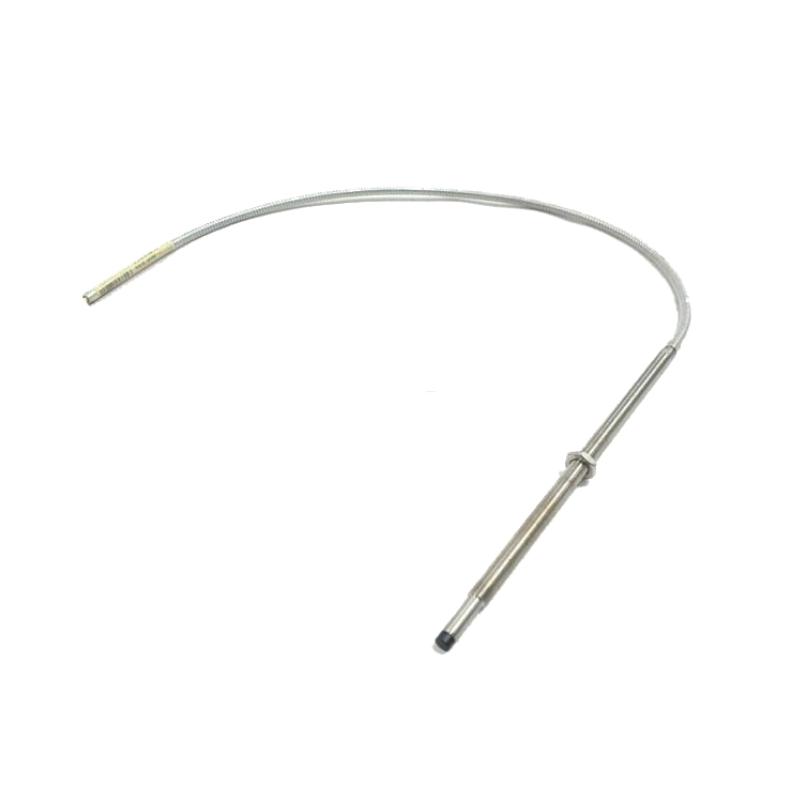

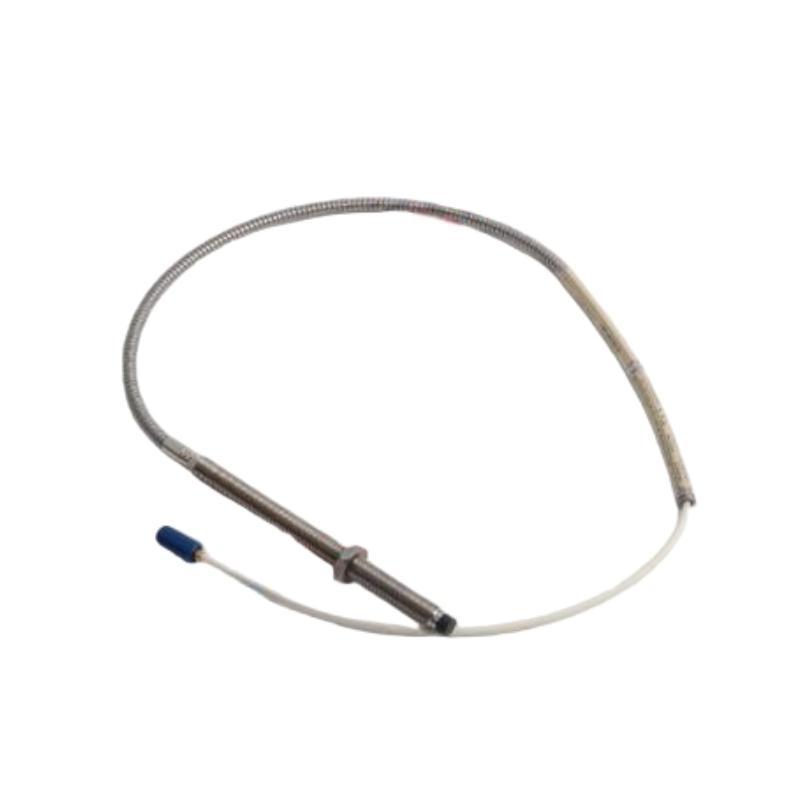

The Bently Nevada 22810-00-04-50-02 8 mm Standard Mount Probe is a precision-engineered proximity sensor designed for reliable non-contact measurement of shaft vibration, radial displacement, and position in rotating machinery protection systems. As part of the trusted 7200 Series Proximity Transducer System, this probe provides stable eddy current measurement performance for applications where continuous equipment monitoring and operational reliability are essential.
Featuring an 8 mm sensing tip, standard mount configuration, and a 5.0-meter cable length, the 22810-00-04-50-02 is designed for installations requiring extended probe reach between the sensing location and monitoring electronics. Its robust stainless-steel construction and industrial-grade cable design make it suitable for turbines, compressors, pumps, generators, and other critical rotating assets where accurate condition monitoring is required.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 22810-00-04-50-02 |
| Product Type | 7200 Series 8 mm Standard Mount Probe |
| Probe Diameter | 8 mm |
| Mounting Type | Standard Mount |
| Thread Configuration | M10 × 1 |
| Total Probe Length | 5.0 m |
| Connector Type | Miniature Male Coaxial Connector |
| Cable Type | Integral Extension Cable |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Application | Shaft Vibration and Position Monitoring |
| Probe Material | Stainless Steel |
| Operating Environment | Industrial Rotating Equipment |
| Dimensions | Approx. 5000 × 10 × 10 mm |
| Weight | Approx. 2.0 kg |
Industrial Applications
The 22810-00-04-50-02 is designed for machinery protection applications requiring accurate and dependable proximity measurement.
- Steam Turbine Monitoring Systems
- Gas Turbine Condition Monitoring
- Centrifugal Compressor Protection
- Generator Shaft Position Measurement
- Industrial Motor Monitoring
- Pump Vibration Analysis
- Refinery Rotating Equipment
- Petrochemical Processing Units
- Power Generation Facilities
- Heavy Manufacturing Machinery
Technical FAQs
1. What is the main function of the Bently Nevada 22810-00-04-50-02?
This proximity probe measures the distance between the probe tip and the rotating shaft surface, providing vibration and position data for machinery protection systems.
2. Which monitoring system is this probe designed for?
The 22810-00-04-50-02 is part of the Bently Nevada 7200 Series Proximity Transducer System.
3. What is the sensing diameter of this probe?
The probe features an 8 mm sensing tip, suitable for many large rotating machinery applications.
4. What type of mounting does this model use?
This model uses a standard mount configuration with M10 × 1 thread, allowing secure installation on compatible equipment housings.
5. What does the “50” option indicate in the model number?
The “50” configuration represents the 5.0-meter total cable length option, providing additional installation flexibility.
6. What type of technology does this probe use?
It uses eddy current sensing technology to provide non-contact measurement of shaft displacement and vibration.
7. What equipment can use this proximity probe?
It is commonly installed on turbines, compressors, pumps, motors, generators, and other critical rotating machinery.
8. Is this probe suitable for continuous monitoring applications?
Yes. It is designed for permanent installation in industrial machinery protection systems requiring reliable long-term operation.
9. What are the dimensions and weight of the probe?
The probe assembly is approximately 5000 × 10 × 10 mm and weighs approximately 2.0 kg, depending on packaging configuration.
10. Why choose the Bently Nevada 22810-00-04-50-02?
Its extended cable length, proven 7200 Series compatibility, accurate sensing capability, and durable industrial construction make it a reliable choice for protecting valuable rotating equipment.
