Extending V net Communication with Confidence

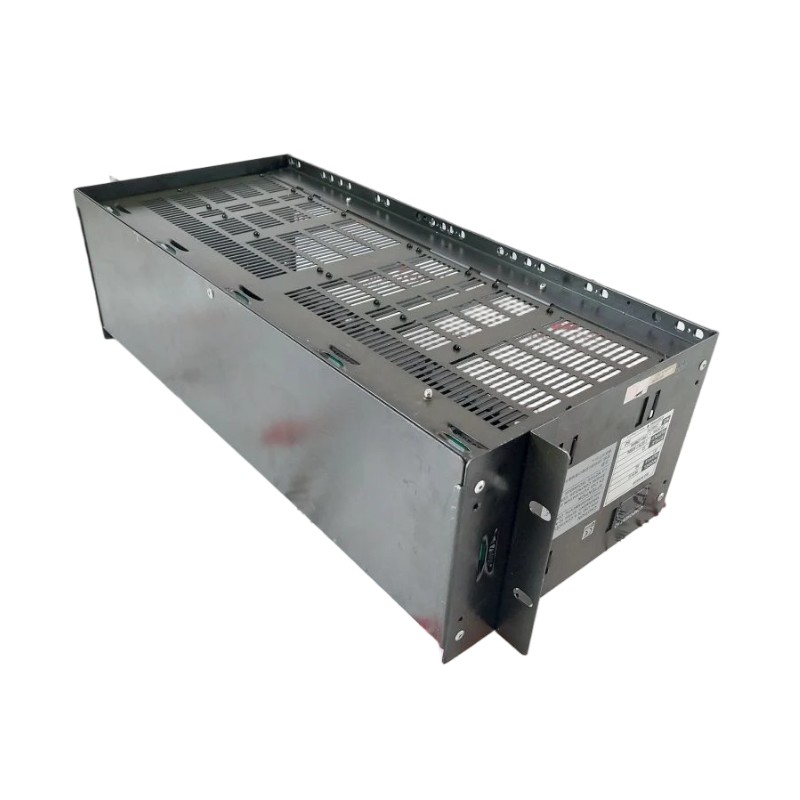

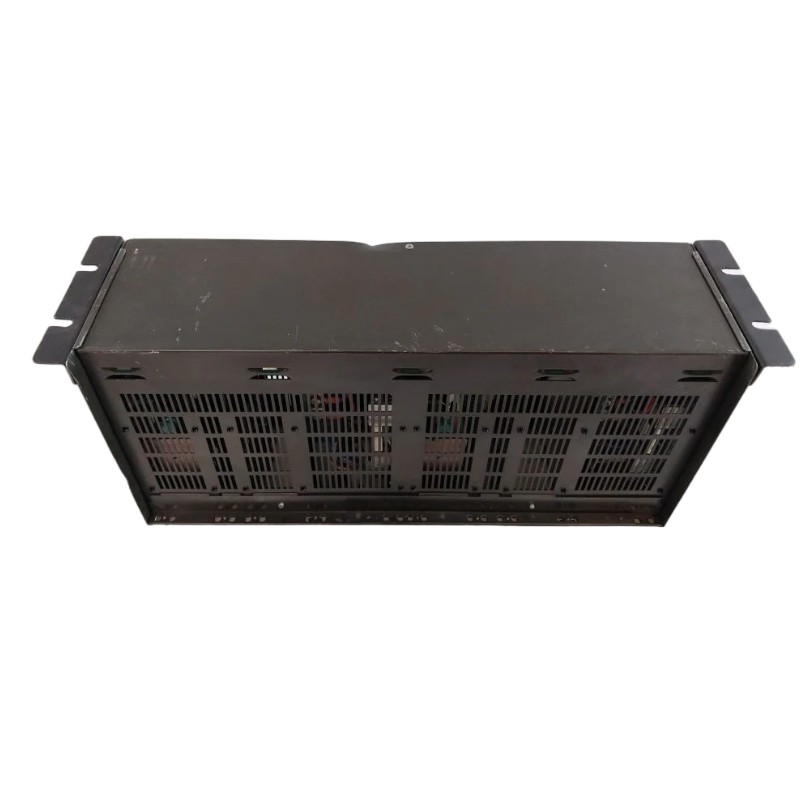

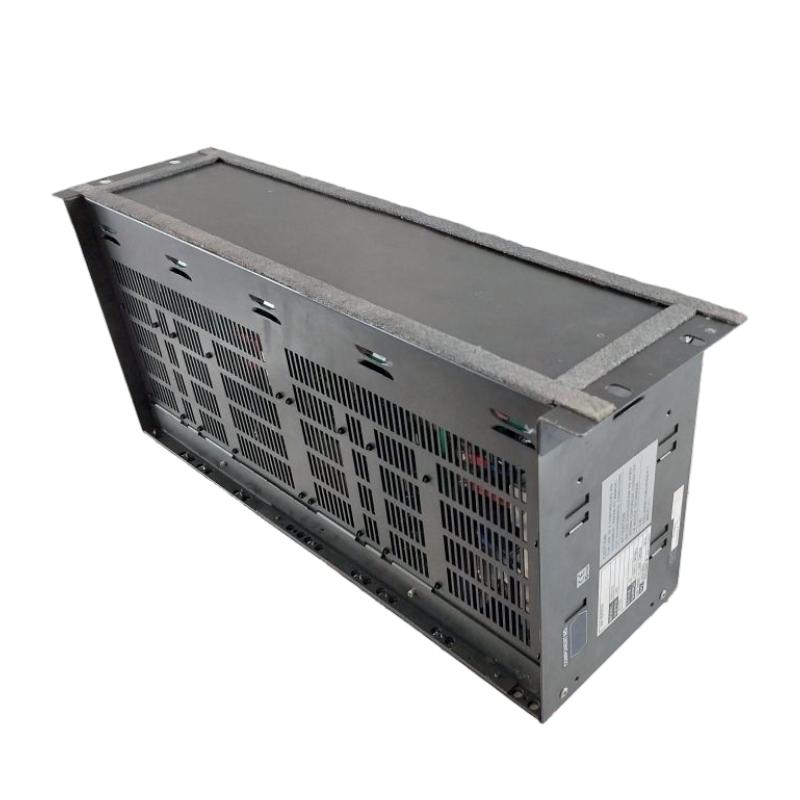

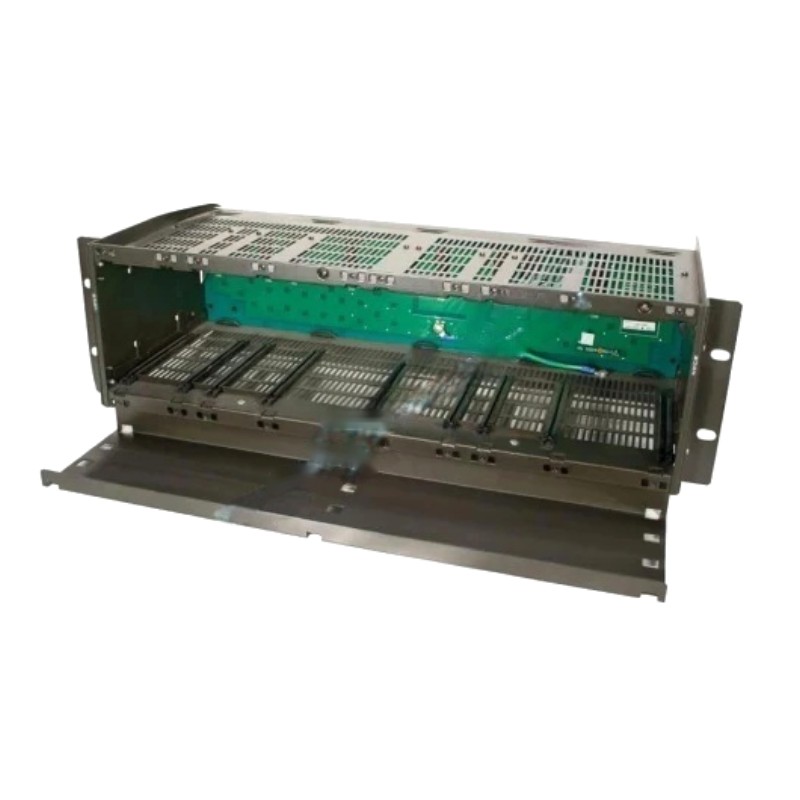

The Yokogawa YNT512D Bus Repeater is a high-performance communication device designed to extend the transmission distance of Yokogawa V net networks while maintaining stable and reliable data communication. By regenerating and retransmitting network signals, the repeater preserves signal integrity across long cable runs, making it an essential component for large-scale distributed control systems and safety instrumented systems.
Developed for demanding industrial environments, the YNT512D supports dual-redundant V net architectures, helping improve network availability and operational reliability. It is widely deployed in facilities where long-distance communication between engineering stations, controllers, and field control systems is required, ensuring dependable network performance even in complex plant configurations. The YNT512D is used in ProSafe-RS and other Yokogawa V net systems to extend coaxial cable communication and supports dual-redundant bus configurations.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | YNT512D |
| Product Type | Bus Repeater |
| Network Type | Yokogawa V net |
| Primary Function | Signal Regeneration and Network Extension |
| Communication Medium | V net Coaxial Cable |
| Network Architecture | Dual-Redundant Bus Support |
| Installation | Industrial Rack / Control Cabinet |
| Application | Distributed Control Systems (DCS) and Safety Systems |
| Dimensions | Approx. 166 × 55 × 70 mm |
| Weight | Approx. 0.35 kg |
Typical Applications
The YNT512D is an excellent solution for industrial communication networks that require extended transmission distances and dependable signal quality.
- Distributed Control Systems (DCS)
- ProSafe-RS Safety Instrumented Systems
- Plant-Wide Process Automation
- Oil & Gas Processing Facilities
- Petrochemical Complexes
- Power Generation Plants
- Chemical Manufacturing
- Water and Wastewater Treatment
- Industrial Communication Network Expansion
- System Upgrade and Modernization Projects
Technical FAQs
1. What is the primary purpose of the YNT512D?
The YNT512D extends the communication distance of Yokogawa V net networks by receiving, regenerating, and retransmitting network signals between segments.
2. Which communication network does this repeater support?
It is specifically designed for Yokogawa V net communication systems used in distributed control and safety applications.
3. Does the YNT512D improve signal quality?
Yes. The repeater restores weakened communication signals, helping maintain stable and reliable data transmission over extended cable distances.
4. Can it be used in redundant network architectures?
Yes. The YNT512D is designed to support dual-redundant V net configurations, improving system reliability and network availability.
5. How many repeaters can be installed between two stations?
Yokogawa documentation specifies that up to eight bus repeaters or optical bus repeaters can be installed between any two compatible V net stations, subject to overall transmission distance limitations.
6. Which industries commonly deploy this repeater?
It is widely used in oil and gas, chemical processing, power generation, water treatment, petrochemical, and other continuous-process industries.
7. Is the YNT512D suitable for system expansion?
Yes. It is frequently used when expanding existing Yokogawa V net installations or increasing communication distances in large facilities.
8. Does installation require changes to existing control strategies?
Generally, the repeater is integrated into the communication network to extend transmission distance without altering application logic or controller programming, provided the overall system design follows Yokogawa guidelines.
9. What are the physical dimensions and weight?
The YNT512D measures approximately 166 × 55 × 70 mm and weighs approximately 0.35 kg, allowing convenient installation in industrial control cabinets.
10. Why is the YNT512D a dependable communication solution?
Its ability to regenerate network signals, support redundant communication architectures, and maintain reliable long-distance V net connectivity makes it an excellent choice for mission-critical industrial automation systems.
