Smart Configuration Tool for Process Automation

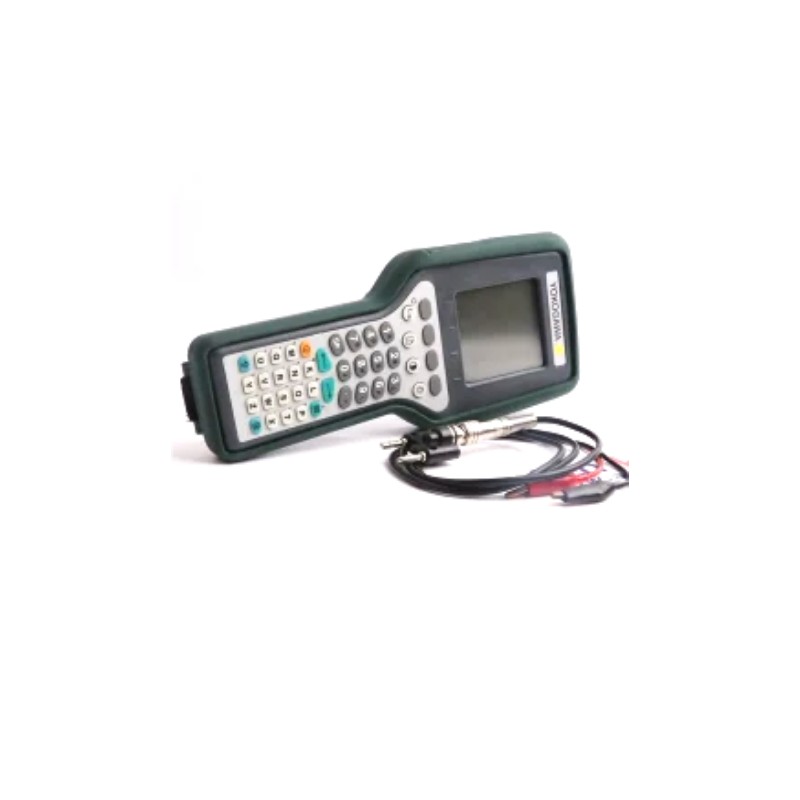

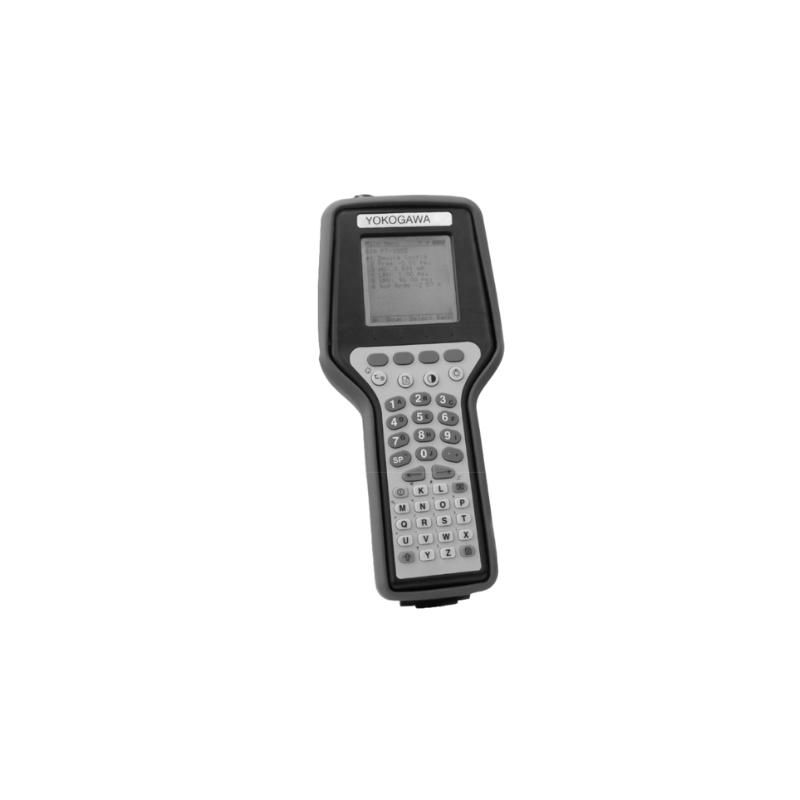

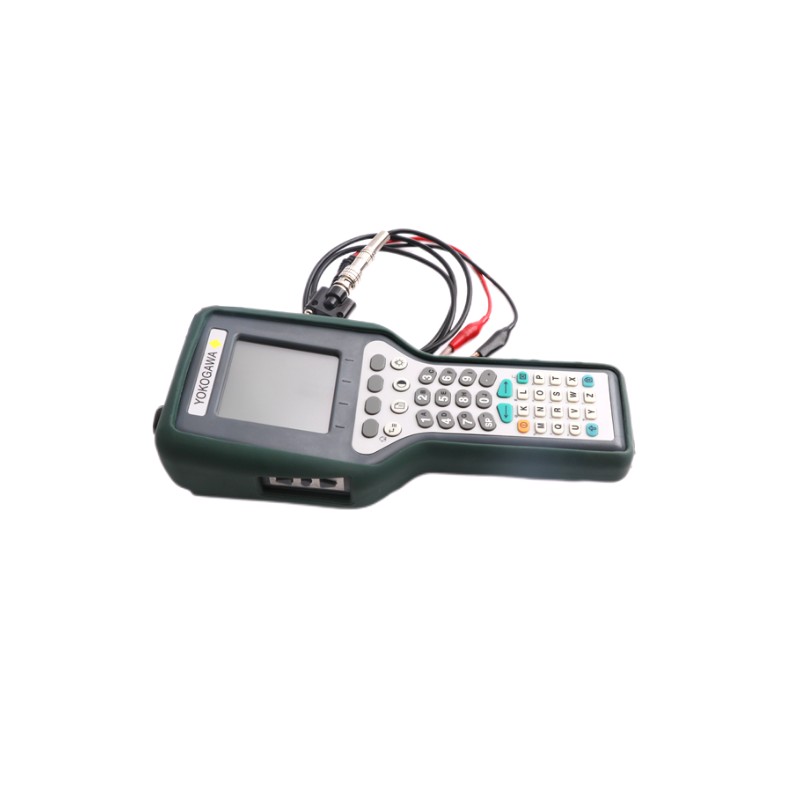

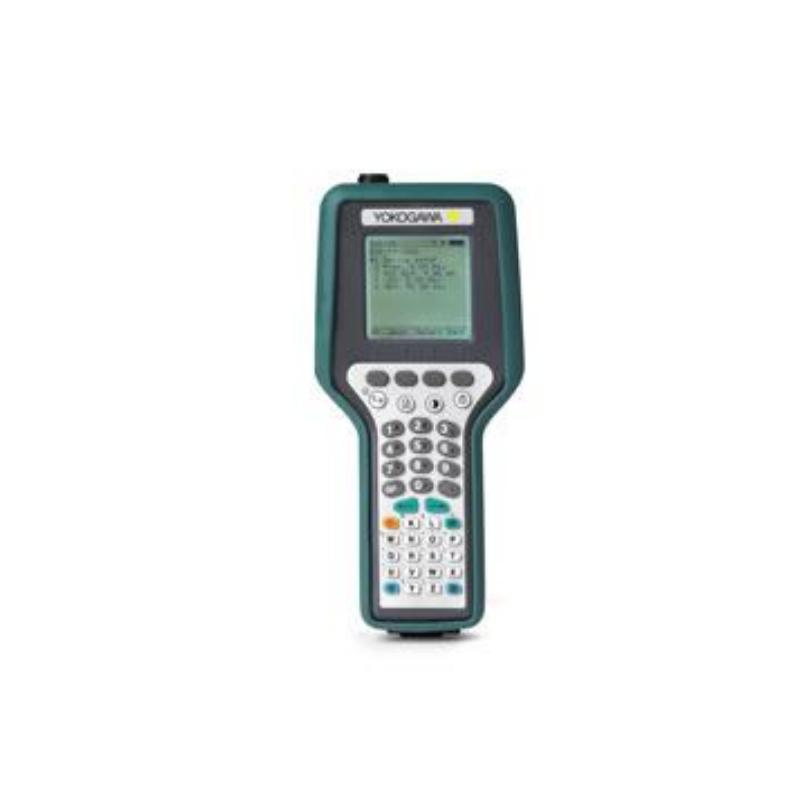

The Yokogawa YHC4150X-01 DCS Online Configuration solution is designed to simplify the configuration, commissioning, calibration, and maintenance of HART-enabled field instruments within industrial automation environments. As a portable HART communicator, the YHC4150X-01 allows technicians to perform online device configuration directly in the field while communicating with compatible transmitters, valves, and other smart instruments.
Designed for efficiency and ease of use, the communicator supports both online and offline configuration modes, enabling engineers to review, modify, clone, and document device settings without interrupting plant productivity. Its intuitive interface, comprehensive device support, and robust industrial design make it a valuable tool for commissioning new installations, troubleshooting field devices, and maintaining distributed control systems (DCS). The standard -01 version includes a multi-year Device Object File (DOF) subscription, allowing users to update supported device profiles and firmware as new revisions become available.
Technical Specifications
| Parameter | Details |
|---|
| Manufacturer | Yokogawa |
| Model Number | YHC4150X-01 |
| Product Type | DCS Online Configuration / Portable HART Communicator |
| Communication Protocol | HART |
| Configuration Modes | Online and Offline |
| Display | Graphic Backlit LCD |
| Keypad | Full Alphanumeric Keypad |
| Data Functions | Upload, Download, Clone and Store Configurations |
| Power Supply | AA Alkaline Batteries |
| Operating Temperature | -5°C to +50°C |
| Dimensions | Approx. 250 × 95 × 55 mm |
| Weight | Approx. 0.90 kg |
Typical Applications
The YHC4150X-01 is widely used throughout industrial facilities for field device configuration and maintenance.
- Distributed Control Systems (DCS)
- Process Instrument Commissioning
- HART Device Configuration
- Field Instrument Calibration
- Plant Maintenance Programs
- Oil & Gas Facilities
- Chemical Processing Plants
- Power Generation Stations
- Water and Wastewater Treatment
- Pharmaceutical Manufacturing
Technical FAQs
1. What is the primary function of the YHC4150X-01?
It is a portable HART communicator used to configure, diagnose, calibrate, and maintain compatible smart field instruments directly from the plant floor.
2. What does the "-01" suffix indicate?
The -01 version includes a standard multi-year Device Object File (DOF) download subscription, allowing users to obtain supported device profile and firmware updates.
3. Can the communicator perform online configuration?
Yes. It supports direct online communication with connected HART devices, allowing parameter adjustments while the instrument remains installed.
4. Does it also support offline configuration?
Yes. Users can create, edit, review, and store configurations offline before applying them to compatible field devices.
5. Can configuration files be transferred between devices?
Yes. The communicator supports uploading, downloading, and cloning device configurations, helping speed up commissioning and replacement tasks.
6. Which industries commonly use the YHC4150X-01?
It is widely used in oil and gas, petrochemical, power generation, water treatment, pharmaceuticals, and other process industries.
7. Is the communicator suitable for maintenance personnel?
Absolutely. It provides diagnostic functions and field configuration capabilities that simplify routine maintenance and troubleshooting.
8. Does the unit support multiple HART devices?
Yes. It is designed to communicate with a broad range of compatible HART field instruments through supported Device Object Files (DOFs).
9. Is the communicator portable?
Yes. Its compact handheld design, battery-powered operation, and durable housing make it suitable for field use throughout industrial facilities.
10. Why choose the YHC4150X-01?
Its combination of online configuration, offline editing, configuration cloning, extensive HART compatibility, and dependable industrial performance makes it an excellent tool for improving plant productivity and reducing maintenance effort.
