Loop-Powered Seismic Transmitter for Continuous Machinery Vibration Monitoring

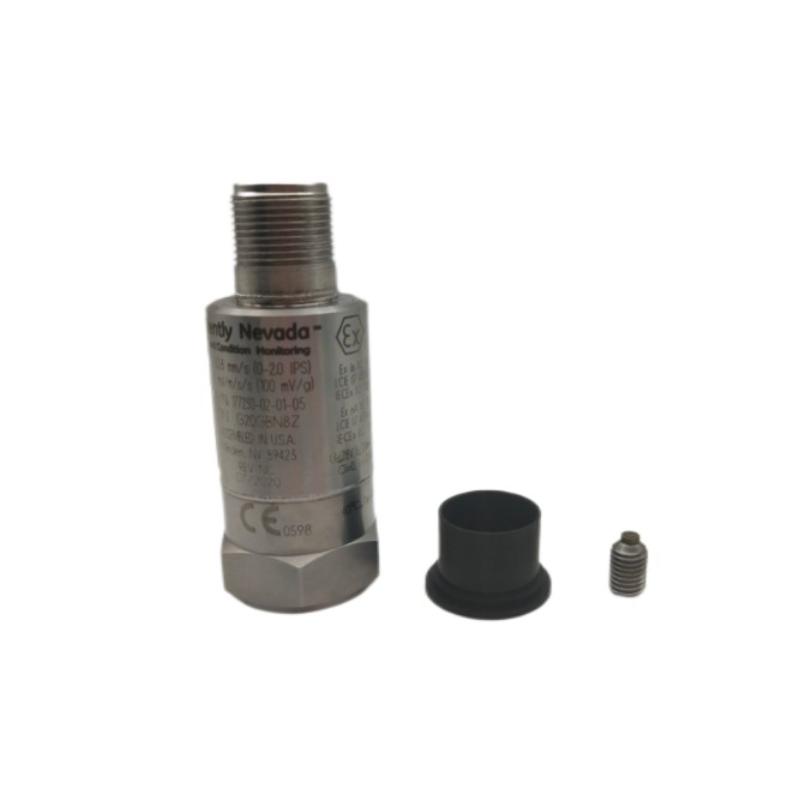

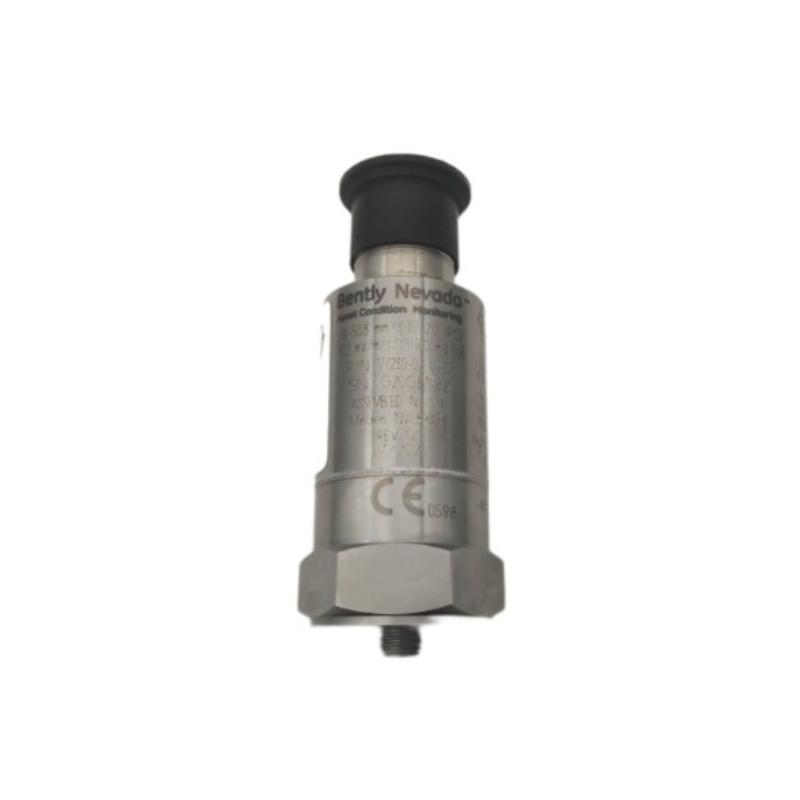

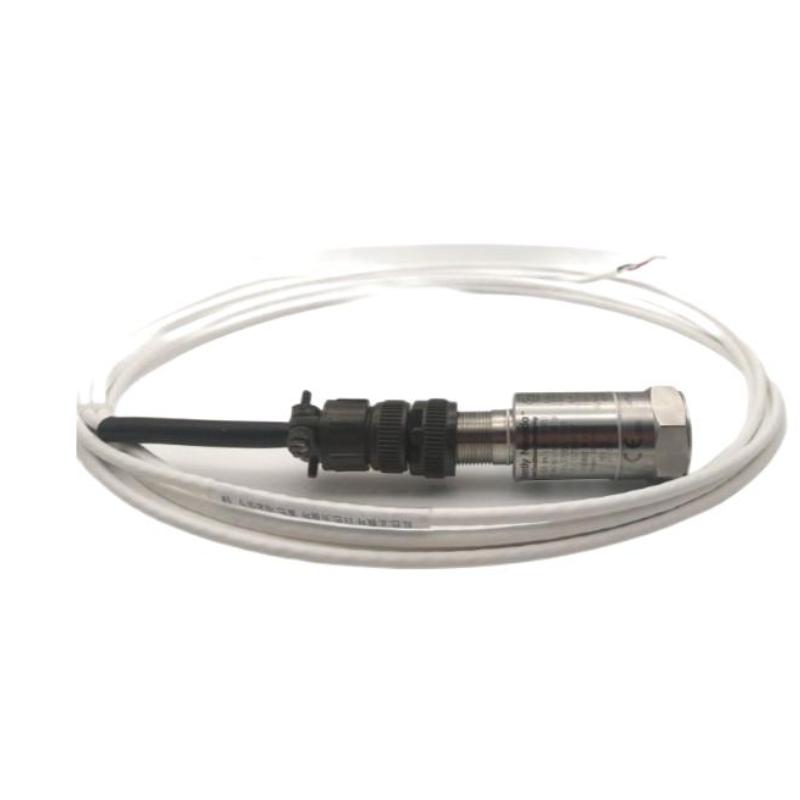

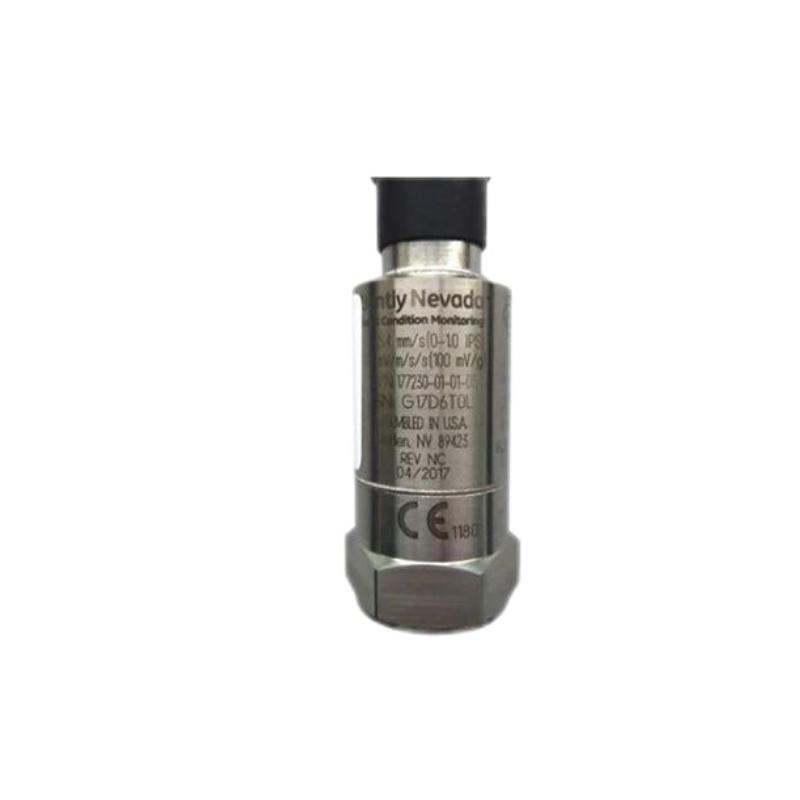

The Bently Nevada 177230-01-02-IN Seismic Transmitter Sensor is a compact, loop-powered vibration transmitter designed to simplify machinery condition monitoring by converting vibration velocity into an industry-standard 4–20 mA output. Engineered for direct integration with PLCs, DCS, SCADA, and other industrial control systems, the 177230 combines a reliable seismic sensor with built-in signal conditioning in a single rugged package. Its straightforward installation, self-test capability, and robust construction make it an excellent solution for continuous monitoring of critical rotating equipment.

The 177230-01-02-IN configuration is part of the proven 177230 Seismic Transmitter family and is ideal for applications requiring dependable vibration monitoring without the complexity of traditional rack-based protection systems. Its loop-powered design minimizes wiring requirements while providing stable and repeatable measurements for predictive maintenance programs.

Technical Specifications

Technical FAQs

1. What does the 177230-01-02-IN measure?

It measures absolute machine vibration velocity and converts the signal into a 4–20 mA output suitable for industrial monitoring systems.

2. Does the transmitter require an external power supply?

No. It is a loop-powered transmitter, operating directly from the 4–20 mA current loop.

3. Which control systems are compatible?

The transmitter interfaces directly with PLCs, DCS, SCADA systems, and machinery condition monitoring platforms.

4. What measurement range does this configuration provide?

This model provides a 0–25.4 mm/s (0–1.0 in/s) RMS vibration measurement range.

5. Does the transmitter provide a dynamic vibration signal?

Yes. In addition to the 4–20 mA process output, it provides an unbuffered dynamic vibration signal for verification and diagnostic analysis.

6. Is field configuration required?

No. The 177230 is factory configured and requires no field calibration or adjustment, simplifying commissioning.

7. What mounting options are available?

The transmitter mounts using a 1/4-28 UNF stud, and includes M6 × 1 and M8 × 1.25 adapters for installation flexibility.

8. Is the sensor suitable for harsh industrial environments?

Yes. Its 316L stainless-steel, hermetically sealed housing provides excellent resistance to moisture, dust, and industrial contaminants.

9. Which industries commonly use this transmitter?

It is widely used in power generation, oil and gas, petrochemical, water treatment, mining, pulp and paper, and general manufacturing for machinery vibration monitoring.

10. Why choose the 177230 Seismic Transmitter?

It offers a cost-effective, easy-to-install solution that combines a vibration sensor and transmitter into one compact device, delivering reliable condition monitoring with minimal maintenance.
