Product Overview

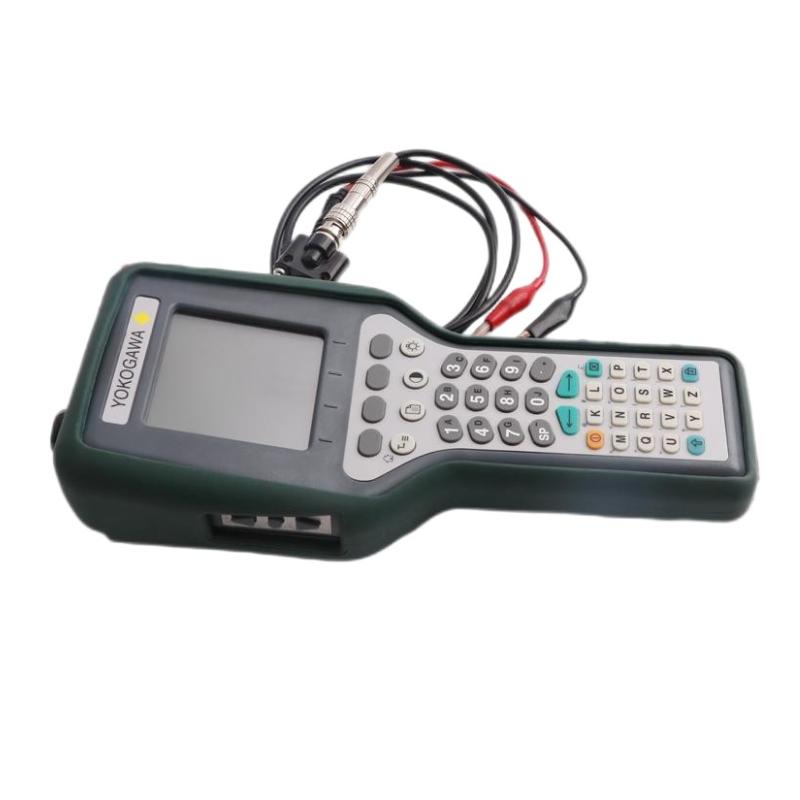

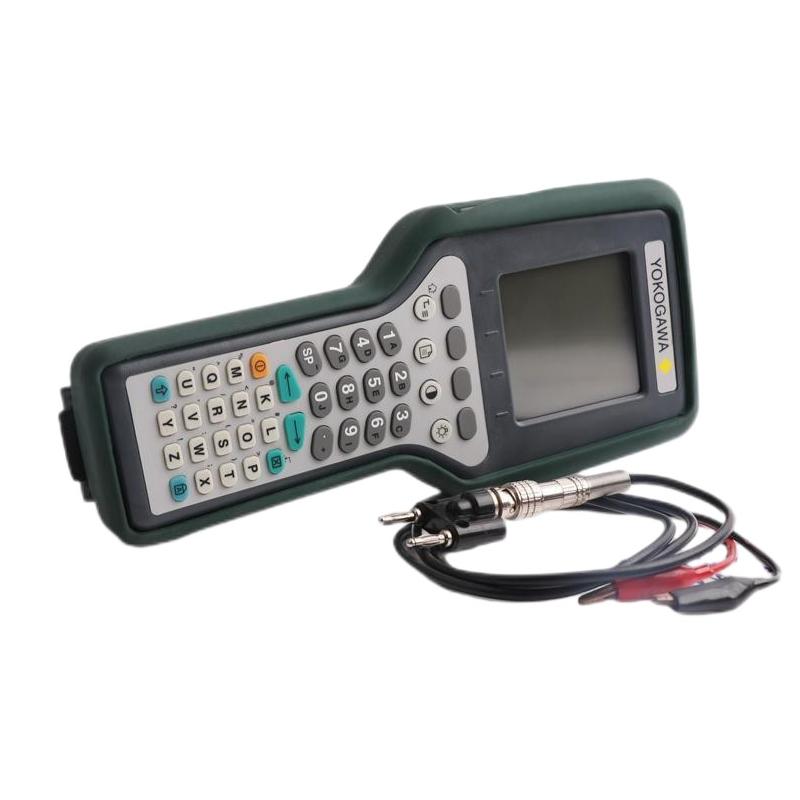

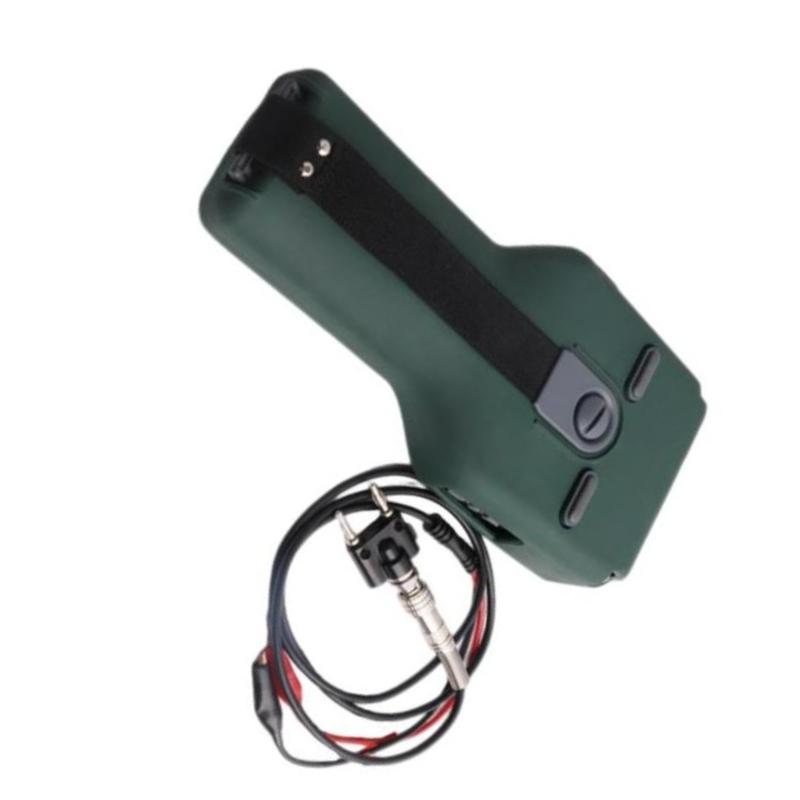

The Yokogawa YHC4150X Field HART Communicator is a portable handheld communicator designed for use with HART-compatible field instruments. It provides a convenient interface for accessing device information, viewing measurement data, and managing supported HART parameters through a compact, battery-powered unit. The YHC4150X was introduced as an enhanced version of the YHC4100 and delivers extended battery life along with improved usability. The model was officially discontinued by Yokogawa on February 18, 2013, and the recommended successor is the YHC5150X.
Designed with a rugged enclosure, graphic display, and full alphanumeric keypad, the YHC4150X offers dependable performance for field maintenance, commissioning, equipment inspection, and routine service tasks. Its portable design makes it suitable for both indoor and outdoor applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model | YHC4150X |
| Product Type | Field HART Communicator |
| Communication Protocol | HART |
| Display | 13-line, 128 × 128 pixel graphic LCD with backlight |
| Keypad | Full alphanumeric membrane keypad |
| Battery | Six AA alkaline batteries |
| Battery Life | Up to 60 hours (without backlight) |
| External Power | 100–240 VAC adapter |
| Startup Time | Approximately 15 seconds |
| Data Storage | More than 200 device records |
| PC Interface | RS-232 (via communication adapter) |
| HART Connection | Standard banana jack connectors |
| Housing Material | ABS plastic |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Certifications | ATEX, cULus Intrinsically Safe (applicable models) |
| Dimensions (Approx.) | 264 × 108 × 48 mm |
| Approximate Weight | 0.77 kg (including batteries) |
