Product Overview

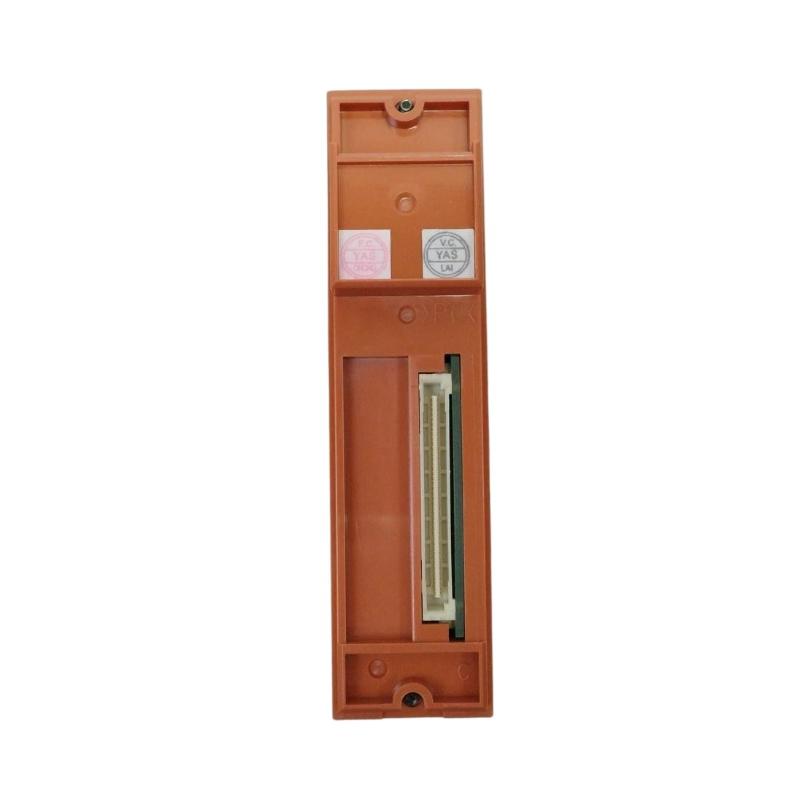

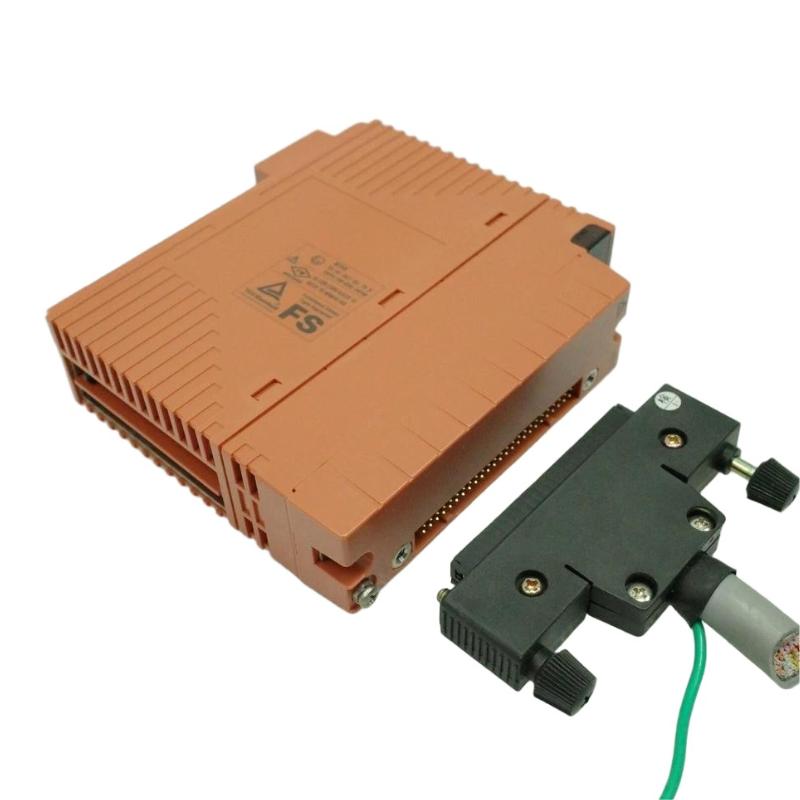

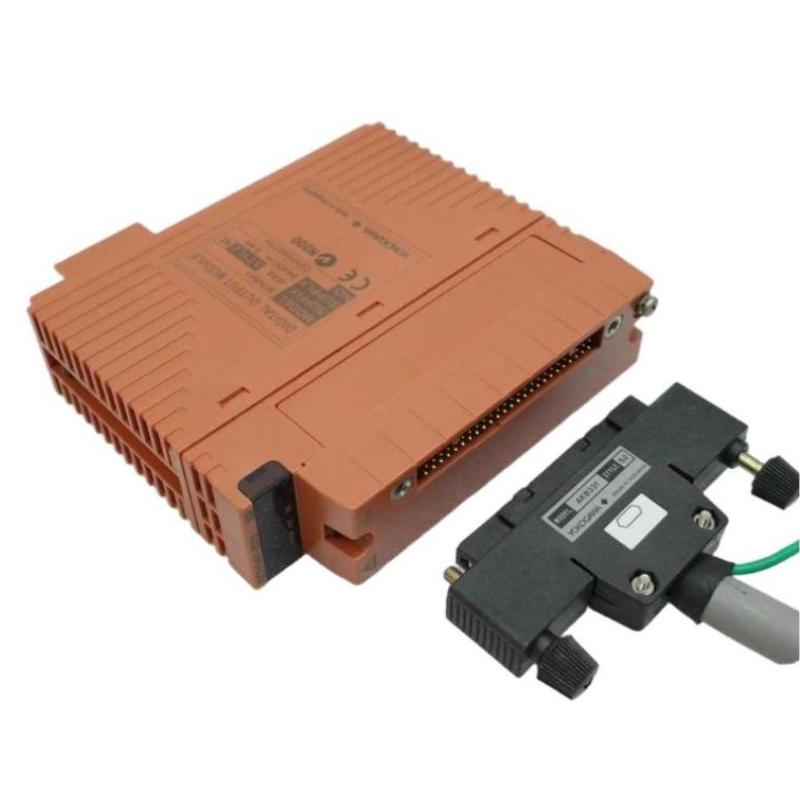

The Yokogawa SDV541-S33 S2 Digital Output Module is a 16-channel digital output module designed for Yokogawa industrial automation platforms. It provides reliable 24 V DC signal output capability and supports efficient connection with compatible terminal boards and field devices in distributed I/O environments.
The SDV541-S33 belongs to the Yokogawa SDV541 digital output series and features module isolation, compact construction, and flexible connection options. The S33 suffix version includes a signal cable interface adapter and is designed for industrial environments with ISA Standard G3 compatibility and an extended temperature range.
With its stable signal processing capability, convenient installation structure, and compatibility with Yokogawa I/O systems, the SDV541-S33 is widely applied in process industries, equipment upgrades, and maintenance replacement projects.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Yokogawa |
| Model | SDV541-S33 |
| Product Type | S2 Digital Output Module |
| Module Series | SDV541 |
| Output Channels | 16 channels |
| Output Type | Digital Output |
| Output Voltage | 24 V DC |
| Isolation Type | Module Isolation |
| Output Format | Current Source |
| Maximum Load Current | 0.2 A per output line |
| Total Output Current Capacity | 3.2 A |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| Output Voltage Drop | Maximum 1 V |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| Output Response Time | Maximum 30 ms |
| Signal Connection | Dedicated Signal Cable / Terminal Connection |
| Compatible Cable | AKB331 / AKB651 |
| Current Consumption | 300 mA maximum (5 V DC), 150 mA maximum (24 V DC) |
| Environmental Standard | ISA Standard G3 |
| Operating Temperature | -20°C to +70°C |
| Dimensions (Approx.) | 127 × 51 × 130 mm |
| Approximate Weight | 0.29–0.31 kg |
Typical Industrial Applications
The Yokogawa SDV541-S33 is suitable for industrial installations requiring dependable digital signal output connections and efficient module integration.
Typical application areas include:
-
Oil and gas facilities
-
Petrochemical plants
-
Chemical processing industries
-
Power generation facilities
-
Water treatment installations
-
Manufacturing plants
-
Industrial utility systems
-
Process automation projects
-
Equipment modernization applications
The compact module design allows convenient installation in Yokogawa I/O assemblies while supporting organized cabinet layouts and efficient maintenance.
Key Features & Benefits
The SDV541-S33 Digital Output Module provides several advantages:
-
16-channel digital output design
-
24 V DC signal output capability
-
Module isolation for improved signal management
-
Supports dedicated Yokogawa connection cables
-
Compatible with related Yokogawa terminal boards
-
Compact plug-in structure
-
ISA Standard G3 environmental compatibility
-
Wide operating temperature range
-
Lightweight design for easier installation
-
Suitable for replacement and expansion projects
-
Reliable performance for long-term industrial applications
Technical FAQs
1. What is the Yokogawa SDV541-S33?
The SDV541-S33 is a 16-channel digital output module designed for Yokogawa industrial automation platforms.
2. How many output channels does the SDV541-S33 provide?
The module provides 16 isolated digital output channels.
3. What voltage does the SDV541-S33 use?
The module operates with a 24 V DC output voltage specification.
4. What type of connection does the SDV541-S33 support?
The module supports dedicated signal cable connections and compatible terminal connection arrangements using Yokogawa accessories.
5. Which cables are compatible with the SDV541-S33?
Compatible connection options include Yokogawa AKB331 and AKB651 signal cables depending on the installation configuration.
6. What is the maximum load capacity of each output channel?
Each output line supports up to 0.2 A, with a total output line capacity of approximately 3.2 A.
7. What is the operating temperature range?
The SDV541-S33 supports an operating temperature range of approximately -20°C to +70°C.
8. What are the dimensions of the SDV541-S33?
The approximate dimensions are 127 × 51 × 130 mm.
9. What is the weight of the SDV541-S33?
The approximate weight is 0.29 kg to 0.31 kg, depending on the connection configuration.
10. Why choose the Yokogawa SDV541-S33?
The SDV541-S33 combines 16-channel output capability, compact construction, Yokogawa compatibility, and reliable industrial performance, making it a practical choice for automation equipment integration and replacement applications.
