Precision-Engineered Monitoring for Mission-Critical Machinery

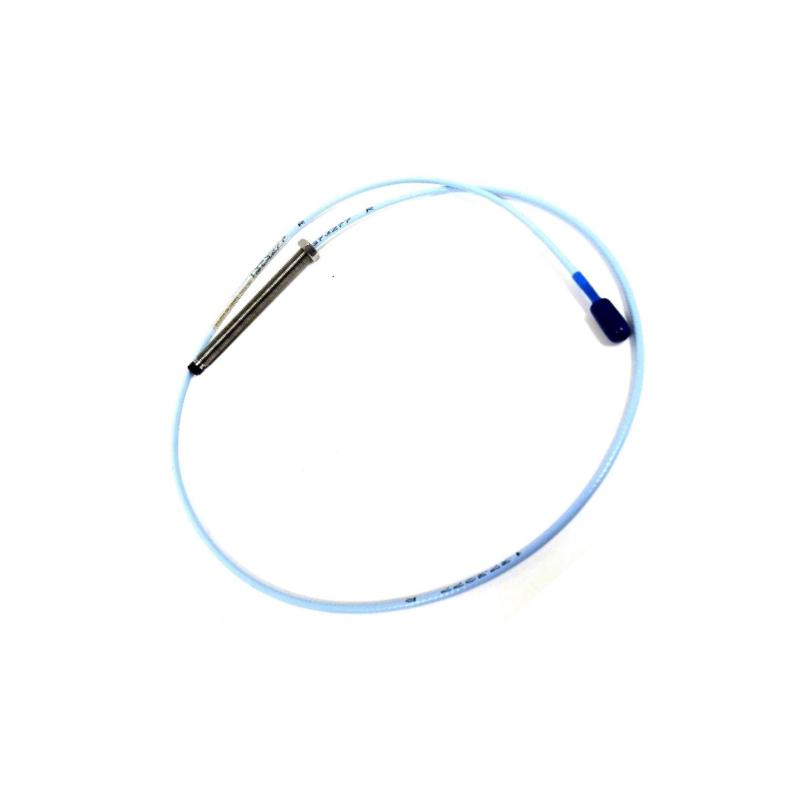

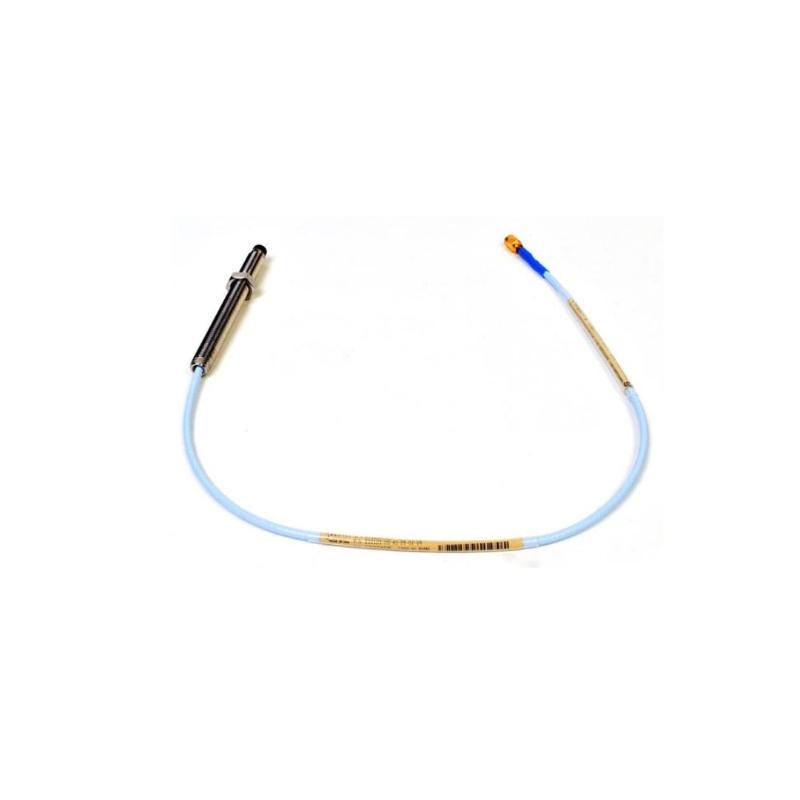

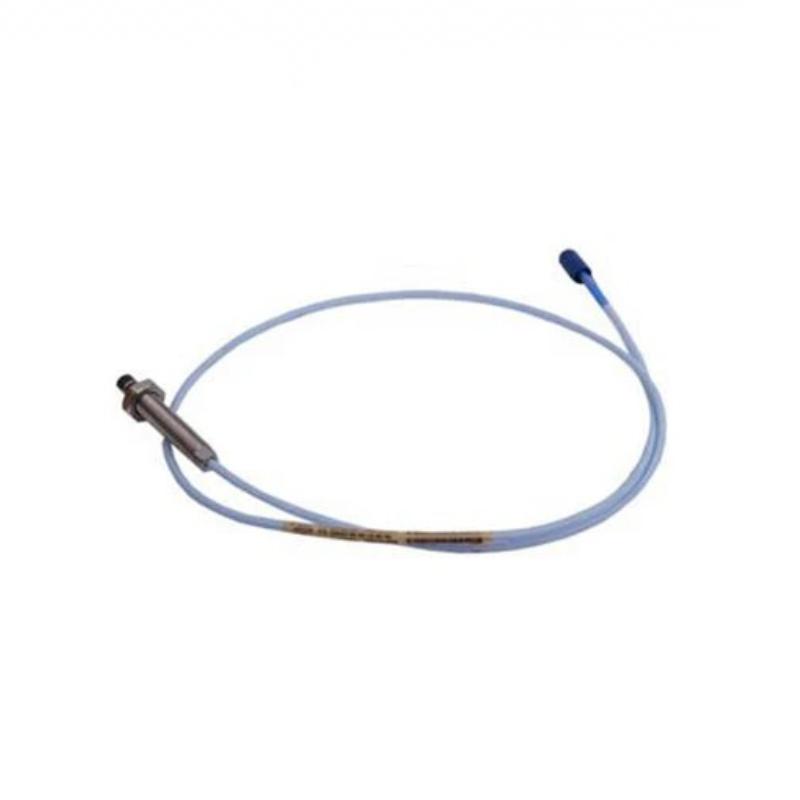

The Bently Nevada 330101-00-45-15-02-05 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor designed for continuous, non-contact measurement of shaft vibration and radial position in rotating machinery. As part of the trusted 3300 XL transducer system, it delivers consistent accuracy, long-term stability, and strong resistance to harsh industrial environments.
This configuration features a 0.0 in unthreaded length, a 4.5 in (114.3 mm) case length, a 1.5 m (4.9 ft) total cable length, and a Miniature Coaxial ClickLoc connector with standard cable, making it suitable for extended installation flexibility. It is fully compatible with Bently Nevada Proximitor® sensors and 3300 XL extension cables for complete machinery protection systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-45-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.5 in (114.3 mm) |
| Total Cable Length | 1.5 m (4.9 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard industrial cable |
| Housing Material | Stainless steel |
| Approximate Weight | ~0.32 kg |
