Fully Integrated Vibration Monitoring System for Demanding Industrial Machinery

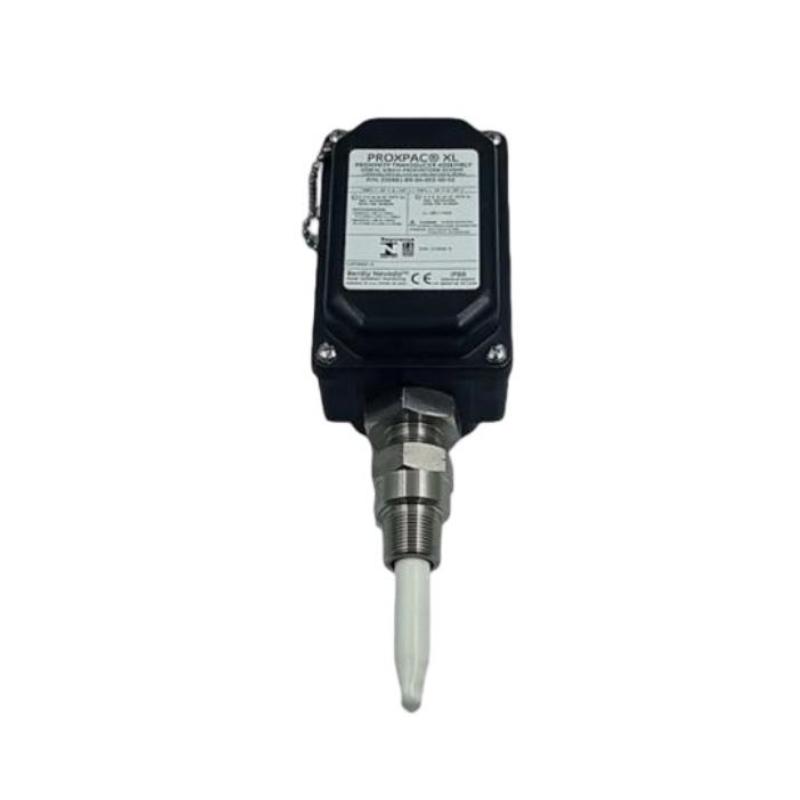

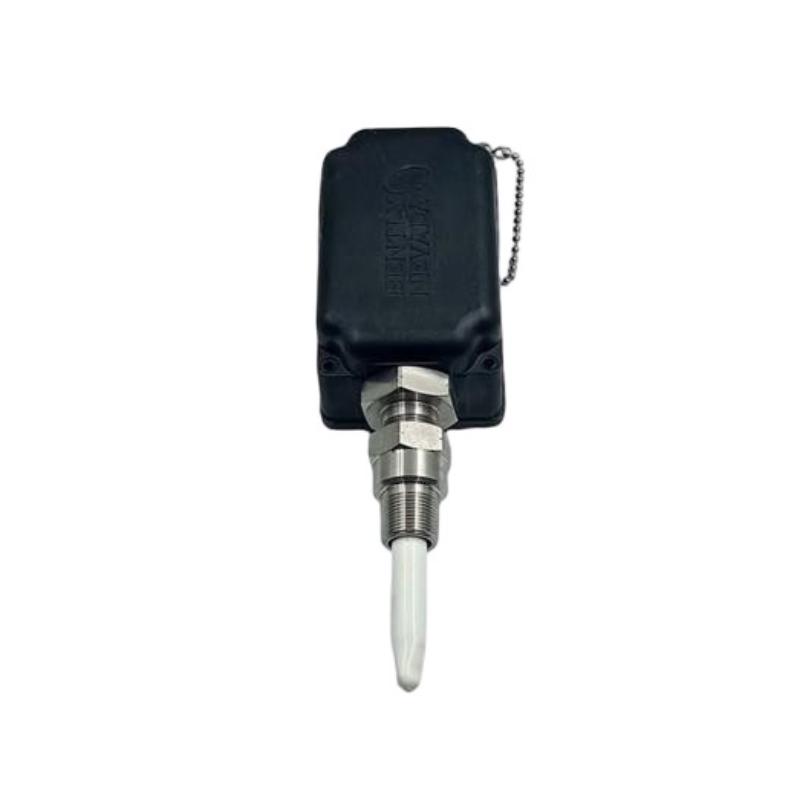

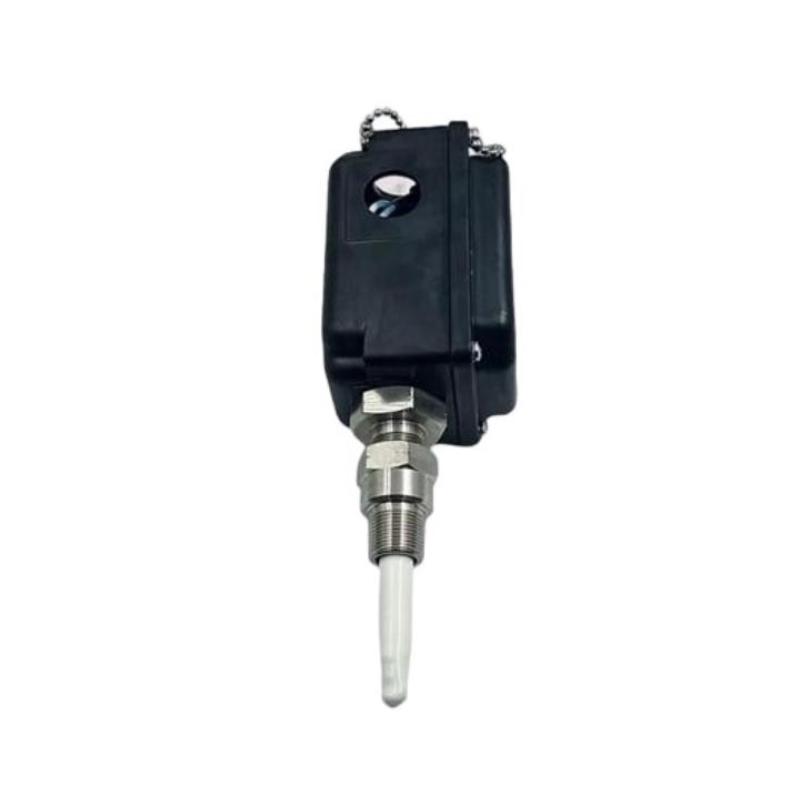

The Bently Nevada 330881-28-06-140-03-02 PROXPAC® XL Proximity Sensors is a factory-assembled, self-contained proximity transducer solution designed for accurate measurement of shaft vibration, shaft displacement, and radial position in critical rotating machinery.
As part of the PROXPAC XL integrated monitoring platform, this unit combines a 3300 XL 8 mm proximity probe and built-in Proximitor® sensor within a single rugged housing, eliminating the need for separate signal conditioning modules and external extension cables. This design significantly reduces installation time, wiring complexity, and potential configuration errors while improving overall system consistency in the field.
It is widely used in turbines, compressors, pumps, motors, and gearbox applications where continuous reliability and predictive maintenance are essential for operational safety and efficiency.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | PROXPAC® XL Proximity Transducer Assembly |
| Model Number | 330881-28-06-140-03-02 |
| Product Series | PROXPAC XL |
| Measurement Technology | Eddy-current non-contact sensing |
| Sensor System | Integrated probe + Proximitor® electronics |
| Probe Type | 3300 XL 8 mm proximity probe |
| Measurement Functions | Shaft vibration, displacement, radial position |
| Probe Approval Option | 28 = Multiple approvals |
| Standoff Adapter | 06 = 60 mm configuration |
| Probe Penetration | 140 mm |
| Fittings Option | 03 = One M20 fitting, two plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS), reinforced |
| Environmental Rating | IP66 / Type 4X equivalent protection |
| Operating Temperature | -35°C to +85°C (electronics), probe section higher |
| Frequency Response | 0 – 10 kHz (system dependent) |
| Signal Output | Conditioned proximity signal output |
| Approximate Dimensions | 92 × 91 × 91 mm |
| Approximate Weight | ~1.5–2.0 kg |
