Reliable Eddy Current Sensing for Critical Rotating Machinery

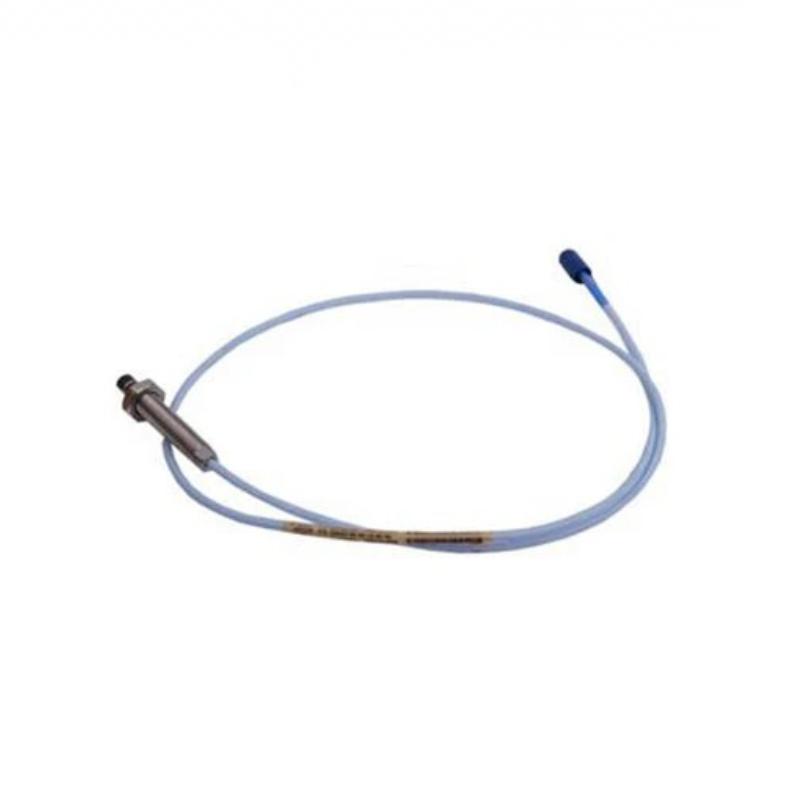

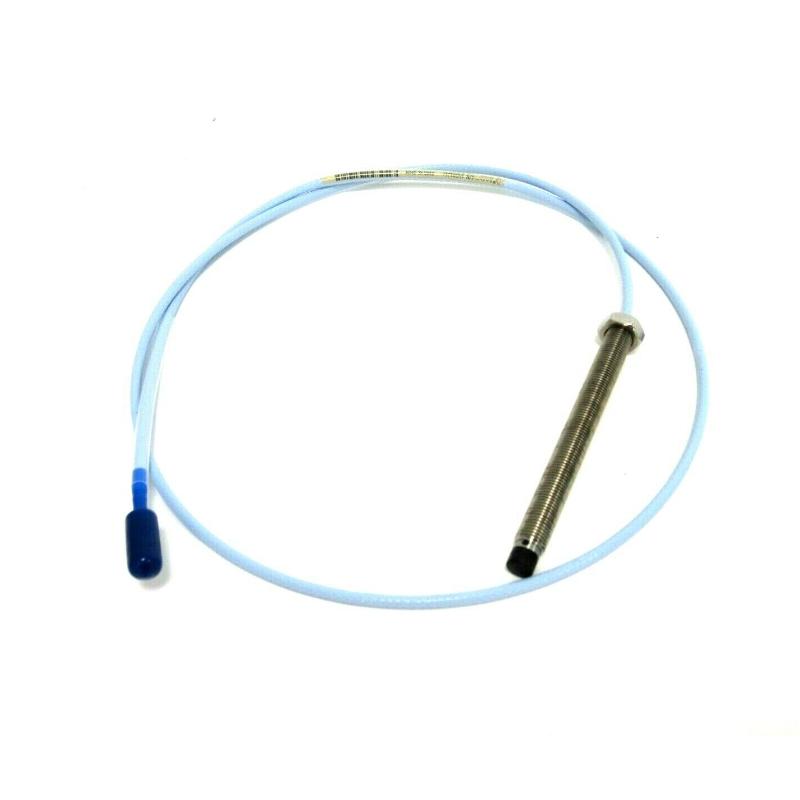

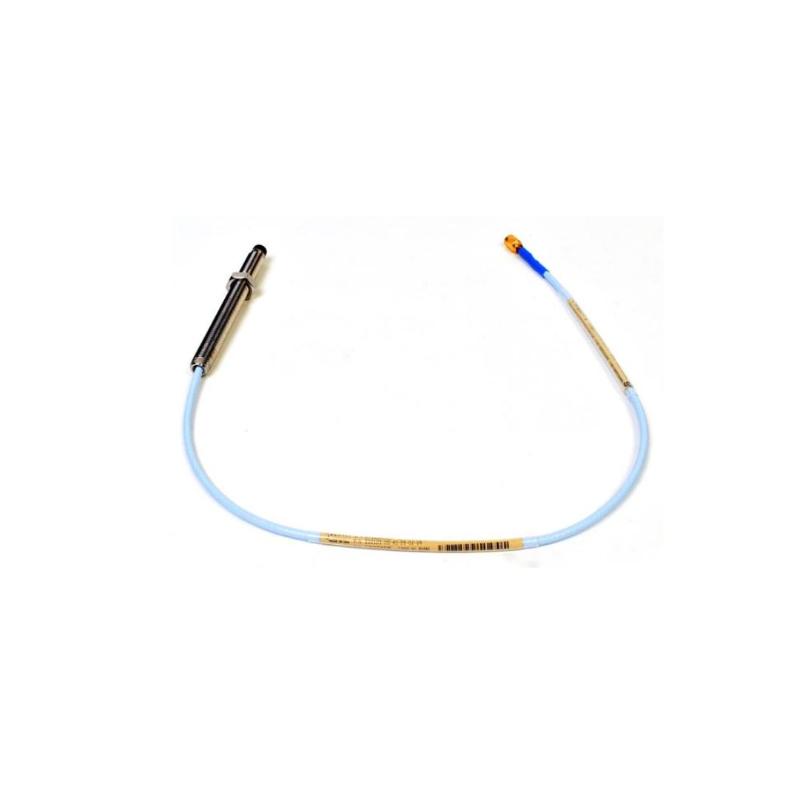

The Bently Nevada 330101-00-45-05-02-00 3300 XL 8 mm Proximity Probe is a precision non-contact eddy current sensor designed for continuous measurement of shaft vibration and radial position in industrial rotating equipment. As part of the widely adopted 3300 XL proximity transducer system, it delivers stable performance, strong interchangeability, and long-term reliability in demanding industrial environments.
This configuration features a 0.0 in unthreaded length, a 4.5 in (114.3 mm) case length, a 0.5 m (1.6 ft) total cable length, and a Miniature Coaxial ClickLoc connector with standard cable, with no additional agency approval option. It is fully compatible with Bently Nevada 3300 XL Proximitor® sensors and extension cables for integrated machinery condition monitoring systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-45-05-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.5 in (114.3 mm) |
| Total Cable Length | 0.5 m (1.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Housing Material | Stainless steel |
| Approximate Weight | ~0.18–0.32 kg |
