Precision Monitoring for Reliable Rotating Machinery Performance

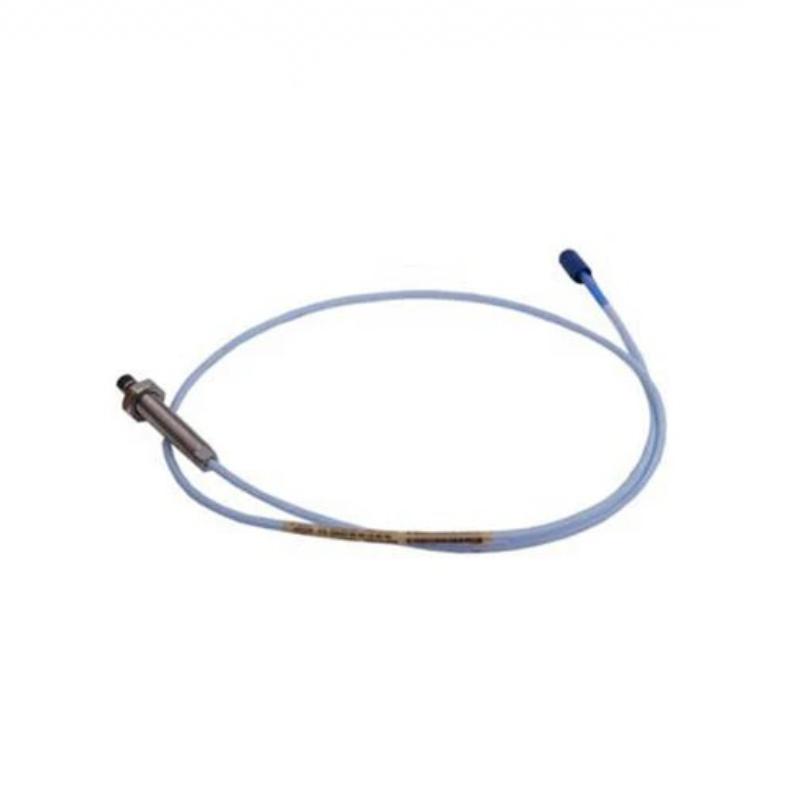

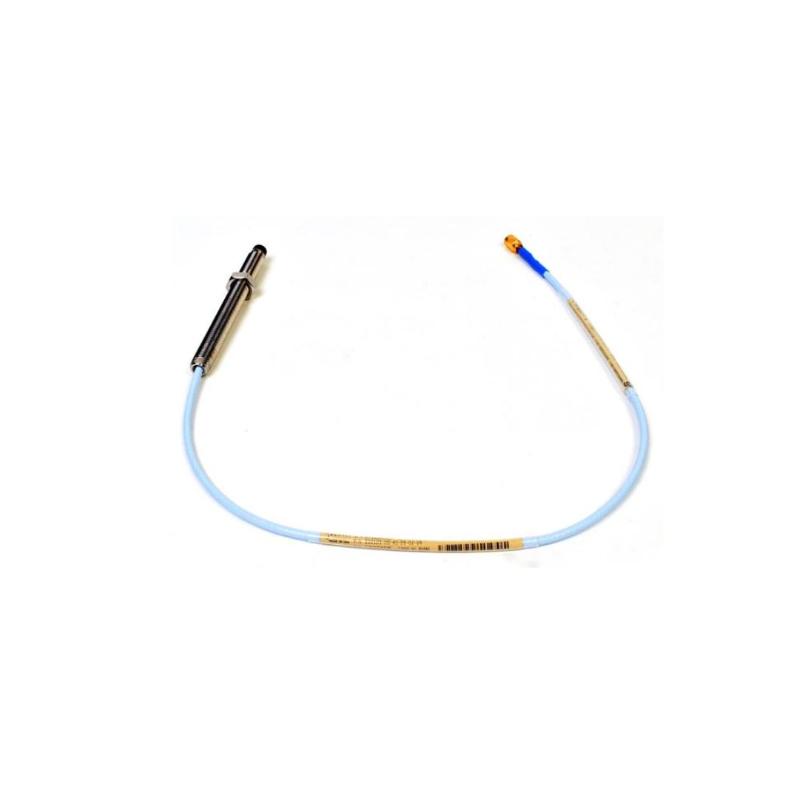

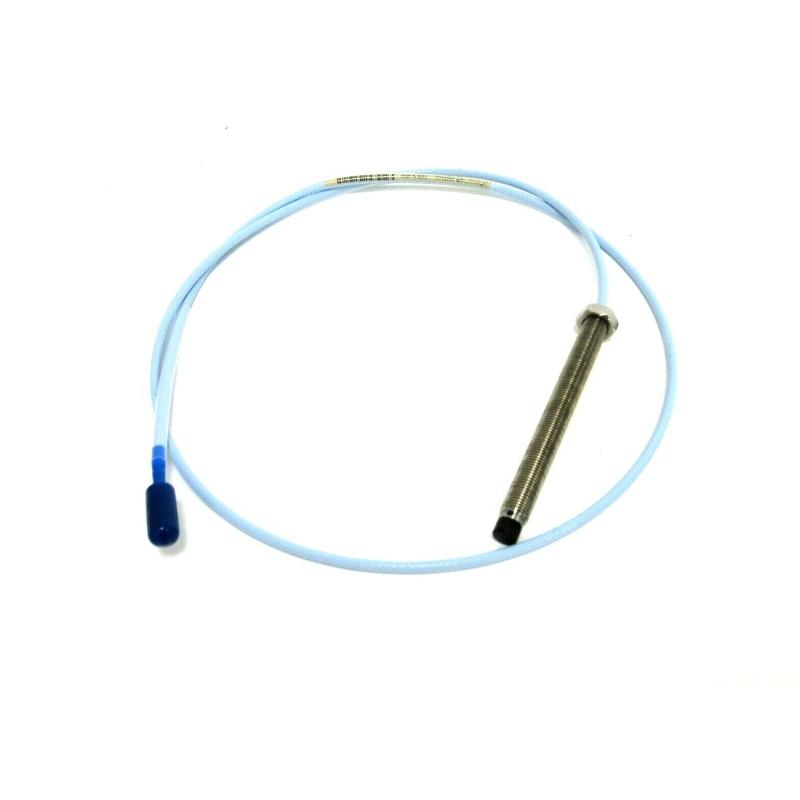

The Bently Nevada 330101-00-44-10-02-00 3300 XL 8 mm Proximity Probe is a high-accuracy, non-contact eddy current sensor designed for continuous measurement of shaft vibration and radial position in industrial rotating equipment. As part of the widely used 3300 XL proximity transducer system, it provides stable signal output, strong interchangeability, and dependable performance in harsh operating environments.
This configuration features a 0.0 in unthreaded length, a 4.4 in (111.8 mm) case length, a 1.0 m (3.3 ft) total cable length, and a Miniature Coaxial ClickLoc connector with standard cable, without additional regional approval suffix. It is fully compatible with Bently Nevada 3300 XL extension cables and Proximitor® sensors, ensuring consistent integration across machinery condition monitoring systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-44-10-02-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.4 in (111.8 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Housing Material | Stainless steel |
| Approximate Weight | ~0.32 kg |
