Stable and Accurate Monitoring for Critical Rotating Machinery

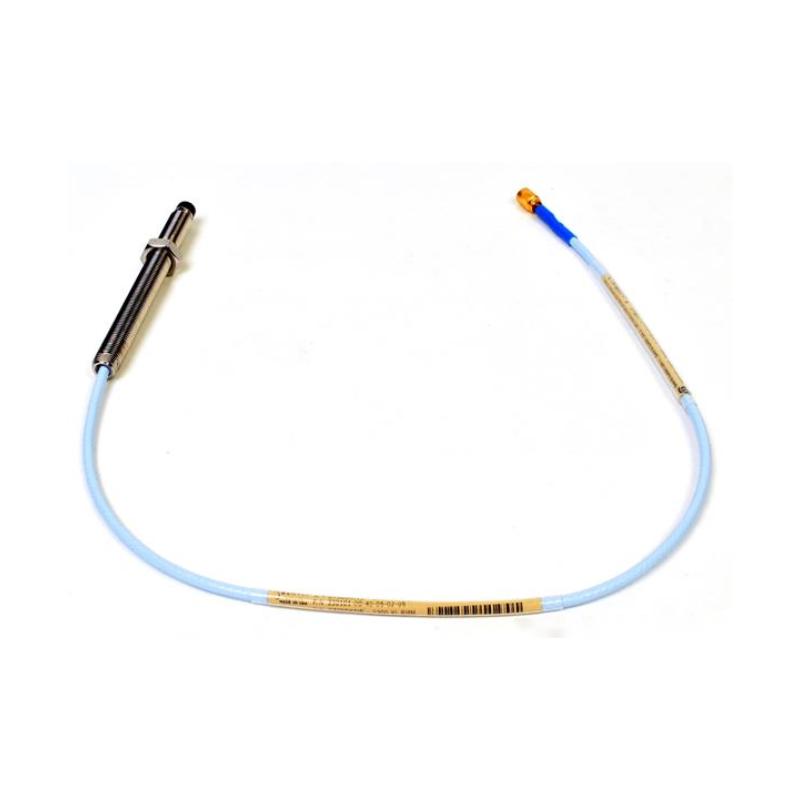

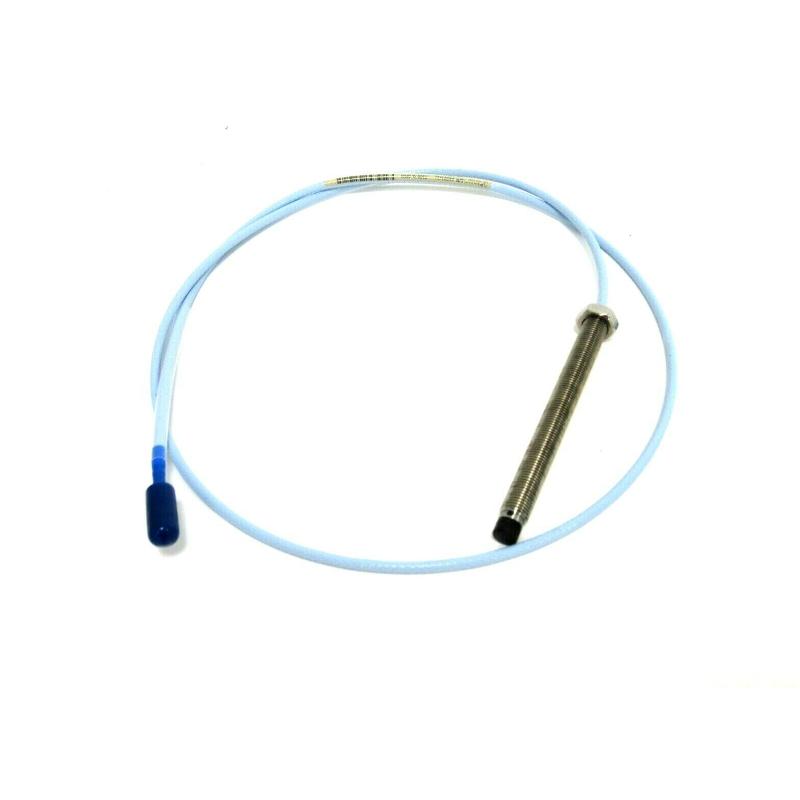

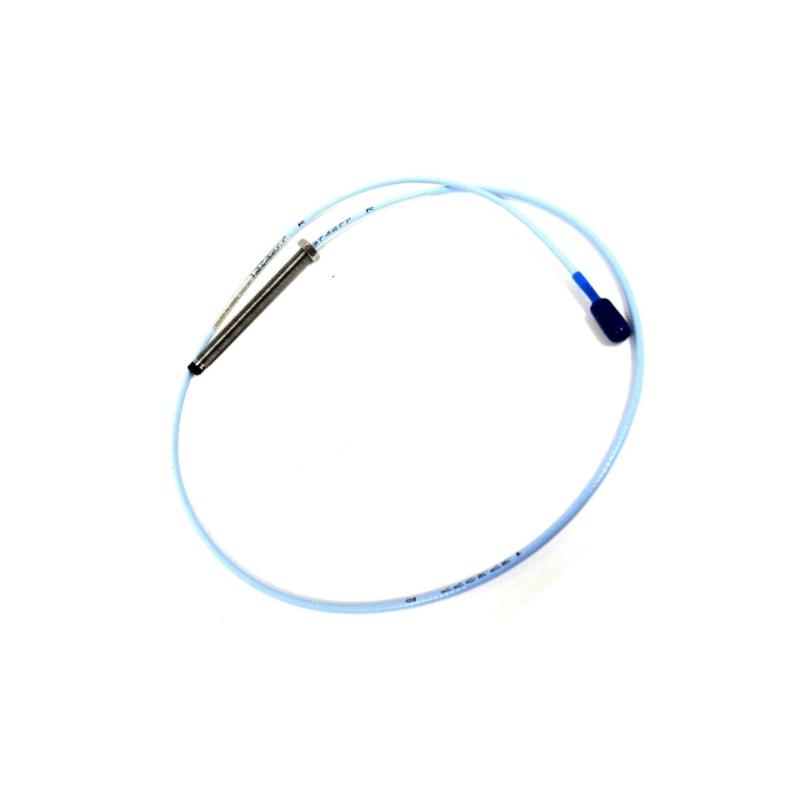

The Bently Nevada 330101-00-44-05-02-05 3300 XL 8 mm Proximity Probe is a high-reliability non-contact sensor designed for continuous measurement of shaft vibration and radial position in industrial rotating equipment. As part of the widely adopted 3300 XL proximity transducer system, it delivers consistent performance, excellent interchangeability, and strong resistance to harsh operating environments.
This configuration features a 0.0 in unthreaded length, a 4.4 in (111.8 mm) case length, a 0.5 m (1.6 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and CSA, ATEX, and IECEx approvals. It is fully compatible with Bently Nevada 3300 XL extension cables and Proximitor® sensors, ensuring stable integration into condition monitoring systems used across heavy industries.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-44-05-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.4 in (111.8 mm) |
| Total Cable Length | 0.5 m (1.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approvals | CSA, ATEX, IECEx |
| Housing Material | Stainless Steel |
| Approximate Weight | ~0.32 kg |
