High-Precision Sensing for Industrial Rotating Equipment

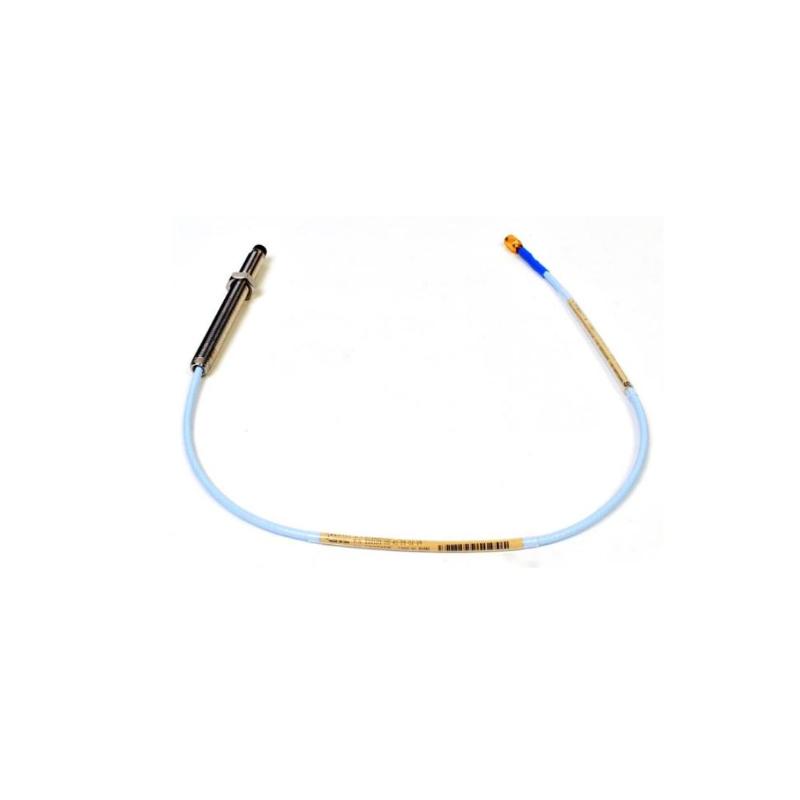

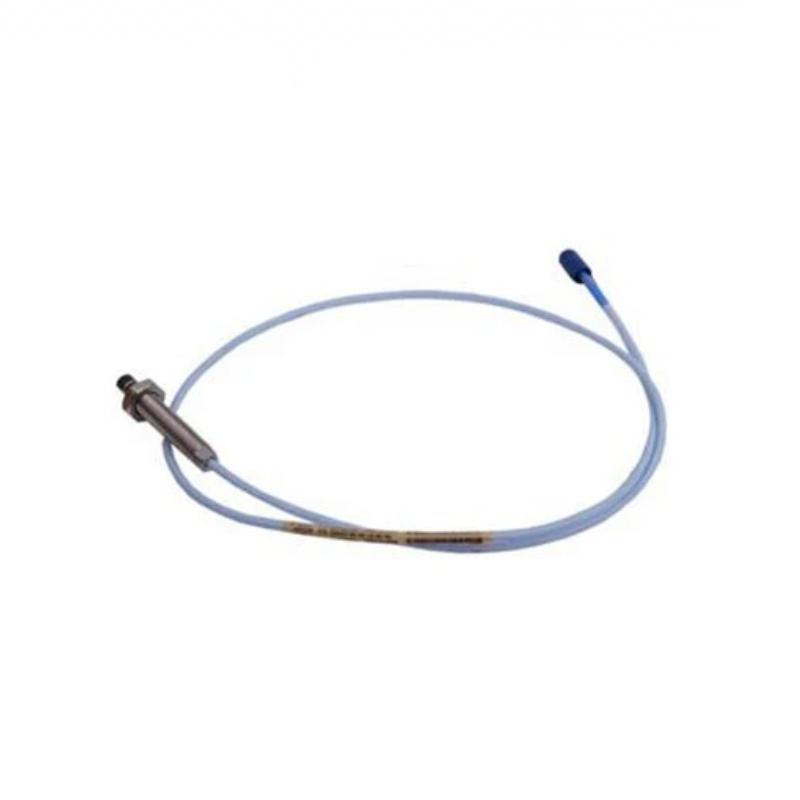

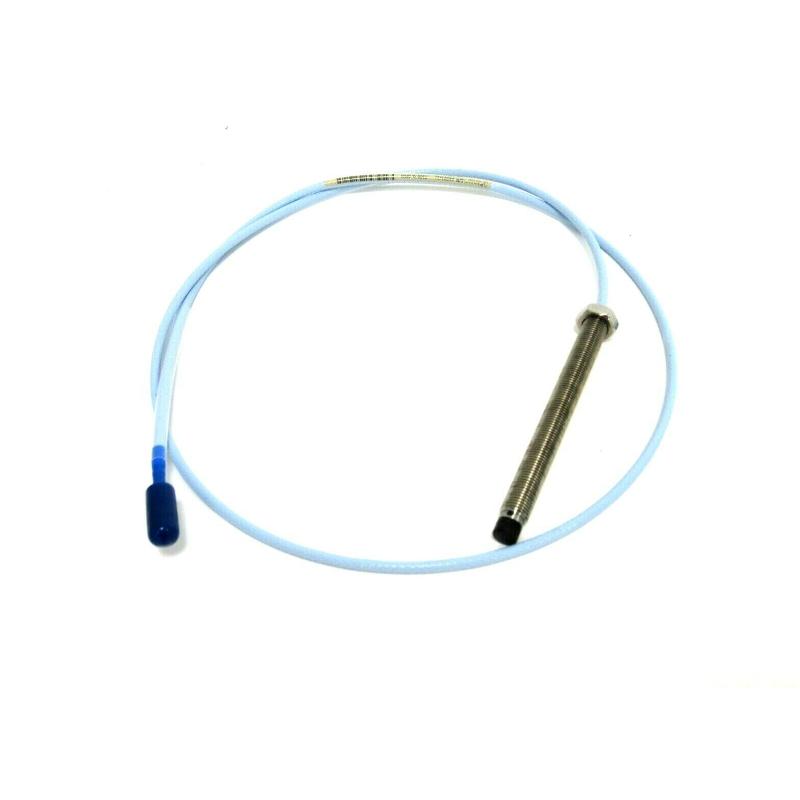

The Bently Nevada 330101-00-43-15-02-05 3300 XL 8 mm Proximity Probe is a non-contact eddy current sensor designed for continuous measurement of shaft vibration and position in critical machinery. As part of the widely used 3300 XL series, it provides stable signal output, high interchangeability, and reliable long-term operation in demanding industrial environments.
This configuration features a 0.0 in unthreaded length, a 4.3 in (109.2 mm) case length, a 1.5 m (4.9 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and CSA, ATEX, and IECEx approvals. It is designed for compatibility with 3300 XL extension cables and Proximitor® sensors, ensuring consistent integration across machinery monitoring systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-43-15-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.3 in (109.2 mm) |
| Total Cable Length | 1.5 m (4.9 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Housing Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm × 109.2 mm |
| Approximate Weight | ~0.32 kg |
