Designed for Consistent Machine Health Monitoring

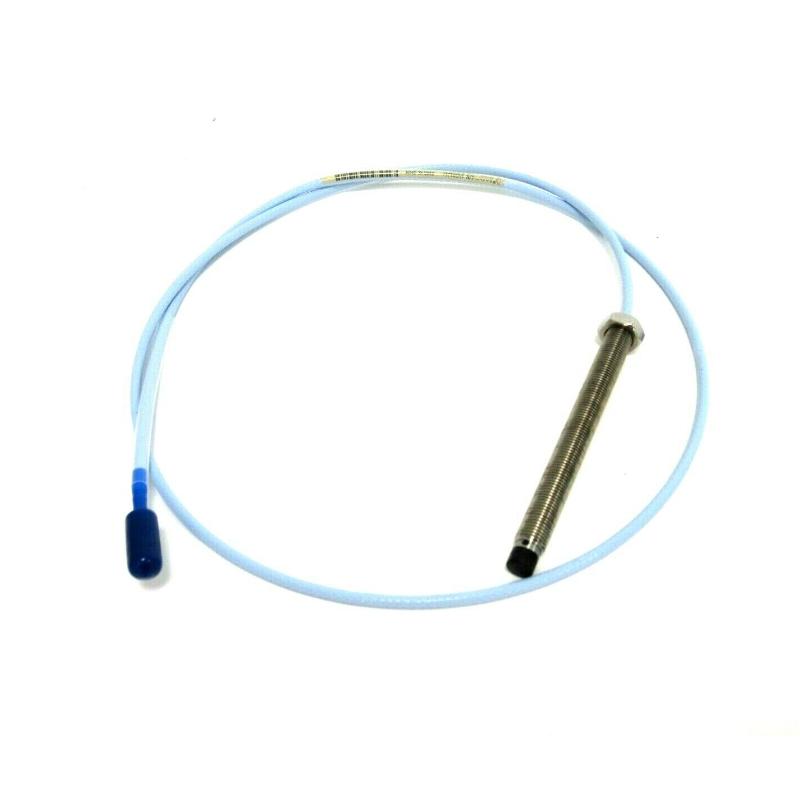

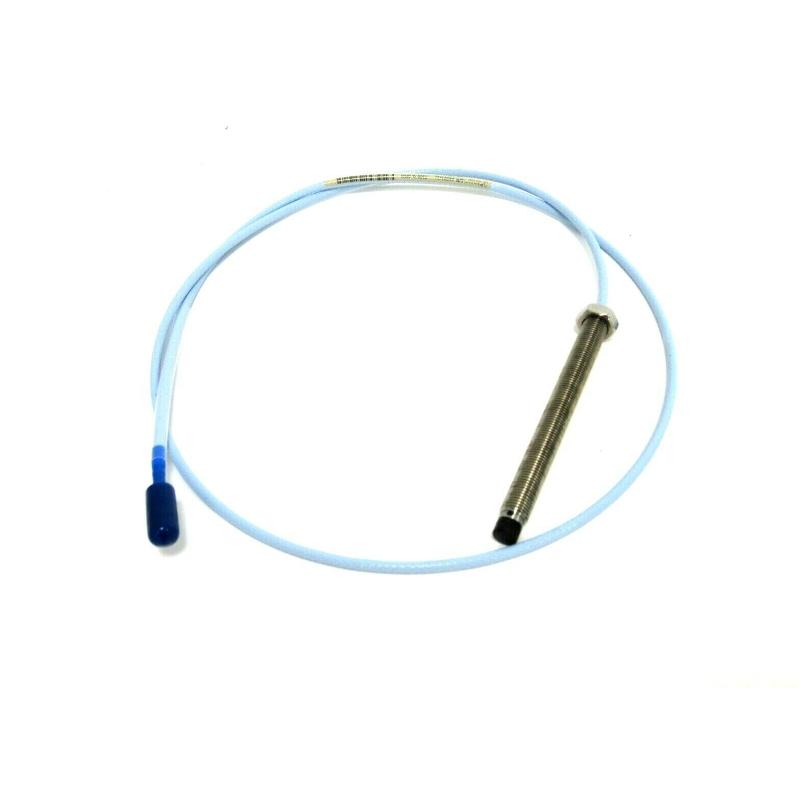

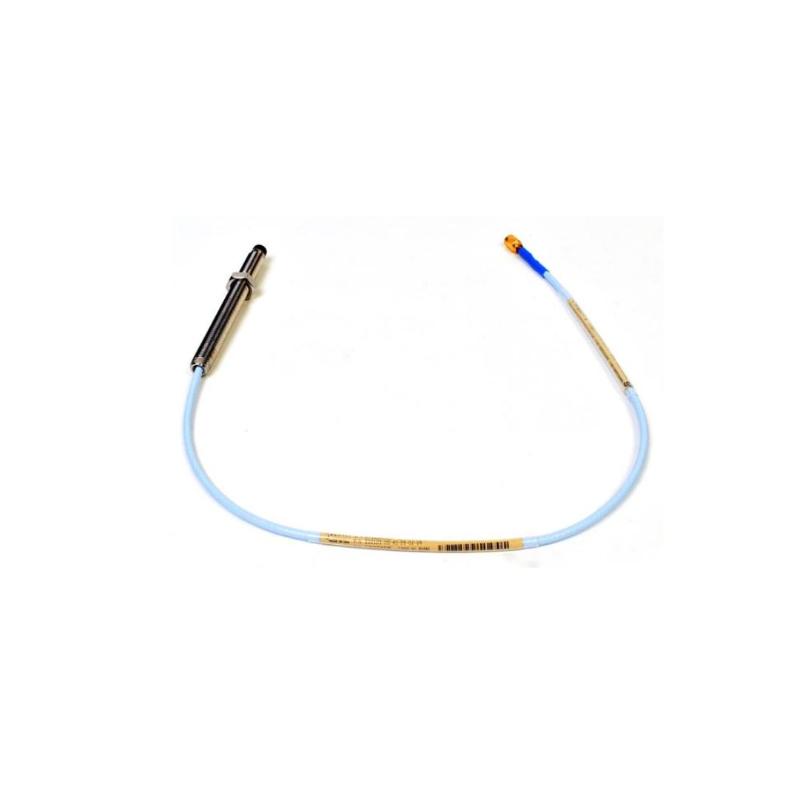

The Bently Nevada 330101-00-43-10-02-CN 3300 XL 8 mm Proximity Probe is a high-precision, non-contact sensor developed for continuous shaft vibration and shaft position measurement in critical rotating equipment. As part of the renowned 3300 XL Series, this probe delivers outstanding measurement accuracy, long-term stability, and reliable performance for industrial condition monitoring applications.
This configuration features a 0.0 in unthreaded length, a 4.3 in (109.2 mm) case length, a 1.0 m (3.3 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and the CN approval option, supporting country-specific certifications. Its rugged stainless steel construction ensures dependable operation in demanding industrial environments while maintaining full compatibility with Bently Nevada 3300 XL Proximitor® sensors and extension cables.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-43-10-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.3 in (109.2 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approval Option | CN Country-Specific Certification |
| Probe Housing Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm × 109.2 mm |
| Approximate Weight | Approximately 0.32 kg |
