Optimized for Accurate Machinery Condition Monitoring

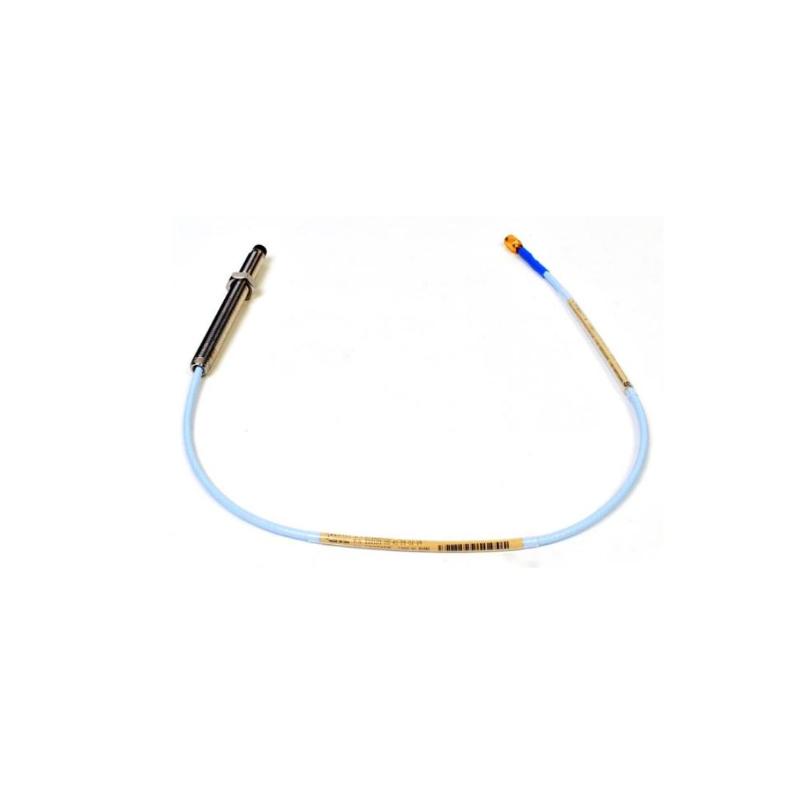

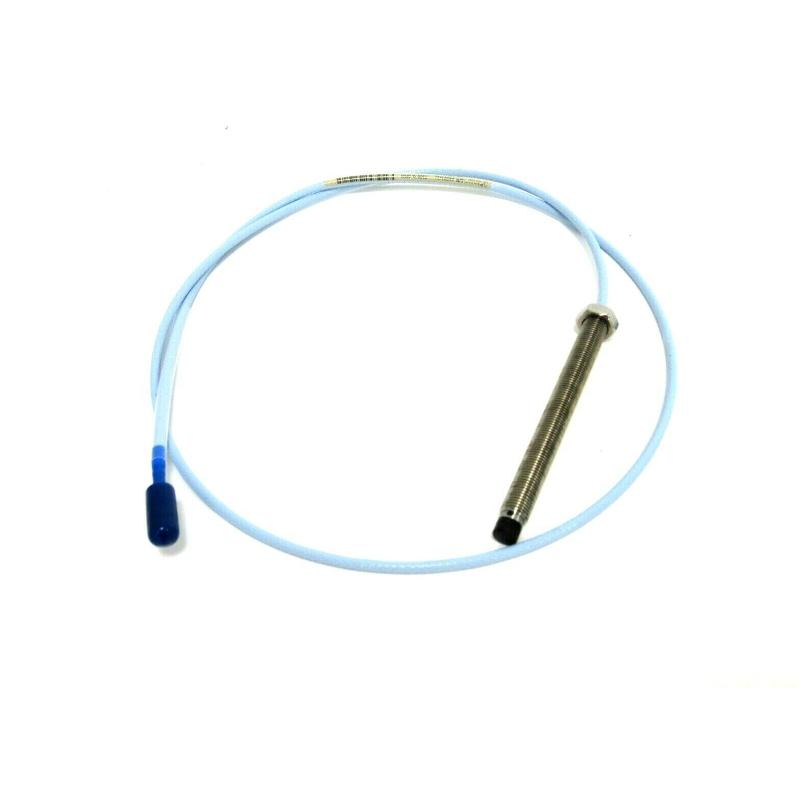

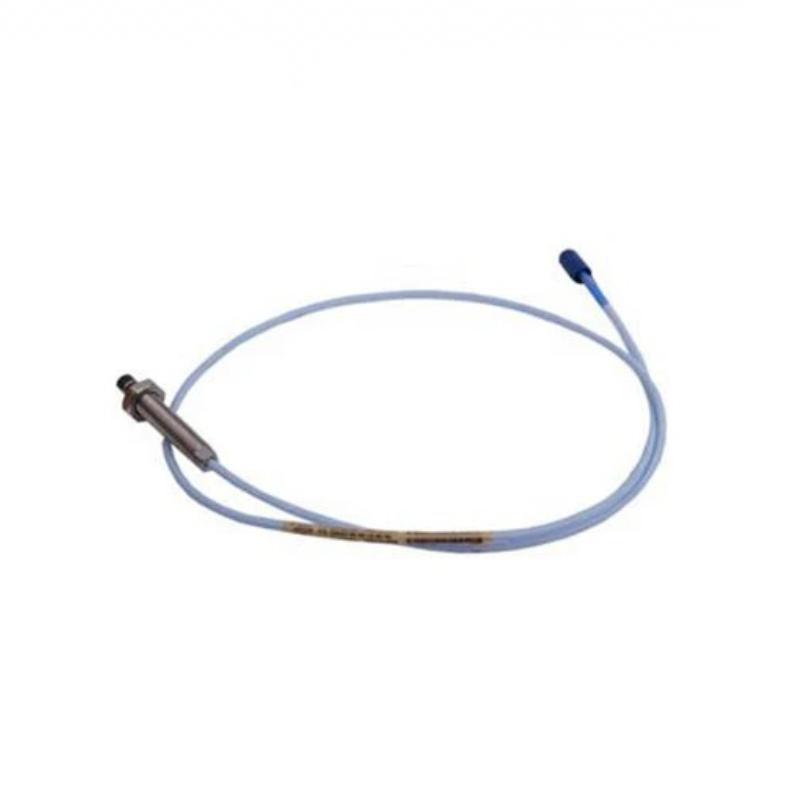

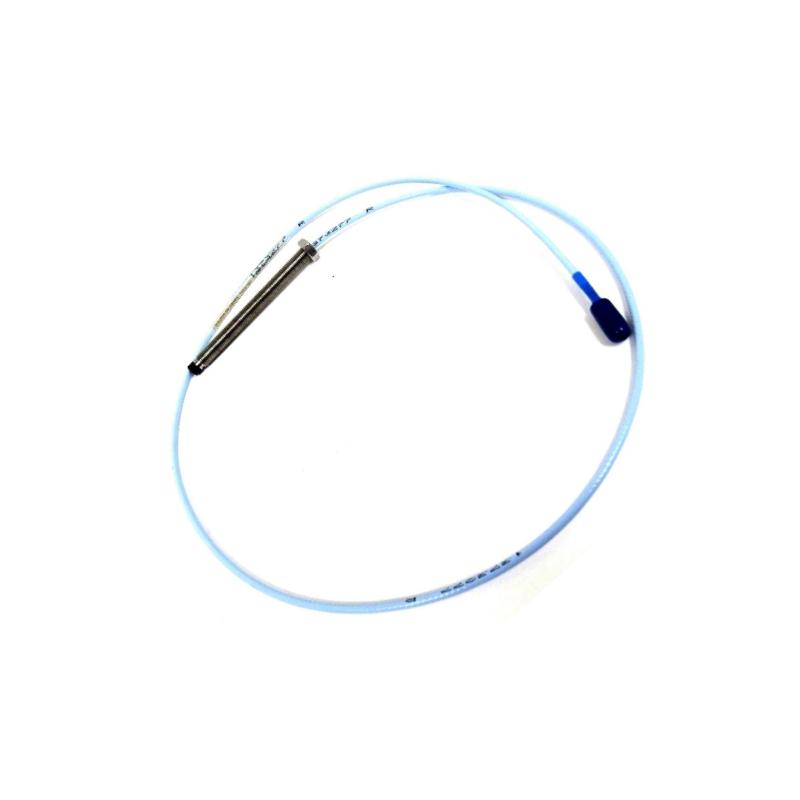

The Bently Nevada 330101-00-43-05-02-BR 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact sensor developed for continuous shaft vibration and shaft position measurement in rotating machinery. As part of the industry-proven 3300 XL Series, this probe delivers exceptional measurement stability, reliable long-term operation, and excellent compatibility with modern machinery protection systems.
This configuration features a 0.0 in unthreaded length, a 4.3 in (109.2 mm) case length, a 0.5 m (1.6 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and the BR regional approval option. Its durable stainless steel construction and high-performance sensing technology make it a dependable choice for demanding industrial applications requiring continuous equipment monitoring.
Product Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-43-05-02-BR |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.3 in (109.2 mm) |
| Total Cable Length | 0.5 m (1.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approval Option | BR Regional Approval |
| Probe Housing Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm × 109.2 mm |
| Approximate Weight | Approximately 0.31 kg |
