Precision Performance for Critical Machinery Monitoring

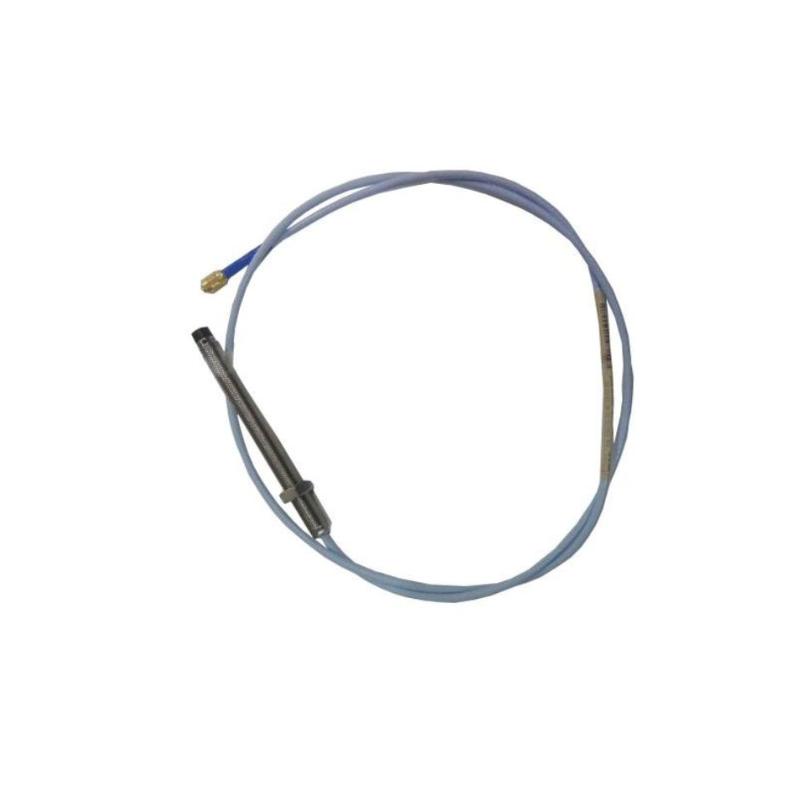

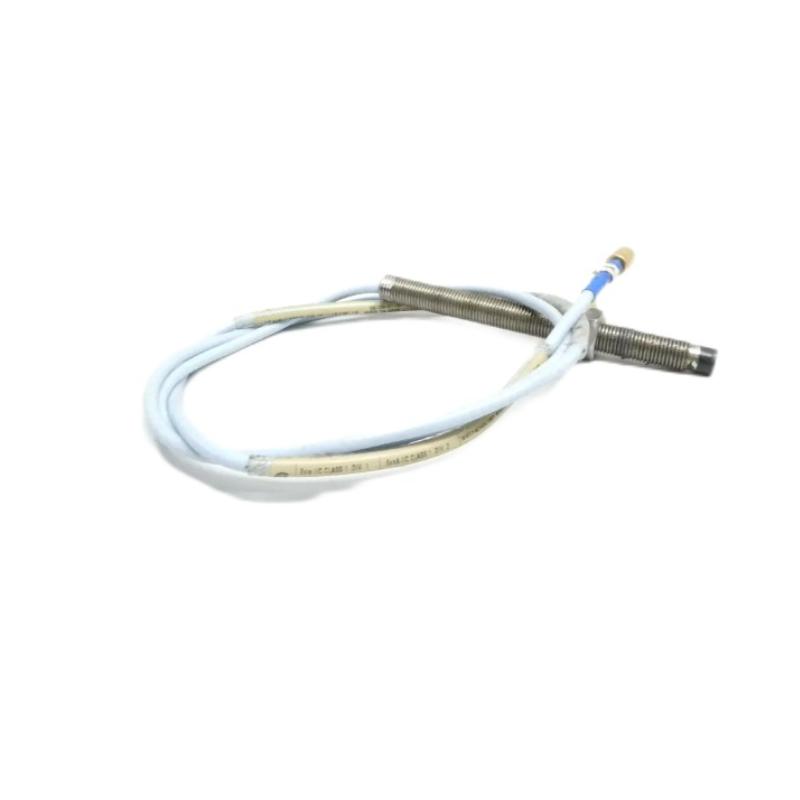

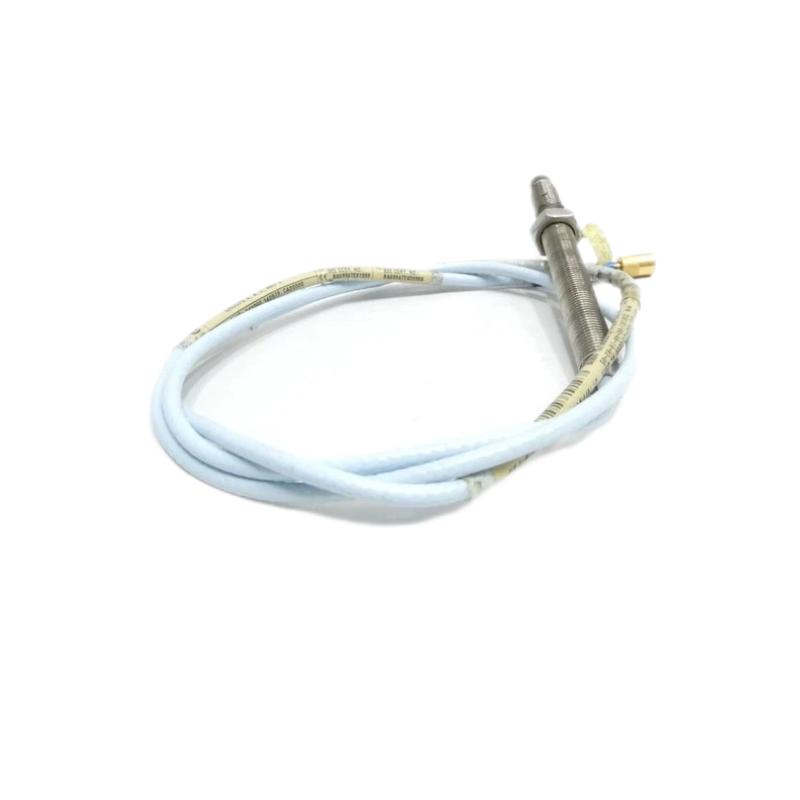

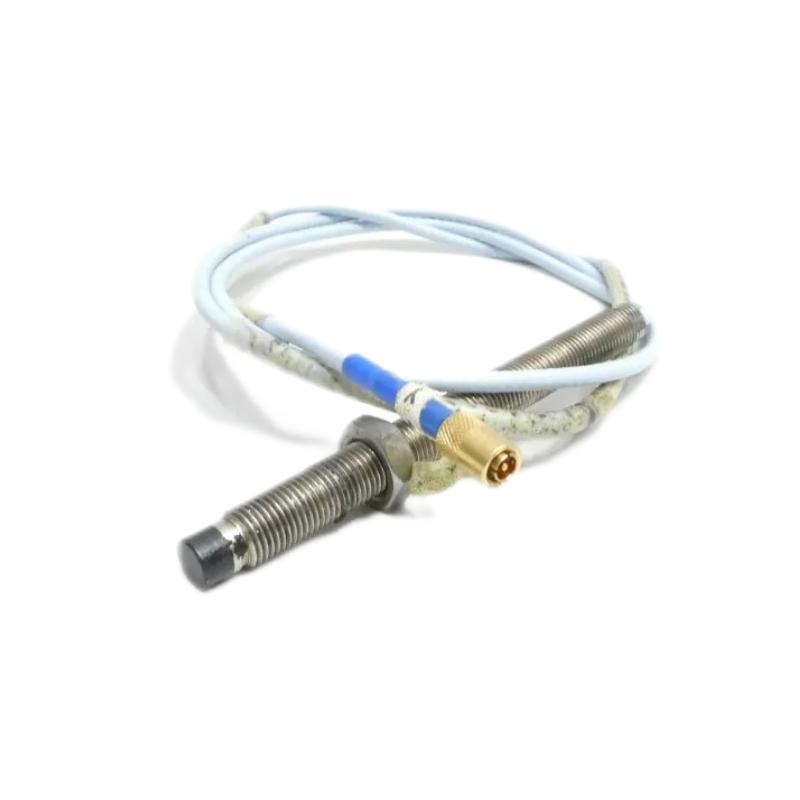

The Bently Nevada 330101-00-40-20-12-05 3300 XL 8 mm Proximity Probe is designed to deliver accurate, non-contact measurement of shaft vibration and shaft position in industrial rotating equipment. As part of the trusted 3300 XL Series, this proximity probe combines advanced sensing technology with rugged construction to provide stable, repeatable measurements in continuous machinery monitoring applications.
This configuration features a 0.0 in unthreaded length, a 4.0 in (101.6 mm) case length, a 2.0 m (6.6 ft) total cable length, a Miniature Coaxial ClickLoc connector with FluidLoc cable, and CSA, ATEX, and IECEx approvals. The FluidLoc cable design enhances reliability in demanding environments, while compatibility with 3300 XL Proximitor® sensors and extension cables enables seamless integration into industrial condition monitoring systems.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-20-12-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.0 in (101.6 mm) |
| Total Cable Length | 2.0 m (6.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | FluidLoc Cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Case Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm × 101.6 mm |
| Approximate Weight | Approximately 0.32 kg |
