Precision Measurement for Reliable Machinery Protection

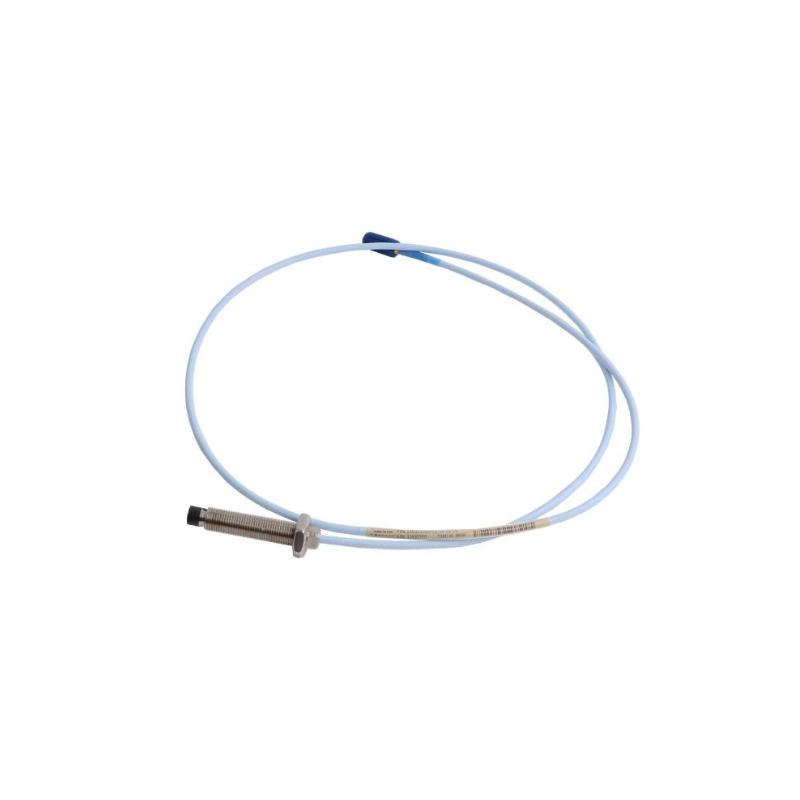

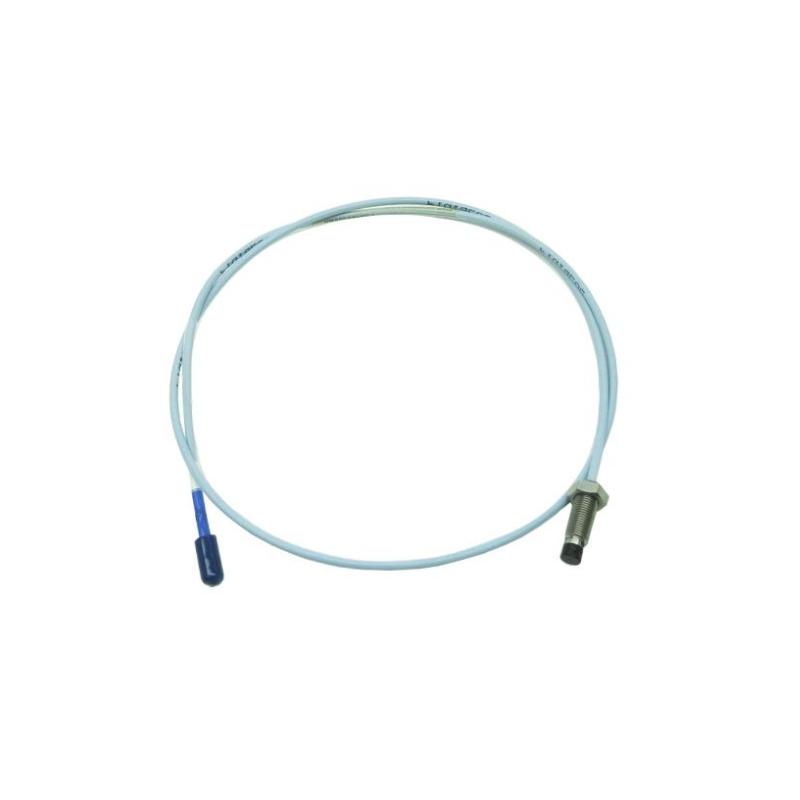

The Bently Nevada 330101-00-40-10-02-05 3300 XL 8 mm Proximity Probe is engineered to deliver accurate, non-contact measurement of shaft vibration and shaft position in rotating equipment. As a member of the proven 3300 XL Series, this probe combines high measurement accuracy, dependable long-term stability, and rugged construction to support continuous machinery condition monitoring across a wide range of industrial applications.
This configuration features a 0.0 in unthreaded length, a 4.0 in (101.6 mm) case length, a 1.0 m (3.3 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and CSA, ATEX, and IECEx approvals. Designed for compatibility with Bently Nevada 3300 XL Proximitor® sensors and extension cables, it provides consistent performance and installation flexibility for critical rotating assets.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-40-10-02-05 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.0 in (0 mm) |
| Case Length | 4.0 in (101.6 mm) |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Agency Approvals | CSA, ATEX, IECEx |
| Probe Case Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm × 101.6 mm |
| Approximate Weight | Approximately 0.32 kg |
