Precision Monitoring for Critical Rotating Machinery

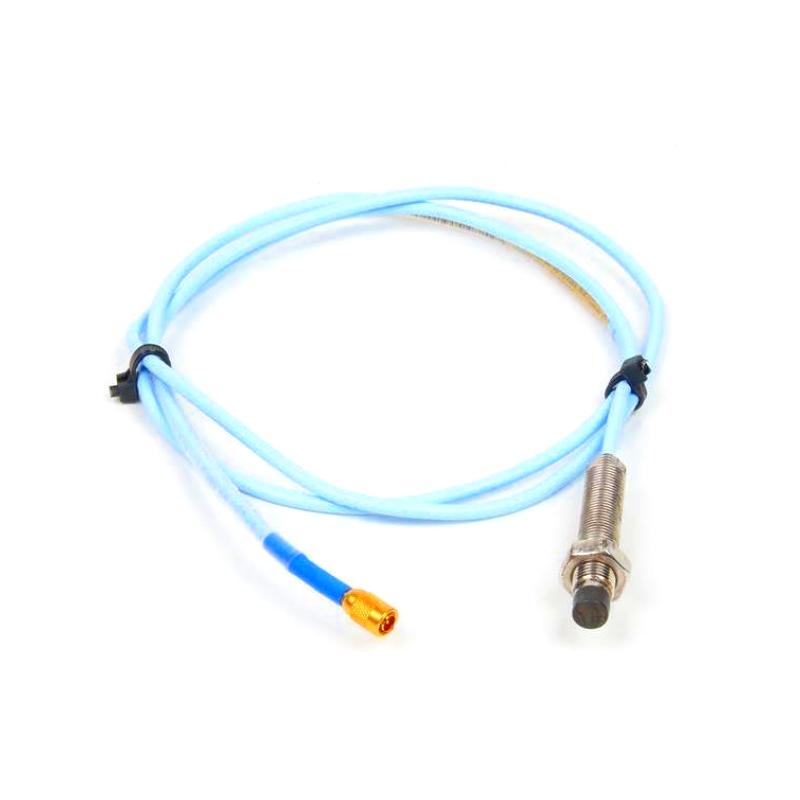

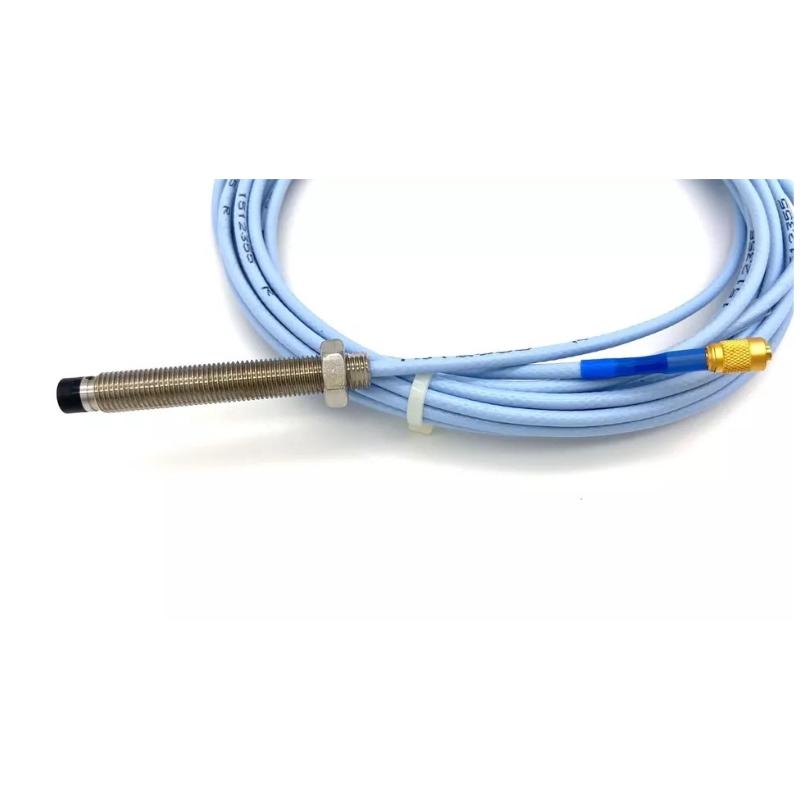

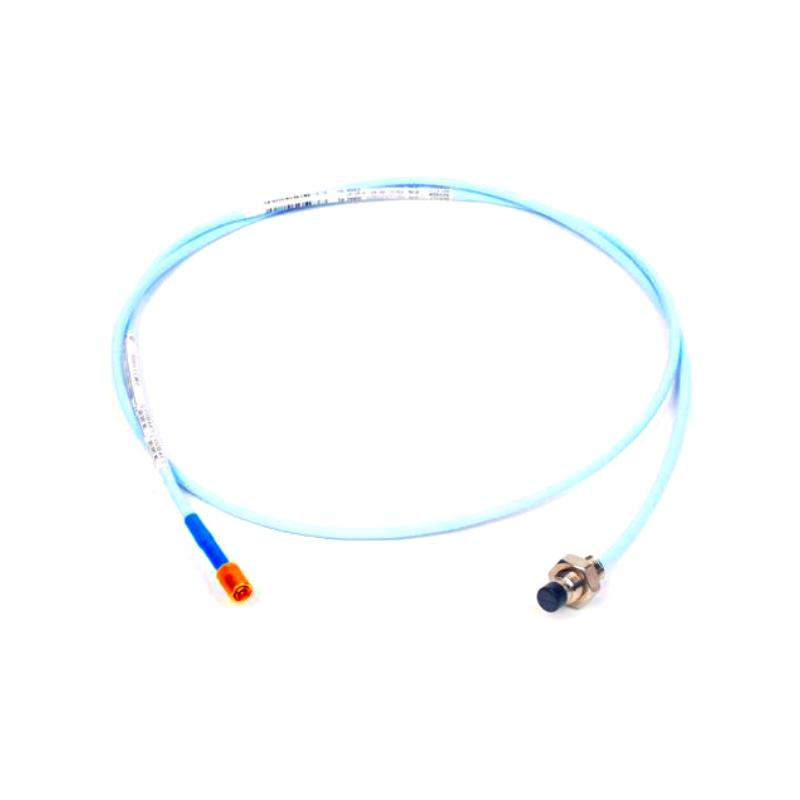

The Bently Nevada 330101-00-20-20-11-00 3300 XL 8 mm Proximity Probe is designed to provide accurate, non-contact measurement of shaft vibration and shaft position in industrial rotating equipment. As a member of the proven 3300 XL Series, this probe combines excellent measurement stability with durable construction, making it an ideal solution for machinery protection and predictive maintenance programs.
This configuration features a 0 mm unthreaded length, a 2.0 in (50.8 mm) case length, a 2.0 m (6.6 ft) total cable length, a Miniature Coaxial ClickLoc connector with FluidLoc cable option, and no agency approvals required. Engineered for compatibility with Bently Nevada 3300 XL Proximitor® sensors and extension cables, it delivers reliable performance in continuous industrial monitoring applications.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-20-20-11-00 |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 2.0 m (6.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Option | FluidLoc Cable |
| Agency Approval | Not Required (Option 00) |
| Probe Case Material | Stainless Steel |
| Approximate Dimensions | Ø8 mm Probe, 50.8 mm Case Length |
| Approximate Weight | Approximately 0.32 kg |
