High-Accuracy Non-Contact Measurement for Rotating Machinery

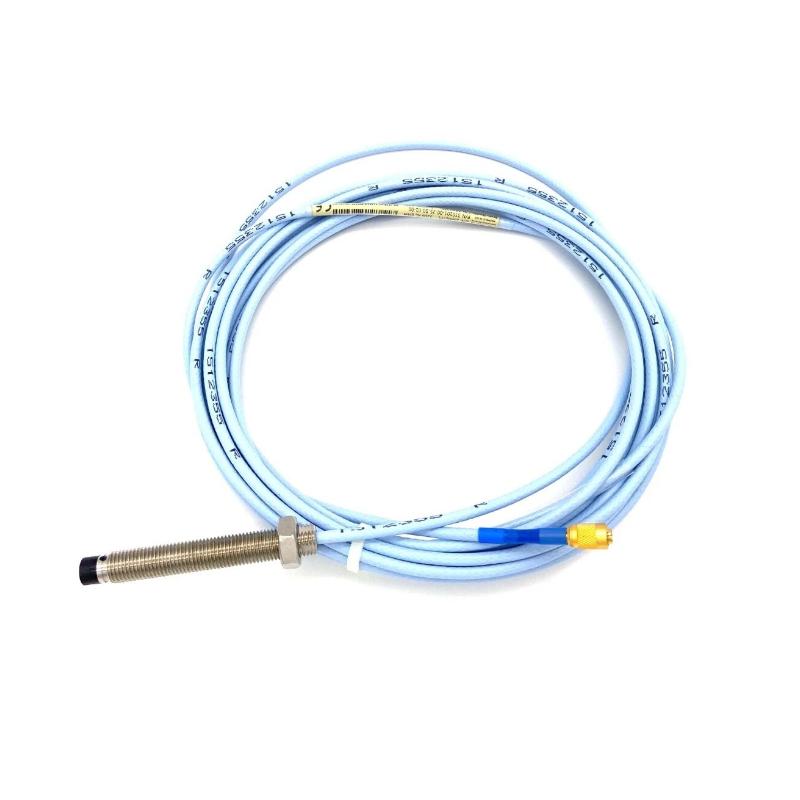

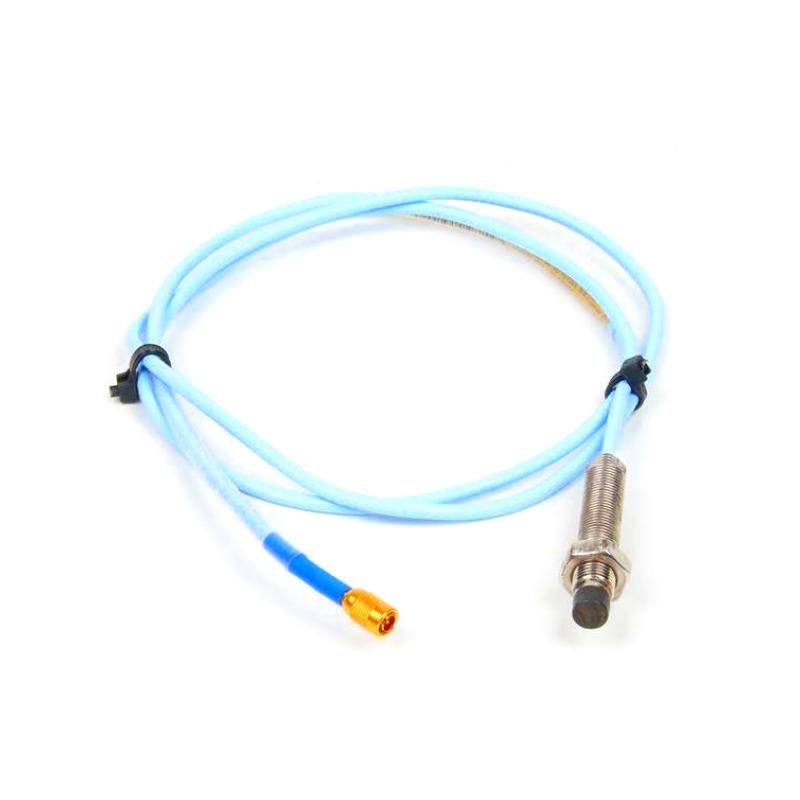

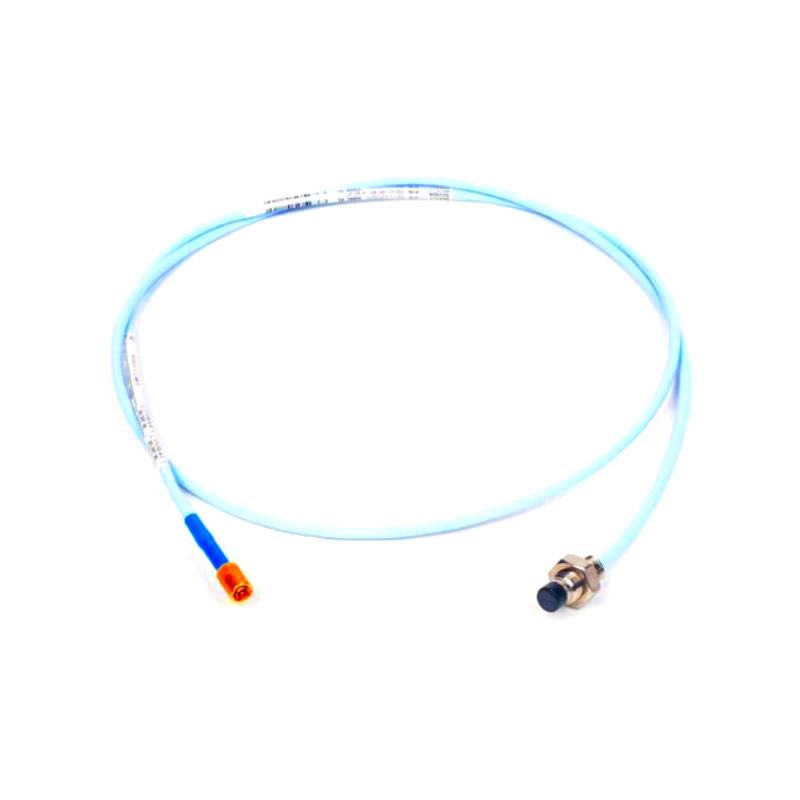

The Bently Nevada 330101-00-20-20-02-CN 3300 XL 8 mm Proximity Probe is designed to deliver precise, non-contact measurement of shaft vibration and position in critical rotating equipment. As a member of the trusted 3300 XL Series, this probe combines reliable sensing performance with durable construction, making it an excellent choice for continuous machinery condition monitoring in demanding industrial environments.
This configuration features a 0 mm unthreaded length, a 2.0 in (50.8 mm) case length, a 2.0 m (6.6 ft) total cable length, a Miniature Coaxial ClickLoc connector with standard cable, and the CN country-specific approvals option. Its stainless steel probe case and high-quality cable materials provide dependable long-term operation while supporting seamless integration with compatible 3300 XL Proximitor® sensors and extension cables.
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-00-20-20-02-CN |
| Product Type | 3300 XL 8 mm Proximity Probe |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 mm |
| Case Length | 2.0 in (50.8 mm) |
| Total Cable Length | 2.0 m (6.6 ft) |
| Thread Size | 3/8-24 UNF |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Approval Option | CN (Country-Specific Approvals) |
| Probe Case Material | AISI 303/304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Approximate Dimensions | Ø8 mm Probe, 50.8 mm Case Length |
| Approximate Weight | 0.32 kg |
