Overview

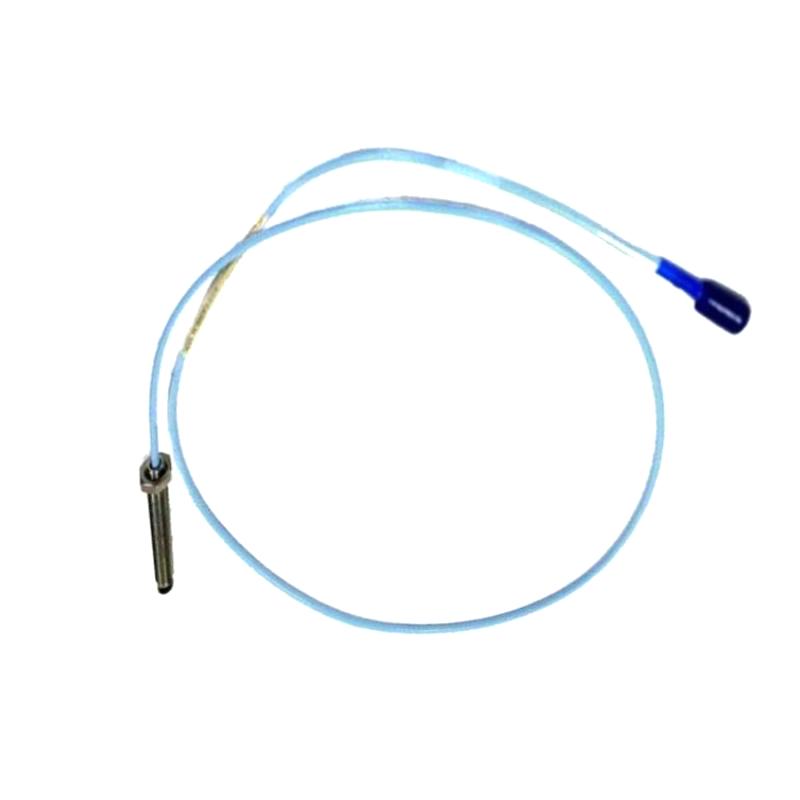

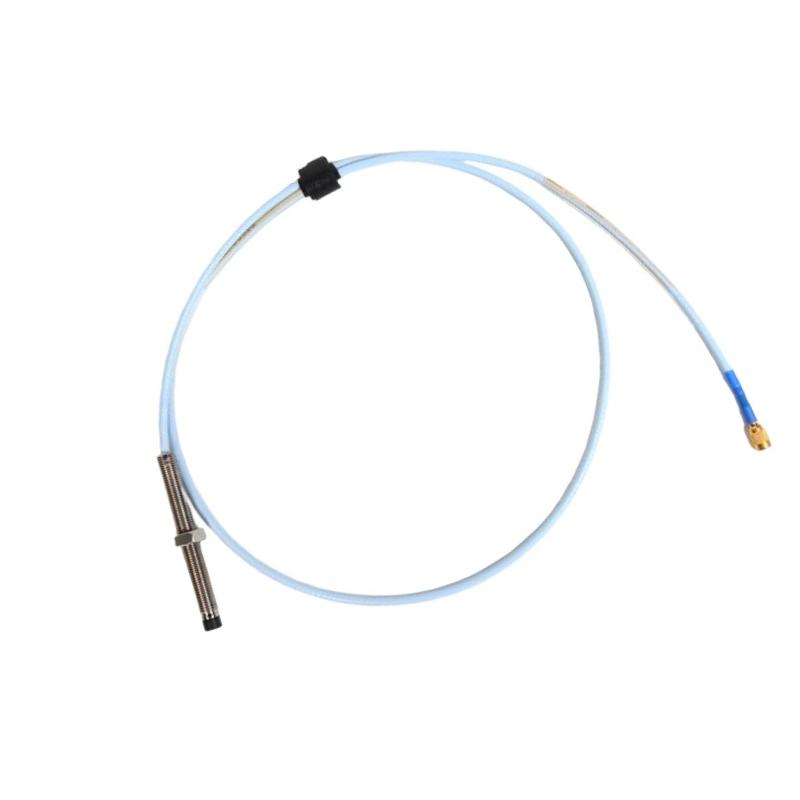

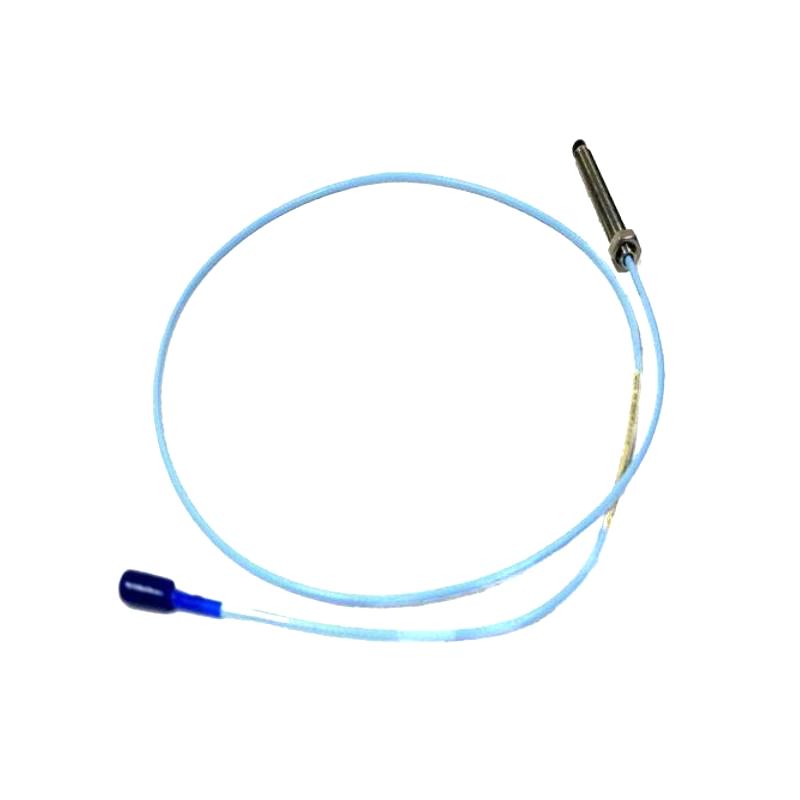

The Bently Nevada 330101-00-08-05-02-00 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and rotational speed in critical rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which includes a 3300 XL 8 mm probe, a 3300 XL extension cable, and a 3300 XL Proximitor® Sensor. The complete system provides accurate displacement measurements for machinery condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-Current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-08-05-02-00 |
| Product Series | 3300 XL |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Without armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 0.8 in |
| Integral Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 00 – Approval not required |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
