Introduction

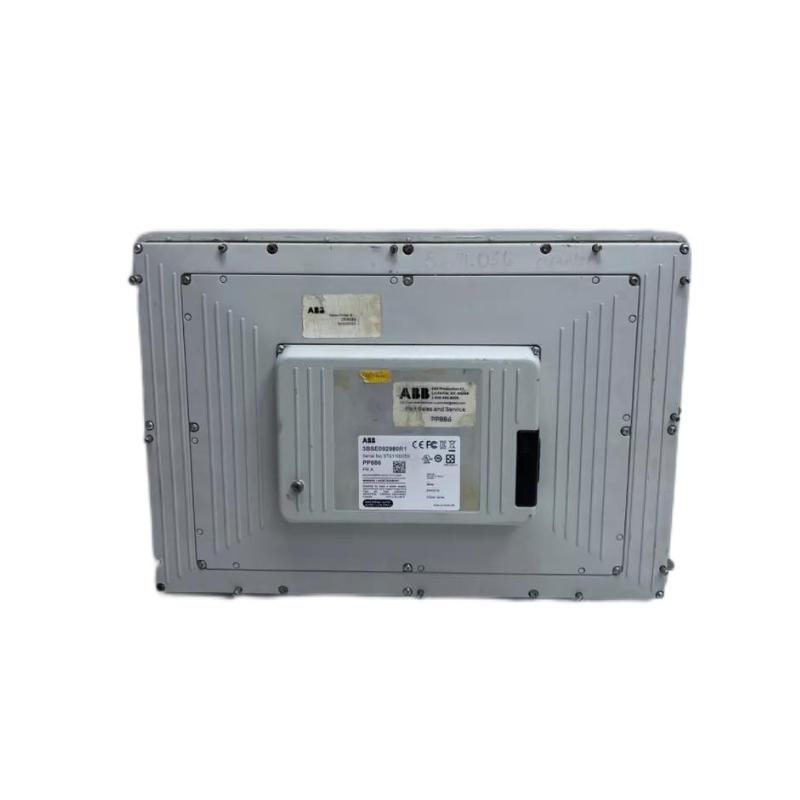

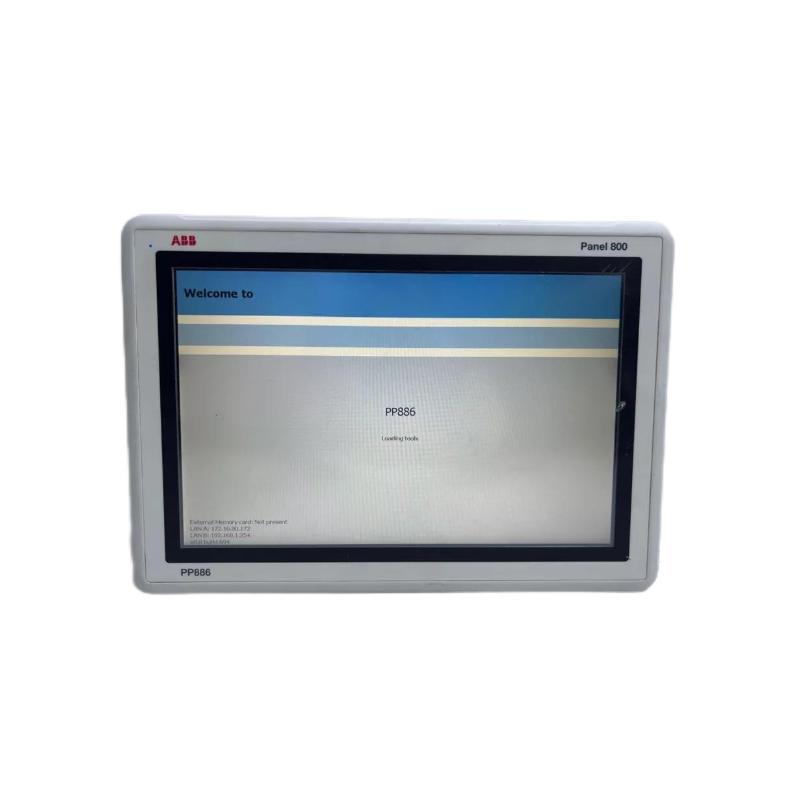

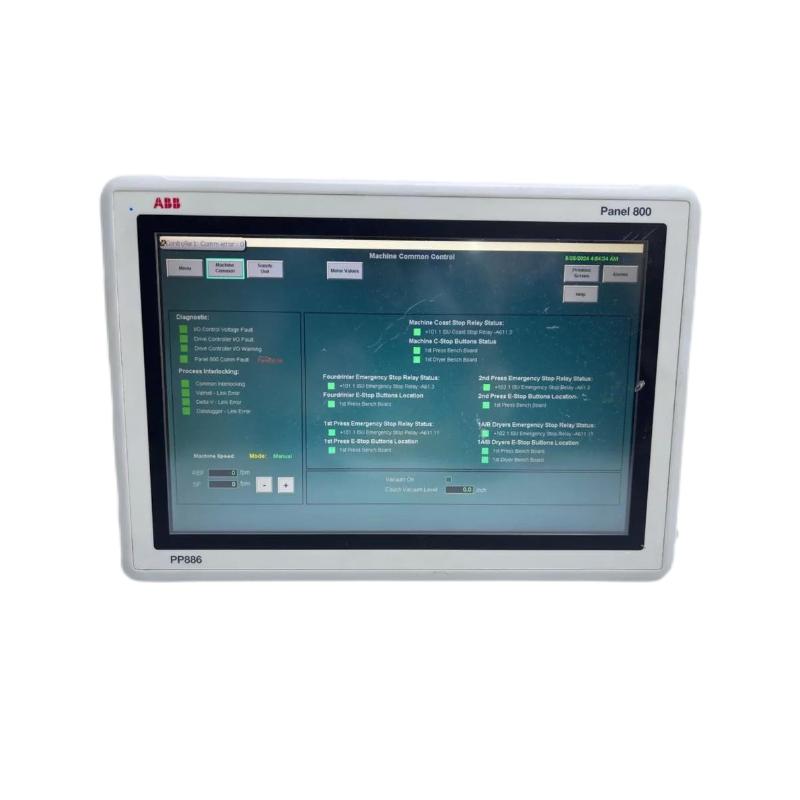

The ABB PP886 3BSE092980R1 Touchscreen Panel is a premium industrial HMI from ABB’s Panel 800 series, designed to deliver clear visualization, responsive control, and seamless integration within modern automation systems. Featuring a 15.4-inch widescreen display and robust industrial protection, the PP886 enhances operator efficiency while ensuring dependable performance in demanding plant environments.
Built for both process and discrete industries, this panel combines strong processing capability with flexible communication options. Whether deployed in manufacturing lines, energy facilities, or infrastructure systems, the PP886 provides the reliability and intuitive interaction expected from ABB automation solutions.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | ABB |
| Model | PP886 |
| Part Number | 3BSE092980R1 |
| Product Type | Touchscreen Operator Panel / HMI |
| Series | Panel 800 |
| Display Size | 15.4″ Widescreen (16:10) |
| Resolution | 1280 × 800 pixels |
| Display Type | TFT LCD, Resistive Touch |
| Brightness | Approx. 450 cd/m² |
| Processor | ARM-based CPU |
| Memory | 1 GB RAM |
| Storage | 2 GB SSD (approx. 1.5 GB user space) |
| Power Supply | 24 V DC (18–32 V DC) |
| Power Consumption | Approx. 31 W |
| Ethernet Ports | 2 × 10/100 Base-T |
| USB Ports | 2 × USB 2.0 |
| Serial Ports | RS232, RS422/485 |
| Front Protection | IP65 / NEMA 4X |
| Rear Protection | IP20 |
| Operating Temperature | –10 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Mounting | Panel mount / VESA 75 × 75 |
Applications
The PP886 touchscreen panel is widely used in industrial automation for:
-
Machine control and supervision in manufacturing plants
-
Real-time process visualization in process industries (chemical, pharmaceuticals, food & beverage)
-
Operator workstations for SCADA and PLC systems
-
Complex HMI applications requiring clear graphics and multi-brand connectivity
-
Control rooms and distributed control systems (DCS) integration
Its combination of performance, visibility, and ease of engineering empowers operators to make faster, more informed decisions.
Advantages
-
Large High-Resolution Display – The 15.4″ widescreen format improves visibility of complex process data.
-
Industrial-Grade Durability – IP65 front protection ensures resistance to dust and water ingress.
-
Flexible Connectivity – Dual Ethernet and multiple serial ports support multi-protocol integration.
-
User-Friendly Engineering – Designed for configuration with ABB Panel Builder 800.
-
Stable 24 V DC Operation – Compatible with standard industrial power systems.
-
Long-Term Reliability – Built for continuous operation in harsh environments.
The PP886 strikes the perfect balance between performance, durability, and intuitive design, making it a dependable choice for demanding automation projects.
Technical FAQs
1. What is the screen size of the PP886?
It features a 15.4-inch widescreen display with a 1280 × 800 resolution.
2. What type of touch technology does it use?
It uses a resistive touchscreen suitable for operation with gloves or stylus input.
3. What power supply is required?
The panel operates on 24 V DC (18–32 V DC range).
4. Does it support Ethernet communication?
Yes, it includes two 10/100 Base-T Ethernet ports.
5. What protection rating does the front panel have?
The front is rated IP65 / NEMA 4X, suitable for industrial environments.
6. What software is used for configuration?
ABB Panel Builder 800 is used for engineering and configuration.
7. Can it be mounted on a wall or arm?
Yes, it supports panel mounting and VESA 75 × 75 mounting options.
8. What is the operating temperature range?
–10 °C to +60 °C.
9. How much storage is available for applications?
Approximately 1.5 GB of user-accessible SSD space.
10. Is this suitable for harsh industrial environments?
Yes, its rugged design and industrial certifications make it suitable for demanding applications.
