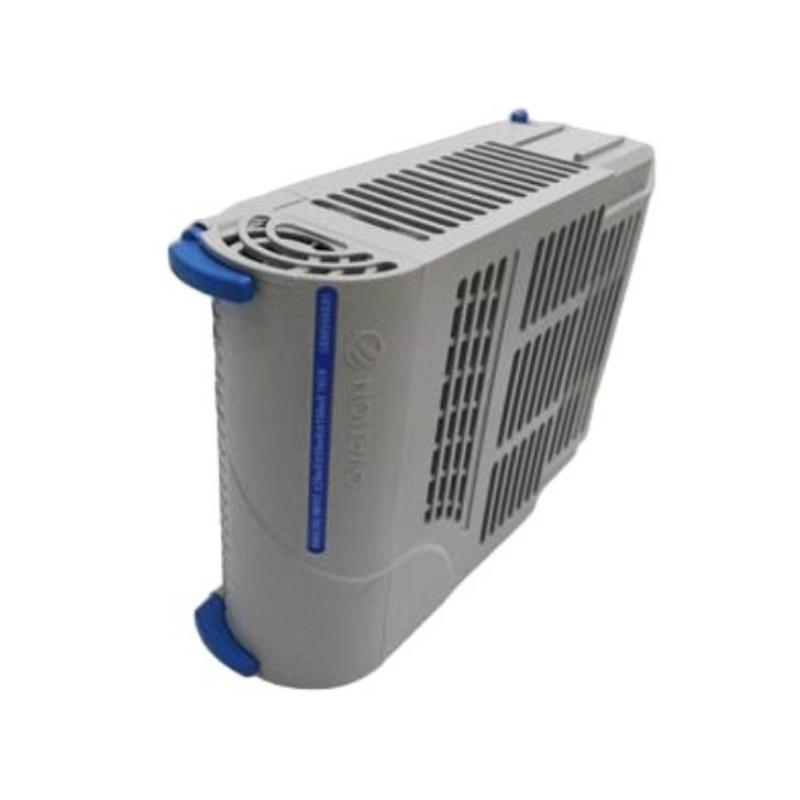

Ovation 5X00784G01 Analog Input Modules

ABB CI920N 3BDS014113 Communication Interface for Industrial Automation

Ovation 5X00784G01 Analog Input Modules

Name: Ovation 5X00784G01 Analog Input Modules
Brand: Ovation DCS
SKU: 6450
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Ovation DCS
Item No.:5X00784G01
Product Origin:USA
Product Dimensions:128 × 54 × 165 mm
Product Weight:0.5kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Smart HART Signal Acquisition for Modern Process Control

The Ovation 5X00784G01 Analog Input Module is a high-precision HART-enabled interface designed for Emerson Ovation Distributed Control Systems (DCS). It combines traditional analog signal acquisition with advanced digital communication, allowing users to capture both process values and intelligent device diagnostics from HART-compatible field instruments.

Engineered for modern industrial environments, this module enhances visibility into field devices while maintaining stable and accurate signal conversion. Its ability to integrate analog measurement with digital diagnostics makes it a powerful solution for optimizing process performance and predictive maintenance.

Technical Specifications

Parameter	Specification
Manufacturer	Emerson Ovation
Model	5X00784G01
Module Type	HART Analog Input Module
Input Channels	16 channels (typical configuration)
Input Signal	4–20 mA with HART communication overlay
Communication Protocol	HART (bidirectional digital + analog)
Resolution	Up to 16-bit conversion
Accuracy	±0.1% of full scale
Terminal Type	Screw terminals
Power Supply	Local or backplane powered
Redundancy Support	Yes (dual module configuration)
Diagnostics	Device status, calibration, and fault monitoring
Operating Temperature	–40 °C to +70 °C
Humidity	5% to 95% non-condensing
Dimensions (HxWxD)	Approx. 128 × 54 × 165 mm
Weight	Approx. 0.5 kg
Mounting	Rack slot installation

Applications

The 5X00784G01 is widely used in industries where both precise measurement and device diagnostics are essential:

Power generation plants requiring advanced instrumentation monitoring
Oil & gas facilities using smart transmitters
Chemical and petrochemical process automation
Water and wastewater treatment systems
Industrial plants implementing predictive maintenance strategies

Advantages

HART Integration: Enables simultaneous analog measurement and digital diagnostics from smart devices.
High Channel Density: Up to 16 channels reduce rack space and improve system efficiency.
Advanced Diagnostics: Access to device health, calibration data, and alerts improves maintenance planning.
Redundancy Ready: Supports redundant configurations for high-availability systems.
Robust Industrial Design: Operates reliably in extreme temperature and environmental conditions.

Technical FAQs

1. What makes this module different from standard analog input modules?
It supports HART communication, allowing access to both analog signals and digital device diagnostics.

2. How many input channels are available?
Typically 16 channels, depending on configuration.

3. What type of signals does it accept?
Standard 4–20 mA signals with HART overlay.

4. Does it support smart field devices?
Yes, it communicates with HART-enabled transmitters and instruments.

5. What diagnostic capabilities are included?
Device status, calibration data, and fault diagnostics are accessible via HART.

6. Is redundancy supported?
Yes, it can be configured in redundant module pairs for higher reliability.

7. What is the operating temperature range?
–40 °C to +70 °C, suitable for harsh environments.

8. How is the module powered?
Through the Ovation system power or local configuration.

9. What industries typically use this module?
Power, oil & gas, chemical processing, and water treatment industries.

10. What are the physical dimensions and weight?
Approx. 128 × 54 × 165 mm; about 0.5 kg.
