Product Overview

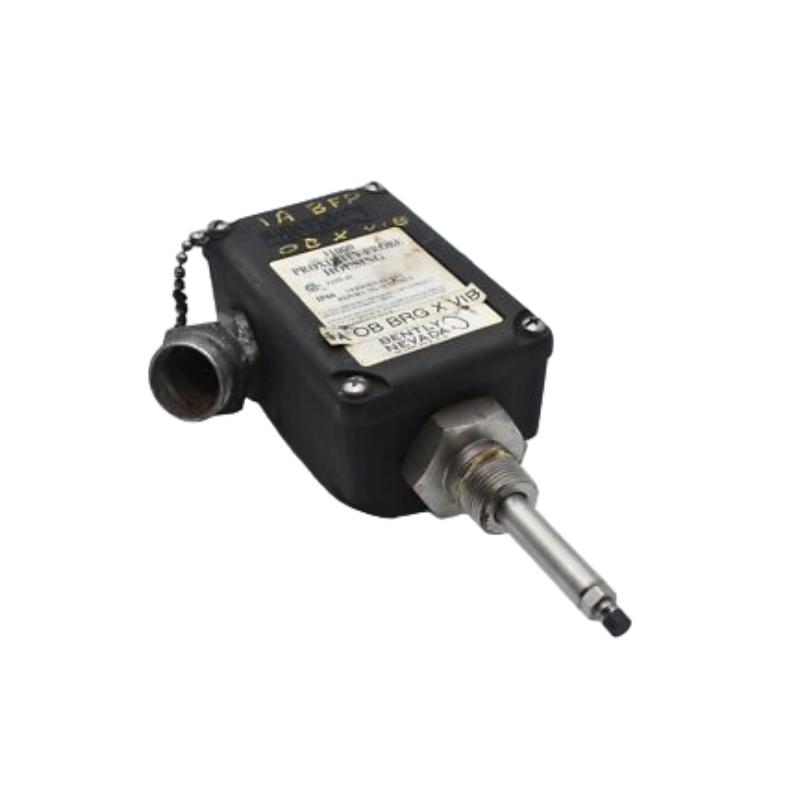

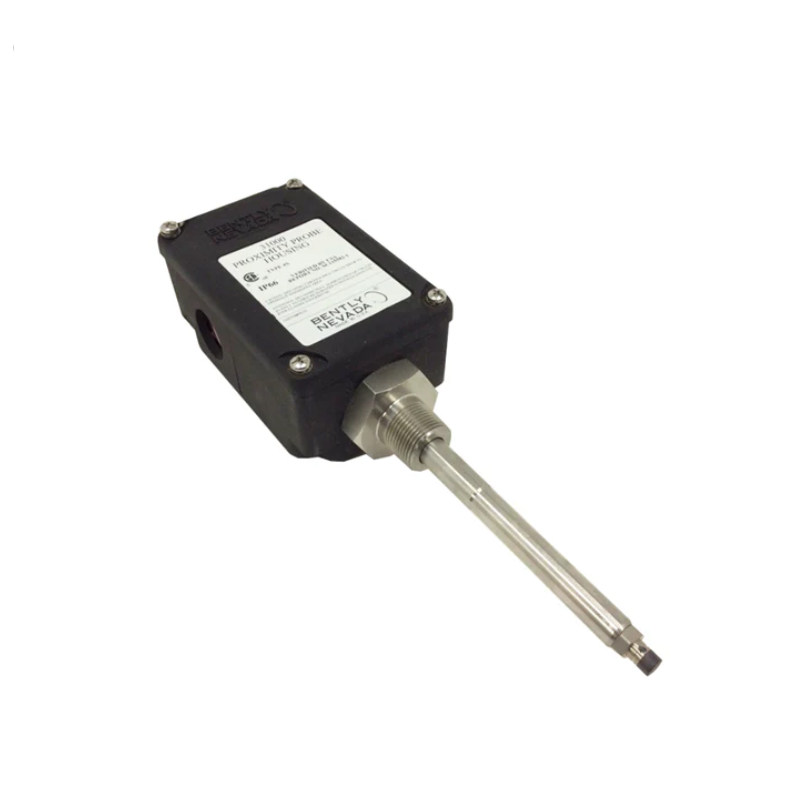

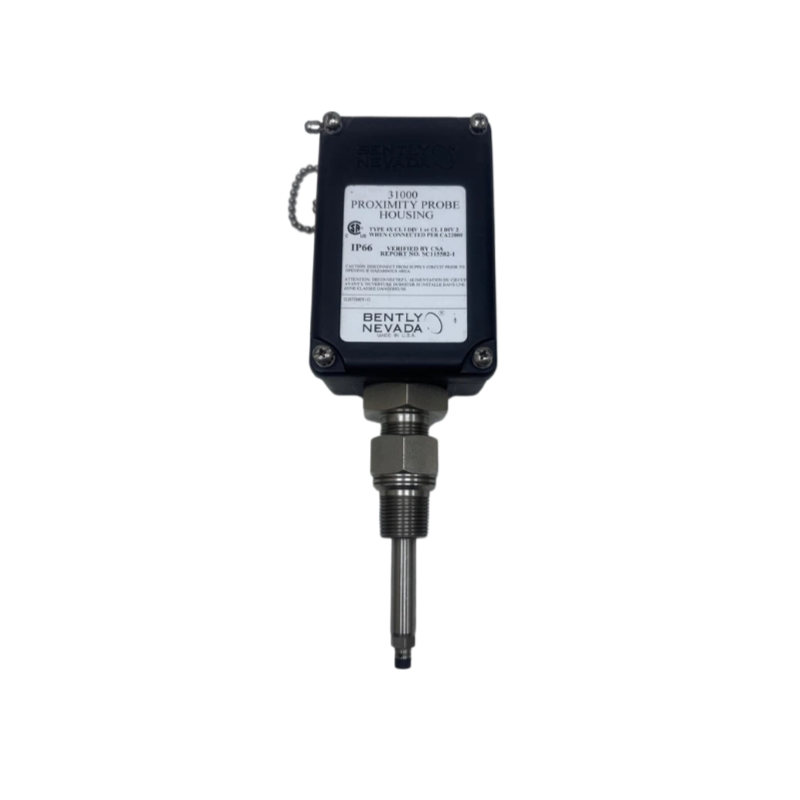

The Bently Nevada 31000-30-10-00-083-03-02 Proximity Probe Housing is a high-reliability external mounting assembly designed to support proximity probes used in rotating machinery condition monitoring systems. It provides both mechanical protection and stable probe positioning while allowing external access for inspection, adjustment, or replacement—helping reduce downtime during maintenance activities.
This configuration is typically supplied with a 3300 XL 11 mm proximity probe (connector protector version), a 1.0 m probe cable, an 83 mm probe penetration length, and a 3/4-14 NPT mounting thread system. The housing body is constructed from glass-reinforced Polyphenylene Sulfide (PPS) with stainless steel hardware, ensuring durability in harsh industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-30-10-00-083-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Probe Type | 3300 XL 11 mm Proximity Probe |
| Probe Cable Length | 1.0 m (39 in) |
| Probe Penetration | 83 mm (approx.) |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-Reinforced PPS |
| Hardware Material | Stainless Steel |
| Environmental Rating | Type 4X / IP66 |
| Compliance | API 670 Compatible |
| Installation Type | External Machine Mount |
