Engineered for Reliable Machinery Monitoring

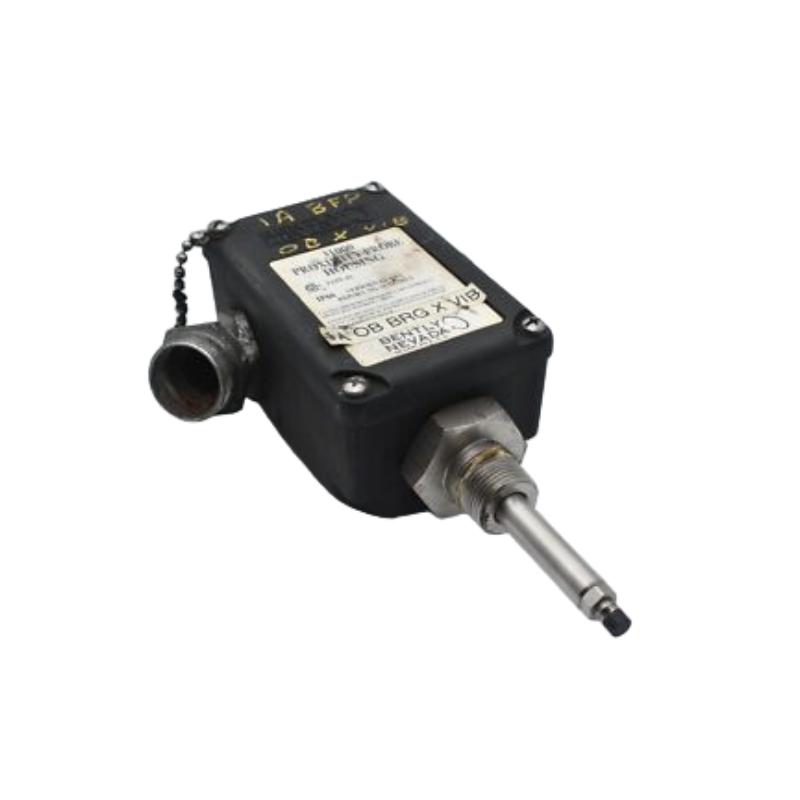

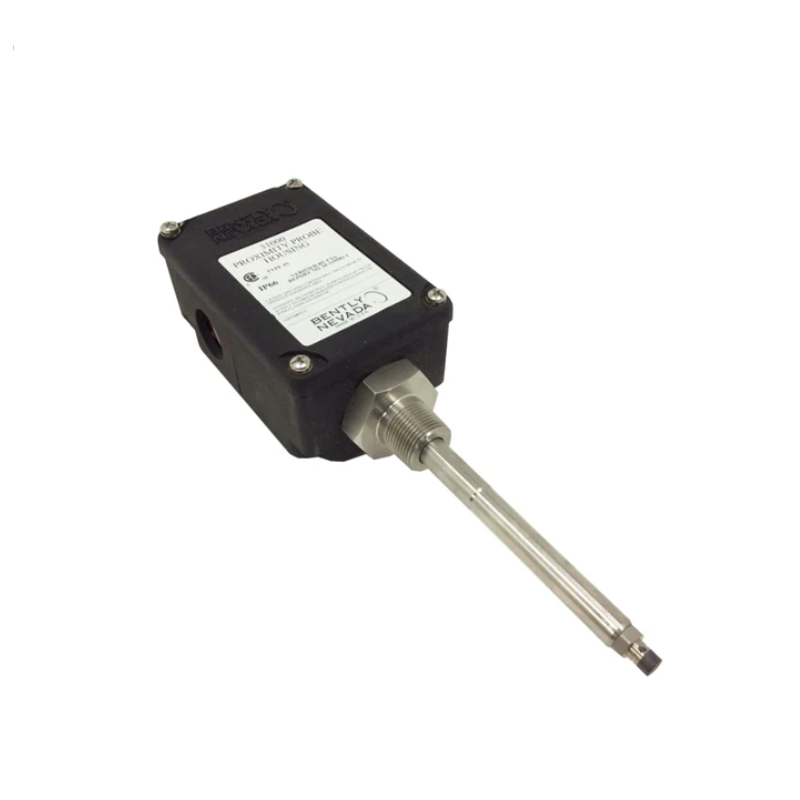

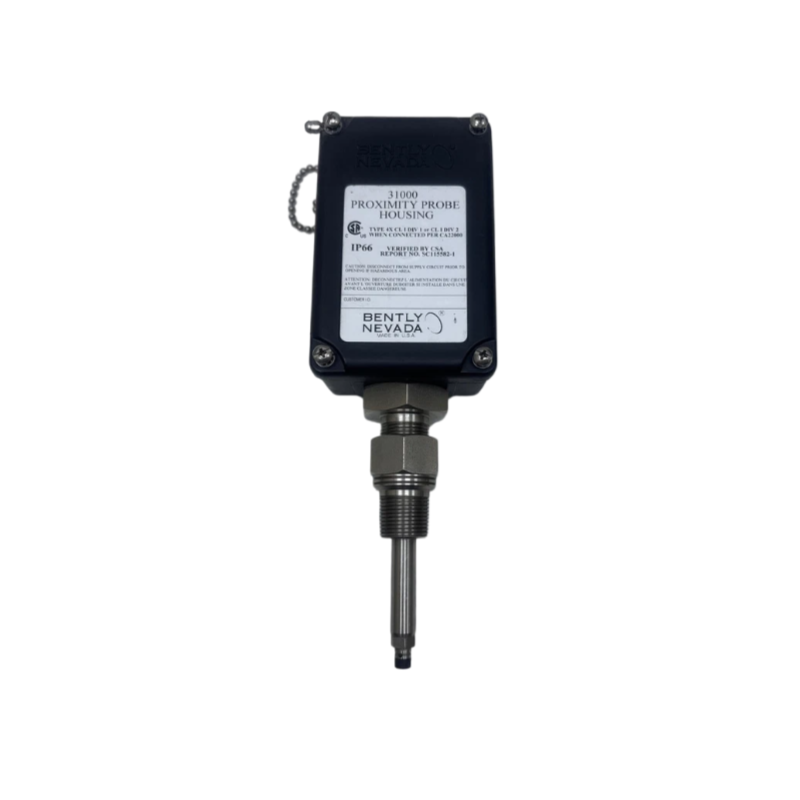

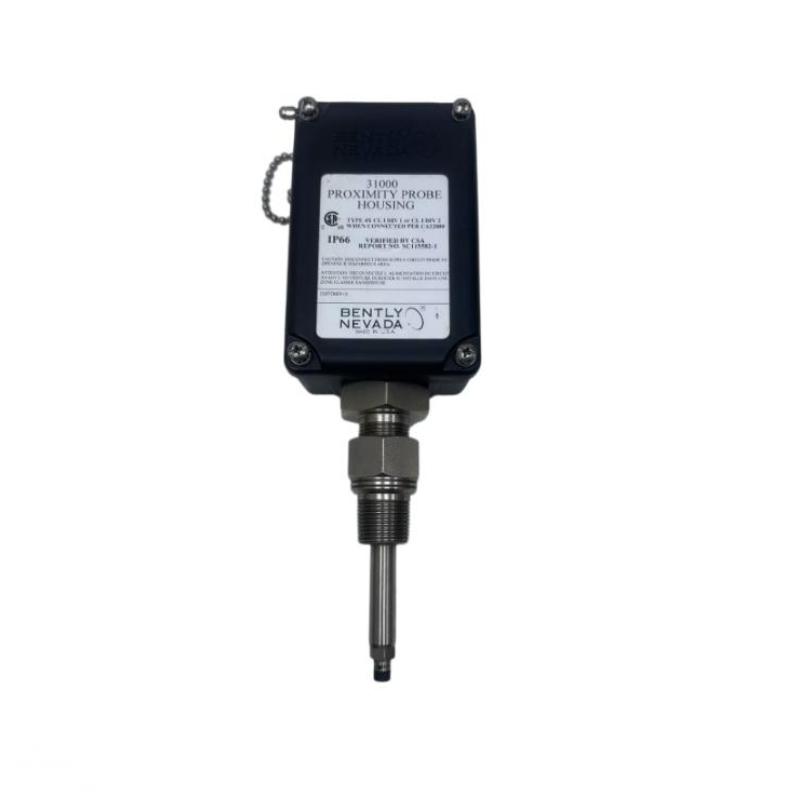

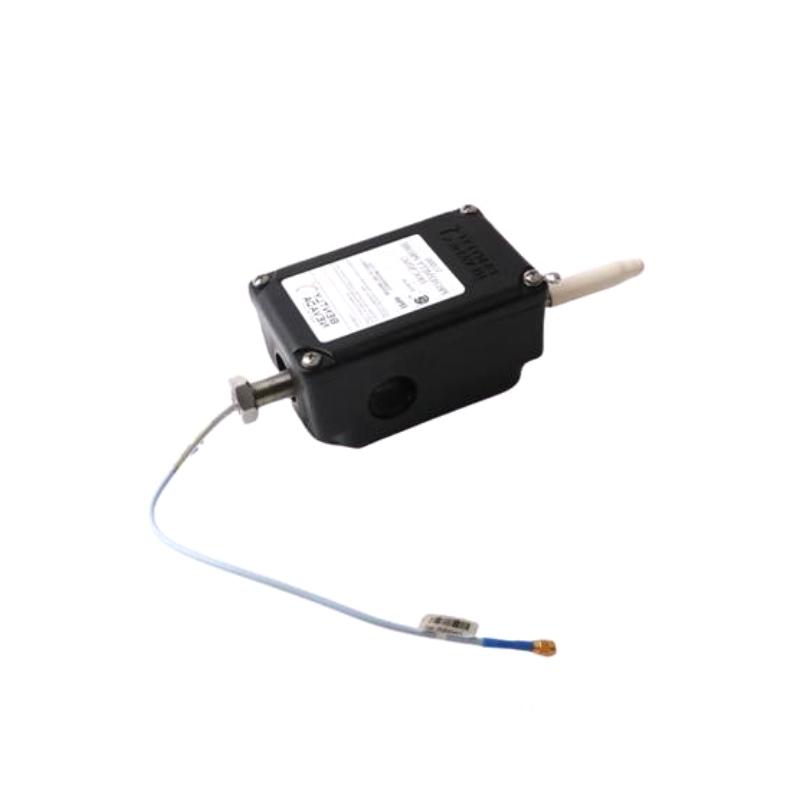

The Bently Nevada 31000-29-05-15-055-03-02 Proximity Probe Housing Assembly (Imperial) is designed to provide secure mounting and environmental protection for proximity probes used in rotating machinery monitoring systems. Its external mounting design enables technicians to inspect, adjust, or replace the installed probe without opening the machine, helping reduce maintenance time and improve equipment availability.
This configuration features a 3300 XL 8 mm proximity probe with connector protector, a 0.5 m probe cable, a 1.5 in (38 mm) standoff adapter, a 5.5 in (140 mm) probe penetration, and a 3/4-14 NPT mounting thread. Manufactured with a glass-reinforced PPS housing and corrosion-resistant stainless steel hardware, it offers dependable performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-29-05-15-055-03-02 |
| Product Type | Proximity Probe Housing Assembly (Imperial) |
| Installed Probe | 3300 XL 8 mm Proximity Probe with Connector Protector |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter Length | 1.5 in (38 mm) |
| Probe Penetration | 5.5 in (140 mm) |
| Conduit Fittings | Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT stainless steel reducer, cable seal grip with grommets |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-Reinforced Polyphenylene Sulfide (PPS) |
| Hardware Material | Corrosion-Resistant Stainless Steel |
| Environmental Rating | Type 4X / IP66 |
| Compatible Systems | Bently Nevada 3300 XL 8 mm Proximity Transducer Systems |
| Compliance | API 670 Compatible |
