Product Overview

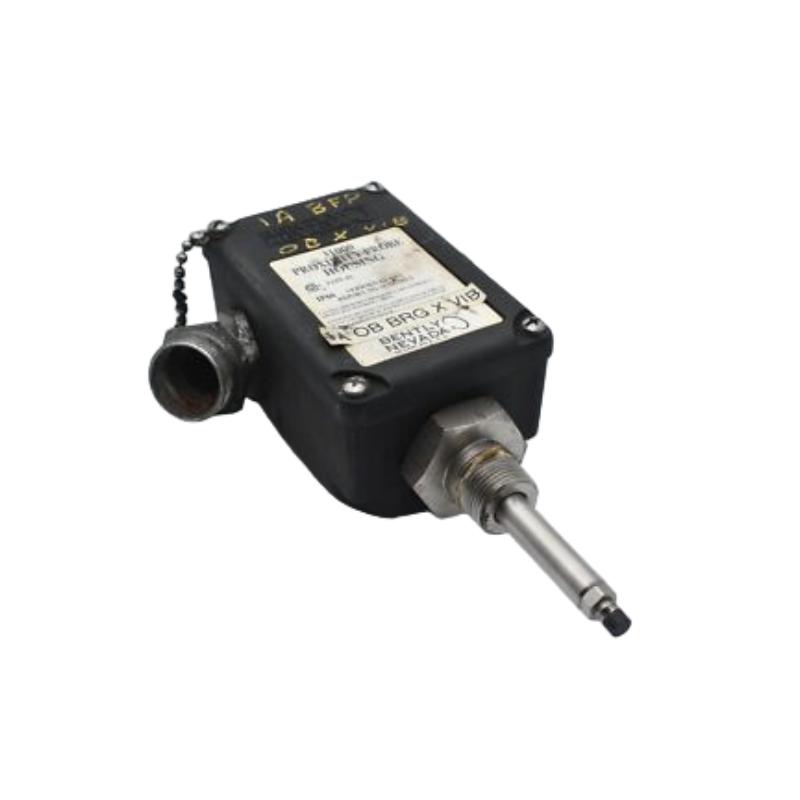

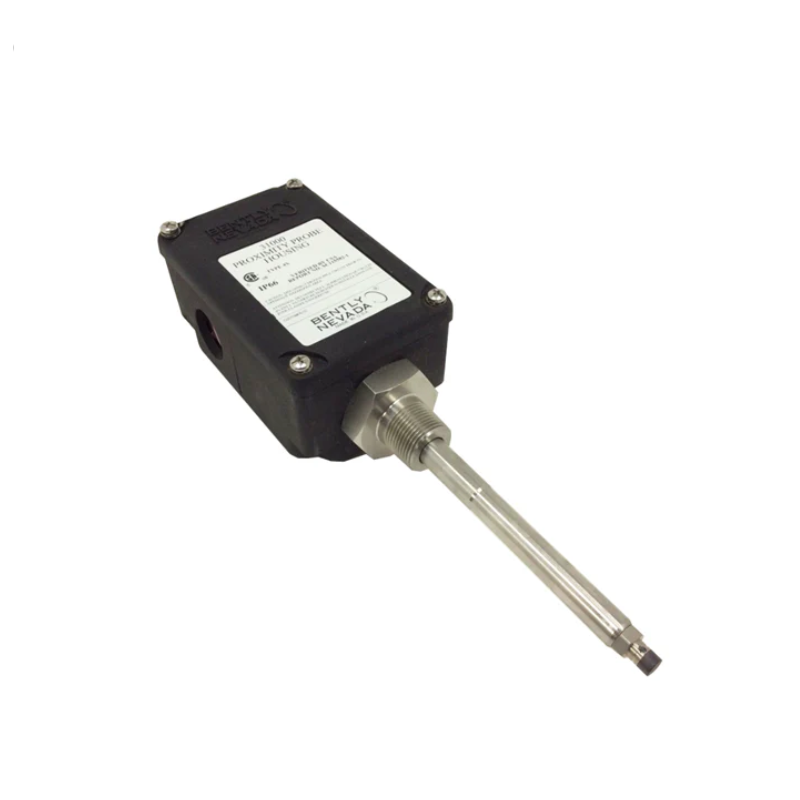

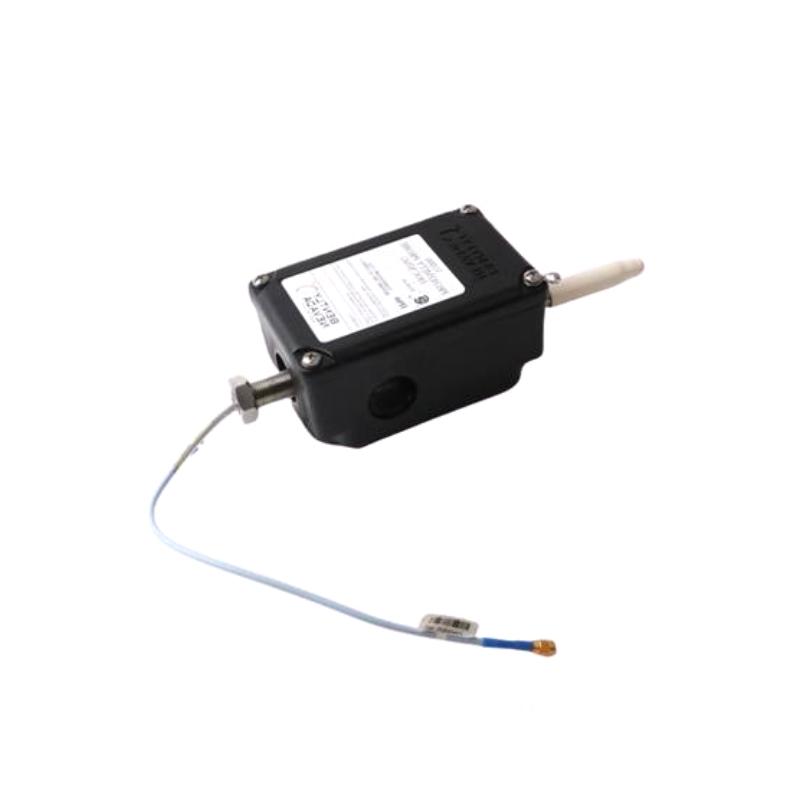

The Bently Nevada 31000-29-05-15-033-03-02 Proximity Probe is a complete proximity probe housing assembly designed to provide reliable probe mounting and long-term protection for industrial machinery condition monitoring applications. Built for external installation, the assembly allows technicians to inspect, adjust, or replace the proximity probe without dismantling the monitored equipment, reducing maintenance time and improving equipment availability.
This configuration includes a 3300 XL 8 mm proximity probe with connector protector, a 0.5 m probe cable, a 38 mm standoff adapter, an 83.8 mm probe penetration, and a 3/4-14 NPT mounting thread. The housing is manufactured from glass-reinforced Polyphenylene Sulfide (PPS) with corrosion-resistant stainless steel components, providing dependable performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-29-05-15-033-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Installed Probe | 3300 XL 8 mm Proximity Probe with Connector Protector |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter Length | 38 mm (1.5 in) |
| Probe Penetration | 83.8 mm (3.3 in) |
| Fittings Configuration | Two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT stainless steel reducer, cable seal grip with grommets |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-Reinforced Polyphenylene Sulfide (PPS) |
| Hardware Material | Corrosion-Resistant Stainless Steel |
| Environmental Rating | Type 4X / IP66 |
| Compatible Systems | Bently Nevada 3300 XL 8 mm Proximity Transducer Systems |
| Industry Standard | API 670 Compatible |
