Product Overview

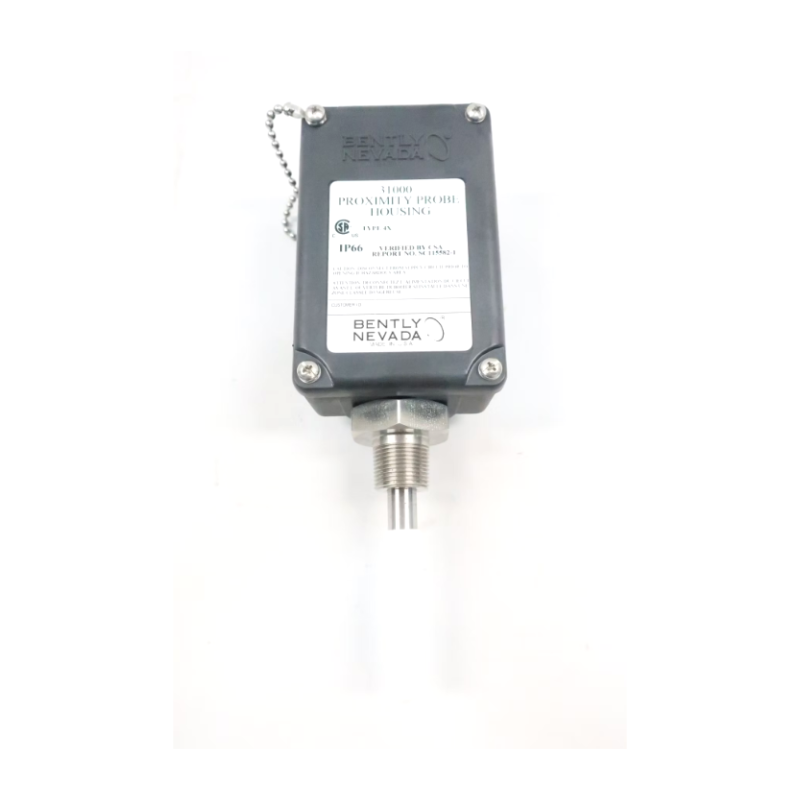

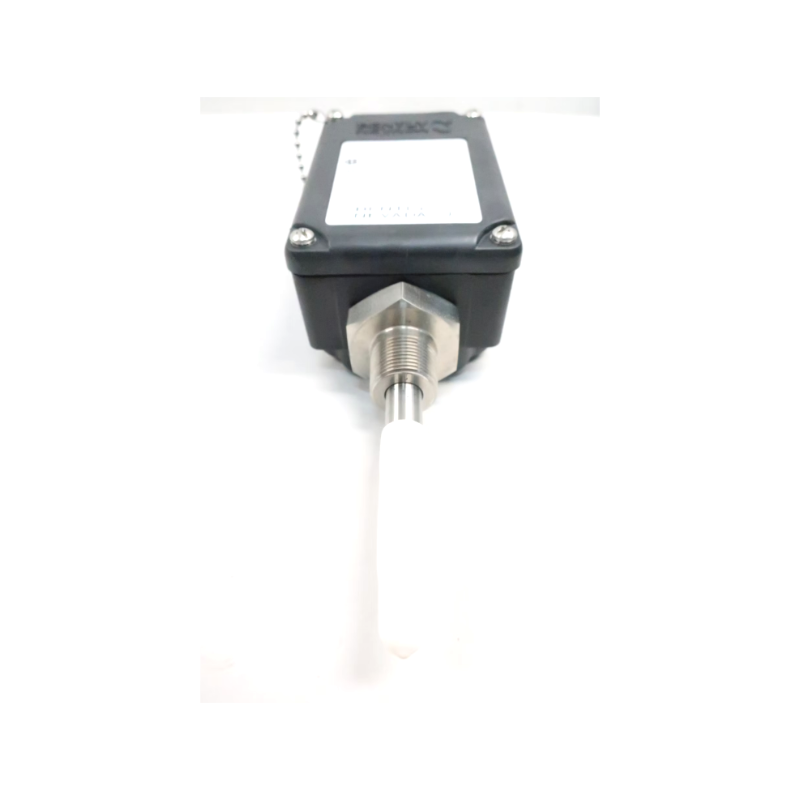

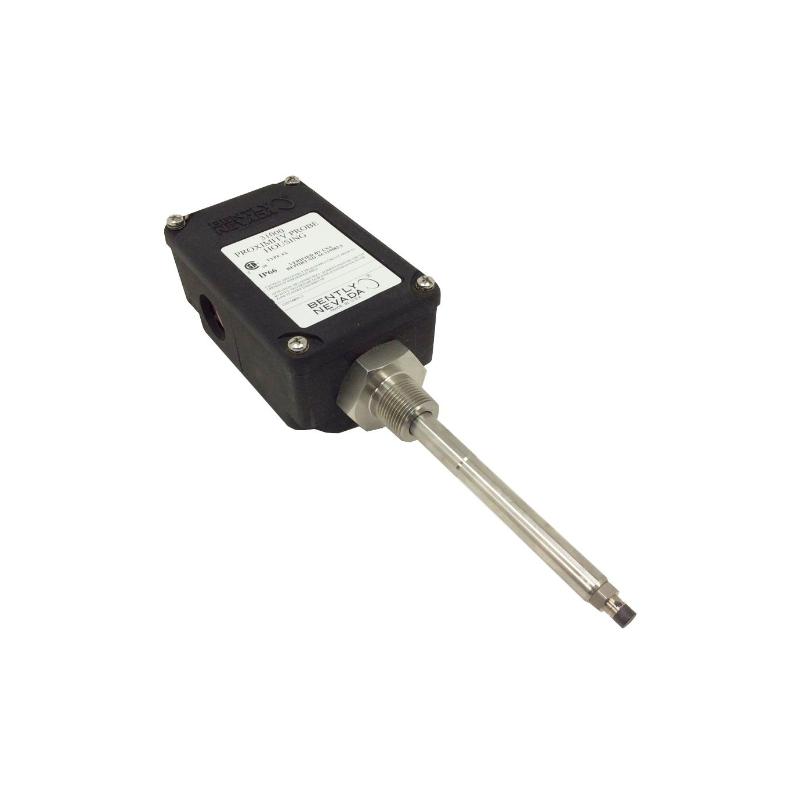

The Bently Nevada 31000-16-10-00-159-00-02 Proximity Probe Housing is a robust mounting assembly designed to support and protect proximity probes used in industrial machinery condition monitoring systems. It provides a secure installation point while allowing convenient external access for probe adjustment, inspection, and maintenance without disassembling the monitored equipment.
This configuration includes a 3300 XL 8 mm proximity probe with connector, a 1.0 m probe cable, 159 mm probe penetration, and a 3/4-14 NPT mounting thread. Manufactured with a high-strength glass-reinforced Polyphenylene Sulfide (PPS) housing and corrosion-resistant stainless steel hardware, it delivers dependable performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-16-10-00-159-00-02 |
| Product Type | Proximity Probe Housing |
| Installed Probe | 3300 XL 8 mm Proximity Probe with Connector |
| Probe Cable Length | 1.0 m (39 in) |
| Standoff Adapter | None |
| Probe Penetration | 159 mm |
| Fittings | Without fittings (two plugs and two washers) |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-Reinforced Polyphenylene Sulfide (PPS) |
| Hardware Material | Corrosion-Resistant Stainless Steel |
| Environmental Protection | Type 4X / IP66 |
| Compatible Systems | Bently Nevada 3300 XL Proximity Transducer Systems |
| Installation Type | External Machine Mounting |
| Operating Temperature | -51°C to +105°C |
| Industry Standard | API 670 Compatible |
