Product Introduction

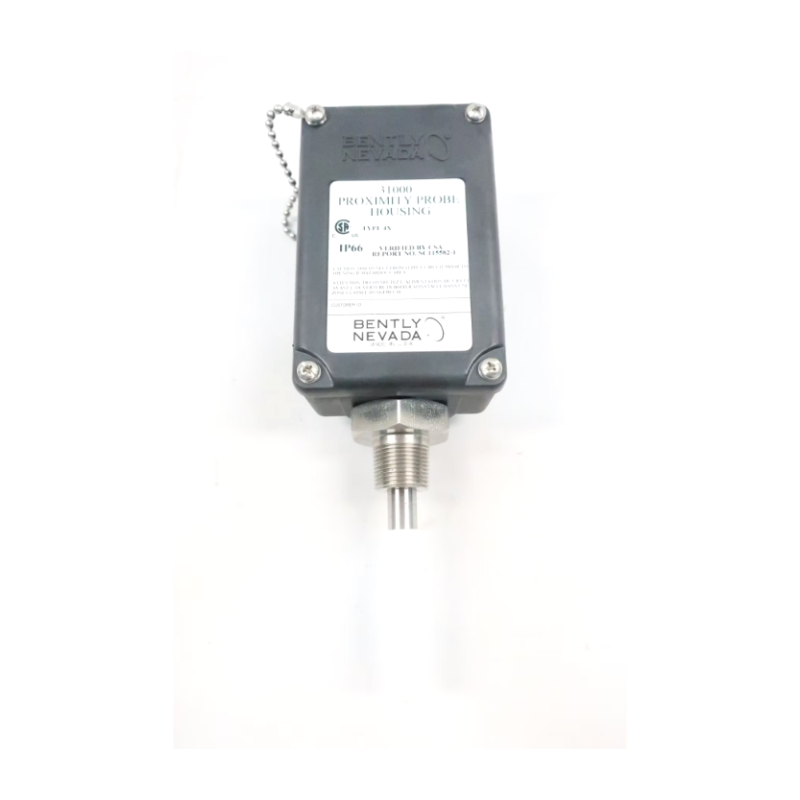

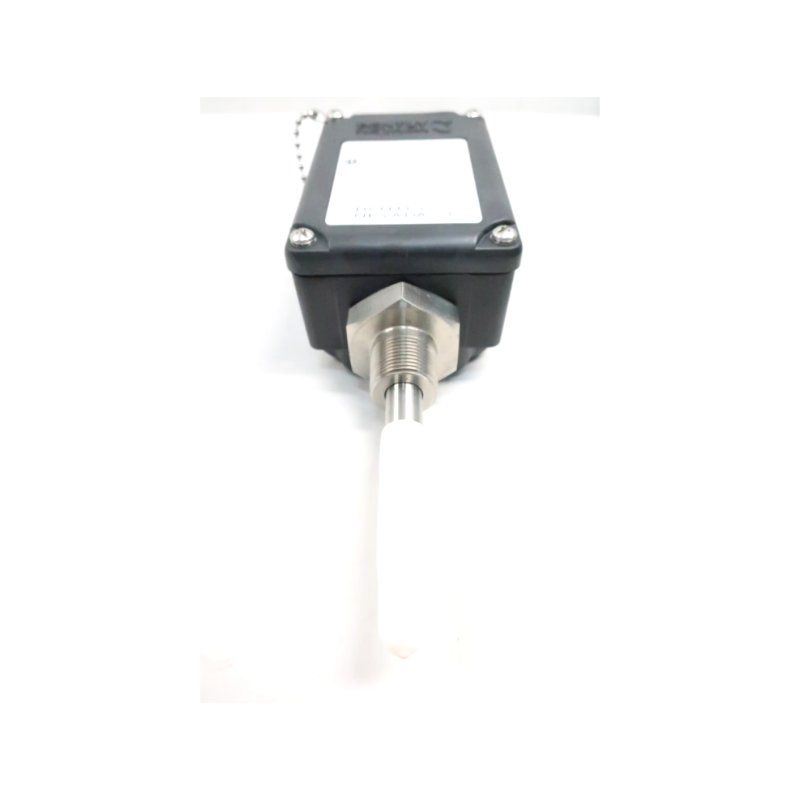

The Bently Nevada 31000-16-05-00-070-03-02 Proximity Probe Housing Assembly is a durable mounting solution designed to simplify the installation and maintenance of proximity probes used in industrial machinery monitoring systems. It provides a secure enclosure that protects the probe and associated cable while allowing convenient external access for routine inspection, probe adjustment, and replacement.
This configuration is supplied with a 3300 XL 8 mm proximity probe, a 0.5 m probe cable, 70 mm probe penetration, and 3/4-14 NPT mounting thread, making it suitable for a wide range of rotating equipment monitoring applications. Manufactured from high-strength glass-reinforced PPS with corrosion-resistant stainless steel components, the housing delivers dependable long-term performance in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 31000-16-05-00-070-03-02 |
| Product Type | Proximity Probe Housing Assembly |
| Installed Probe | 3300 XL 8 mm Proximity Probe |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter | None |
| Probe Penetration | 70 mm |
| Fittings Configuration | Two plugs, one 3/4-14 NPT fitting, one 3/4-14 NPT to 1/2-14 NPT stainless steel reducer, cable seal grip with grommets |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-Reinforced Polyphenylene Sulfide (PPS) |
| Hardware Material | Corrosion-Resistant Stainless Steel |
| Environmental Protection | Type 4X / IP66 |
| Compatible Systems | Bently Nevada 3300 XL Proximity Transducer Systems |
| Operating Temperature | -51°C to +105°C |
| Compliance | API 670 Compatible |
