System Overview

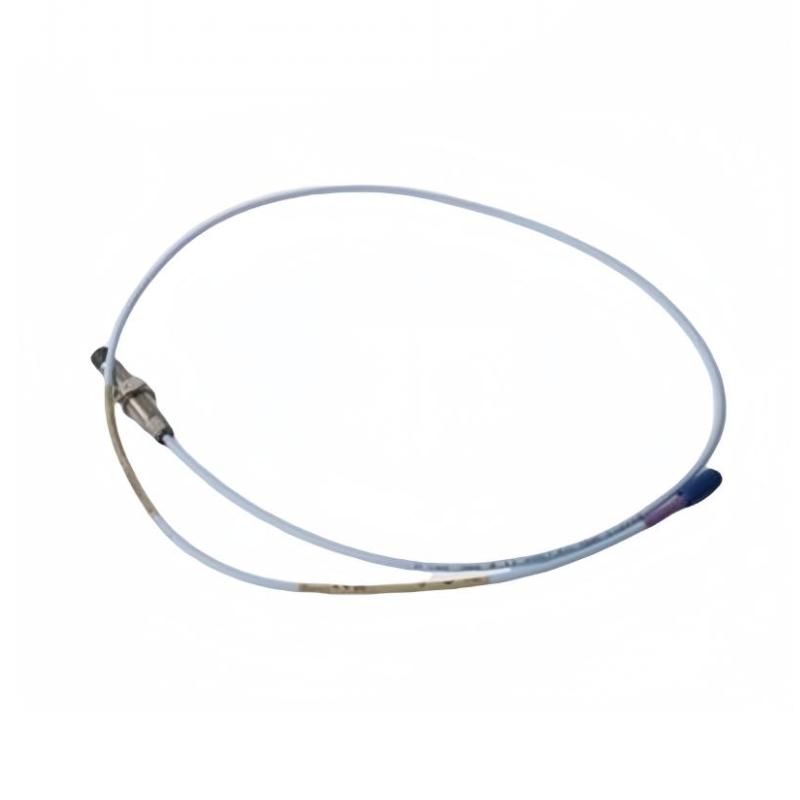

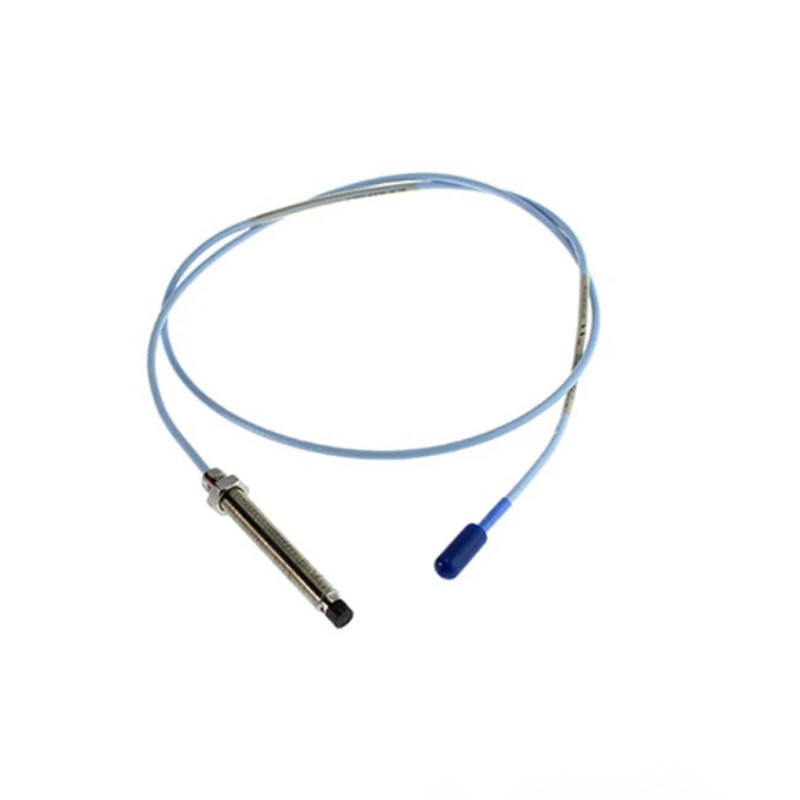

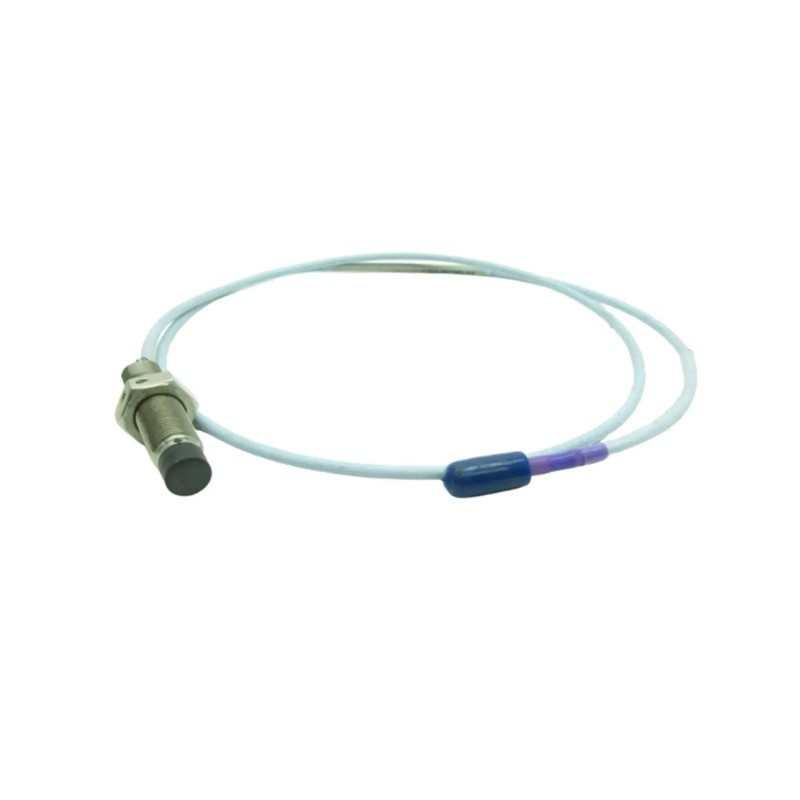

The Bently Nevada 330703-000-060-10-11-00 3300 XL 11 mm Proximity Probe is a high-precision non-contact sensor designed for continuous monitoring of shaft vibration and displacement in industrial rotating machinery. As part of the 3300 XL 11 mm Proximity Transducer System, this probe delivers stable measurement performance with an extended linear sensing range, making it suitable for applications where greater sensing distance is required.
This configuration incorporates an M14 × 1.5 threaded probe body, 60 mm overall case length, 1.0 m FluidLoc® cable, and a Miniature Coaxial ClickLoc® connector with connector protector. The robust construction and reliable signal transmission help ensure consistent operation in demanding industrial environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-060-10-11-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Series | 3300 XL 11 mm |
| Measurement Principle | Eddy Current Non-Contact Measurement |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 60 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Cable Type | FluidLoc Cable |
| Connector Type | Miniature Coaxial ClickLoc Connector with Connector Protector |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Cable Jacket | Fluorinated Ethylene Propylene (FEP) |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Agency Approval | Standard (Option 00) |
