Product Summary

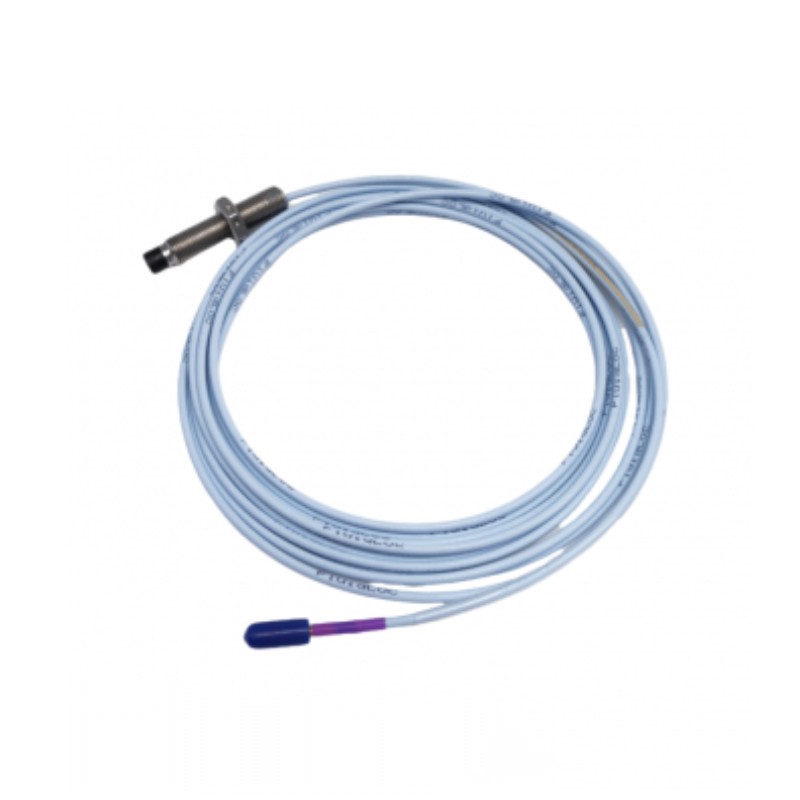

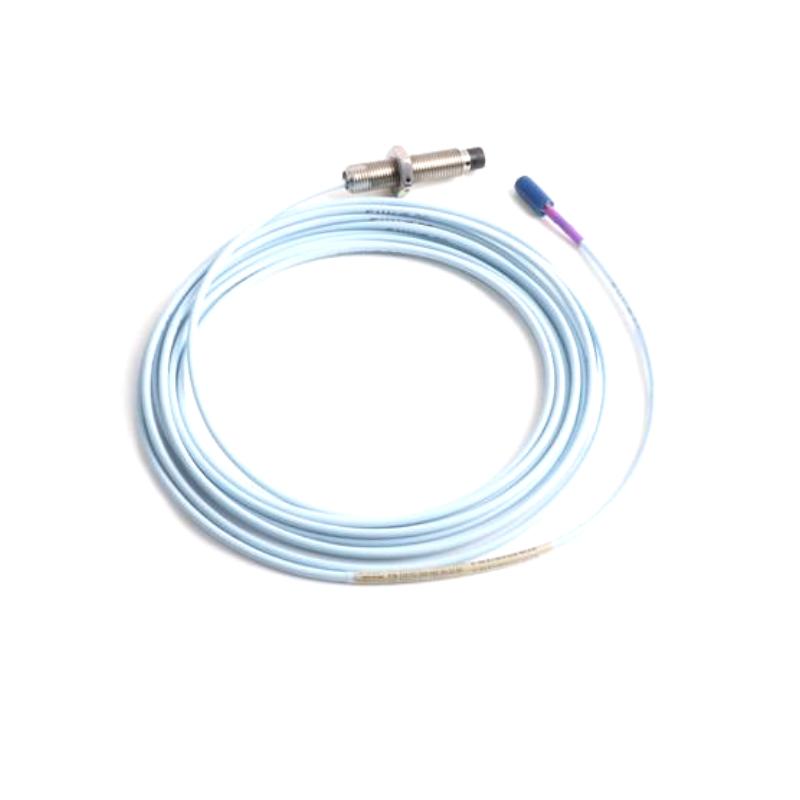

The Bently Nevada 330703-000-090-50-02-00 3300 XL 11 mm Proximity Probe is a precision eddy current sensor developed for continuous condition monitoring of rotating machinery. As a key component of the 3300 XL 11 mm Proximity Transducer System, it delivers accurate non-contact measurement of shaft vibration and displacement, helping industrial facilities maintain reliable equipment performance.
This configuration features an M14 × 1.5 threaded probe body, a 90 mm case length, a 5.0 m standard cable, and a Miniature Coaxial ClickLoc connector. Its extended sensing capability and durable stainless steel construction make it suitable for demanding industrial monitoring applications where stable, repeatable measurements are essential.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330703-000-090-50-02-00 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Series | 3300 XL 11 mm |
| Measurement Technology | Eddy Current Non-Contact Sensing |
| Probe Diameter | 11 mm |
| Thread Type | M14 × 1.5 |
| Armor Option | Without Armor |
| Unthreaded Length | 0 mm |
| Overall Case Length | 90 mm |
| Total Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature Coaxial ClickLoc Connector |
| Cable Type | Standard Cable |
| Probe Housing Material | AISI 304 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Compatible System | 3300 XL 11 mm Proximity Transducer System |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Agency Approval | Standard (Option 00) |
