High-Stability Industrial Sensing for Critical Rotating Equipment Protection

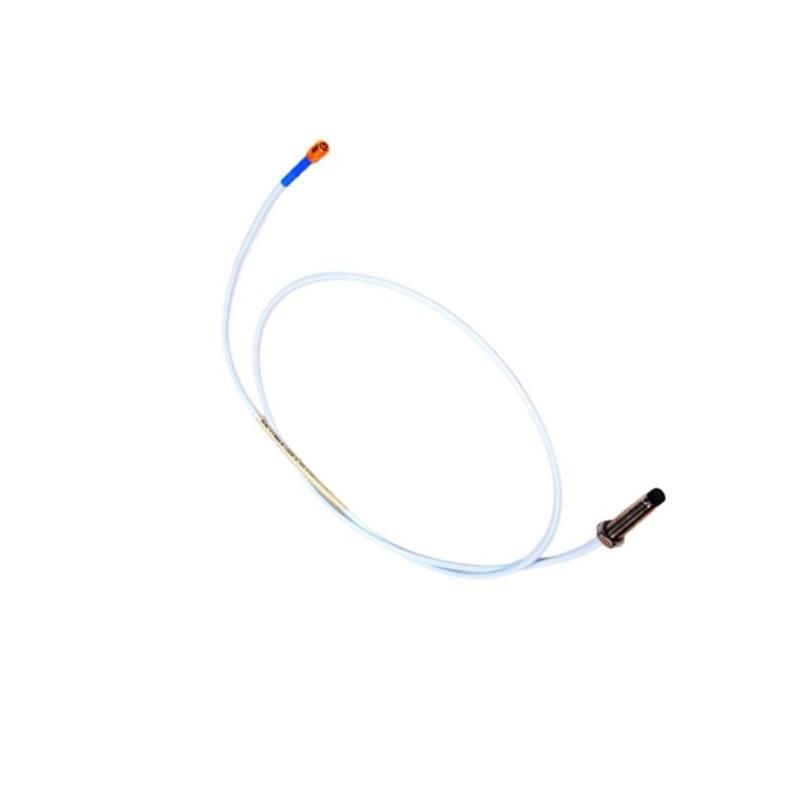

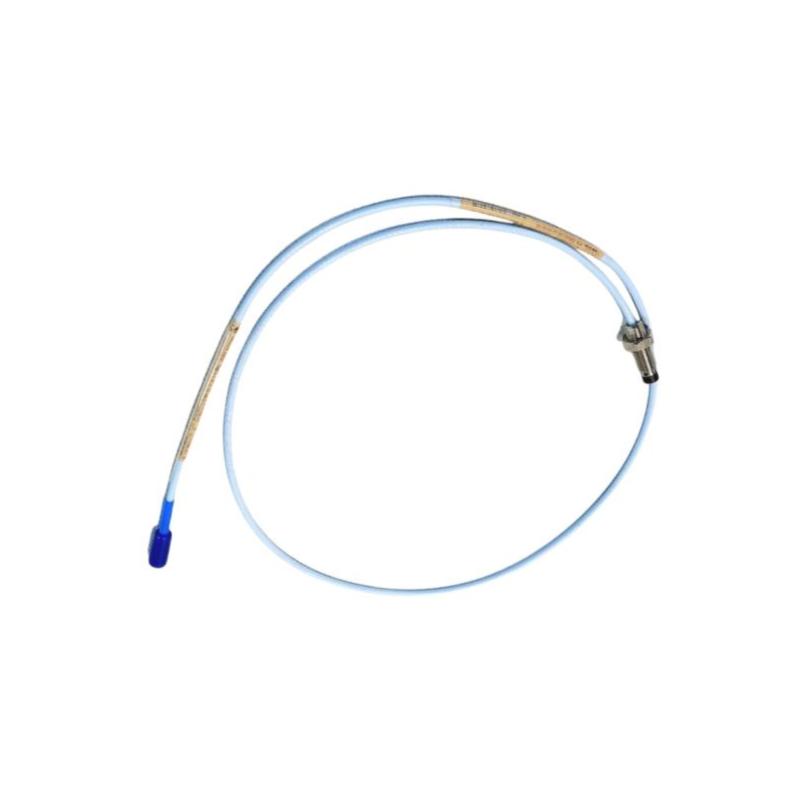

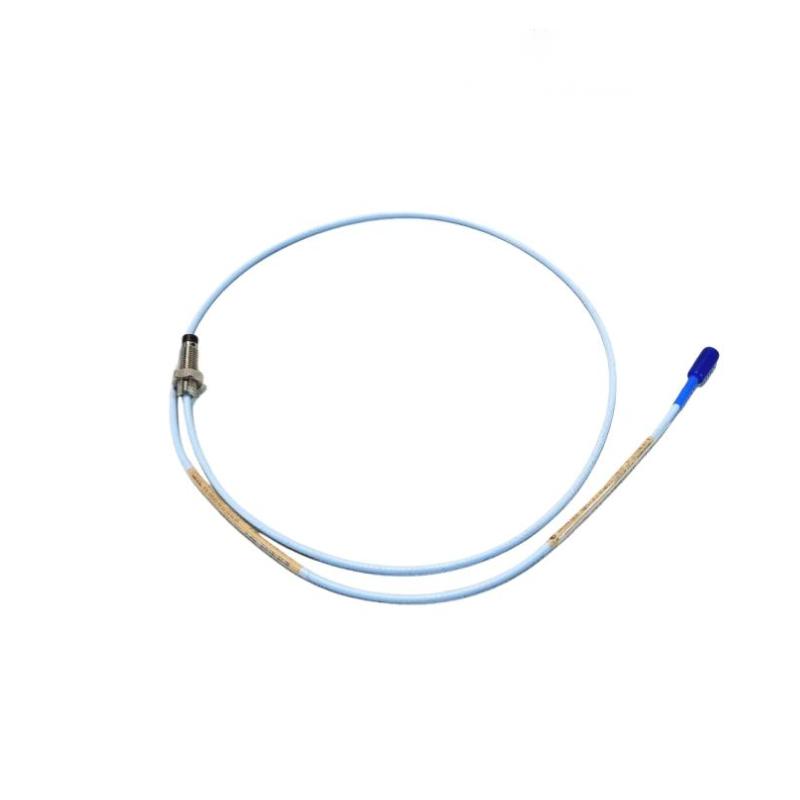

The Bently Nevada 330101-30-49-10-02-05 3300 XL 8 mm Proximity Probe is a high-precision eddy-current sensor engineered for continuous, non-contact measurement of shaft vibration, radial displacement, and position in industrial rotating machinery. As part of the proven 3300 XL proximity transducer system, it delivers consistent signal integrity, strong EMI resistance, and long-term reliability in harsh operating environments.
This configuration (30-49-10-02-05) is typically associated with a 3.0-inch unthreaded length, 4.9-inch case length, 1.0-meter system cable, ClickLoc connector, and certified industrial configuration option, making it suitable for deeper installation requirements in turbines, compressors, and heavy-duty rotating equipment. The “30-49” geometry is often selected for applications requiring extended probe reach and mechanically reinforced mounting stability in high-vibration machinery zones.
Built with stainless steel housing and a PPS sensing tip, the probe ensures long-term dimensional stability and accurate signal output even under continuous industrial stress.
Technical Specifications Overview
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330101-30-49-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Measurement Principle | Eddy Current (Non-Contact) |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 3.0 in |
| Case Length | 4.9 in |
| System Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2.0 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) ±5% |
| Operating Temperature | -52°C to +177°C |
| Frequency Response | Up to 10 kHz |
| System Compatibility | 3300 XL Proximitor systems |
| Weight | Approx. 0.22–0.38 kg |
Industrial Applications
The 330101-30-49-10-02-05 probe is widely used in industries where rotating machinery reliability directly impacts production safety and uptime.
Typical applications include:
-
Steam turbine vibration monitoring
-
Gas turbine condition monitoring systems
-
Centrifugal compressor diagnostics
-
Industrial pump performance monitoring
-
Electric motor shaft displacement measurement
-
Generator protection systems
-
Oil & gas production facilities
-
Petrochemical refining plants
-
Power generation stations
-
Heavy industrial rotating machinery systems
It continuously tracks shaft behavior, enabling early detection of imbalance, misalignment, looseness, and bearing wear—supporting predictive maintenance strategies and reducing unplanned downtime.
Key Advantages
High-Accuracy Non-Contact Measurement
Eddy-current sensing ensures stable and repeatable vibration and displacement monitoring.
Extended Mechanical Geometry
The 4.9-inch class configuration supports deeper installation and reinforced mounting needs.
Industrial Durability
Stainless steel housing and PPS probe tip provide excellent resistance to vibration and thermal stress.
Predictive Maintenance Capability
Enables early fault detection for improved asset lifecycle management.
Seamless System Integration
Fully compatible with 3300 XL Proximitor systems and extension cables.
Long-Term Operational Stability
Designed for continuous 24/7 monitoring in mission-critical environments.
Technical FAQs
Q1: What is the main function of this probe?
It measures shaft vibration, displacement, and position without physical contact.
Q2: What technology does it use?
It uses eddy-current non-contact sensing technology.
Q3: What does the “30-49” configuration represent?
It indicates a 3.0-inch unthreaded length and 4.9-inch case length geometry.
Q4: What is the system cable length?
It uses a 1.0-meter cable assembly.
Q5: Which industries use this probe?
Power generation, oil & gas, petrochemical, and heavy industrial sectors.
Q6: Does it require physical contact with rotating parts?
No, it operates using non-contact eddy-current sensing.
Q7: What materials are used in construction?
AISI 303/304 stainless steel housing with PPS sensing tip.
Q8: Can it operate in harsh environments?
Yes, it is designed for high vibration and temperature conditions.
Q9: Is it compatible with other 3300 XL components?
Yes, it is fully interchangeable within the 3300 XL system architecture.
Q10: What is the main benefit for maintenance teams?
It enables early detection of mechanical degradation, improving reliability and reducing downtime.
